Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B66387Q0100K187 E65/32/27-N87-DG100 EPCOS - TDK Electronics	294	10.87	- + RFQ	Datasheet	Bulk	E65/32/27	Active	E	E 65 x 32 x 27	N87	-	100 nH	±10%	Distributed Gapped	-	2200	0.27	147	535	529	78600	Uncoated	1.291 (32.80mm)
B66387Q0400K187 E65/32/27-N87-DG400 EPCOS - TDK Electronics	119	10.87	- + RFQ	Datasheet	Bulk	E65/32/27	Active	E	E 65 x 32 x 27	N87	-	400 nH	±10%	Distributed Gapped	-	2200	0.27	147	535	529	78600	Uncoated	1.291 (32.80mm)
5975011101 75 TOROID Fair-Rite Products Corp.	140	12.60	- + RFQ	Datasheet	Box	-	Active	Toroid	-	75	2.900 (73.66mm)	-	±25%	Ungapped	-	5000	-	167	215	-	35900	Uncoated	0.500 (12.70mm)
U46/40/28-3C90 U AND UR CORES Ferroxcube	209	13.55	- + RFQ	Datasheet	Bulk	-	Active	U	U 46 x 40 x 28	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.551 (39.40mm)
B65881Q0100K095 PQ35/35-N95-DG100 EPCOS - TDK Electronics	342	16.34	- + RFQ	Datasheet	Bulk	PQ35/35	Active	PQ	PQ 35 x 35	N95	-	100 nH	±10%	Distributed Gapped	-	3000	0.47	79.7	171	161	13650	Uncoated	0.685 (17.40mm)

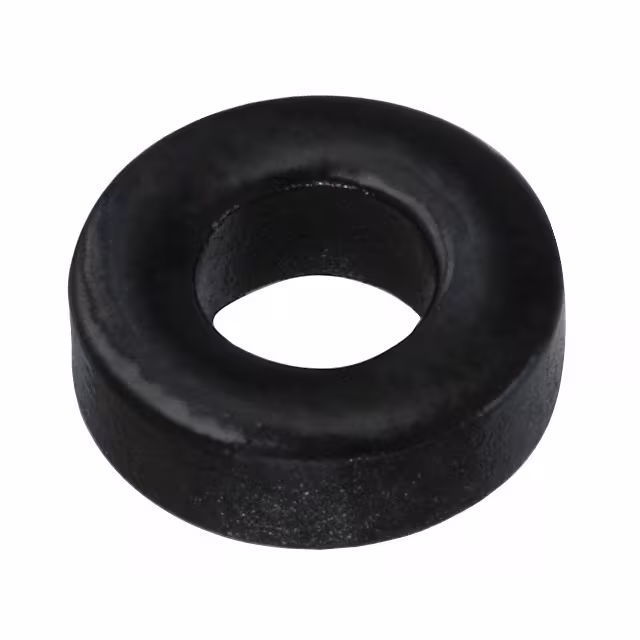

35T0375-10H FERRITE CORE TOROID Laird-Signal Integrity Products	2,366	0.40	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	-	0.415 (10.55mm)	2.214 µH	±20%	Ungapped	-	5000	-	-	-	-	-	Epoxy	0.160 (4.06mm)
35T0255-10P FERRITE CORE TOROID Laird-Signal Integrity Products	2,551	0.43	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	35	-	-	±20%	Ungapped	-	5000	-	-	-	-	-	Parylene	-
E14/3.5/5-3C90 PLANAR E CORES Ferroxcube	3,659	0.76	- + RFQ		Bulk	-	Active	E	E 14 x 3.5 x 5	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)
35T0501-10H FERRITE INDUCTR TOROID .540 OD Laird-Signal Integrity Products	2,641	0.82	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	-	0.540 (13.72mm)	3.659 µH	±20%	Ungapped	-	5000	-	-	-	-	-	Epoxy	0.287 (7.30mm)
E18/4/10-3F36 PLANAR E CORES Ferroxcube	2,230	1.04	- + RFQ	Datasheet	Bulk	-	Active	E	E 18 x 4 x 10	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)
B66479G0000X195 FERRITE CORE EPCOS - TDK Electronics	3,224	1.64	- + RFQ	Datasheet	Box	EQ13/9/3	Active	-	-	N95	-	-	-	-	-	3000	-	-	-	-	-	-	-
E32/6/20/R-3C90 PLANAR E CORES Ferroxcube	3,430	2.00	- + RFQ		Bulk	-	Active	E	E 32 x 6 x 20	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)
PLT32/20/3.2-3F36 PLANAR E CORES Ferroxcube	3,480	2.04	- + RFQ	Datasheet	Bulk	-	Active	PLT	PLT 32 x 20 x 3.2	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.125 (3.18mm)
B65885A0000R087 FERRITE CORE PQ 2.35UH N87 2PCS EPCOS - TDK Electronics	3,109	2.15	- + RFQ	Datasheet	Box	PQ16/11.6	Active	PQ	PQ 16 x 11.6	N87	-	2.35 µH	-20%, +30%	Ungapped	1200	2200	0.641	27	42.1	38.5	1136	Uncoated	0.228 (5.80mm)
B65885A0000R097 FERRITE CORE PQ 2.45UH N97 2PCS EPCOS - TDK Electronics	3,103	2.73	- + RFQ	Datasheet	Box	PQ16/11.6	Active	PQ	PQ 16 x 11.6	N97	-	2.45 µH	-20%, +30%	Ungapped	1250	2300	0.641	27	42.1	38.5	1136	Uncoated	0.228 (5.80mm)
B65875B0000R092 FERRITE CORE PQ 2.4UH N92 2PCS EPCOS - TDK Electronics	424	4.36	- + RFQ	Datasheet	Box	PQ20/16	Active	PQ	PQ 20 x 16	N92	-	2.4 µH	-20%, +30%	Ungapped	1105	1500	0.579	37	64	57.6	2367	Uncoated	0.319 (8.10mm)
B65875B0000R095 FERRITE CORE PQ 3.75UH N95 2PCS EPCOS - TDK Electronics	232	4.72	- + RFQ	Datasheet	Box	PQ20/16	Active	PQ	PQ 20 x 16	N95	-	3.75 µH	-20%, +30%	Ungapped	1730	2000	0.579	37	64	57.6	2367	Uncoated	0.319 (8.10mm)
T60006L2030V129 NANOCRYSTALLINE CORE, 30X20X15 VACUUMSCHMELZE	198	198.00	- + RFQ	Datasheet	Box	-	Active	Toroid	-	-	1.291 (32.80mm)	15.7 µH	-	Ungapped	-	-	-	78.5	57	-	-	Uncoated	0.701 (17.80mm)

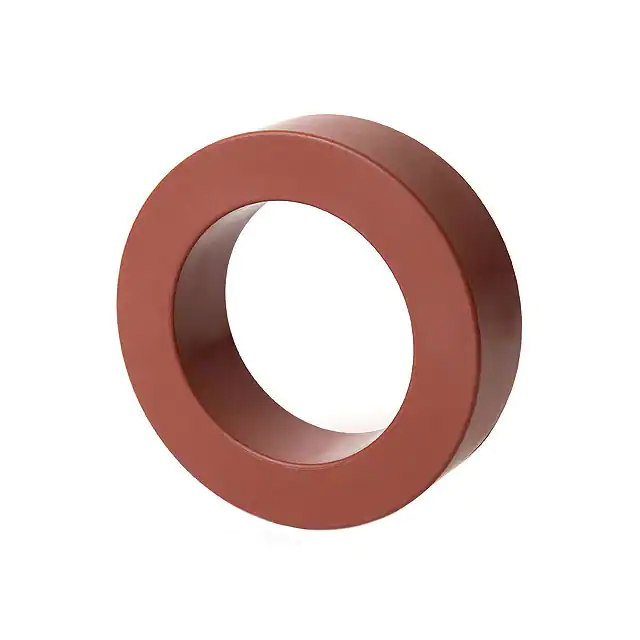

T60006L2040W452 NANOCRYSTALLINE CORE, 40X32X15 VACUUMSCHMELZE	265	265.00	- + RFQ	Datasheet	Box	-	Active	Toroid	-	-	1.697 (43.15mm)	10.2 µH	-	Ungapped	-	-	-	113	45.6	-	-	Uncoated	0.728 (18.50mm)
B65701T0400A048 FERRITE CORE P 400NH N48 2PCS EPCOS - TDK Electronics	220	13.11	- + RFQ	Datasheet	Box	P30/19	Active	P (Pot Core)	P 30 x 19	N48	1.200 (30.50mm)	400 nH	±3%	Gapped	105	-	0.33	45	136	-	6120	Uncoated	0.374 (9.50mm)
