Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
TX25/15/10-3E12 FERRITE CORES ROUND Ferroxcube	750	2.25	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 25 x 15 x 10	-	1.007 (25.95mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.429 (10.90mm)
E42/21/15-3C94 FERRITE CORE Ferroxcube	768	2.27	- + RFQ	Datasheet	Bulk	-	Active	E	E 42 x 21 x 15	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.827 (21.00mm)

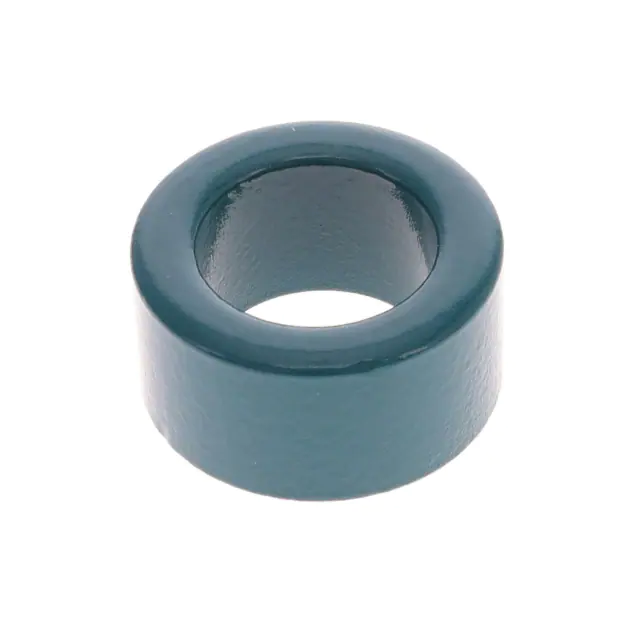

5976022121 76 COATED TOROID Fair-Rite Products Corp.	216	2.28	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	76	1.185 (30.10mm)	12.8 µH	±30%	Ungapped	-	10000	0.978	73.2	74.9	-	5480	Plastic	0.630 (16.00mm)
E32/6/20/R-3F36 FERRITE CORE Ferroxcube	691	2.40	- + RFQ	Datasheet	Bulk	-	Active	E	E 32 x 6 x 20	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)
B64290L0615X087 FERRITE CORES EPCOS - TDK Electronics	927	2.54	- + RFQ	Datasheet	Bulk	TX25.3/14.8/15	Active	Toroid	R 25.3 x 14.8 x 15	N87	-	-	±25%	Ungapped	-	2200	0.78	60.07	76.89	-	4619	Epoxy	-
B65805J0000R087 FERRITE CORE RM 2UH N87 2PCS EPCOS - TDK Electronics	300	2.76	- + RFQ	Datasheet	Box	RM5	Active	RM	RM 5	N87	-	2 µH	-20%, +30%	Ungapped	1480	2200	0.93	22.1	23.8	18	526	Uncoated	0.207 (5.25mm)

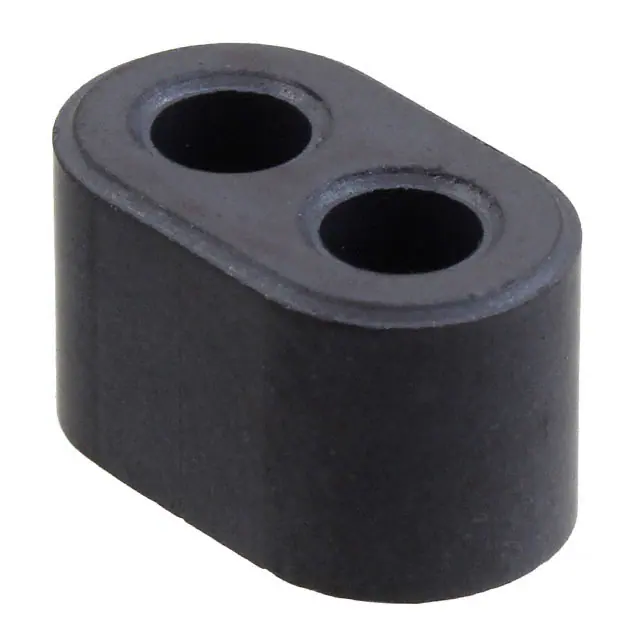

B62152A0004X001 FERRITE CORE 2 HOLE 190NH K1 EPCOS - TDK Electronics	414	2.86	- + RFQ	Datasheet	Bulk	MHB2-14.5/8.5/8.3	Active	Multi-Hole (2)	-	K1	-	190 nH	±30%	Ungapped	-	80	0.54	15.3	28.4	-	435	Uncoated	0.327 (8.30mm)
P18/11-3C91 FERRITE CORE 2PC SET Ferroxcube	577	2.89	- + RFQ	Datasheet	Bulk	-	Active	P (Pot Core)	P 18 x 11	3C91	0.724 (18.40mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.417 (10.60mm)
PQ26/20-3C97 FERRITE CORE 2PC SET Ferroxcube	235	3.08	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 26 x 20	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.795 (20.20mm)
TX20/10/7-4C65 FERRITE CORES ROUND Ferroxcube	644	3.18	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 20 x 10 x 7	4C65	0.797 (20.25mm)	-	±30%	Ungapped	-	-	1.3	43.6	33.6	-	1465	Epoxy	0.291 (7.40mm)
PQ26/25-3C95 FERRITE CORE 2PC SET Ferroxcube	462	3.30	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 26 x 25	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.972 (24.70mm)
E38/8/25-3F36 FERRITE CORE Ferroxcube	765	3.32	- + RFQ	Datasheet	Bulk	-	Active	E	E 38 x 8 x 25	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.325 (8.26mm)

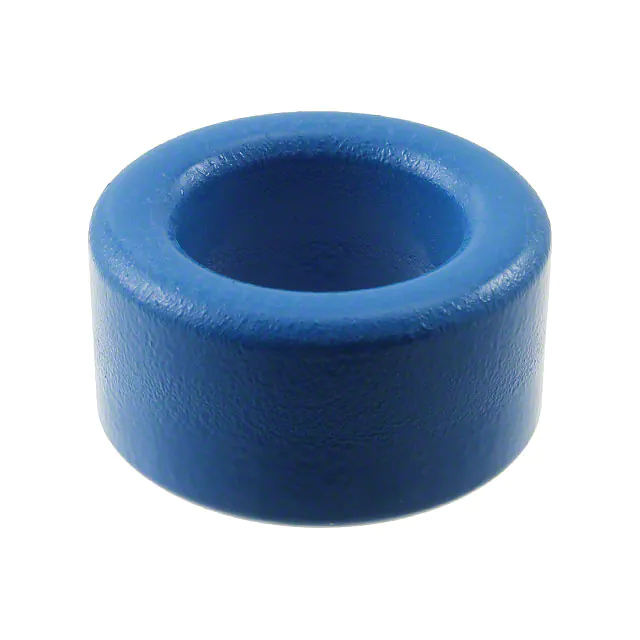

B64290L0647X087 FERRITE CORE TOROID 2.88UH N87 EPCOS - TDK Electronics	2,329	3.48	- + RFQ	Datasheet	Box	TX29/19/15	Active	Toroid	-	N87	1.220 (31.00mm)	2.88 µH	±25%	Ungapped	-	2200	0.96	73.78	76.98	-	5680	Epoxy	0.634 (16.10mm)
B65807N0315A048 FERRITE CORE RM 315NH N48 2PCS EPCOS - TDK Electronics	921	3.76	- + RFQ	Datasheet	Box	RM6	Active	RM	RM 6	N48	-	315 nH	±3%	Gapped	215	-	0.86	26.9	31.3	-	840	Uncoated	0.246 (6.25mm)
B65813J0000R087 FERRITE CORE RM 4.2UH N87 2PCS EPCOS - TDK Electronics	472	4.18	- + RFQ	Datasheet	Box	RM10	Active	RM	RM 10	N87	-	4.2 µH	-20%, +30%	Ungapped	1500	2200	0.45	44	98	90	4310	Uncoated	0.368 (9.35mm)
B66291G0000X187 FERRITE CORE ELP N87 1PC EPCOS - TDK Electronics	546	4.38	- + RFQ	Datasheet	Box	ELP43/10/28	Active	ELP	ELP 43 x 10 x 28	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.374 (9.50mm)

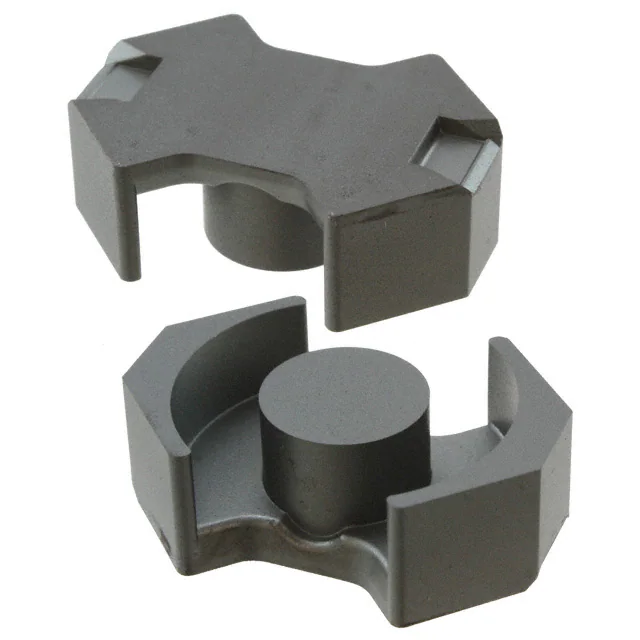

B65813J0250A041 FERRITE CORE RM 250NH N41 2PCS EPCOS - TDK Electronics	632	4.96	- + RFQ	Datasheet	Box	RM10	Active	RM	RM 10	N41	-	250 nH	±3%	Gapped	89	2800	0.45	44	98	90	4310	Uncoated	0.368 (9.35mm)

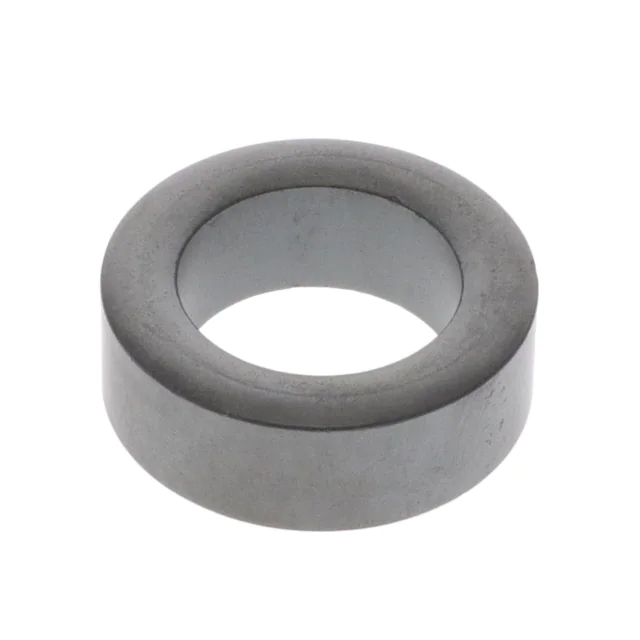

5975002701 75 TOROID Fair-Rite Products Corp.	2,434	4.98	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	75	1.400 (35.56mm)	-	±25%	Ungapped	-	5000	-	89	79	-	7000	Uncoated	0.500 (12.70mm)

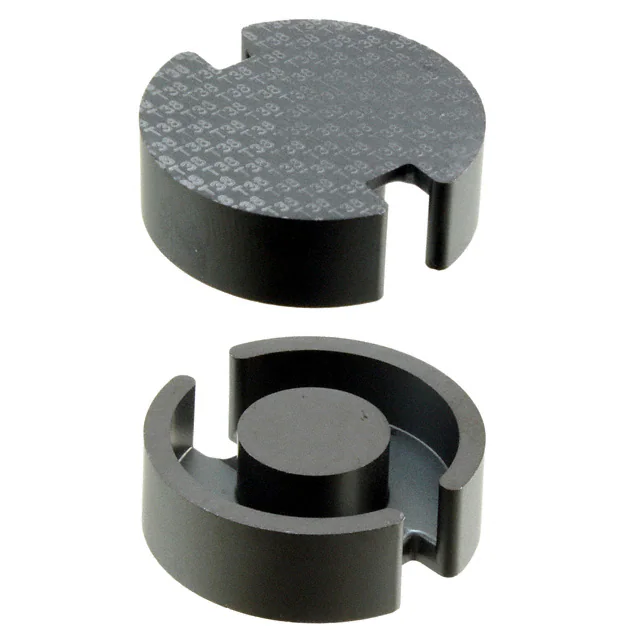

B65701W0000Y038 FERRITE CORE P 28UH T38 2PCS EPCOS - TDK Electronics	3,911	10.55	- + RFQ	Datasheet	Box	P30/19	Active	P (Pot Core)	P 30 x 19	T38	1.200 (30.50mm)	28 µH	-30%, +40%	Ungapped	7070	10000	0.32	46	145	117	6670	Uncoated	0.374 (9.50mm)
T60006L2040W422 NANOCRYSTALLINE CORE, 40X32X15 VACUUMSCHMELZE	2,057	27.00	- + RFQ	Datasheet	Box	-	Active	Toroid	-	-	1.697 (43.10mm)	48 µH	-	Ungapped	-	-	-	113	45.6	-	-	Uncoated	0.728 (18.50mm)
