Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
PQ50/50-3C97 FERRITE CORE 2PC SET Ferroxcube	3,224	20.18	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 50 x 50	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.969 (50.00mm)
U93/76/16-3C94 FERRITE CORE Ferroxcube	2,096	32.07	- + RFQ	Datasheet	Bulk	-	Active	U	U 93 x 76 x 16	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	2.992 (76.00mm)
B65981A0000R095 FERRITE CORE PQ 8.2UH N95 2PCS EPCOS - TDK Electronics	3,391	33.53	- + RFQ	Datasheet	Box	PQ50/50	Active	PQ	PQ 50 x 50	N95	-	8.2 µH	-20%, +30%	Ungapped	2230	-	0.342	113	330	290	37270	Uncoated	0.984 (25.00mm)
T60004L2063W627 NANOCRYSTALLINE CORE, 63X50X20 VACUUMSCHMELZE	3,990	37.00	- + RFQ	Datasheet	Box	-	Active	Toroid	-	-	2.583 (65.60mm)	18 µH	-	Ungapped	-	-	-	178	94.9	-	-	Epoxy	0.898 (22.80mm)

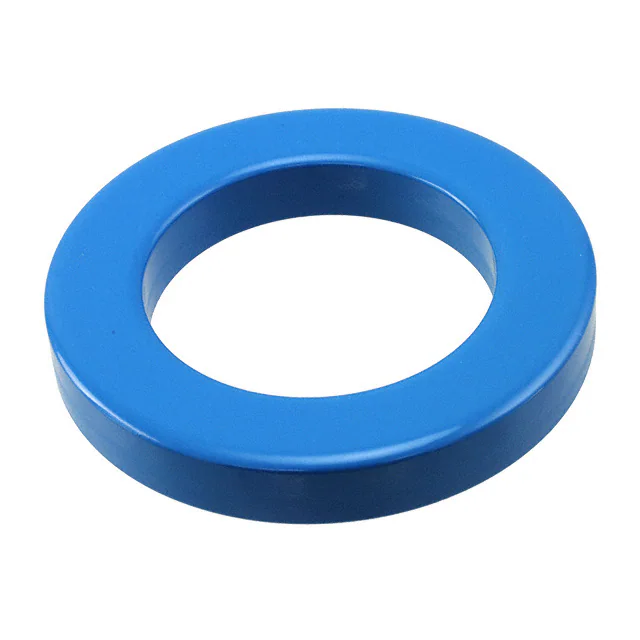

B64290L0084X087 FERRITE CORE TOROID 2.88UH N87 EPCOS - TDK Electronics	213	42.38	- + RFQ	Datasheet	Box	TX102/66/15	Active	Toroid	-	N87	4.126 (104.80mm)	2.88 µH	±25%	Ungapped	-	2200	0.96	255.3	267.2	-	68220	Epoxy	0.650 (16.50mm)

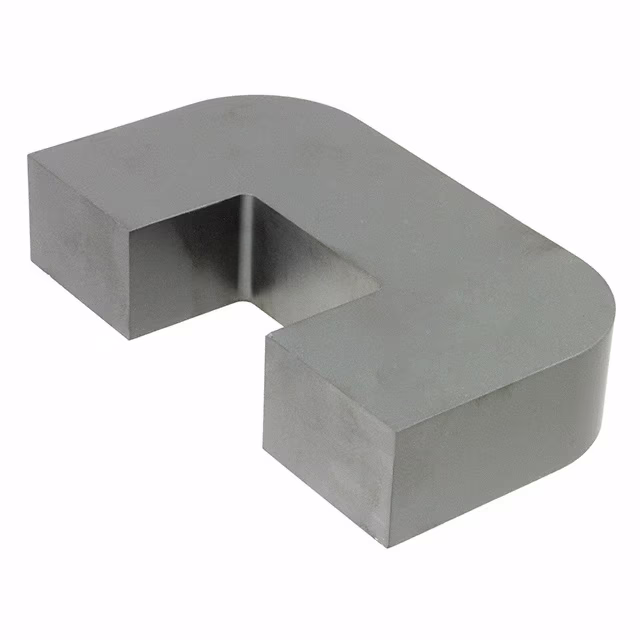

B67374G0000X187 FERRITE CORE U N87 1PC EPCOS - TDK Electronics	2,470	125.38	- + RFQ	Datasheet	Box	U141/78/30	Active	U	U 141 x 78 x 30	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	3.091 (78.50mm)
B64290L0038X037 FERRITE CORE TOROID 2.66UH T37 EPCOS - TDK Electronics	722	0.57	- + RFQ	Datasheet	Box	TX10/6/4	Active	Toroid	-	T37	0.425 (10.80mm)	2.66 µH	±25%	Ungapped	-	6500	3.07	24.07	7.83	-	188	Epoxy	0.187 (4.75mm)
E19/8/9-3C94 FERRITE CORE Ferroxcube	286	0.60	- + RFQ	Datasheet	Bulk	-	Active	E	E 19 x 8 x 9	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.317 (8.05mm)

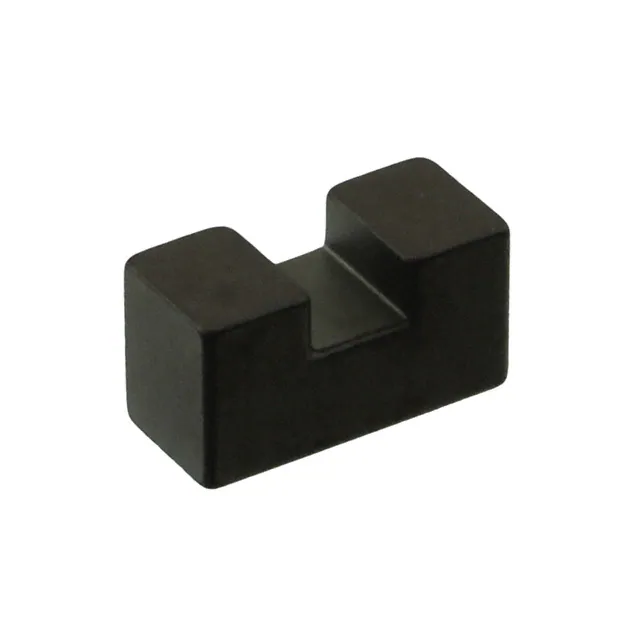

9077002002 77 U CORE Fair-Rite Products Corp.	176	0.71	- + RFQ	Datasheet	Bulk	-	Active	U	-	77	-	-	-	Ungapped	-	2000	168	20.8	12.4	-	257	Uncoated	0.160 (4.06mm)
PC95ER9.5/5-Z FERRITE CORE ER 1.19UH 2PC SET TDK Corporation	794	0.80	- + RFQ	Datasheet	Tray	Planar	Active	ER	ER 9.5 x 5	PC95	-	1.19 µH	±25%	Ungapped	-	-	1.67	8.47	14.2	7.6	120	Uncoated	0.098 (2.50mm)
ER11/2.5/6-3F46-S PLANAR ER CORES 2PC SET Ferroxcube	2,146	0.60	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 11 x 2.5 x 6	3F46	-	-	±25%	Ungapped	-	-	1.23	14.7	11.9	10.3	174	Uncoated	0.236 (6.00mm)
EP7-3C96 EP AND EPX CORES 2PC SET Ferroxcube	2,559	0.60	- + RFQ	Datasheet	Bulk	-	Active	EP	EP 7	3C96	-	-	±25%	Ungapped	-	-	1.45	15.5	10.7	8.55	165	Uncoated	0.295 (7.50mm)
PLT18/10/2-4F1 PLANAR E CORES Ferroxcube	2,355	0.60	- + RFQ	Datasheet	Bulk	-	Active	PLT	PLT 18 x 10 x 2	-	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.079 (2.00mm)
B65924A0000X033 FERRITE CORES EPCOS - TDK Electronics	2,100	0.60	- + RFQ		Box	PS8.6/3.3	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

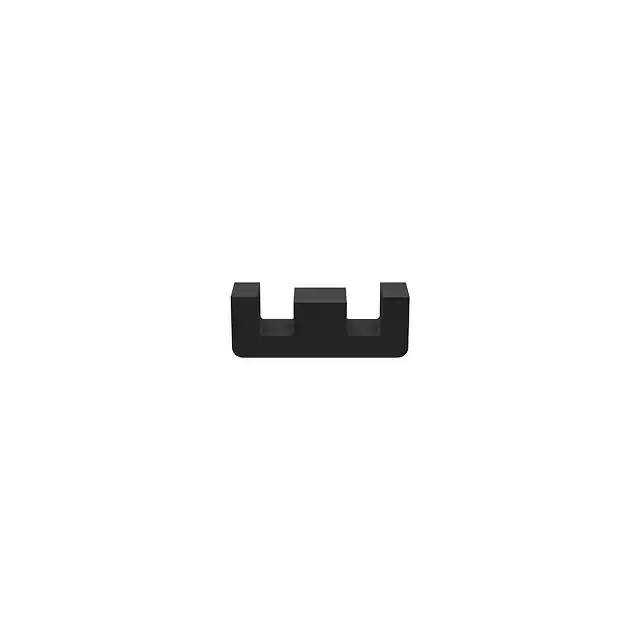

B66302G0000X149 FERRITE CORE EPCOS - TDK Electronics	3,436	0.60	- + RFQ	Datasheet	Box	E8.8/4/2	Active	E	E 8 x 8	N49	-	-	-20%, +30%	Ungapped	760	1500	3.1	15.5	5	3.6	78	Uncoated	0.161 (4.10mm)
TX13/7.9/6.4-3E12 FERRITE CORES ROUND Ferroxcube	757	0.80	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 13 x 7.9 x 6.4	-	0.526 (13.35mm)	-	±30%	Ungapped	12000	-	2.21	31.2	14.1	-	442	Epoxy	0.275 (7.00mm)
TX16/9.1/4.7-3C94 FERRITE CORES ROUND Ferroxcube	345	0.82	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 16 x 9.1 x 4.7	3C94	0.635 (16.13mm)	-	±20%	Ungapped	-	2300	2.53	37.2	14.7	-	548	Epoxy	0.195 (4.95mm)

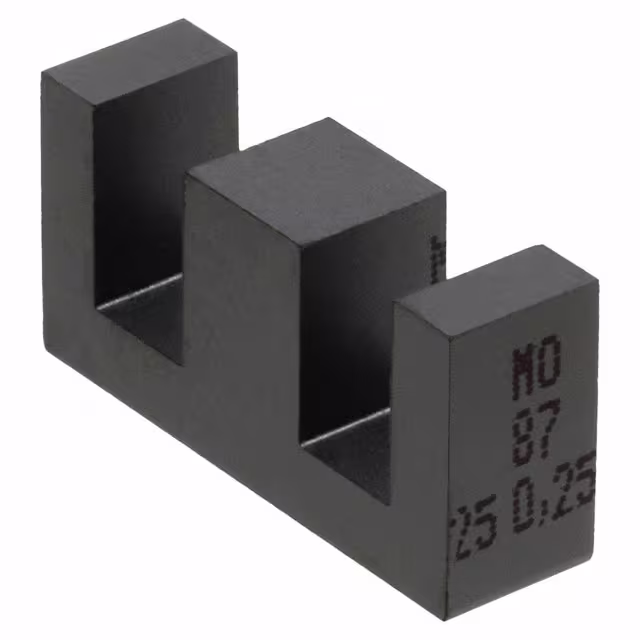

B66311G0250X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	608	0.90	- + RFQ	Datasheet	Tray	E20/10/6	Active	E	E 20 x 10 x 6	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.394 (10.00mm)

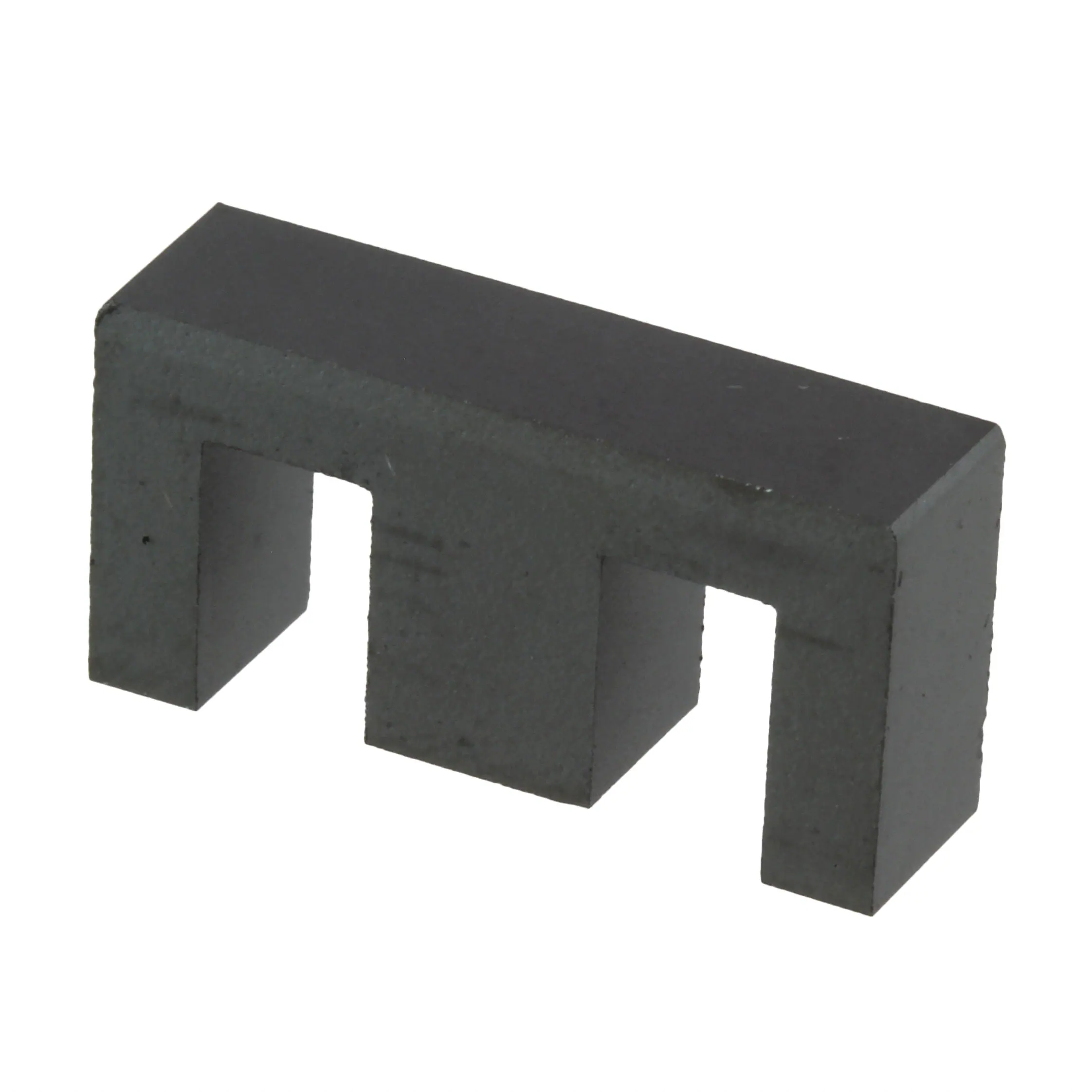

B66311G0500X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	597	0.90	- + RFQ	Datasheet	Box	E20/10/6	Active	E	E 20 x 10 x 6	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.394 (10.00mm)
TX13/7.1/4.8-3E65 FERRITE CORES ROUND Ferroxcube	827	0.92	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 13 x 7.1 x 4.8	-	0.510 (12.95mm)	-	±30%	Ungapped	-	10400	2.4	29.5	12.3	-	361	Epoxy	0.198 (5.03mm)
