Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
TX13/7.1/4.8-3E6 FERRITE CORES ROUND Ferroxcube	662	0.92	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 13 x 7.1 x 4.8	-	0.510 (12.95mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.199 (5.06mm)

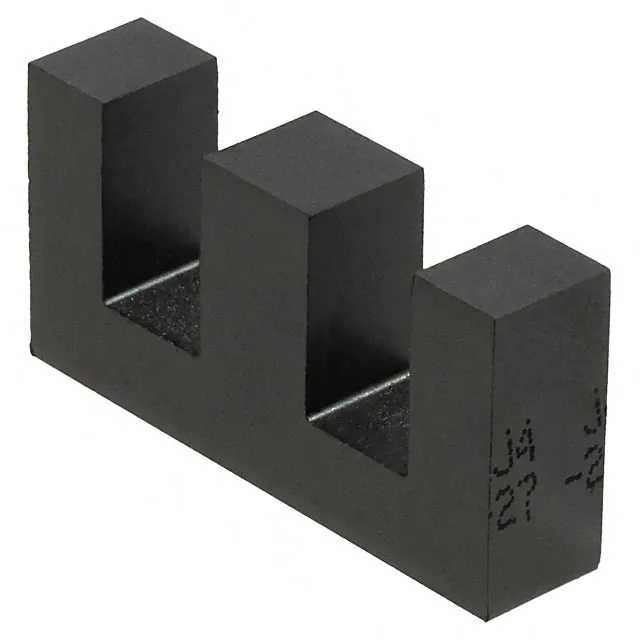

B66319G0000X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	224	0.94	- + RFQ	Datasheet	Box	E30/15/7	Active	E	E 30 x 15 x 7	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.598 (15.20mm)
E30/15/7-3C92 FERRITE CORE Ferroxcube	213	1.02	- + RFQ	Datasheet	Bulk	-	Active	E	E 30 x 15 x 7	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)
TX22/14/6.4-3E10-M FERRITE CORES ROUND Ferroxcube	539	1.11	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 22 x 14 x 6.4	-	0.880 (22.35mm)	-	-	Ungapped	-	-	2.2	54.2	24.8	-	1340	Epoxy	0.265 (6.75mm)
TX20/10/7-3E10-M FERRITE CORES ROUND Ferroxcube	663	1.16	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 20 x 10 x 7	-	0.797 (20.25mm)	-	±30%	Ungapped	-	-	1.3	43.6	33.6	-	1465	Epoxy	0.291 (7.40mm)
TX16/9.6/6.3-3E65 FERRITE CORES ROUND Ferroxcube	566	1.19	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 16 x 9.6 x 6.3	-	0.659 (16.75mm)	-	±30%	Ungapped	-	10000	1.95	38.5	19.7	-	760	Epoxy	0.274 (6.95mm)
TX20/10/7-3C94 FERRITE CORES ROUND Ferroxcube	890	1.20	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 20 x 10 x 7	3C94	0.797 (20.25mm)	-	±30%	Ungapped	-	-	1.3	43.6	33.6	-	1465	Epoxy	0.291 (7.40mm)
EP10-3C96 FERRITE CORE 2PC SET Ferroxcube	468	1.23	- + RFQ	Datasheet	Bulk	-	Active	EP	EP 10	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.402 (10.20mm)
E34/14/9-3C94 FERRITE CORE Ferroxcube	360	1.29	- + RFQ	Datasheet	Bulk	-	Active	E	E 34 x 14 x 9	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.555 (14.10mm)

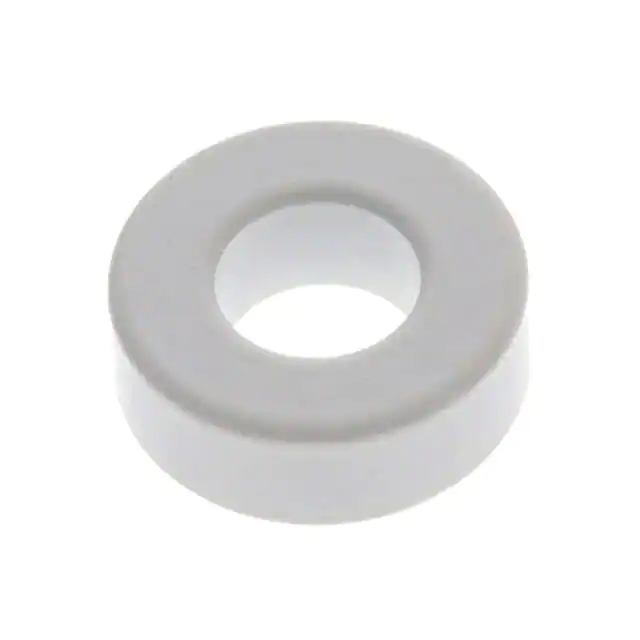

TX20/10/7-3E27 FERRITE CORES ROUND Ferroxcube	995	1.32	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 20 x 10 x 7	3E27	0.797 (20.25mm)	-	±30%	Ungapped	-	-	1.3	43.6	33.6	-	1465	Epoxy	0.291 (7.40mm)
B66358G0000X127 FERRITE CORE ETD N27 1PC EPCOS - TDK Electronics	370	1.32	- + RFQ	Datasheet	Box	ETD29/16/10	Active	ETD	ETD 29 x 16 x 10	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.630 (16.00mm)
TX22/14/6.4-3E12 FERRITE CORES ROUND Ferroxcube	298	1.42	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 22 x 14 x 6.4	-	0.880 (22.35mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.265 (6.75mm)

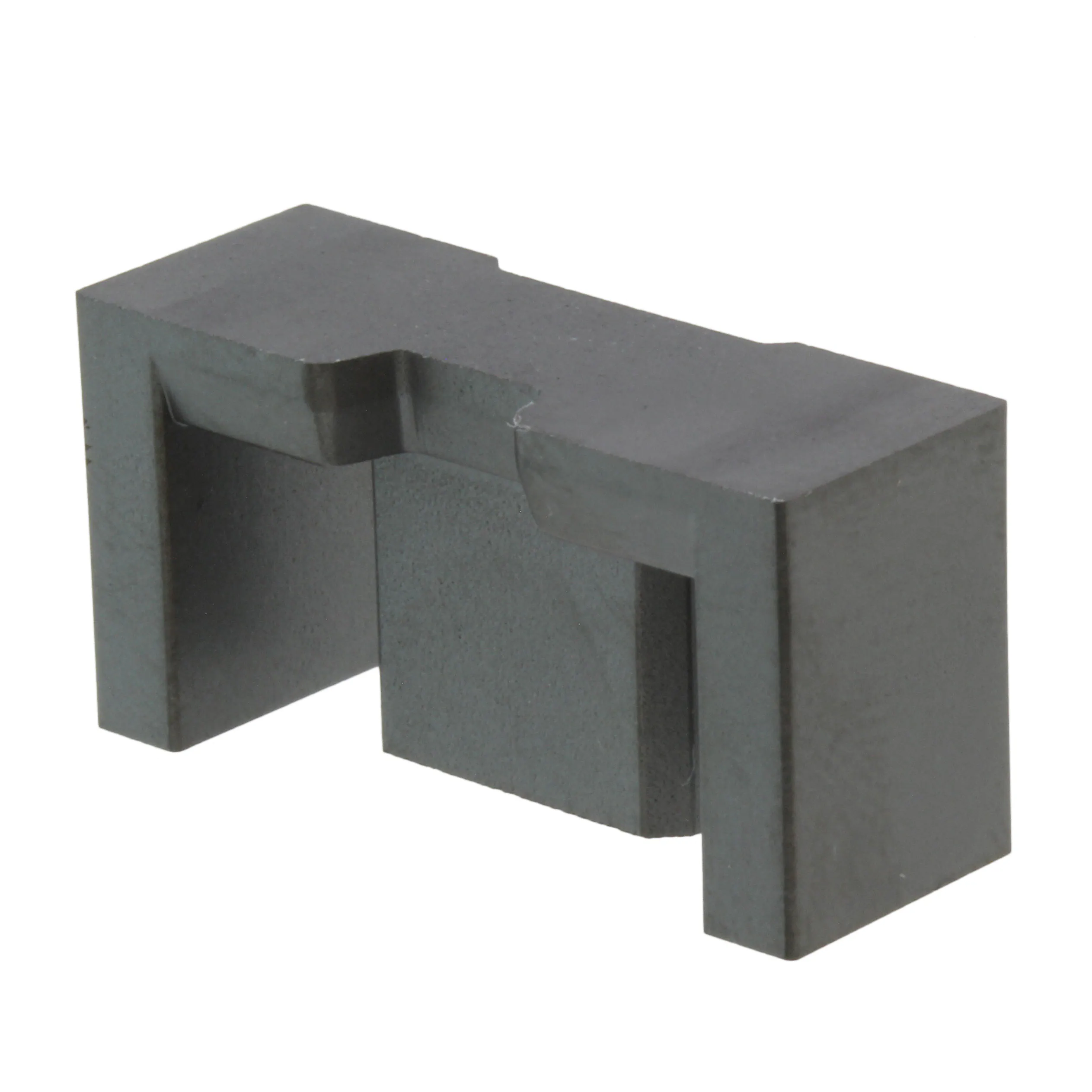

B66421U0315K187 FERRITE CORE EFD N87 1PC EPCOS - TDK Electronics	388	1.45	- + RFQ	Datasheet	Box	EFD25/13/9	Active	EFD	EFD 25 x 13 x 9	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.492 (12.50mm)
B64290L0638X035 FERRITE CORE TOROID 3.2UH T35 EPCOS - TDK Electronics	688	1.47	- + RFQ	Datasheet	Box	TX22/14/6.4	Active	Toroid	-	T35	0.917 (23.30mm)	3.2 µH	±25%	Ungapped	-	5300	2.07	54.15	26.17	-	1417	Epoxy	0.291 (7.40mm)

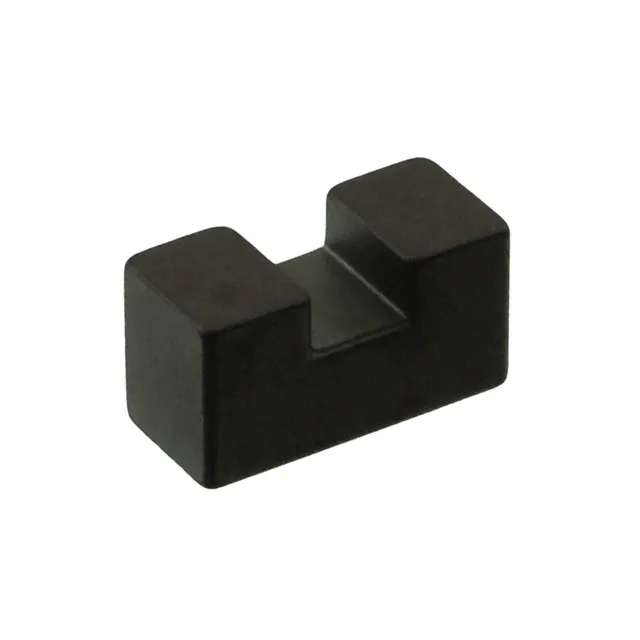

9077024002 77 U CORE Fair-Rite Products Corp.	381	1.47	- + RFQ	Datasheet	Bulk	-	Active	U	-	77	-	-	-	Ungapped	-	2000	239	96	40	-	3880	Uncoated	0.750 (19.05mm)
5678221421 78 POT CORE SET Fair-Rite Products Corp.	114	1.48	- + RFQ	Datasheet	Bulk	-	Active	PS	-	78	-	-	±25%	Ungapped	-	2300	48	31.2	64.8	-	2000	Uncoated	-
E35/18/10-3C94 FERRITE CORE Ferroxcube	113	1.49	- + RFQ	Datasheet	Bulk	-	Active	E	E 35 x 18 x 10	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.689 (17.50mm)
E34/14/9-3C92 FERRITE CORE Ferroxcube	400	1.50	- + RFQ	Datasheet	Bulk	-	Active	E	E 34 x 14 x 9	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.555 (14.10mm)

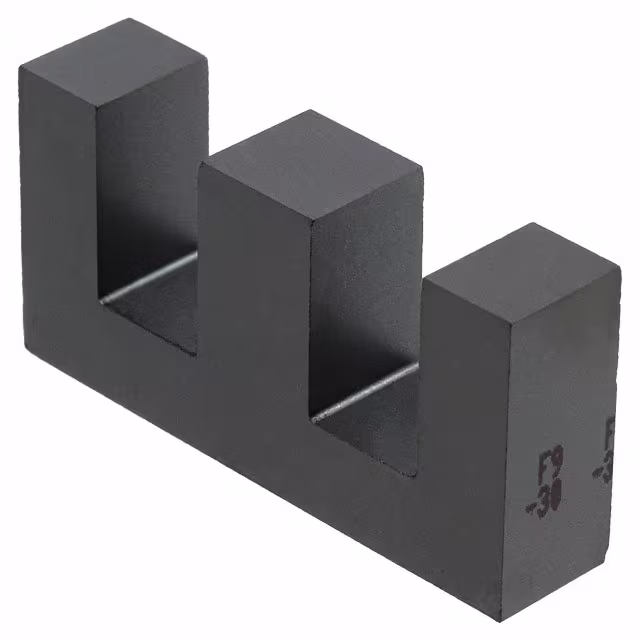

B66319G0000X130 FERRITE CORE E N30 1PC EPCOS - TDK Electronics	210	1.50	- + RFQ	Datasheet	Box	E30/15/7	Active	E	E 30 x 15 x 7	N30	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.598 (15.20mm)

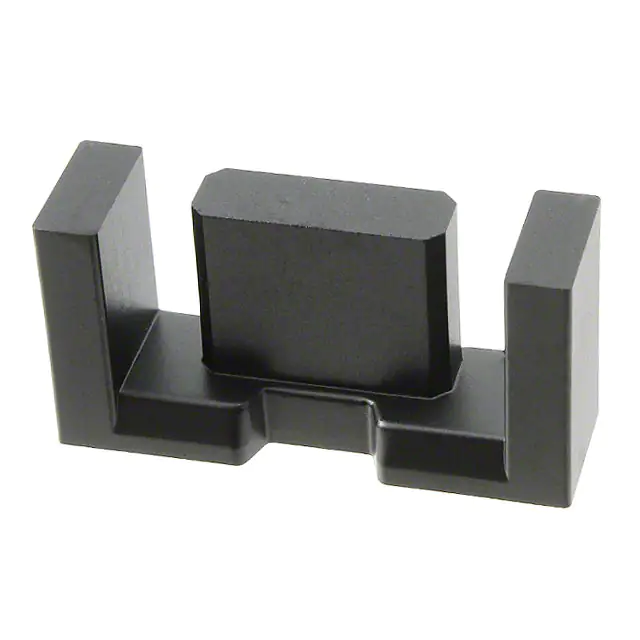

B66423U0315K187 FERRITE CORE EFD N87 1PC EPCOS - TDK Electronics	914	1.52	- + RFQ	Datasheet	Box	EFD30/15/9	Active	EFD	EFD 30 x 15 x 9	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)
