Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
T60006L2080V091 NANOCRYSTALLINE CORE, 80X50X20 VACUUMSCHMELZE	3,203	0.00	- + RFQ	Datasheet	Box	-	Active	Toroid	-	-	3.378 (85.80mm)	9.67 µH	-	Ungapped	-	-	-	204	228	-	-	Uncoated	1.004 (25.50mm)
T60006L2080W531 NANOCRYSTALLINE CORE, 80X50X20 VACUUMSCHMELZE	2,928	0.00	- + RFQ	Datasheet	Box	-	Active	Toroid	-	-	3.386 (86.00mm)	35 µH	-	Ungapped	-	-	-	204	228	-	-	Uncoated	1.012 (25.70mm)
T60006L2100V082 NANOCRYSTALLINE CORE, 100X80X25 VACUUMSCHMELZE	3,031	0.00	- + RFQ	Datasheet	Box	-	Active	Toroid	-	-	4.154 (105.50mm)	16.9 µH	-	Ungapped	-	-	-	283	190	-	-	Uncoated	1.165 (29.60mm)

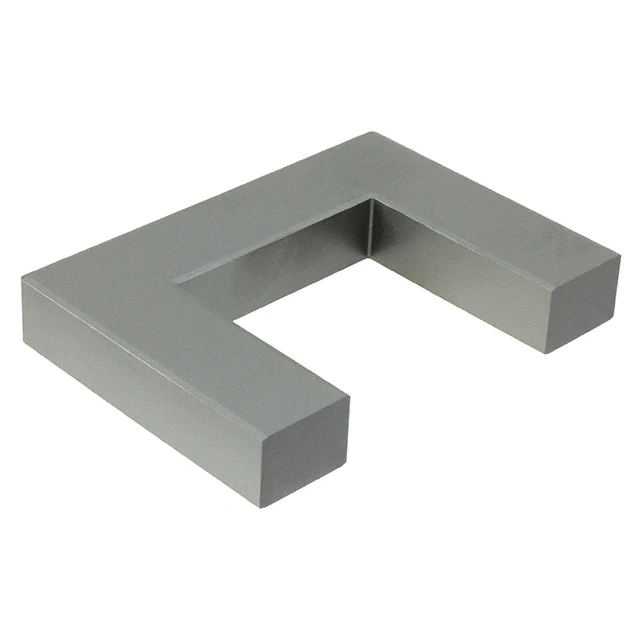

B67385G0000X187 FERRITE CORE U N87 1PC EPCOS - TDK Electronics	2,352	101.01	- + RFQ	Datasheet	Box	U126/91/20	Active	U	U 126 x 91 x 20	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	3.583 (91.00mm)
T60006L2160V066 NANOCRYSTALLINE CORE, 160X130X25 VACUUMSCHMELZE	2,370	161.38	- + RFQ	Datasheet	Box	-	Active	Toroid	-	-	6.571 (166.90mm)	13 µH	-	Ungapped	-	-	-	456	274	-	-	Uncoated	1.201 (30.50mm)
T60006L2160V074 NANOCRYSTALLINE CORE, 160X130X25 VACUUMSCHMELZE	2,758	161.38	- + RFQ	Datasheet	Box	-	Active	Toroid	-	-	6.571 (166.90mm)	28 µH	-	Ungapped	-	-	-	456	274	-	-	Uncoated	1.201 (30.50mm)
H5C2ER9.5/5-Z FERRITE CORE 2PC SET TDK Corporation	3,179	0.57	- + RFQ	Datasheet	Tray	-	Active	ER	ER 9.5 x 5	H5C2	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.197 (5.00mm)
PC44ER9.5/5-Z FERRITE CORE 2PC SET TDK Corporation	2,678	0.57	- + RFQ	Datasheet	Tray	-	Active	ER	ER 9.5 x 5	PC44	-	-	-	Ungapped	-	-	1.68	14.2	8.47	-	120	Uncoated	0.193 (4.90mm)

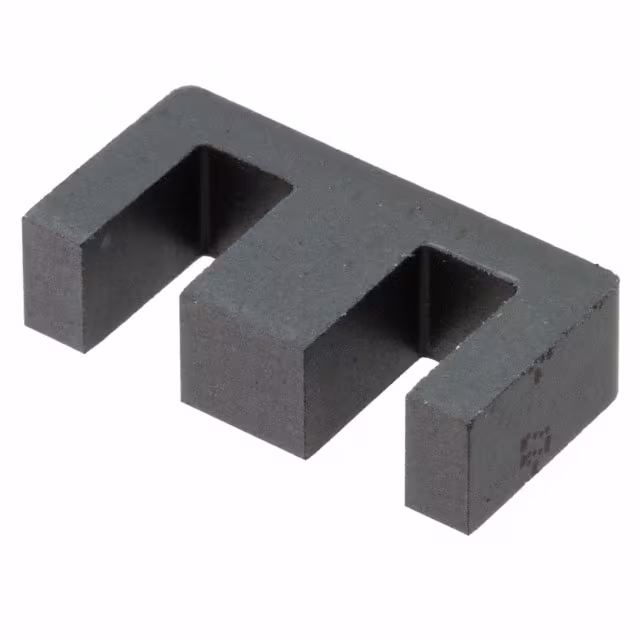

B66307G0000X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	2,616	0.58	- + RFQ	Datasheet	Box	E16/8/5	Active	E	E 16 x 8 x 5	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.323 (8.20mm)
E25/10/6-3C94 FERRITE CORE Ferroxcube	3,118	0.61	- + RFQ	Datasheet	Bulk	-	Active	E	E 25 x 10 x 6	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.380 (9.65mm)
B64290L0743X087 FERRITE CORE TOROID 1.19UH N87 EPCOS - TDK Electronics	3,554	0.71	- + RFQ	Datasheet	Box	TX16/9/5	Active	Toroid	-	N87	0.661 (16.80mm)	1.19 µH	±25%	Ungapped	-	2200	2.33	36.75	15.78	-	580	Epoxy	0.215 (5.45mm)
TX13/7.9/6.4-3C90 FERRITE CORES ROUND Ferroxcube	2,051	0.72	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 13 x 7.9 x 6.4	3C90	0.526 (13.35mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.275 (7.00mm)
PC47EPC13-Z FERRITE CORE EPC 870NH 2PC SET TDK Corporation	900	0.80	- + RFQ	Datasheet	Tray	EPC	Active	EPC	EPC 13	PC47	-	870 nH	±25%	Ungapped	-	-	2.45	30.6	12.5	-	382	Uncoated	0.260 (6.60mm)
PC95ER11/5-Z FERRITE CORE ER 1.68UH 2PC SET TDK Corporation	2,417	0.83	- + RFQ	Datasheet	Tray	Planar	Active	ER	ER 11 x 5	PC95	-	1.68 µH	±25%	Ungapped	-	-	1.23	11.9	14.7	10.3	174	Uncoated	0.098 (2.50mm)
PC47EPC17-Z FERRITE CORE EPC 1.15UH 2PC SET TDK Corporation	3,414	0.85	- + RFQ	Datasheet	Tray	EPC	Active	EPC	EPC 17	PC47	-	1.15 µH	±25%	Ungapped	-	-	1.76	40.2	22.8	-	917	Uncoated	0.337 (8.55mm)
EFD20/10/7-3C96 FERRITE CORE Ferroxcube	3,424	0.85	- + RFQ	Datasheet	Bulk	-	Active	EFD	EFD 20 x 10 x 7	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.394 (10.00mm)
PC95ER14/4.5/9-Z FERRITE CORE ER 2.55UH 2PC SET TDK Corporation	2,310	0.88	- + RFQ	Datasheet	Tray	Planar	Active	ER	EI 14 x 4.5 x 9	PC95	-	2.55 µH	±25%	Ungapped	-	-	0.68	22.7	15.4	21.2	349	Uncoated	0.089 (2.25mm)
PC40EER40-Z FERRITE CORE 2PC SET TDK Corporation	3,870	0.88	- + RFQ	Datasheet	Tray	-	Active	EER	EER 40	PC40	-	-	±25%	Gapped	-	-	0.658	98	149	-	14600	Uncoated	0.882 (22.40mm)
B66311G0170X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	3,077	0.90	- + RFQ	Datasheet	Box	E20/10/6	Active	E	E 20 x 10 x 6	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.394 (10.00mm)
B65525J0000R049 FERRITE CORE ER 800NH N49 2PCS EPCOS - TDK Electronics	100	2.07	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	ER11/5	Active	ER	ER 11 x 5	N49	-	800 nH	-20%, +30%	Ungapped	715	-	1.1	14.1	12.4	-	174	Uncoated	0.098 (2.50mm)
