| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | CoreType | Material | Diameter | InductanceFactor(Al) | Tolerance | Gap | EffectivePermeability(µe) | InitialPermeability(µi) | CoreFactor(ΣI/A)mm-1 | EffectiveLength(le)mm | EffectiveArea(Ae)mm² | MinimumCoreCrossSection(Amin)mm² | EffectiveMagneticVolume(Ve)mm³ | Finish | Height | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B66317G0100X127FERRITE CORE E N27 1PC |
2,022 | 0.92 |
RFQ |
Datasheet |
Box | E25/13/7 | Active | E | E 25 x 13 x 7 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.504 (12.80mm) |
|

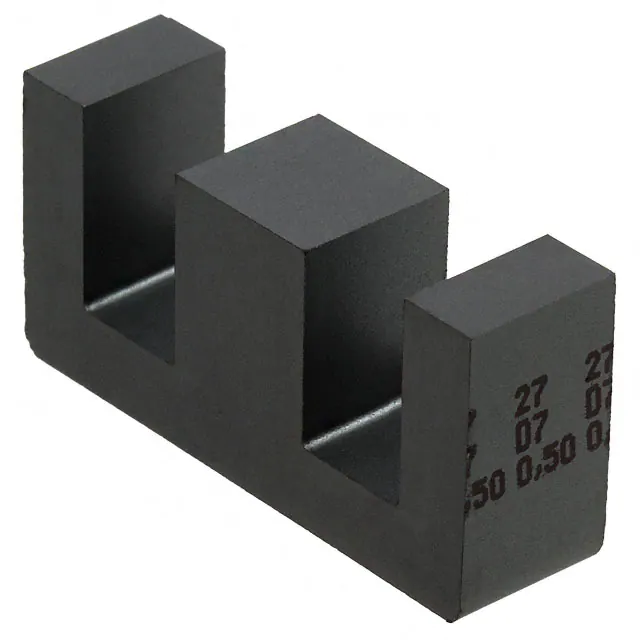

B66317G0500X127FERRITE CORE E N27 1PC |
2,891 | 0.92 |
RFQ |
Datasheet |
Box | E25/13/7 | Active | E | E 25 x 13 x 7 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.504 (12.80mm) |
|
EFD20/10/7-3F46FERRITE CORE |
3,774 | 0.92 |
RFQ |
Datasheet |
Bulk | - | Active | EFD | EFD 20 x 10 x 7 | 3F46 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.394 (10.00mm) |
|

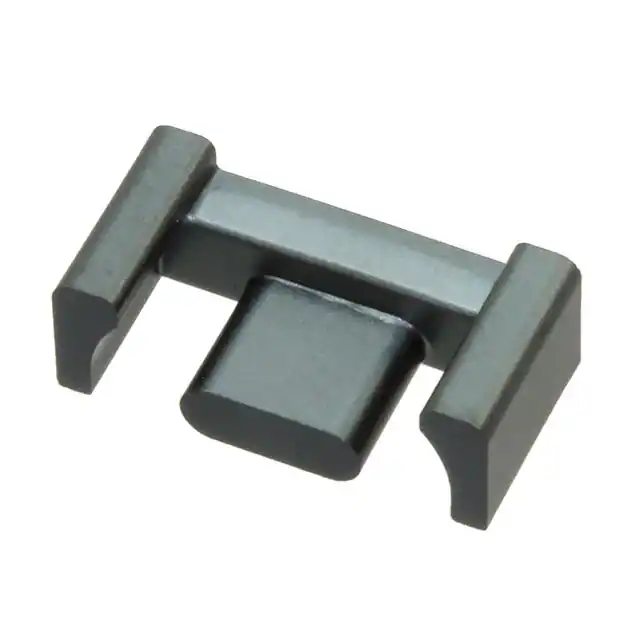

PC44EPC13-ZFERRITE CORE 2PC SET |
180 | 0.92 |
RFQ |
Datasheet |
Tray | - | Active | EPC | EPC 13 | PC44 | - | - | ±25% | Ungapped | - | - | 2.45 | 30.6 | 12.5 | - | 382 | Uncoated | 0.260 (6.60mm) |
|
306199088161 ROD |
3,639 | 0.95 |
RFQ |
Datasheet |
Bulk | - | Active | ROD | - | 61 | 0.157 (4.00mm) | - | - | Ungapped | 25 | 125 | - | - | 12.6 | - | - | Uncoated | - |
|
PC47EER25.5-ZFERRITE CORE EER 1.92UH 2PC SET |
2,875 | 0.98 |
RFQ |
Datasheet |
Tray | E | Active | EER | EER 25.5 | PC47 | - | 1.92 µH | ±25% | Ungapped | - | - | 1.08 | 48.2 | 44.8 | - | 2160 | Uncoated | 0.366 (9.30mm) |
|
PC47EI19-ZEI CORE SMPS TRANSFORMER 1 SET |
3,458 | 1.04 |
RFQ |
Datasheet |
Tray | E | Active | E | - | PC47 | - | 1.4 µH | ±25% | Ungapped | - | 2500 | 1.65 | 39.6 | 24 | - | 950 | Uncoated | - |
|
PC95EL11X4-ZFERRITE CORE EL 2.4UH 2PC SET |
2,666 | 1.10 |
RFQ |
Datasheet |
Tray | Planar | Active | EL | EL 11 x 4 | PC95 | - | 2.4 µH | ±25% | Ungapped | - | - | 0.83 | 16.5 | 13.7 | 15.9 | 226 | Uncoated | 0.079 (2.00mm) |
|
HF60T14X7X8TOROIDAL CORE FOR EMI/RFI FILTER |
3,282 | 1.11 |
RFQ |
Datasheet |
Tray | T | Active | Toroid | - | - | 0.551 (14.00mm) | - | - | Ungapped | - | 1600 | - | - | - | - | - | Epoxy | 0.276 (7.00mm) |
|
|
HF90T18X10X10TOROIDAL CORE FOR COMMON MODE CH |
2,954 | 1.17 |
RFQ |
Datasheet |
Tray | T | Active | Toroid | - | - | 0.709 (18.00mm) | - | - | Ungapped | - | 5000 | - | - | - | - | - | Epoxy | 0.394 (10.00mm) |
|
PC44PQ32/30Z-12FERRITE CORE 2PC SET |
2,771 | 1.24 |
RFQ |
Datasheet |
Tray | - | Active | PQ | PQ 32 x 30 | PC44 | - | - | ±25% | Ungapped | - | - | 0.464 | 47.6 | 161 | - | 12000 | Uncoated | 1.195 (30.35mm) |
|

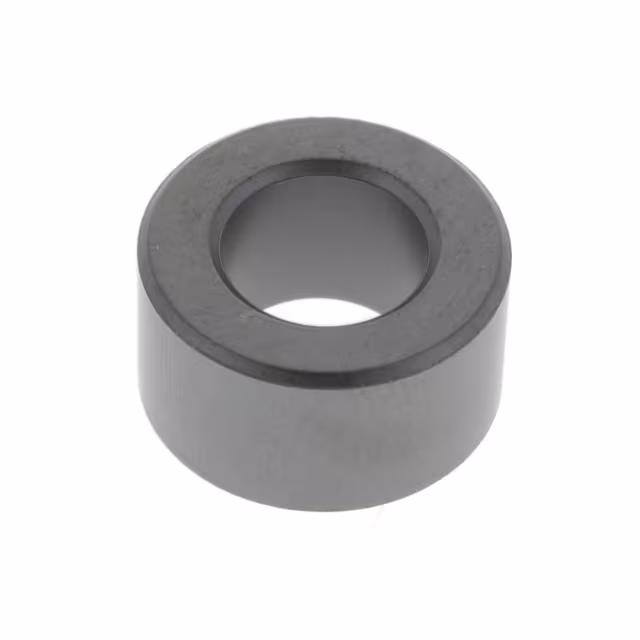

HF60T18X10X10TOROIDAL CORE FOR EMI/RFI FILTER |
2,992 | 1.29 |
RFQ |
Datasheet |
Tray | T | Active | Toroid | - | - | 0.709 (18.00mm) | - | - | Ungapped | - | 1600 | - | - | - | - | - | Epoxy | 0.394 (10.00mm) |
|
|
PC44PQ20/16Z-12FERRITE CORE 2PC SET |
2,649 | 1.30 |
RFQ |
Datasheet |
Tray | - | Active | PQ | PQ 20 x 16 | PC44 | - | - | ±25% | Ungapped | - | - | 0.605 | 37.4 | 62 | - | 2310 | Uncoated | 0.638 (16.20mm) |
|
TX16/9.6/6.3-3E12FERRITE CORES ROUND |
2,270 | 1.34 |
RFQ |
Datasheet |
Bulk | - | Active | Toroid | TX 16 x 9.6 x 6.3 | - | 0.640 (16.25mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.258 (6.55mm) |
|
427828250978 SLEEVE |
3,403 | 1.40 |
RFQ |
Datasheet |
Bulk | - | Active | ROD | - | 78 | 0.669 (17.00mm) | - | - | Ungapped | - | 2300 | - | - | - | - | - | Uncoated | - |
|
B65807J0160A048FERRITE CORE RM 160NH N48 2PCS |
2,203 | 2.95 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RM6 | Active | RM | RM 6 | N48 | - | 160 nH | ±3% | Gapped | 109 | - | 0.78 | 28.6 | 36.6 | 31 | 1050 | Uncoated | 0.246 (6.25mm) |
|
569514092195 POT CORE SET |
3,373 | 1.45 |
RFQ |
Datasheet |
Bulk | - | Active | PS | - | 95 | 0.551 (14.00mm) | - | ±25% | Ungapped | - | 3000 | 79 | 19.8 | 25.1 | - | 495 | Uncoated | 0.165 (4.20mm) |
|
PC95ER18/5/12-ZFERRITE CORE ER 3.5UH 2PC SET |
3,685 | 1.45 |
RFQ |
Datasheet |
Tray | Planar | Active | ER | ER 18 x 5 x 12 | PC95 | - | 3.5 µH | ±25% | Ungapped | - | - | 0.6 | 32.8 | 19.7 | 28.3 | 645 | Uncoated | 0.098 (2.50mm) |
|
|
PC95EL13X4.4-ZFERRITE CORE EL 3.16UH 2PC SET |
3,972 | 1.48 |
RFQ |
Datasheet |
Tray | Planar | Active | EL | EI 13 x 4.4 | PC95 | - | 3.16 µH | ±25% | Ungapped | - | - | 0.67 | 23.1 | 15.4 | 22.4 | 357 | Uncoated | 0.089 (2.25mm) |
|
597700160177 TOROID |
2,806 | 1.51 |
RFQ |
Datasheet |
Bulk | - | Active | Toroid | - | 77 | - | - | ±25% | Ungapped | - | 2000 | - | 76 | 47 | - | 3530 | Uncoated | - |
