| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Inputs-Side1/Side2 | Voltage-Isolation | CommonModeTransientImmunity(Min) | InputType | OutputType | Current-Output/Channel | DataRate | PropagationDelaytpLH/tpHL(Max) | Rise/FallTime(Typ) | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

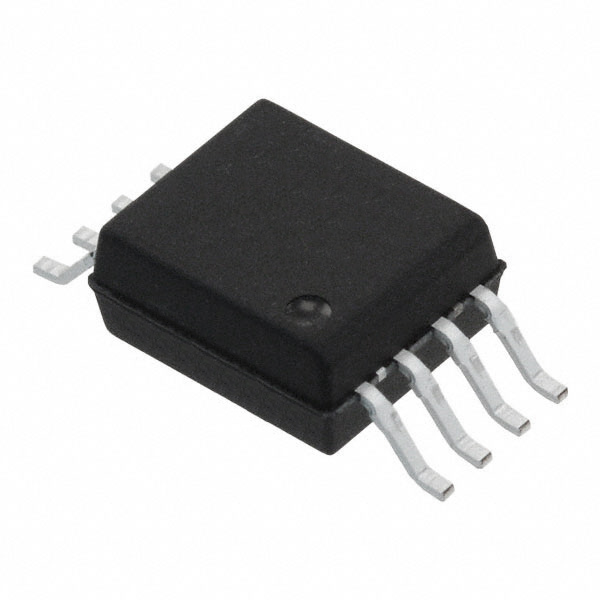

ACPL-K24L-500EOPTOISO 5KV 2CH PUSH PULL 8SO |
3,470 | 5.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 2/0 | 5000Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 5MBd | 250ns, 250ns | 11ns, 11ns | 1.5V | 8mA | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|

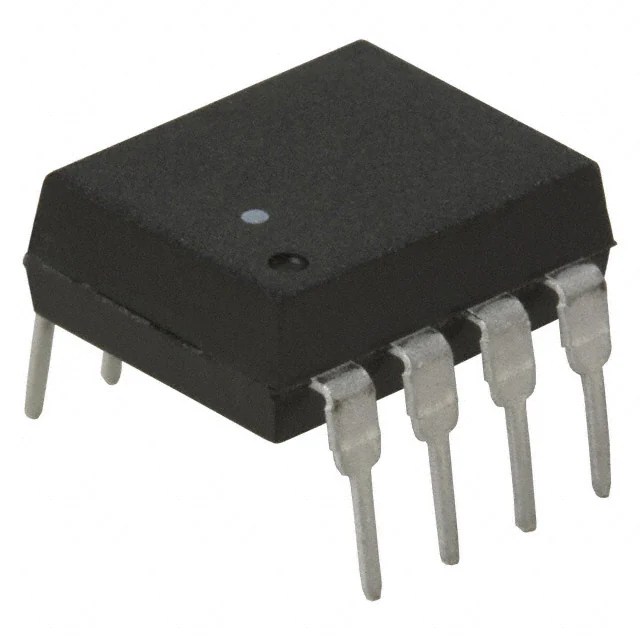

HCPL-J456-000EOPTOISO 3.75KV OPEN COLL 8DIP |
3,135 | 3.17 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | - | 550ns, 480ns | - | 1.6V | 25mA | 4.5V ~ 30V | -40°C ~ 100°C | Through Hole |
|
|
HCPL-261A-000EOPTOISO 3.75KV OPEN COLL 8DIP |
3,265 | 3.31 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole |
|

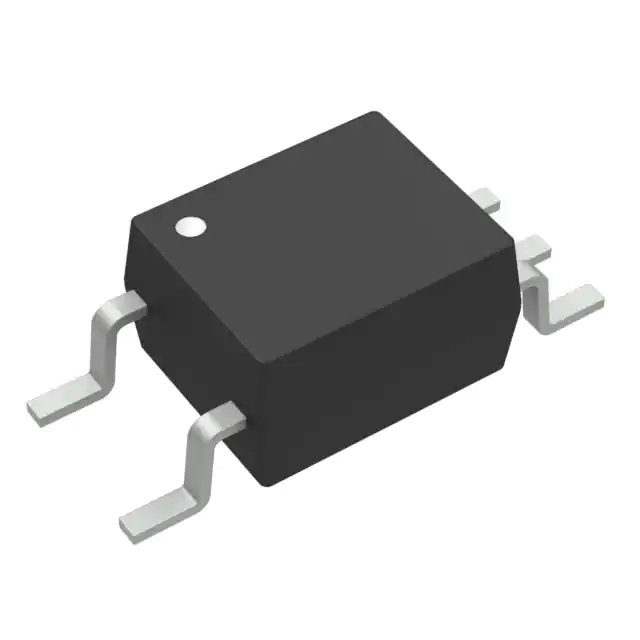

HCPL-M601-000EOPTOISO 3.75KV OPN COLLECTOR 5SO |
2,922 | 3.53 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 5kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
ACPL-M71U-000EOPTOISO 3.75KV PUSH PULL 5SO |
224 | 3.64 |
RFQ |
Datasheet |
Tube | R²Coupler™ | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | - | - | 35ns, 35ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|

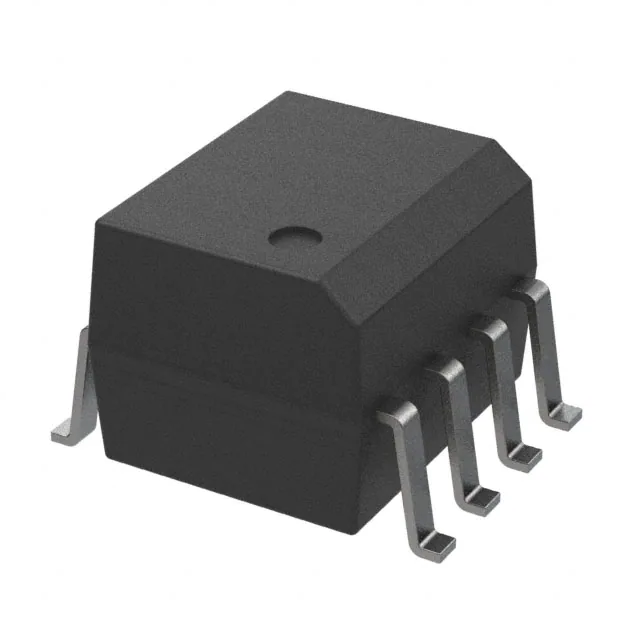

FOD0720OPTOISO 3.75KV PUSH PULL 8SO |
3,898 | 3.80 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25Mbps | 40ns, 40ns | 5ns, 4.5ns | - | - | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
|
HCPL0637OPTOISO 3.75KV 2CH OPEN COLL 8SO |
468 | 4.23 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 3750Vrms | 5kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | 10Mbps | 75ns, 75ns | 17ns, 5ns | 1.75V (Max) | - | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-2219-000EOPTOISO 3.75KV TRI-STATE 8DIP |
387 | 4.85 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 2.5kV/µs | DC | Tri-State | 25 mA | 2.5MBd | 300ns, 300ns | 55ns, 15ns | 1.5V | 10mA | 4.5V ~ 20V | -40°C ~ 85°C | Through Hole |
|
|
ACPL-M61T-000EOPTOISO 4KV OPN COLLECTOR 5SO |
2,814 | 5.63 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q100, R²Coupler™ | Active | 1 | 1/0 | 4000Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
ACPL-K72T-060EOPTOISO 5KV PUSH PULL 8SO |
3,303 | 5.73 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | - | - | 100ns, 100ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
.jpg)
|
ACNW261L-000EOPTOISO 5KV TRI-STATE 8DIP |
2,073 | 6.33 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Tri-State | 10 mA | 10MBd | 95ns, 95ns | 12ns, 12ns | 1.5V | 8mA | 2.7V ~ 5.5V | -40°C ~ 105°C | Through Hole |
|

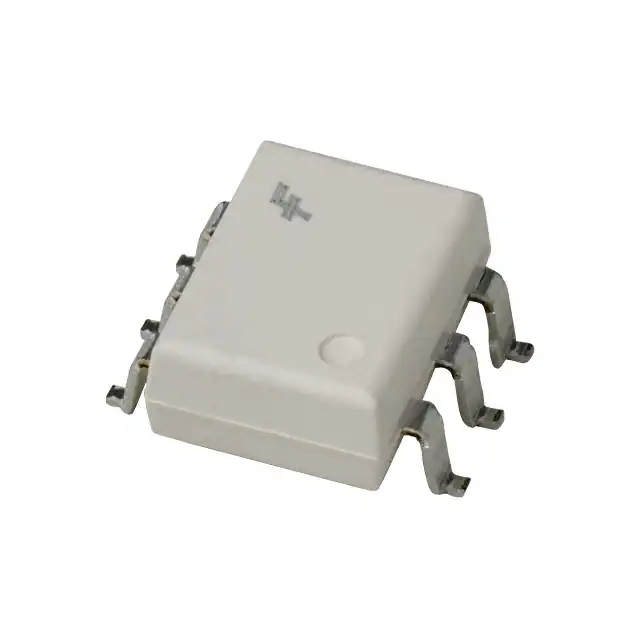

H11N1SMOPTOISO 4.17KV OPN COLL 6SMD |
3,729 | 7.37 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 5MHz | 330ns, 330ns | 7.5ns, 12ns | 1.4V | 30mA | 4V ~ 15V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-7720-000EOPTOISO 3.75KV PUSH PULL 8DIP |
441 | 7.45 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole |
|
|
HCPL-7721-000EOPTOISO 3.75KV PUSH PULL 8DIP |
103 | 8.19 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole |
|
PS9817A-2-AXOPTOISO 2.5KV 2CH OPEN COL 8SSOP |
2,455 | 9.33 |
RFQ |
Datasheet |
Bulk | NEPOC | Not For New Designs | 2 | 2/0 | 2500Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.65V | 15mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|

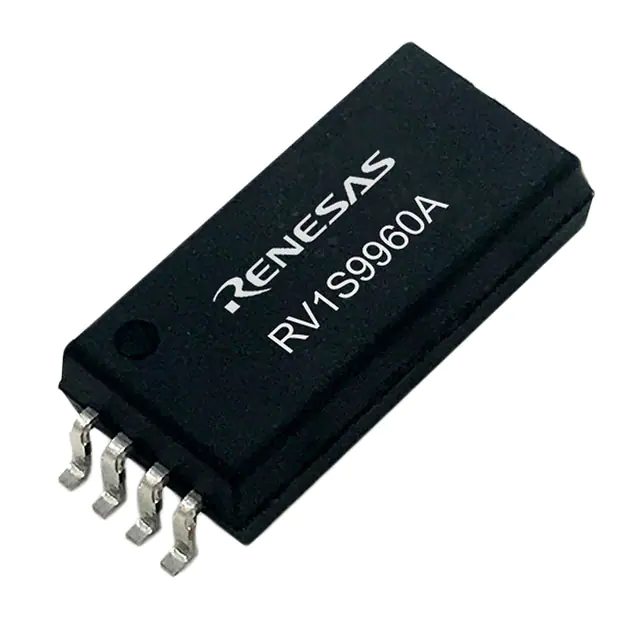

RV1S9960ACCSP-10YV#SC0HI-SPEED OPTOCPLR 8PIN LSDIP |
690 | 10.80 |
RFQ |
Datasheet |
Strip | - | Active | 1 | 1/0 | 7500Vrms | 50kV/µs | - | CMOS | 10 mA | 15Mbps | 60ns, 60ns | 5ns, 5ns | 1.55V | 6mA | 2.7V ~ 5.5V | -40°C ~ 110°C | Surface Mount |
|
|
RV1S9960ACCSP-10YC#SC0HI-SPEED OPTOCPLR 8PIN LSDIP |
220 | 10.80 |
RFQ |
Datasheet |
Strip | - | Active | 1 | 1/0 | 7500Vrms | 50kV/µs | - | CMOS | 10 mA | 15Mbps | 60ns, 60ns | 5ns, 5ns | 1.55V | 6mA | 2.7V ~ 5.5V | -40°C ~ 110°C | Surface Mount |
|
|
HCPL-063NOPTOISO 3.75KV 2CH OPEN COLL 8SO |
2,056 | 13.30 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-0723OPTOISO 3.75KV PUSH PULL 8SO |
353 | 13.31 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 50MBd | 22ns, 22ns | 8ns, 6ns | - | - | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|

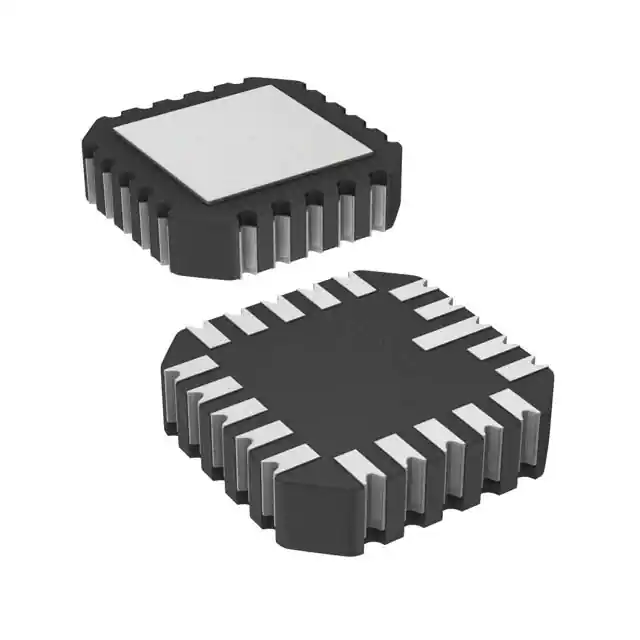

HCPL-6630OPTOISO 1.5KV 2CH OPN COL 20LCCC |
148 | 104.73 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.5V | 20mA | 4.5V ~ 5.5V | -55°C ~ 125°C | Surface Mount |
