| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MWI50-12T7TIGBT MODULE 1200V 80A 270W E2 |
3,020 | 121.21 |
RFQ |
Datasheet |
Box | - | Active | Trench | Three Phase Inverter | 1200 V | 80 A | 270 W | 2.15V @ 15V, 50A | 4 mA | 3.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount |
|
|
MITA300RF1700PTEDIGBT MODULE - OTHERS E2-PACK-PFP |
3,526 | 121.24 |
RFQ |
Box | - | Active | Trench | Single Chopper | 1700 V | 400 A | 1390 W | 2.45V @ 15V, 300A | 1.2 mA | - | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |
|

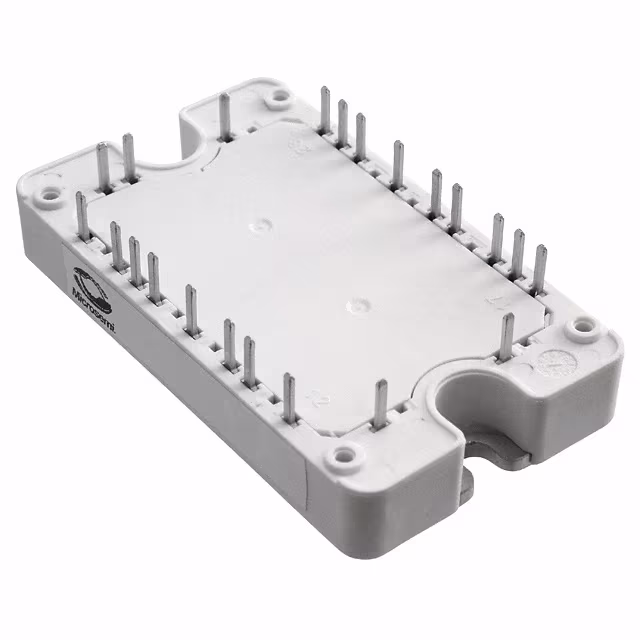

APTCV60HM45BT3GIGBT MODULE 600V 50A 250W SP3 |
2,571 | 121.81 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Boost Chopper, Full Bridge | 600 V | 50 A | 250 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
APTGTQ100H65T3GIGBT MODULE 650V 100A 250W SP3F |
2,278 | 121.96 |
RFQ |
Datasheet |
Bulk | - | Active | - | Full Bridge | 650 V | 100 A | 250 W | 2.2V @ 15V, 100A | 100 µA | 6 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
APTGTQ200A65T3GIGBT MODULE 650V 200A 483W SP3F |
3,677 | 121.96 |
RFQ |
Datasheet |
Bulk | - | Active | - | Half Bridge | 650 V | 200 A | 483 W | 2.2V @ 15V, 200A | 200 µA | 12 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
APTGLQ100A120TGIGBT MODULE 1200V 170A 520W SP4 |
3,549 | 122.11 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Half Bridge | 1200 V | 170 A | 520 W | 2.42V @ 15V, 100A | 50 µA | 6.15 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
APTGT100A120T3AGIGBT MODULE 1200V 140A 595W SP3 |
2,714 | 122.29 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Half Bridge | 1200 V | 140 A | 595 W | 2.1V @ 15V, 100A | 250 µA | 7.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Through Hole |
|
|
NXH200T120H3Q2F2STNG80KW GEN-II Q2PACK-200A MODULE W |
2,925 | 122.76 |
RFQ |
Datasheet |
Tray | - | Active | Trench Field Stop | Half Bridge | 650 V | 330 A | 679 W | 2.3V @ 15V, 200A | 500 µA | 35.615 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
MIXA225PF1200TSFIGBT MOD 1200V 360A 1100W |
2,482 | 123.34 |
RFQ |
Datasheet |
Box | - | Active | PT | Half Bridge | 1200 V | 360 A | 1100 W | 2.1V @ 15V, 225A | 300 µA | - | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
MWI50-12A7IGBT MODULE 1200V 85A 350W E2 |
3,633 | 125.86 |
RFQ |
Datasheet |
Box | - | Active | NPT | Three Phase Inverter | 1200 V | 85 A | 350 W | 2.7V @ 15V, 50A | 4 mA | 3.3 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
FZ300R12KE3GHOSA1IGBT MOD 1200V 480A 1450W |
2,593 | 96.09 |
RFQ |
Datasheet |
Bulk,Tray | C | Active | Trench Field Stop | Single | 1200 V | 480 A | 1450 W | 2.15V @ 15V, 300A | 5 mA | 21 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount |
|
|
BSM10GP120BPSA1LOW POWER ECONO AG-ECONO2C-211 |
2,722 | 121.24 |
RFQ |
Tray | - | Last Time Buy | - | Three Phase Inverter | 1200 V | 20 A | 100 W | 2.85V @ 15V, 10A | 500 µA | 600 pF @ 25 V | Three Phase Bridge Rectifier | Yes | 150°C (TJ) | Chassis Mount | |
|
|
APTGLQ75H120T3GIGBT MODULE 1200V 130A 385W SP1 |
2,712 | 126.25 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Full Bridge | 1200 V | 130 A | 385 W | 2.4V @ 15V, 75A | 50 µA | 4.4 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Through Hole |
|
|
MWI50-12A7TIGBT MODULE 1200V 85A 350W E2 |
3,391 | 127.69 |
RFQ |
Datasheet |
Box | - | Active | NPT | Three Phase Inverter | 1200 V | 85 A | 350 W | 2.7V @ 15V, 50A | 4 mA | 3.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
APTGT100DU120TGIGBT MODULE 1200V 140A 480W SP4 |
2,821 | 128.46 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Dual, Common Source | 1200 V | 140 A | 480 W | 2.1V @ 15V, 100A | 250 µA | 7.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
MITA300RF1700P-PCIGBT MOD MITA300RF1700PTED-PC |
3,932 | 128.62 |
RFQ |
Datasheet |
Box | - | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
APTGT100A120TGIGBT MODULE 1200V 140A 480W SP4 |
3,195 | 128.78 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Half Bridge | 1200 V | 140 A | 480 W | 2.1V @ 15V, 100A | 250 µA | 7.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
.jpg)
|

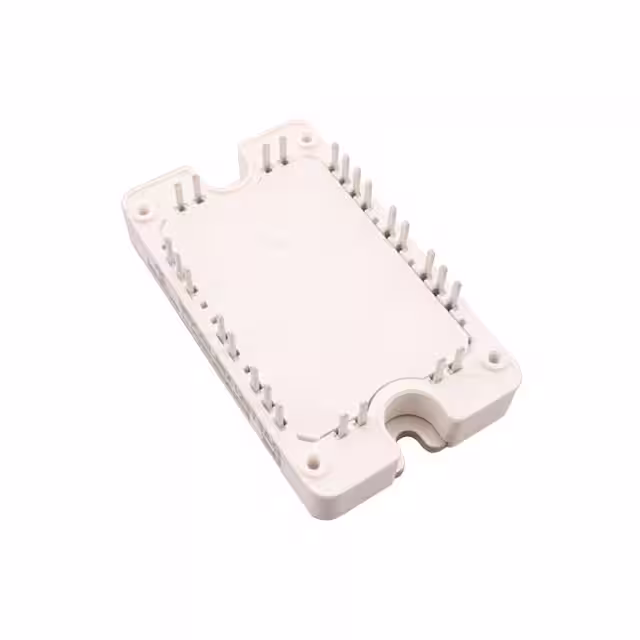

MSCGL40X120T3AGPM-IGBT-TFS-SP3F |
2,181 | 129.06 |
RFQ |
Datasheet |
Tube | MSC | Active | Trench | Full Bridge | 1200 V | 40 A | - | - | 40 A | - | Standard | Yes | - | Chassis Mount |
|
|
BSM15GP120BPSA1LOW POWER ECONO AG-ECONO2C-211 |
3,317 | 124.39 |
RFQ |
Tray | - | Not For New Designs | - | Three Phase Inverter | 1200 V | 35 A | 180 W | 2.55V @ 15V, 15A | 500 µA | 1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | 150°C (TJ) | Chassis Mount | |
|
|
FP15R12KS4CBPSA1LOW POWER ECONO AG-ECONO2C-211 |
2,045 | 124.95 |
RFQ |
Datasheet |
Tray | - | Last Time Buy | - | Three Phase Inverter | 1200 V | 30 A | 180 W | 3.7V @ 15V, 15A | 5 mA | 1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount |
