Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType

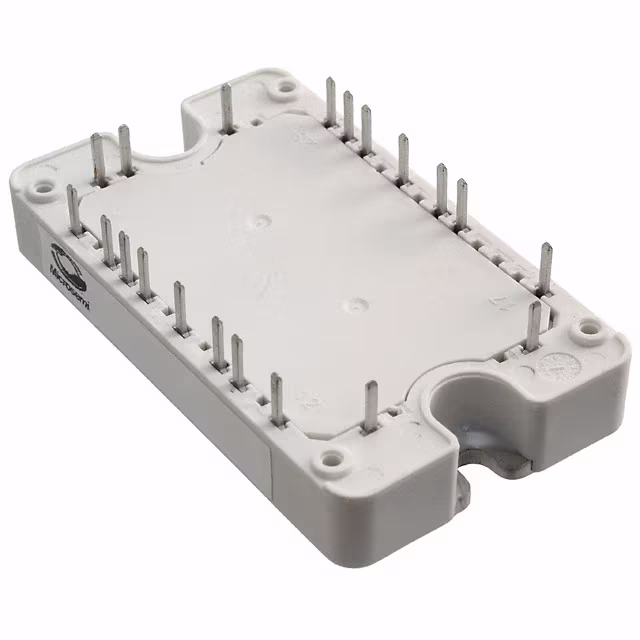

APTCV60HM45RCT3G IGBT MODULE 600V 50A 250W SP3 Microchip Technology	2,274	129.99	- + RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Full Bridge Inverter	600 V	50 A	250 W	1.9V @ 15V, 50A	250 µA	3.15 nF @ 25 V	Single Phase Bridge Rectifier	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
BSM25GD120DN2E3224BPSA1 LOW POWER ECONO AG-ECONO2A-211 Infineon Technologies	3,233	125.37	- + RFQ		Tray	-	Not For New Designs	-	Full Bridge	1200 V	35 A	200 W	3V @ 15V, 25A	800 µA	1.65 nF @ 25 V	Standard	No	150°C (TJ)	Chassis Mount
FF150R12KE3GHOSA1 IGBT MOD 1200V 225A 780W Infineon Technologies	3,343	126.12	- + RFQ	Datasheet	Bulk	C	Active	Trench Field Stop	Single Chopper	1200 V	225 A	780 W	2.15V @ 15V, 150A	5 mA	11 nF @ 25 V	Standard	No	-40°C ~ 125°C	Chassis Mount
FF150R12KE3GB2HOSA1 IGBT MODULE VCES 1200V 150A Infineon Technologies	3,015	126.12	- + RFQ	Datasheet	Bulk	C	Active	-	-	-	-	-	-	-	-	-	-	-	-
FP50R12KT4PBPSA1 IGBT MOD 1200V 100A 20MW Infineon Technologies	3,049	130.74	- + RFQ		Tray	EconoPIM™ 2	Active	Trench Field Stop	Three Phase Inverter	1200 V	100 A	20 mW	2.15V @ 15V, 25A	1 mA	1.45 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C	Chassis Mount
APTGL90H120T3G IGBT MODULE 1200V 110A 385W SP3 Microchip Technology	2,198	130.80	- + RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Full Bridge	1200 V	110 A	385 W	2.25V @ 15V, 75A	250 µA	4.4 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
FP50R12N2T7B11BPSA2 LOW POWER ECONO Infineon Technologies	3,845	131.16	- + RFQ	Datasheet	Tray	EconoPIM™ 2	Active	Trench Field Stop	Three Phase Inverter	1200 V	50 A	20 mW	1.5V @ 15V, 50A	10 µA	11.1 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
NXH300B100H4Q2F2S1G PIM 1500V 250KW Q2BOOST onsemi	2,631	131.41	- + RFQ		Tray	-	Active	Trench Field Stop	Dual, Common Source	1118 V	73 A	194 W	2.25V @ 15V, 100A	800 µA	6.323 nF @ 20 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
FZ400R12KP4HOSA1 IGBT MOD 1200V 400A 2400W Infineon Technologies	3,618	132.13	- + RFQ	Datasheet	Tray	C	Active	Trench Field Stop	Single	1200 V	400 A	2400 W	2.05V @ 15V, 400A	5 mA	28 nF @ 25 V	Standard	No	-40°C ~ 125°C	Chassis Mount
FD300R06KE3HOSA1 IGBT MOD 600V 400A 940W Infineon Technologies	3,794	97.41	- + RFQ	Datasheet	Bulk,Bulk	C	Active	Trench Field Stop	Single	600 V	400 A	940 W	1.9V @ 15V, 300A	5 mA	19 nF @ 25 V	Standard	No	-40°C ~ 150°C	Chassis Mount
MID150-12A4 IGBT MOD 1200V 180A 760W Y3DCB IXYS	2,197	132.59	- + RFQ	Datasheet	Box	-	Active	NPT	Single	1200 V	180 A	760 W	2.7V @ 15V, 100A	7.5 mA	6.6 nF @ 25 V	Standard	No	150°C (TJ)	Chassis Mount
FP35R12KT4B16BPSA1 LOW POWER ECONO AG-ECONO2B-711 Infineon Technologies	2,131	128.01	- + RFQ		Tray	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
NXH200T120H3Q2F2SG 80KW GEN-II Q2PACK-200A MODULE onsemi	2,065	133.17	- + RFQ	Datasheet	Tray	-	Active	Trench Field Stop	Half Bridge	1200 V	330 A	679 W	2.3V @ 15V, 200A	500 µA	35.615 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount
NXH200T120H3Q2F2STG 80KW GEN-II Q2PACK-200A MODULE ( onsemi	3,931	134.43	- + RFQ	Datasheet	Tray	-	Active	Trench Field Stop	Half Bridge	1200 V	330 A	679 W	2.3V @ 15V, 200A	500 µA	35.615 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount
DF200R12KE3HOSA1 IGBT MODULE 1200V 1040W Infineon Technologies	3,462	130.13	- + RFQ	Datasheet	Bulk	-	Active	-	Single	1200 V	-	1040 W	2.15V @ 15V, 200A	5 mA	14 nF @ 25 V	Standard	No	-40°C ~ 125°C	Chassis Mount
FF150R12ME3GBOSA1 IGBT MOD 1200V 200A 695W Infineon Technologies	440	99.26	- + RFQ	Datasheet	Bulk,Bulk	EconoDUAL™	Not For New Designs	Trench Field Stop	Half Bridge	1200 V	200 A	695 W	2.15V @ 15V, 150A	5 mA	10.5 nF @ 25 V	Standard	Yes	-40°C ~ 125°C	Chassis Mount

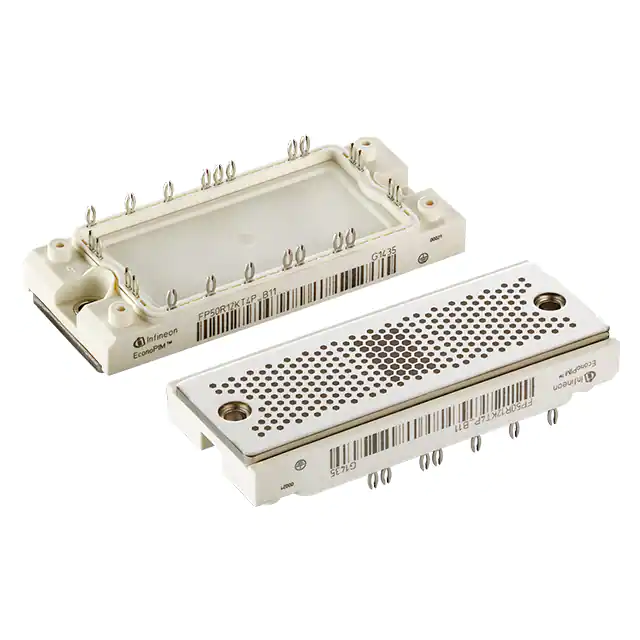

FP50R12KT4PB11BPSA1 MOD IGBT LOW PWR ECONO2-4 Infineon Technologies	3,514	134.82	- + RFQ		Tray	EconoPIM™ 2	Active	-	-	-	-	-	-	-	-	-	-	-	-
FP35R12U1T4BPSA1 IGBT MOD 1200V 54A 250W Infineon Technologies	3,186	131.37	- + RFQ	Datasheet	Bulk	SmartPIM1	Not For New Designs	Trench Field Stop	Three Phase Inverter	1200 V	54 A	250 W	2.25V @ 15V, 35A	1 mA	2 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
F450R12KS4BPSA1 LOW POWER ECONO AG-ECONO2B-211 Infineon Technologies	3,389	133.02	- + RFQ	Datasheet	Tray	-	Active	-	Full Bridge Inverter	1200 V	70 A	355 W	3.75V @ 15V, 50A	5 mA	3.4 nF @ 25 V	Standard	Yes	-40°C ~ 125°C (TJ)	Chassis Mount
APTGT50DH170TG IGBT MODULE 1700V 75A 312W SP4 Microchip Technology	3,384	136.80	- + RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Asymmetrical Bridge	1700 V	75 A	312 W	2.4V @ 15V, 50A	250 µA	4.4 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
