Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length

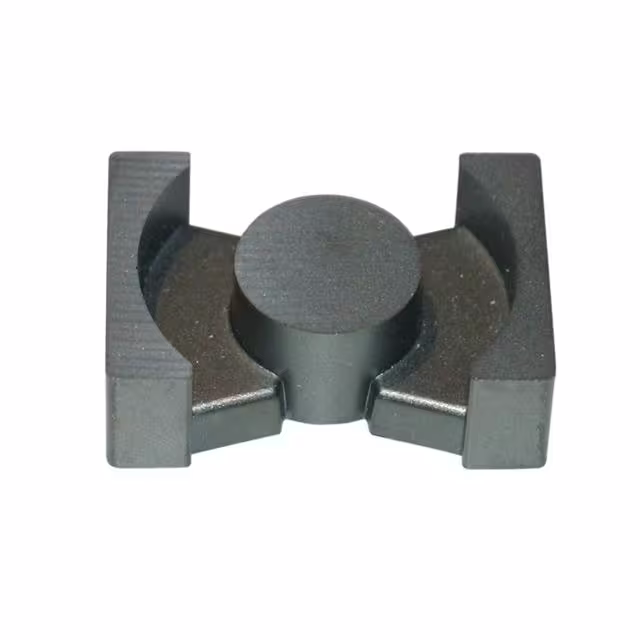

6698322121 98 PQ CORE SET Fair-Rite Products Corp.	3,180	2.86	- + RFQ	Datasheet	Bulk	-	Active	PQ	-	-	-	-	±25%	Ungapped	-	2400	32.7	53.7	164.2	140.4	8821	Uncoated	-
6695323121 95 PQ CORE SET Fair-Rite Products Corp.	2,113	3.42	- + RFQ	Datasheet	Bulk	-	Active	PQ	-	95	-	-	±25%	Ungapped	-	3000	45.9	75.3	164.2	140.1	12370	Uncoated	-

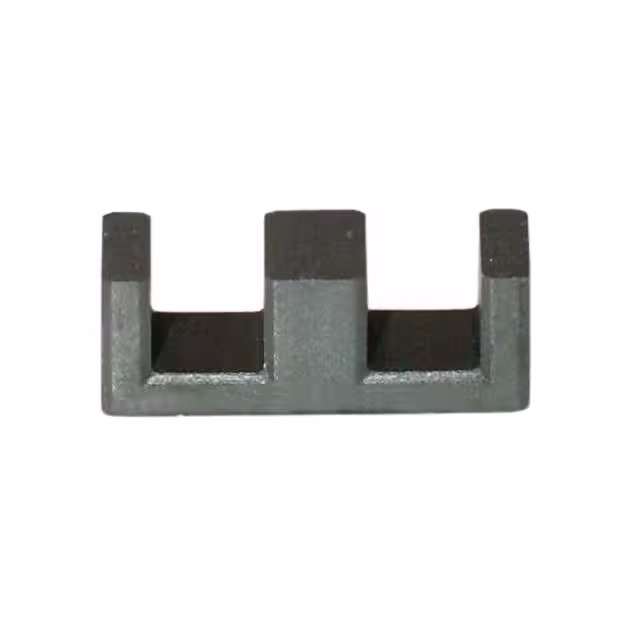

9498206002 98 PLANAR E CORE SET Fair-Rite Products Corp.	3,025	3.51	- + RFQ	Datasheet	Bulk	-	Active	E	-	-	-	-	±25%	Ungapped	-	2400	28	62.1	221	215	13700	Uncoated	-
9495205002 95 PLANAR E CORE SET Fair-Rite Products Corp.	2,788	3.77	- + RFQ	Datasheet	Bulk	-	Active	E	-	95	-	-	±25%	Ungapped	-	3000	30	52.9	190	180	10100	Uncoated	0.325 (8.26mm)
PQ32/30-3C96 PQ CORES 2PC SET Ferroxcube	2,863	4.57	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 32 x 30	3C96	-	-	±25%	Ungapped	1790	-	0.447	74.7	167	142	12500	Uncoated	1.193 (30.30mm)

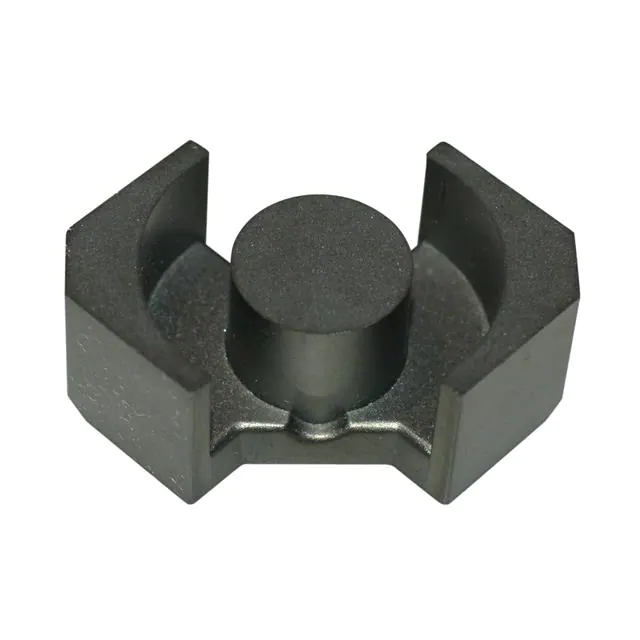

6278420121 78 RM CORE SET Fair-Rite Products Corp.	3,952	4.83	- + RFQ	Datasheet	Bulk	-	Active	RM	-	78	-	-	±25%	Ungapped	-	2300	38	73.8	195	170.9	14370	Uncoated	-

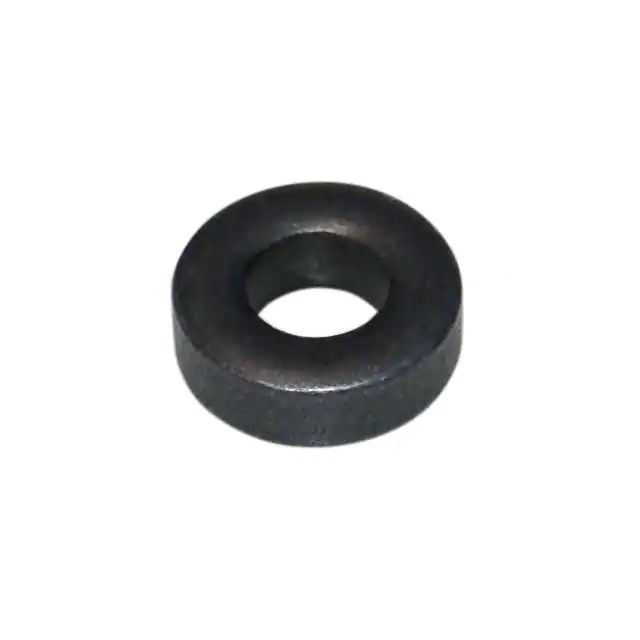

5975021921 75 COATED TOROID Fair-Rite Products Corp.	3,173	5.64	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	75	1.984 (50.40mm)	6.5 µH	-30%, +25%	Ungapped	-	5000	1.059	127	120	-	15300	Plastic	0.663 (16.85mm)
PQ35/35-3C96 PQ CORES 2PC SET Ferroxcube	2,006	5.68	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 35 x 35	3C96	-	-	±25%	Ungapped	1700	-	0.454	86.1	190	162	16300	Uncoated	1.366 (34.70mm)

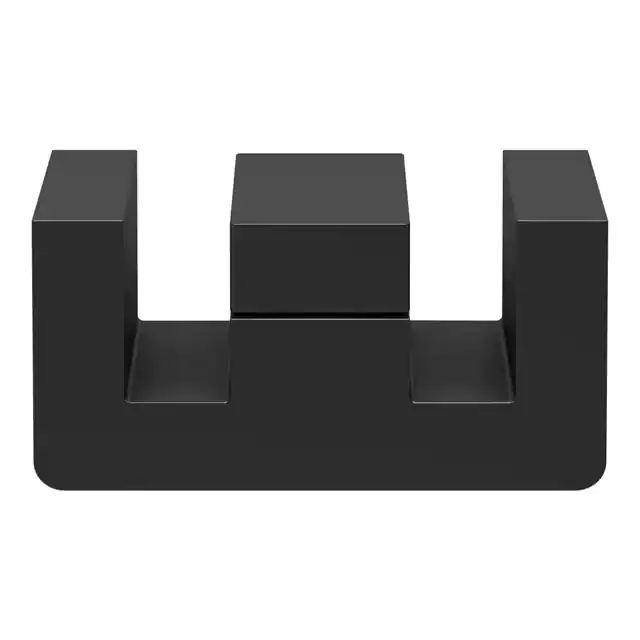

B66335Q0400K187 E55/28/21-N87-DG400 EPCOS - TDK Electronics	2,514	7.03	- + RFQ	Datasheet	Bulk	E55/28/21	Active	E	E 55 x 28 x 21	N87	-	400 nH	±10%	Distributed Gapped	-	-	0.35	124	354	351	43900	Uncoated	0.827 (21.00mm)
ETD59/31/22-3C95 ER AND ETD CORES Ferroxcube	2,549	7.51	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 59 x 31 x 22	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.220 (31.00mm)
UR70/33/17-3C90 UR CORES Ferroxcube	3,204	8.34	- + RFQ	Datasheet	Bulk	-	Active	UR	UR 70 x 33 x 17	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.313 (33.35mm)

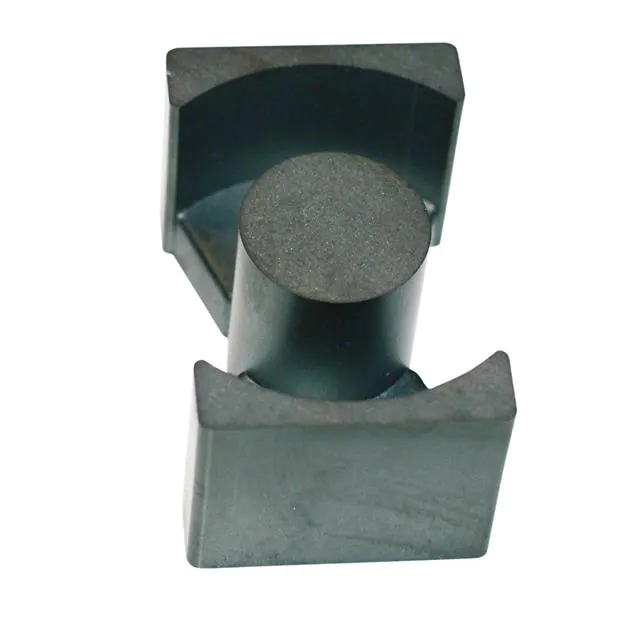

6678505021 78 PQ CORE SET Fair-Rite Products Corp.	2,372	8.39	- + RFQ	Datasheet	Bulk	-	Active	PQ	-	78	-	-	±25%	Ungapped	-	2300	35.9	114.7	319	314.2	36630	Uncoated	-
PLT64/50/5-3C90 PLANAR PLT CORES Ferroxcube	2,250	8.43	- + RFQ		Bulk	-	Active	PLT	PLT 64 x 50 x 5	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.200 (5.08mm)
6698505021 98 PQ CORE SET Fair-Rite Products Corp.	2,132	8.80	- + RFQ	Datasheet	Bulk	-	Active	PQ	-	-	-	-	±25%	Ungapped	-	2400	35.9	114.7	319	314.2	36630	Uncoated	-
LRF372315MKCX NANOCRYSTALLINE CORE, 37X23X15 United Chemi-Con	3,525	12.01	- + RFQ	Datasheet	Bulk	FL-V	Active	Toroid	-	-	1.594 (40.50mm)	34.7 µH	-	Ungapped	-	-	-	-	83	-	-	Uncoated	-
B66397Q0250K187 ETD59/31/22-N87-DG250 EPCOS - TDK Electronics	3,909	13.08	- + RFQ	Datasheet	Bulk	ETD59/31/22	Active	ETD	ETD 59 x 31 x 22	N87	-	250 nH	±10%	Distributed Gapped	-	-	0.38	139	368	368	51200	Uncoated	0.870 (22.10mm)
B66397Q0100K187 ETD59/31/22-N87-DG100 EPCOS - TDK Electronics	3,913	13.08	- + RFQ	Datasheet	Bulk	ETD59/31/22	Active	ETD	ETD 59 x 31 x 22	N87	-	100 nH	±10%	Distributed Gapped	-	-	0.38	139	368	368	51200	Uncoated	0.870 (22.10mm)
PQ50/50-3C96 PQ CORES 2PC SET Ferroxcube	3,166	13.21	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 50 x 50	3C96	-	-	±25%	Ungapped	1730	-	0.345	113	328	314	37100	Uncoated	1.969 (50.00mm)

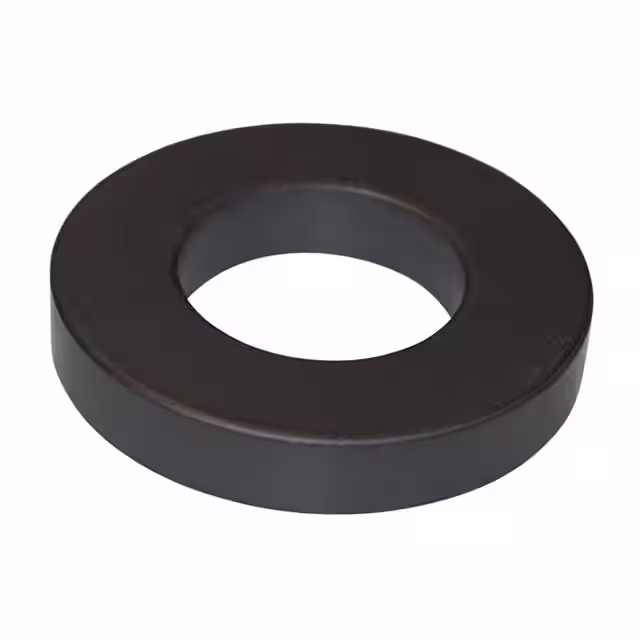

5978011101 78 TOROID Fair-Rite Products Corp.	2,092	13.60	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	78	2.900 (73.66mm)	-	±25%	Ungapped	-	2300	-	167	215	-	35900	Uncoated	0.500 (12.70mm)
7878400721 78 PLANAR EI CORE SET Fair-Rite Products Corp.	2,964	13.91	- + RFQ	Datasheet	Bulk	-	Active	E	-	78	-	-	±25%	Ungapped	-	2300	14	70	518	515	36300	Uncoated	0.407 (10.34mm)
