Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
8978101021 78 EFD CORE SET Fair-Rite Products Corp.	2,610	0.45	- + RFQ	Datasheet	Bulk	-	Active	EFD	-	78	-	-	±25%	Ungapped	-	2300	327	23.6	7.2	6.6	171	Uncoated	0.205 (5.20mm)
9498201002 98 PLANAR E CORE SET Fair-Rite Products Corp.	2,018	0.47	- + RFQ	Datasheet	Bulk	-	Active	E	-	-	-	-	±25%	Ungapped	-	2400	134	20.1	15.3	15	315	Uncoated	-

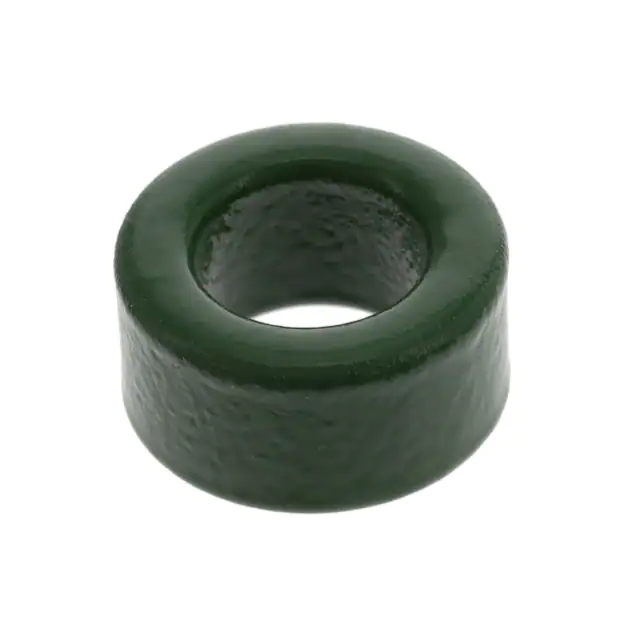

5943001121 43 TOROID PLASTIC COATED Fair-Rite Products Corp.	2,259	0.50	- + RFQ	Datasheet	Box	-	Active	Toroid	-	43	0.530 (13.45mm)	480 nH	-25%, +20%	Ungapped	-	800	2.0842	31.2	15	-	466	Plastic	0.280 (7.11mm)
4077172011 77 ROD Fair-Rite Products Corp.	3,241	0.58	- + RFQ	Datasheet	Bulk	-	Active	ROD	-	77	-	-	-	Ungapped	-	2000	-	-	-	-	-	Uncoated	-
9498103002 98 E CORE SET Fair-Rite Products Corp.	3,430	0.58	- + RFQ	Datasheet	Bulk	-	Active	E	-	-	-	-	±25%	Ungapped	-	2400	181	39.9	22	21.6	878	Uncoated	0.315 (8.00mm)
4052155611 52 ROD Fair-Rite Products Corp.	3,425	0.60	- + RFQ	Datasheet	Box	-	Active	ROD	-	52	-	-	-	Ungapped	-	250	-	-	-	-	-	Uncoated	-
5976000201 76 TOROID Fair-Rite Products Corp.	2,834	0.61	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	76	0.375 (9.53mm)	-	±30%	Ungapped	-	10000	-	20.7	7.2	-	150	Uncoated	0.125 (3.18mm)
9498202002 98 PLANAR E CORE SET Fair-Rite Products Corp.	3,896	0.70	- + RFQ	Datasheet	Bulk	-	Active	E	-	-	-	-	±25%	Ungapped	-	2400	60	24.3	39.5	39	960	Uncoated	-

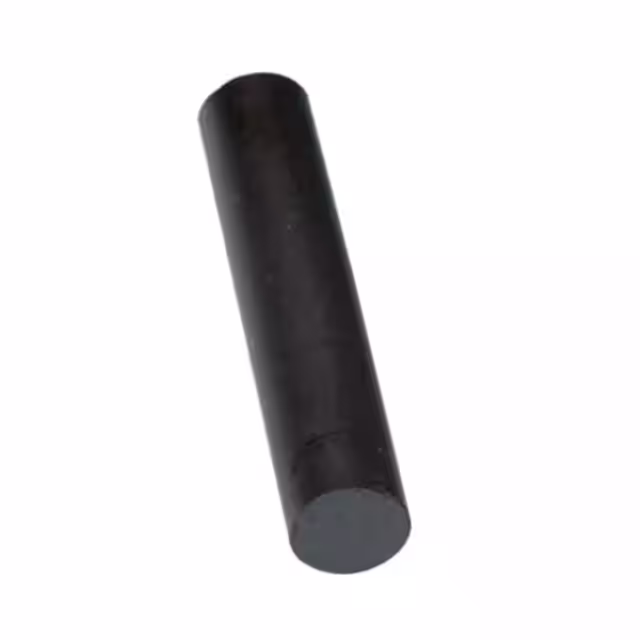

4052195211 52 ROD Fair-Rite Products Corp.	2,979	0.71	- + RFQ	Datasheet	Bulk	-	Active	ROD	-	52	-	-	-	Ungapped	-	250	-	-	-	-	-	Uncoated	-
8995121221 95 EFD CORE SET Fair-Rite Products Corp.	3,207	0.80	- + RFQ	Datasheet	Bulk	-	Active	EFD	-	95	-	-	±25%	Ungapped	-	3000	259	28.4	11	10.8	311	Uncoated	0.244 (6.20mm)
B64290L0743X038 FERRITE CORE TOROID 5.4UH T38 EPCOS - TDK Electronics	3,097	0.86	- + RFQ	Datasheet	Box	TX16/9/5	Active	Toroid	-	T38	0.661 (16.80mm)	5.4 µH	±30%	Ungapped	-	10000	2.33	36.75	15.78	-	580	Epoxy	0.215 (5.45mm)
5952020501 52 TOROID Fair-Rite Products Corp.	3,866	0.88	- + RFQ	Datasheet	Box	-	Active	Toroid	-	52	-	-	±25%	Ungapped	-	250	-	30.6	14.4	-	442	Uncoated	0.250 (6.35mm)

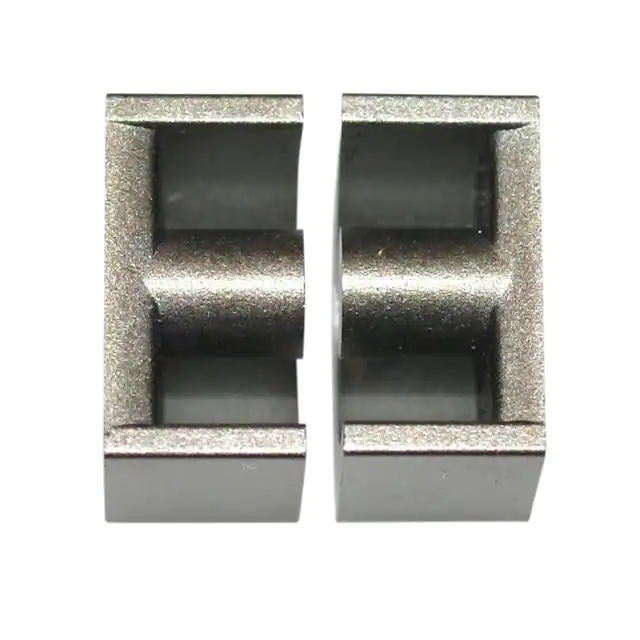

6578130121 78 EP CORE SET Fair-Rite Products Corp.	2,038	0.88	- + RFQ	Datasheet	Bulk	-	Active	EP	-	78	-	-	±25%	Ungapped	-	2300	118	23.2	19.7	14.8	457	Uncoated	0.256 (6.50mm)
3078990891 78 ROD Fair-Rite Products Corp.	2,592	0.89	- + RFQ	Datasheet	Bulk	-	Active	ROD	-	78	0.197 (5.00mm)	-	-	Ungapped	29	2300	-	-	19.6	-	-	Uncoated	-
9495203002 95 PLANAR E CORE SET Fair-Rite Products Corp.	2,845	0.91	- + RFQ	Datasheet	Bulk	-	Active	E	-	95	-	-	±25%	Ungapped	-	3000	41	32.4	79	79	2560	Uncoated	0.224 (5.70mm)
5977000601 77 TOROID Fair-Rite Products Corp.	2,450	0.92	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	77	0.825 (20.96mm)	-	±25%	Ungapped	-	2000	-	52	24.3	-	1260	Uncoated	0.250 (6.35mm)
PLT22/16/2.5-3C90 PLANAR PLT CORES Ferroxcube	3,714	1.03	- + RFQ		Bulk	-	Active	PLT	PLT 22 x 16 x 2.5	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
6295180121 95 RM CORE SET Fair-Rite Products Corp.	3,221	1.11	- + RFQ	Datasheet	Bulk	-	Active	RM	-	95	-	-	±25%	Ungapped	-	3000	93	31	34.2	31.2	1060	Uncoated	0.244 (6.20mm)
3067990881 67 ROD Fair-Rite Products Corp.	2,962	1.12	- + RFQ	Datasheet	Bulk	-	Active	ROD	-	67	-	-	-	Ungapped	18	40	-	-	12.6	-	-	Uncoated	-
PLT22/16/2.5/S-3C90 PLANAR PLT CORES Ferroxcube	3,146	1.13	- + RFQ		Bulk	-	Active	PLT	PLT 22 x 16 x 2.5	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.114 (2.90mm)
