Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
SHO-402 CMC 800MA 2LN TH KEMET	718	2.49	- + RFQ	Datasheet	Bulk	SHO	Active	Power Line	2	-	-	800mA	120mOhm	50V	-	-25°C ~ 80°C	-	-	-	Through Hole	0.295 Dia (7.50mm)	0.295 (7.50mm)
RN218-0.9-02-27M CMC 27MH 900MA 2LN TH Schaffner EMC Inc.	642	2.52	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	27 mH @ 10 kHz	900mA	620mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.709 L x 0.492 W (18.00mm x 12.50mm)	0.799 (20.30mm)
RN218-0.6-02-47M CMC 47MH 600MA 2LN TH Schaffner EMC Inc.	3,132	2.52	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	47 mH @ 10 kHz	600mA	1.2Ohm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.709 L x 0.492 W (18.00mm x 12.50mm)	0.799 (20.30mm)

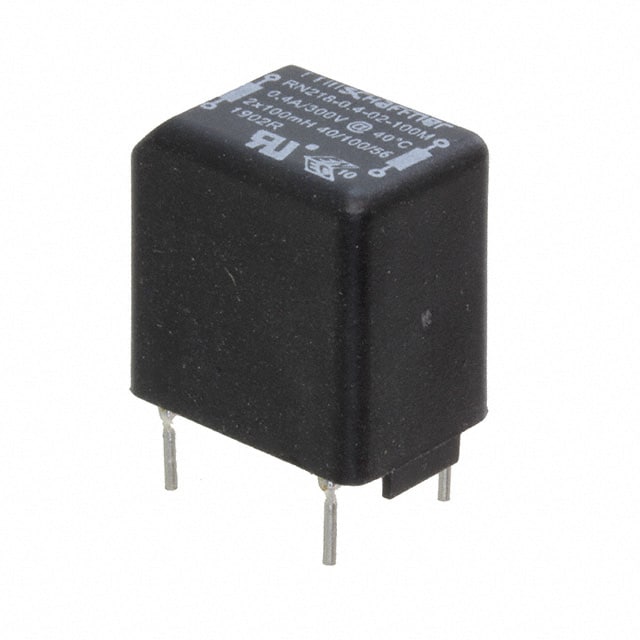

RN218-0.4-02-100M CMC 100MH 400MA 2LN TH Schaffner EMC Inc.	165	2.52	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	100 mH @ 10 kHz	400mA	2.8Ohm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.709 L x 0.492 W (18.00mm x 12.50mm)	0.799 (20.30mm)
RN218-0.7-02-39M CMC 39MH 700MA 2LN TH Schaffner EMC Inc.	3,321	2.52	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	39 mH @ 10 kHz	700mA	-	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.709 L x 0.492 W (18.00mm x 12.50mm)	0.799 (20.30mm)

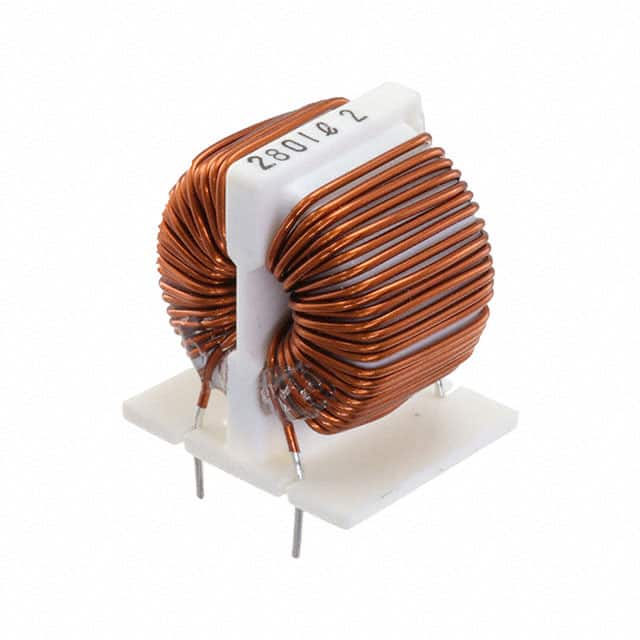

SC-03-06G CMC 600UH 3A 2LN TH KEMET	768	2.53	- + RFQ	Datasheet	Bulk	SC	Active	Power Line	2	-	600 µH @ 100 kHz	3A	30mOhm	250V	250V	-25°C ~ 105°C	-	-	-	Through Hole	0.689 Dia x 0.551 W (17.50mm x 14.00mm)	0.689 (17.50mm)
SC-02-10G CMC 1MH 2A 2LN TH KEMET	279	2.53	- + RFQ	Datasheet	Bulk	SC	Active	Power Line	2	-	1 mH @ 100 kHz	2A	50mOhm	250V	250V	-25°C ~ 105°C	-	-	-	Through Hole	0.689 Dia x 0.551 W (17.50mm x 14.00mm)	0.689 (17.50mm)
RN218-1-02-22M CMC 22MH 1A 2LN TH Schaffner EMC Inc.	458	2.54	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	22 mH @ 10 kHz	1A	520mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.709 L x 0.492 W (18.00mm x 12.50mm)	0.799 (20.30mm)

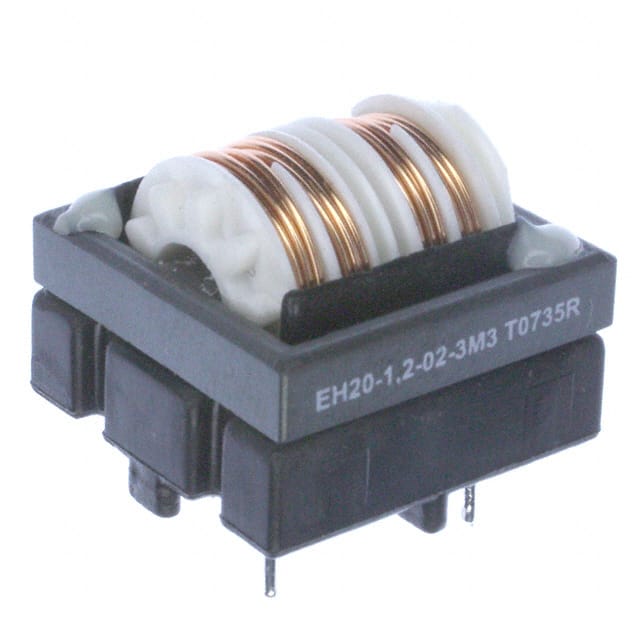

EH20-1.2-02-3M3 CMC 3.3MH 1.2A 2LN TH Schaffner EMC Inc.	450	2.54	- + RFQ	Datasheet	Tray	EH	Active	Power Line	2	-	3.3 mH @ 400 Hz	1.2A	127mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	0.827 L x 0.827 W (21.00mm x 21.00mm)	0.740 (18.80mm)
RN116-1.5-02-10M CMC 10MH 1.5A 2LN TH Schaffner EMC Inc.	230	2.54	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	10 mH @ 10 kHz	1.5A	148mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.531 (13.50mm)
ALFT-03A-13 CMC 1MH 2.2A 2LN TH Abracon LLC	272	2.56	- + RFQ	Datasheet	Tray	ALFT-03A	Active	Power Line	2	-	1 mH @ 1 kHz	2.2A	400mOhm	250V	-	-25°C ~ 85°C	-	-	-	Through Hole	0.941 L x 0.709 W (23.90mm x 18.00mm)	0.850 (21.60mm)

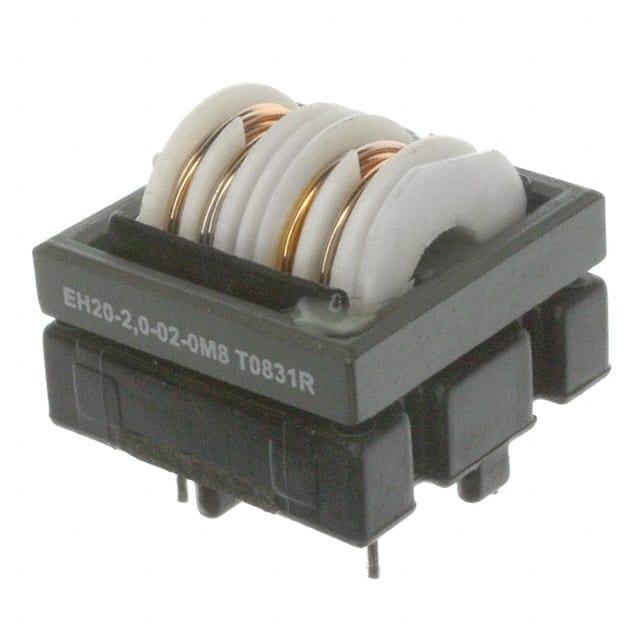

EH20-2.0-02-0M8 CMC 820UH 2A 2LN TH Schaffner EMC Inc.	447	2.57	- + RFQ	Datasheet	Tube	EH	Active	Power Line	2	-	820 µH @ 10 kHz	2A	38mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	0.827 L x 0.827 W (21.00mm x 21.00mm)	0.740 (18.80mm)
RN218-2.2-02-3M3 CMC 3.3MH 2.2A 2LN TH Schaffner EMC Inc.	2,845	2.57	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	3.3 mH @ 10 kHz	2.2A	100mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.709 L x 0.492 W (18.00mm x 12.50mm)	0.799 (20.30mm)

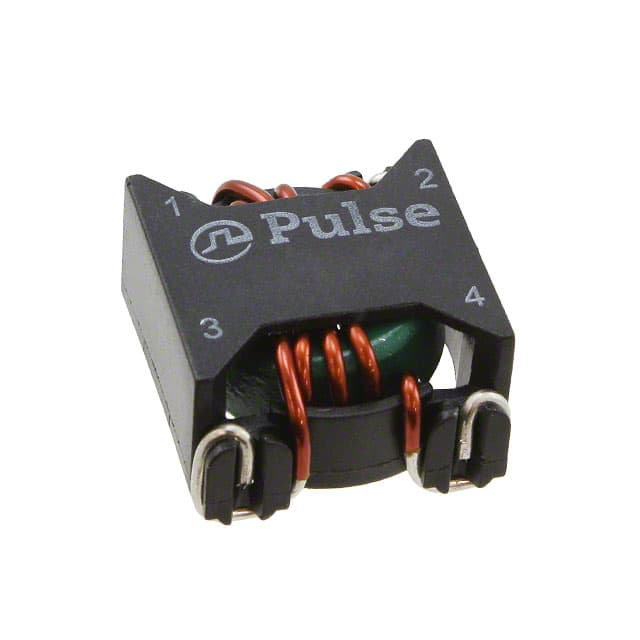

PA2752NL CMC 1.4A 2LN SMD Pulse Electronics Power	561	2.62	- + RFQ	Datasheet	Tube	-	Active	-	2	-	-	1.4A	210mOhm	-	-	-40°C ~ 130°C	-	-	-	Surface Mount	0.670 L x 0.770 W (17.02mm x 19.56mm)	0.390 (9.91mm)
RN116-2-02-3M3 CMC 3.3MH 2A 2LN TH Schaffner EMC Inc.	936	2.63	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	3.3 mH @ 10 kHz	2A	70mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.531 (13.50mm)

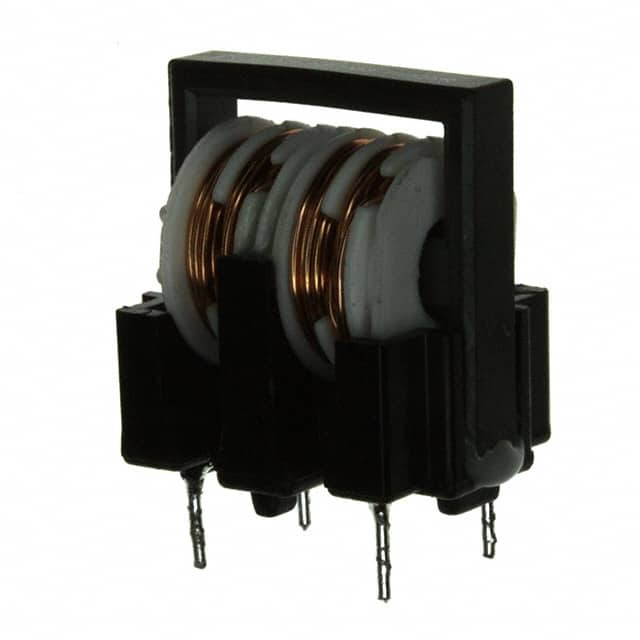

EV20-1.2-02-3M3 CMC 3.3MH 1.2A 2LN TH Schaffner EMC Inc.	440	2.63	- + RFQ	Datasheet	Bulk	EV	Active	Power Line	2	-	3.3 mH @ 400 Hz	1.2A	127mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	0.827 L x 0.630 W (21.00mm x 16.00mm)	1.024 (26.00mm)
B82730U3102A020 CMC 1.8MH 1A 2LN TH EPCOS - TDK Electronics	204	2.63	- + RFQ	Datasheet	Tray	B82730	Active	Power Line	2	-	1.8 mH @ 10 kHz	1A	340mOhm (Typ)	-	300V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.650 L x 0.433 W (16.50mm x 11.00mm)	0.650 (16.50mm)
B82730G3601A020 CMC 4.7MH 600MA 2LN TH EPCOS - TDK Electronics	289	2.63	- + RFQ	Datasheet	Tray	B82730	Active	Power Line	2	-	4.7 mH @ 10 kHz	600mA	920mOhm (Typ)	-	300V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.650 L x 0.591 W (16.50mm x 15.00mm)	0.472 (12.00mm)
B82730U3262A020 CMC 330UH 2.6A 2LN TH EPCOS - TDK Electronics	156	2.63	- + RFQ	Datasheet	Tray	B82730	Active	Power Line	2	-	330 µH @ 100 kHz	2.6A	60mOhm (Typ)	-	300V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.650 L x 0.433 W (16.50mm x 11.00mm)	0.650 (16.50mm)
RN122-4-02-1M8 CMC 1.8MH 4A 2LN TH Schaffner EMC Inc.	3,799	2.73	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	1.8 mH @ 10 kHz	4A	42mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.531 (13.50mm)
