Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
RN204-0.3-02-12M CMC 12MH 300MA 2LN TH Schaffner EMC Inc.	984	2.81	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	12 mH @ 10 kHz	300mA	960mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.551 L x 0.354 W (14.00mm x 9.00mm)	0.575 (14.61mm)
RN122-0.8-02-39M CMC 39MH 800MA 2LN TH Schaffner EMC Inc.	200	2.84	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	39 mH @ 10 kHz	800mA	1Ohm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.531 (13.50mm)
SSHB21H-R30050 CMC 5MH 3A 2LN TH KEMET	197	2.84	- + RFQ	Datasheet	Bulk	SSHB21H	Active	-	2	-	5 mH @ 10 kHz	3A	80mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	1.024 L x 0.906 W (26.00mm x 23.00mm)	0.610 (15.50mm)
RN122-0.6-02-47M CMC 47MH 600MA 2LN TH Schaffner EMC Inc.	2,934	2.84	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	47 mH @ 10 kHz	600mA	1.3Ohm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.531 (13.50mm)

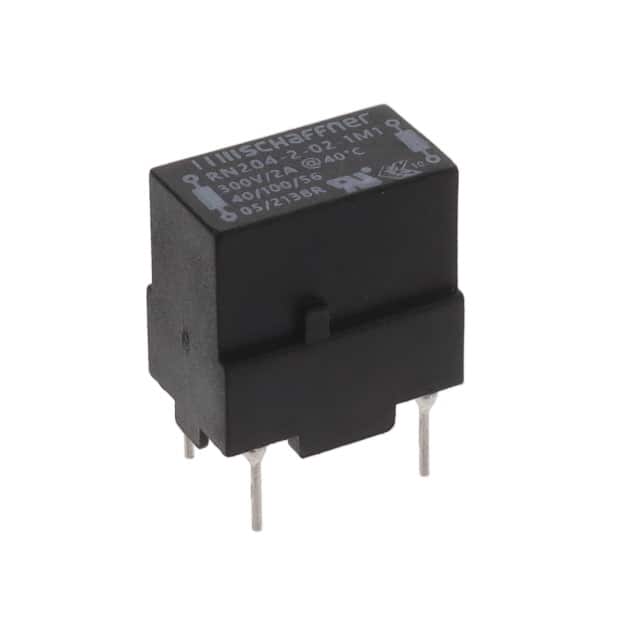

RN204-2-02-1M1 CMC 1.1MH 2A 2LN TH Schaffner EMC Inc.	812	2.86	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	1.1 mH @ 10 kHz	2A	57mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.551 L x 0.354 W (14.00mm x 9.00mm)	0.575 (14.61mm)
RN122-1.5-02-10M CMC 10MH 1.5A 2LN TH Schaffner EMC Inc.	237	2.87	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	10 mH @ 10 kHz	1.5A	250mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.531 (13.50mm)
SS26V-100250 CMC 25MH 1A 2LN TH KEMET	2,562	2.87	- + RFQ	Datasheet	Bulk	SS	Active	Power Line	2	-	25 mH @ 1 kHz	1A	700mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	1.024 L x 0.807 W (26.00mm x 20.50mm)	1.240 (31.50mm)
SS26V-R100330 CMC 33MH 1A 2LN TH KEMET	206	2.89	- + RFQ	Datasheet	Bulk	SS	Active	Power Line	2	-	33 mH @ 1 kHz	1A	700mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	1.024 L x 0.807 W (26.00mm x 20.50mm)	1.240 (31.50mm)

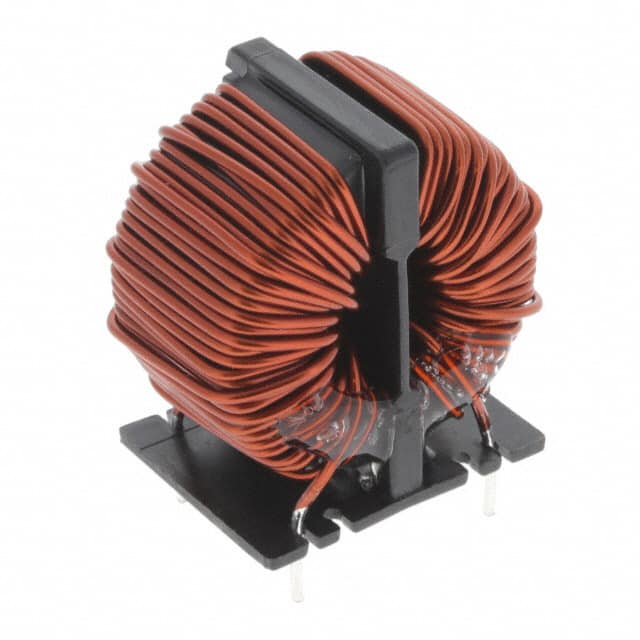

SC-05-100 CMC 1MH 5A 2LN TH KEMET	928	2.92	- + RFQ	Datasheet	Bulk	SC	Active	Power Line	2	-	1 mH @ 100 kHz	5A	50mOhm	250V	250V	-25°C ~ 105°C	-	-	-	Through Hole	0.984 Dia x 0.728 W (25.00mm x 18.50mm)	0.984 (25.00mm)
RN222-3-02-4M5 CMC 4.5MH 3A 2LN TH Schaffner EMC Inc.	324	2.92	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	4.5 mH @ 10 kHz	3A	80mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.220 L x 0.709 W (31.00mm x 18.00mm)	1.165 (29.60mm)
7514-RC CMC 20MH 1A 2LN TH Bourns Inc.	369	3.05	- + RFQ	Datasheet	Bulk	7500	Active	Power Line	2	-	20 mH @ 1 kHz	1A	490mOhm	-	250V	-55°C ~ 105°C	-	-	-	Through Hole	0.906 L x 0.748 W (23.00mm x 19.00mm)	1.083 (27.50mm)
SSR21NVS-M10345 CMC 34.5MH 1A 2LN TH KEMET	176	3.14	- + RFQ	Datasheet	Bulk	SSR	Active	-	2	-	34.5 mH @ 10 kHz	1A	510mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.866 L x 0.630 W (22.00mm x 16.00mm)	1.063 (27.00mm)
SC-04-200 CMC 2MH 4A 2LN TH KEMET	151	3.14	- + RFQ	Datasheet	Tray	SC	Active	Power Line	2	-	2 mH @ 100 kHz	4A	55mOhm	250V	250V	25°C ~ 105°C	-	-	-	Through Hole	0.984 Dia (25.00mm)	0.984 (25.00mm)
SH-303 CMC 15UH 2.1A 2LN TH KEMET	701	3.15	- + RFQ	Datasheet	Bulk	SH	Active	Power Line	2	-	15 µH @ 100 kHz	2.1A	10mOhm	50V	-	-25°C ~ 80°C	-	-	-	Through Hole	-	0.472 (12.00mm)
SSR21NV-M30064 CMC 6.4MH 3A 2LN TH KEMET	420	3.17	- + RFQ	Datasheet	Bulk	SSR	Active	-	2	-	6.4 mH @ 10 kHz	3A	80mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.866 L x 0.630 W (22.00mm x 16.00mm)	1.063 (27.00mm)
PE-53911NL CMC 1.5A 2LN SMD Pulse Electronics Power	496	3.21	- + RFQ	Datasheet	Tube	-	Active	-	2	-	-	1.5A	60mOhm	-	250V	-40°C ~ 130°C	-	-	-	Surface Mount	0.645 L x 0.560 W (16.38mm x 14.22mm)	0.350 (8.89mm)
B82721K2262N001 CMC 400UH 2.6A 2LN TH EPCOS - TDK Electronics	720	3.30	- + RFQ	Datasheet	Tray	B82721	Active	Power Line	2	-	400 µH @ 100 kHz	2.6A	55mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.717 L x 0.520 W (18.20mm x 13.20mm)	0.823 (20.90mm)
B82733F2701B001 CMC 100MH 700MA 2LN TH EPCOS - TDK Electronics	546	3.30	- + RFQ	Datasheet	Tray	B82733	Active	Power Line	2	-	100 mH @ 10 kHz	700mA	1.81Ohm (Typ)	-	300V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.043 L x 0.976 W (26.50mm x 24.80mm)	0.551 (14.00mm)
B82721A2501N001 CMC 18MH 500MA 2LN TH EPCOS - TDK Electronics	522	3.30	- + RFQ	Datasheet	Tray	B82721	Active	Power Line	2	-	18 mH @ 10 kHz	500mA	1.4Ohm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.705 L x 0.681 W (17.90mm x 17.30mm)	0.496 (12.60mm)

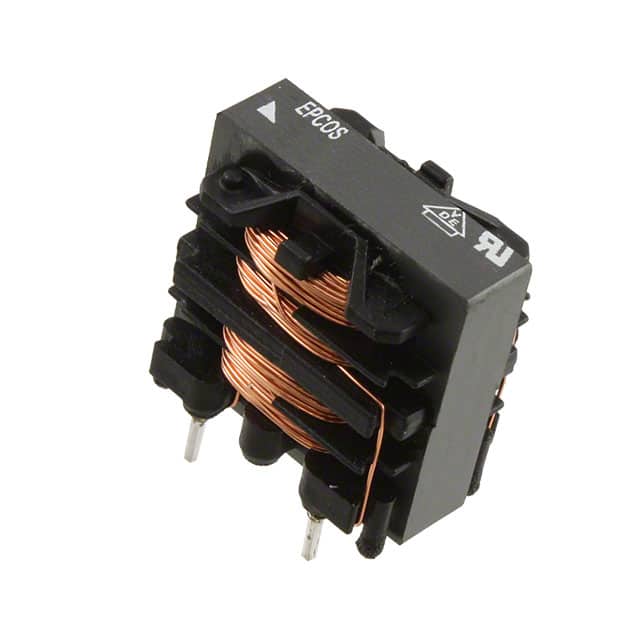

B82731T2132A020 CMC 6.8MH 1.3A 2LN TH EPCOS - TDK Electronics	491	3.32	- + RFQ	Datasheet	Tray	B82731	Active	Power Line	2	-	6.8 mH @ 10 kHz	1.3A	370mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.846 L x 0.531 W (21.50mm x 13.50mm)	0.831 (21.10mm)
