Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
52505C CMC 2.4A 2LN TH Murata Power Solutions Inc.	2,328	3.33	- + RFQ	Datasheet	Tray	5200	Active	Power Line	2	-	-	2.4A	91mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	0.945 L x 0.642 W (24.00mm x 16.30mm)	1.220 (31.00mm)

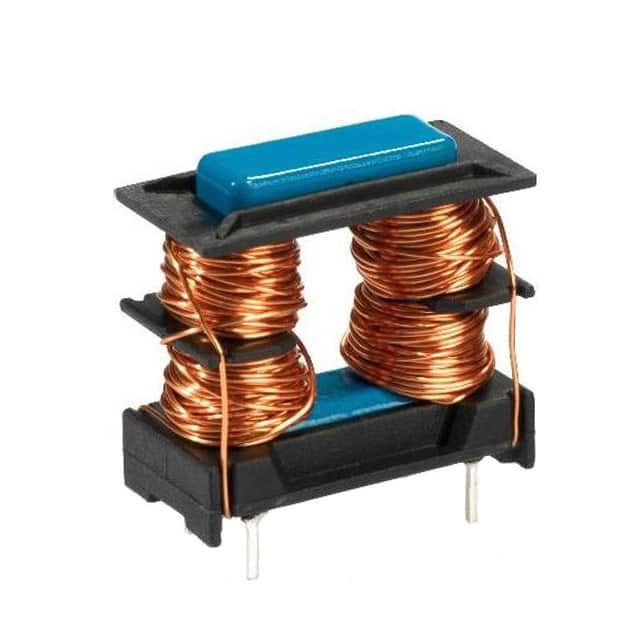

CMF23V-103231 CMC 10MH 2.3A 2LN TH Triad Magnetics	439	3.38	- + RFQ	Datasheet	Bulk	CMF	Active	Power Line	2	-	10 mH @ 10 kHz	2.3A	206mOhm	-	300V	-40°C ~ 105°C	-	-	-	Through Hole	1.142 L x 0.591 W (29.00mm x 15.00mm)	1.063 (27.00mm)
CMF23V-153191-B CMC 15MH 1.9A 2LN TH Triad Magnetics	435	3.38	- + RFQ	Datasheet	Bulk	CMF	Active	Power Line	2	-	15 mH @ 10 kHz	1.9A	306mOhm	-	300V	-40°C ~ 105°C	-	-	-	Through Hole	1.142 L x 0.591 W (29.00mm x 15.00mm)	1.063 (27.00mm)
CMF23V-473111-B CMC 47MH 1.1A 2LN TH Triad Magnetics	130	3.38	- + RFQ	Datasheet	Bulk	CMF	Active	Power Line	2	-	47 mH @ 10 kHz	1.1A	884mOhm	-	300V	-40°C ~ 105°C	-	-	-	Through Hole	1.142 L x 0.591 W (29.00mm x 15.00mm)	1.063 (27.00mm)
B82732F2162B001 CMC 10MH 1.6A 2LN TH EPCOS - TDK Electronics	366	3.40	- + RFQ	Datasheet	Tray	B82732	Active	Power Line	2	-	10 mH @ 10 kHz	1.6A	290mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.965 L x 0.571 W (24.50mm x 14.50mm)	0.531 (13.50mm)
B82732F2701B001 CMC 47MH 700MA 2LN TH EPCOS - TDK Electronics	502	3.40	- + RFQ	Datasheet	Tray	B82732	Active	Power Line	2	-	47 mH @ 10 kHz	700mA	1.26Ohm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.965 L x 0.571 W (24.50mm x 14.50mm)	0.531 (13.50mm)
B82732F2801B001 CMC 39MH 800MA 2LN TH EPCOS - TDK Electronics	264	3.40	- + RFQ	Datasheet	Tray	B82732	Active	Power Line	2	-	39 mH @ 10 kHz	800mA	1.1Ohm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.965 L x 0.571 W (24.50mm x 14.50mm)	0.531 (13.50mm)
SH-322 CMC 3A 2LN TH KEMET	3,346	3.46	- + RFQ	Datasheet	Bulk	SH	Active	Power Line	2	-	-	3A	20mOhm	50V	-	-25°C ~ 80°C	-	-	-	Through Hole	-	0.394 (10.00mm)

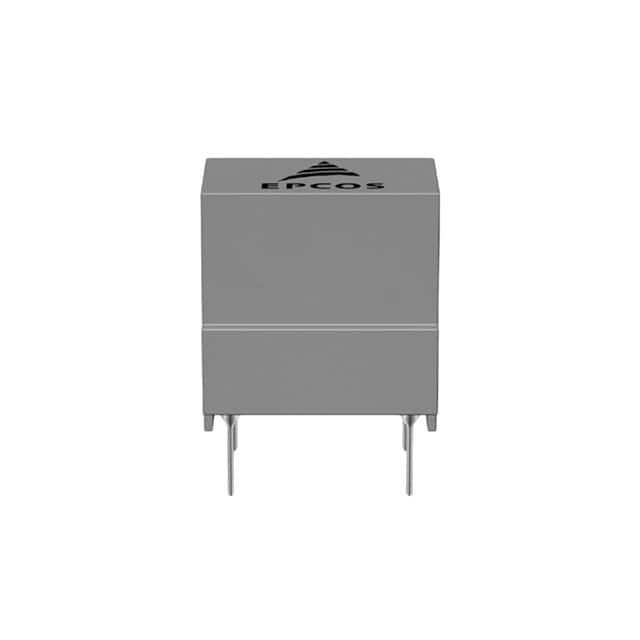

B82720H0015A035 CMC 68MH 200MA 2LN TH EPCOS - TDK Electronics	900	3.49	- + RFQ	Datasheet	Tray	B82720	Active	Signal Line	2	-	68 mH @ 10 kHz	200mA	3.3Ohm (Typ)	80V	42V	-40°C ~ 125°C	-	-	-	Through Hole	0.512 L x 0.374 W (13.00mm x 9.50mm)	0.551 (14.00mm)
B82720K2601N040 CMC 4.4MH 600MA 2LN TH EPCOS - TDK Electronics	600	3.49	- + RFQ	Datasheet	Tray	B82720	Active	Power Line	2	-	4.4 mH @ 10 kHz	600mA	400mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.512 L x 0.374 W (13.00mm x 9.50mm)	0.551 (14.00mm)
B82720H0015A025 CMC 10MH 600MA 2LN TH EPCOS - TDK Electronics	2,670	3.49	- + RFQ	Datasheet	Tray	B82720	Active	Signal Line	2	-	10 mH @ 10 kHz	600mA	700mOhm (Typ)	80V	42V	-40°C ~ 125°C	-	-	-	Through Hole	0.512 L x 0.374 W (13.00mm x 9.50mm)	0.551 (14.00mm)
B82720A2202N040 CMC 1.1MH 2A 2LN TH EPCOS - TDK Electronics	502	3.49	- + RFQ	Datasheet	Tray	B82720	Active	Power Line	2	-	1.1 mH @ 10 kHz	2A	65mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.559 L x 0.559 W (14.20mm x 14.20mm)	0.380 (9.65mm)
B82720K2152N040 CMC 1.6MH 1.5A 2LN TH EPCOS - TDK Electronics	366	3.49	- + RFQ	Datasheet	Tray	B82720	Active	Power Line	2	-	1.6 mH @ 10 kHz	1.5A	110mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.512 L x 0.374 W (13.00mm x 9.50mm)	0.551 (14.00mm)
B82720K2301N040 CMC 12MH 300MA 2LN TH EPCOS - TDK Electronics	210	3.49	- + RFQ	Datasheet	Tray	B82720	Active	Power Line	2	-	12 mH @ 10 kHz	300mA	1.1Ohm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.512 L x 0.374 W (13.00mm x 9.50mm)	0.551 (14.00mm)
B82720A2152N040 CMC 1.6MH 1.5A 2LN TH EPCOS - TDK Electronics	3,666	3.49	- + RFQ	Datasheet	Tray	B82720	Active	Power Line	2	-	1.6 mH @ 10 kHz	1.5A	110mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.559 L x 0.559 W (14.20mm x 14.20mm)	0.380 (9.65mm)
SS30V-R350047 CMC 4.7MH 3.5A 2LN TH KEMET	3,295	3.66	- + RFQ	Datasheet	Bulk	SS	Active	Power Line	2	-	4.7 mH @ 1 kHz	3.5A	100mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	1.220 L x 0.886 W (31.00mm x 22.50mm)	1.339 (34.00mm)
B82722A2301N001 CMC 47MH 300MA 2LN TH EPCOS - TDK Electronics	595	3.67	- + RFQ	Datasheet	Tray	B82722	Active	Power Line	2	-	47 mH @ 10 kHz	300mA	2.5Ohm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.894 L x 0.878 W (22.70mm x 22.30mm)	0.524 (13.30mm)
B82722A2152N020 CMC 10MH 1.5A 2LN TH EPCOS - TDK Electronics	293	3.67	- + RFQ	Datasheet	Tray	B82722	Active	Power Line	2	-	10 mH @ 10 kHz	1.5A	240mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.894 L x 0.878 W (22.70mm x 22.30mm)	0.524 (13.30mm)
B82722A2501N001 CMC 27MH 500MA 2LN TH EPCOS - TDK Electronics	163	3.67	- + RFQ	Datasheet	Tray	B82722	Active	Power Line	2	-	27 mH @ 10 kHz	500mA	1.2Ohm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.894 L x 0.878 W (22.70mm x 22.30mm)	0.524 (13.30mm)

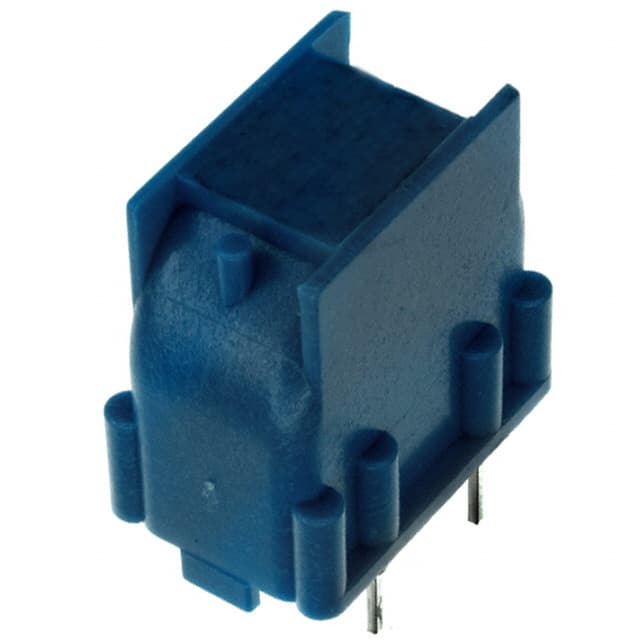

B82722J2202N001 CMC 2.2MH 2A 2LN TH EPCOS - TDK Electronics	107	3.67	- + RFQ	Datasheet	Tray	B82722	Active	Power Line	2	-	2.2 mH @ 10 kHz	2A	130mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.917 L x 0.634 W (23.30mm x 16.10mm)	1.000 (25.40mm)
