Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
EFD12/6/3.5-3C95-A63-S EFD CORES 2PC SET Ferroxcube	2,571	0.96	- + RFQ	Datasheet	Bulk	-	Active	EFD	EFD 12 x 6 x 3.5	3C95	-	63 nH	±5%	Gapped	125	-	2.5	28.5	11.4	10.7	325	Uncoated	0.244 (6.20mm)

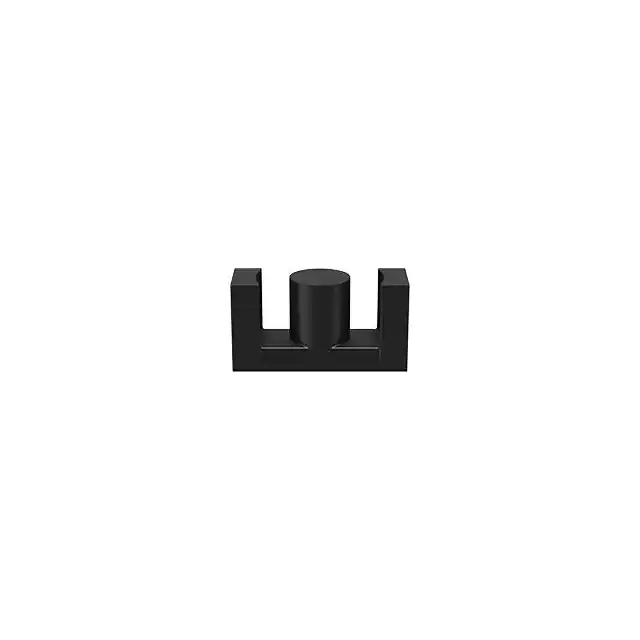

B66361G0000X195 FERRITE CORES EPCOS - TDK Electronics	3,189	0.97	- + RFQ	Datasheet	Tape & Reel (TR)	ETD34/17/11	Active	ETD	ETD 34/17/11	N95	-	-	-20%, +30%	Ungapped	2170	-	0.81	78.6	97.1	91.6	7630	Uncoated	0.689 (17.50mm)
B65513J0200D097 FERRITE CORE EPCOS - TDK Electronics	2,233	0.97	- + RFQ		Box	ER14.5	Active	ER	ER 14.5 x 6	N97	-	-	-	Gapped	-	2300	1.08	19	17.6	17.3	334	Uncoated	0.116 (2.95mm)
B66361G2500X187 FERRITE CORE EPCOS - TDK Electronics	3,595	0.97	- + RFQ	Datasheet	Box	ETD34/17/11	Active	ETD	ETD 34 x 17 x 11	N87	-	-	-	Gapped	-	2200	0.81	78.6	97.1	91.6	7630	Uncoated	0.689 (17.50mm)
B65525J0250B045 FERRITE CORE EPCOS - TDK Electronics	3,276	0.97	- + RFQ	Datasheet	Box	ER11/2.5/6	Active	ER	ER 11 x 5	N45	-	-	-	Gapped	-	3800	1.1	14.1	12.4	10.3	174	Uncoated	0.098 (2.50mm)
B65525J0400E045 FERRITE CORE EPCOS - TDK Electronics	3,598	0.97	- + RFQ	Datasheet	Box	ER11/2.5/6	Active	ER	ER 11 x 5	N45	-	-	-	Gapped	-	3800	1.1	14.1	12.4	10.3	174	Uncoated	0.098 (2.50mm)
E22/6/16-4F1 PLANAR E CORES Ferroxcube	2,159	0.97	- + RFQ	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	-	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
E36/21/12-3F36-G500 E CORES Ferroxcube	2,003	0.97	- + RFQ	Datasheet	Bulk	-	Active	E	E 36 x 21 x 12	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.856 (21.75mm)
E32/6/20-3C95 PLANAR E CORES Ferroxcube	3,539	0.98	- + RFQ	Datasheet	Bulk	-	Active	E	E 32 x 6 x 20	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)
E41/17/12-3C95-G200 E CORES Ferroxcube	3,686	0.98	- + RFQ	Datasheet	Bulk	-	Active	E	E 41 x 17 x 12	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.654 (16.60mm)
ETD44/22/15-3C90-G50 ER AND ETD CORES Ferroxcube	3,812	0.98	- + RFQ		Bulk	-	Active	ETD	ETD 44 x 22 x 15	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.878 (22.30mm)
ETD44/22/15-3C94-G200 ER AND ETD CORES Ferroxcube	2,003	0.98	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 44 x 22 x 15	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.878 (22.30mm)
B65843A0100A057 FERRITE CORE EP 100NH T57 2PCS EPCOS - TDK Electronics	2,577	0.98	- + RFQ	Datasheet	Box	EP13	Active	EP	EP 13	T57	-	100 nH	±3%	Gapped	99	4000	1.24	24.2	19.5	14.9	472	Uncoated	0.256 (6.50mm)
B65843A0125A057 FERRITE CORE EPCOS - TDK Electronics	2,878	0.98	- + RFQ	Datasheet	Box	EP13	Active	EP	EP 13	T57	-	-	-	Gapped	-	4000	1.24	24.2	19.5	14.9	472	Uncoated	0.256 (6.50mm)

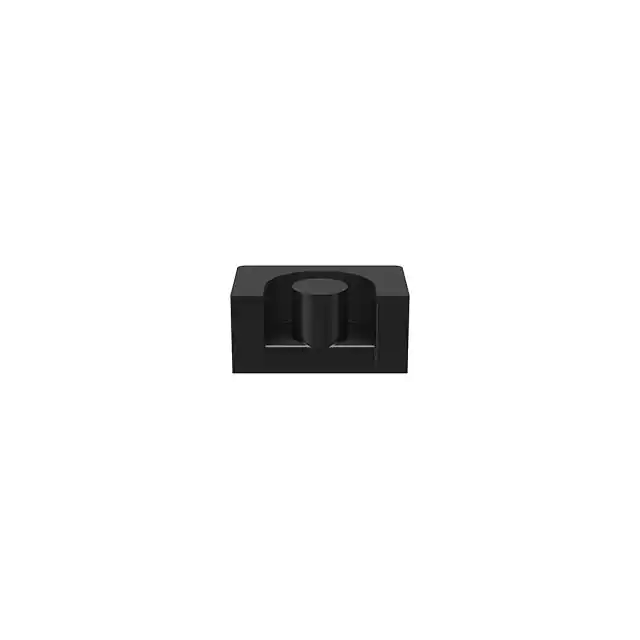

B65843A0160B057 FERRITE CORE EP 160NH T57 2PCS EPCOS - TDK Electronics	2,659	0.98	- + RFQ	Datasheet	Box	EP13	Active	EP	EP 13	T57	-	160 nH	±4%	Gapped	158	4000	1.24	24.2	19.5	14.9	472	Uncoated	0.256 (6.50mm)
B65843A0200B057 FERRITE CORE EP 200NH T57 2PCS EPCOS - TDK Electronics	2,663	0.98	- + RFQ	Datasheet	Box	EP13	Active	EP	EP 13	T57	-	200 nH	±4%	Gapped	198	4000	1.24	24.2	19.5	14.9	472	Uncoated	0.256 (6.50mm)
B65513J0000R092 FERRITE CORE ER 1.1UH N92 2PCS EPCOS - TDK Electronics	3,335	0.98	- + RFQ	Datasheet	Box	ER14.5	Active	ER	ER 14.5 x 6	N92	-	1.1 µH	-20%, +30%	Ungapped	970	1500	1.1	19	17.6	-	333	Uncoated	0.116 (2.95mm)
E32/6/20/R-3C92-A400-P PLANAR E CORES Ferroxcube	2,685	0.99	- + RFQ	Datasheet	Bulk	-	Active	E	E 32 x 6 x 20	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)
E32/6/20/R-3C92-A630-P PLANAR E CORES Ferroxcube	3,422	0.99	- + RFQ	Datasheet	Bulk	-	Active	E	E 32 x 6 x 20	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)
E32/6/20-3C92-A400-E PLANAR E CORES Ferroxcube	3,054	0.99	- + RFQ	Datasheet	Bulk	-	Active	E	E 32 x 6 x 20	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)
