Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
E32/6/20-3C92-A400-P PLANAR E CORES Ferroxcube	3,003	0.99	- + RFQ	Datasheet	Bulk	-	Active	E	E 32 x 6 x 20	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)
E32/6/20-3C92-A630-E PLANAR E CORES Ferroxcube	3,855	0.99	- + RFQ	Datasheet	Bulk	-	Active	E	E 32 x 6 x 20	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)
E32/6/20-3C92-A630-P PLANAR E CORES Ferroxcube	2,265	0.99	- + RFQ	Datasheet	Bulk	-	Active	E	E 32 x 6 x 20	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)
B65843A0000R045 FERRITE CORE EP 2.4UH N45 2PCS EPCOS - TDK Electronics	3,761	0.99	- + RFQ	Datasheet	Box	EP13	Active	EP	EP 13	N45	-	2.4 µH	-20%, +30%	Ungapped	2370	3800	1.24	24.2	19.5	14.9	472	Uncoated	0.256 (6.50mm)
E41/17/12-3C92-G500 E CORES Ferroxcube	2,011	0.99	- + RFQ	Datasheet	Bulk	-	Active	E	E 41 x 17 x 12	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.654 (16.60mm)
RM4/I-3F36 RM CORES 2PC SET Ferroxcube	2,769	0.99	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 4	3F36	-	-	±25%	Ungapped	-	-	1.69	23.3	13.8	11.5	322	Uncoated	0.421 (10.40mm)
RM4/I-3F46 RM CORES 2PC SET Ferroxcube	3,815	0.99	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 4	3F46	-	-	±25%	Ungapped	-	-	1.69	23.3	13.8	11.5	322	Uncoated	0.421 (10.40mm)
B65843A0250J041 FERRITE CORE EPCOS - TDK Electronics	2,766	0.99	- + RFQ	Datasheet	Box	EP13	Active	EP	EP 13	N41	-	-	-	Gapped	-	2800	1.24	24.2	19.5	14.9	472	Uncoated	0.256 (6.50mm)
9498112002 98 E CORE SET Fair-Rite Products Corp.	2,387	0.99	- + RFQ	Datasheet	Bulk	-	Active	E	-	-	-	-	±25%	Ungapped	-	2400	81	69.7	86	79	5990	Uncoated	0.565 (14.35mm)
B64290L0719X035 FERRITE CORE TOROID 4UH T35 EPCOS - TDK Electronics	3,635	0.99	- + RFQ	Datasheet	Box	TX22/14/7.9	Active	Toroid	-	T35	0.917 (23.30mm)	4 µH	±25%	Ungapped	-	5300	1.66	54.2	32.6	-	1763	Epoxy	0.354 (9.00mm)
B65517D0200A048 FERRITE CORE P 200NH N48 2PCS EPCOS - TDK Electronics	3,014	1.00	- + RFQ	Datasheet	Box	P9/5	Active	P (Pot Core)	P 9 x 5	N48	0.366 (9.30mm)	200 nH	±3%	Gapped	200	-	1.25	12.5	10	-	125	Uncoated	0.106 (2.70mm)
B64290A0045X001 FERRITE CORE EPCOS - TDK Electronics	2,166	1.00	- + RFQ	Datasheet	Box	T16/9.6/6.3	Active	Toroid	-	-	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	-
RM4/I-3C90-A40 RM CORES 2PC SET Ferroxcube	3,789	1.00	- + RFQ		Bulk	-	Active	RM	RM 4	3C90	-	40 nH	±3%	Gapped	54	-	1.69	23.3	13.8	11.5	322	Uncoated	0.421 (10.40mm)
RM4/I-3C94-A100 RM CORES 2PC SET Ferroxcube	2,445	1.00	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 4	3C94	-	100 nH	±3%	Gapped	134	-	1.69	23.3	13.8	11.5	322	Uncoated	0.421 (10.40mm)
RM4/I-3C94-A63 RM CORES 2PC SET Ferroxcube	2,859	1.00	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 4	3C94	-	63 nH	±3%	Gapped	85	-	1.69	23.3	13.8	11.5	322	Uncoated	0.421 (10.40mm)

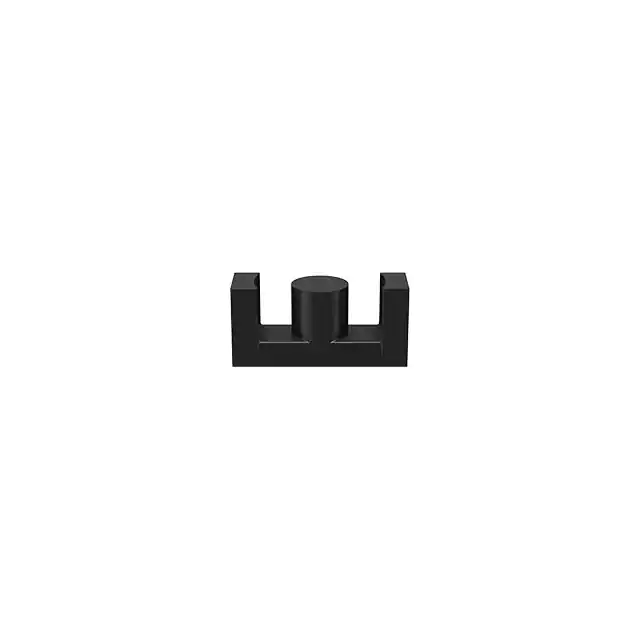

B66358G0100X127 FERRITE CORE ETD N27 1PC EPCOS - TDK Electronics	2,958	1.00	- + RFQ	Datasheet	Box	ETD29/16/10	Active	ETD	ETD 29 x 16 x 10	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.630 (16.00mm)
B66358G1000X127 FERRITE CORE ETD N27 1PC EPCOS - TDK Electronics	2,215	1.00	- + RFQ	Datasheet	Box	ETD29/16/10	Active	ETD	ETD 29 x 16 x 10	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.630 (16.00mm)

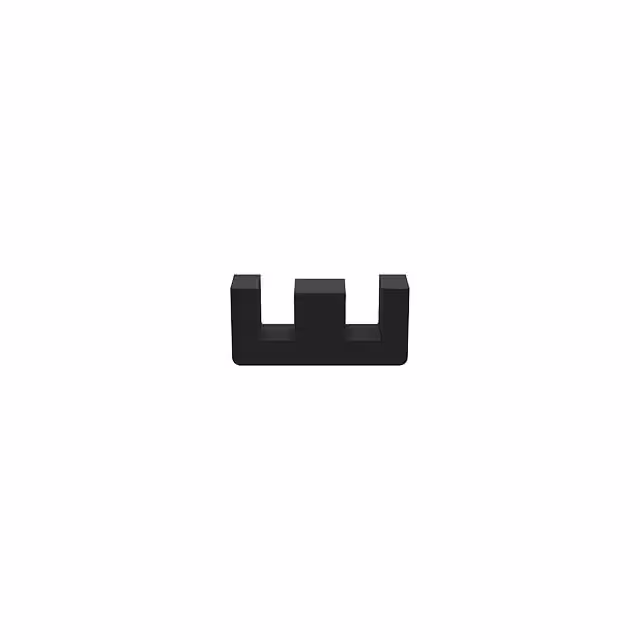

B66229G0500X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	2,202	1.00	- + RFQ	Datasheet	Box	E32/16/9	Active	E	E 32 x 16 x 9	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.646 (16.40mm)
E32/6/20/R-3C96-A400-P PLANAR E CORES Ferroxcube	2,364	1.00	- + RFQ	Datasheet	Bulk	-	Active	E	E 32 x 6 x 20	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)
E32/6/20/R-3C96-A630-P PLANAR E CORES Ferroxcube	3,214	1.00	- + RFQ	Datasheet	Bulk	-	Active	E	E 32 x 6 x 20	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)
