Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
E32/6/20-3C92-A250-E PLANAR E CORES Ferroxcube	3,041	1.03	- + RFQ	Datasheet	Bulk	-	Active	E	E 32 x 6 x 20	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)
E32/6/20-3C92-A250-P PLANAR E CORES Ferroxcube	2,415	1.03	- + RFQ	Datasheet	Bulk	-	Active	E	E 32 x 6 x 20	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)
EFD12/6/3.5-3F36-A100-S EFD CORES 2PC SET Ferroxcube	2,952	1.03	- + RFQ	Datasheet	Bulk	-	Active	EFD	EFD 12 x 6 x 3.5	3F36	-	100 nH	±8%	Gapped	200	-	2.5	28.5	11.4	10.7	325	Uncoated	0.244 (6.20mm)
EFD12/6/3.5-3F36-A63-S EFD CORES 2PC SET Ferroxcube	3,514	1.03	- + RFQ	Datasheet	Bulk	-	Active	EFD	EFD 12 x 6 x 3.5	3F36	-	63 nH	±5%	Gapped	125	-	2.5	28.5	11.4	10.7	325	Uncoated	0.244 (6.20mm)
EFD12/6/3.5-3F46-A100-S EFD CORES 2PC SET Ferroxcube	2,716	1.03	- + RFQ	Datasheet	Bulk	-	Active	EFD	EFD 12 x 6 x 3.5	3F46	-	100 nH	±8%	Gapped	200	-	2.5	28.5	11.4	10.7	325	Uncoated	0.244 (6.20mm)
EFD12/6/3.5-3F46-A63-S EFD CORES 2PC SET Ferroxcube	3,036	1.03	- + RFQ	Datasheet	Bulk	-	Active	EFD	EFD 12 x 6 x 3.5	3F46	-	63 nH	±5%	Gapped	125	-	2.5	28.5	11.4	10.7	325	Uncoated	0.244 (6.20mm)
B66361G0450X127 FERRITE CORE EPCOS - TDK Electronics	3,033	1.03	- + RFQ	Datasheet	Box	ETD34/17/11	Active	ETD	ETD 34 x 17 x 11	N27	-	-	-	Gapped	-	2000	0.81	78.6	97.1	91.6	7630	Uncoated	0.689 (17.50mm)
RM7/I-3F36 RM CORES 2PC SET Ferroxcube	2,057	1.04	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 7	3F36	-	-	±25%	Ungapped	-	-	0.68	30	44.1	39.6	1325	Uncoated	0.528 (13.40mm)
RM7/I-3F46 RM CORES 2PC SET Ferroxcube	3,185	1.04	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 7	3F46	-	-	±25%	Ungapped	-	-	0.68	30	44.1	39.6	1325	Uncoated	0.528 (13.40mm)
RM8/I-3C91 RM CORES 2PC SET Ferroxcube	3,754	1.04	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 8	3C91	-	-	±25%	Ungapped	1990	-	0.604	38.4	63	55.4	2440	Uncoated	0.646 (16.40mm)
RM8/I-3C94 RM CORES 2PC SET Ferroxcube	3,216	1.04	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 8	3C94	-	-	±25%	Ungapped	1600	-	0.604	38.4	63	55.4	2440	Uncoated	0.646 (16.40mm)
ER48/18/18-3C94 ER AND ETD CORES Ferroxcube	2,818	1.04	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 48 x 18 x 18	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.709 (18.00mm)

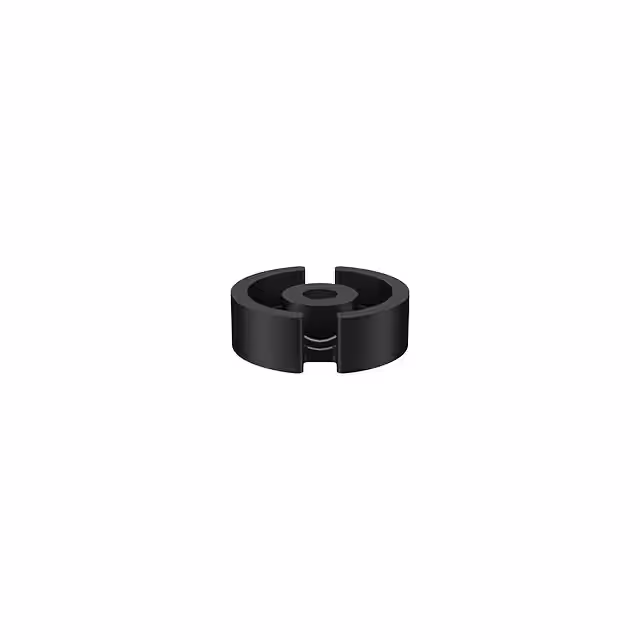

B65531D0000R048 FERRITE CORE P 1.8UH N48 2PCS EPCOS - TDK Electronics	2,444	1.04	- + RFQ	Datasheet	Box	P11/7	Active	P (Pot Core)	P 11 x 7	N48	0.445 (11.30mm)	1.8 µH	-20%, +30%	Ungapped	1430	-	1	15.9	15.9	-	253	Uncoated	0.130 (3.30mm)
B65843A0000R097 FERRITE CORE EPCOS - TDK Electronics	3,763	1.04	- + RFQ	Datasheet	Box	EP13	Active	EP	EP 13	N97	-	-	-	-	-	2300	1.24	24.2	19.5	14.9	472	Uncoated	0.256 (6.50mm)
ETD44/22/15-3C95 ER AND ETD CORES Ferroxcube	3,483	1.04	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 44 x 22 x 15	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.878 (22.30mm)

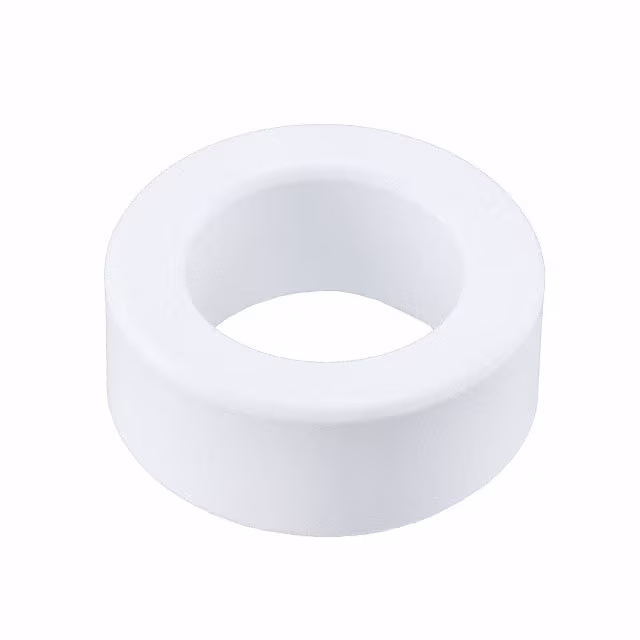

TX25/15/13-3E27 FERRITE CORES ROUND Ferroxcube	2,128	1.05	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 25 x 15 x 13	3E27	1.007 (25.95mm)	-	±25%	Ungapped	5500	-	0.97	60.1	62.1	-	3740	Epoxy	0.539 (13.70mm)
E32/6/20/R-3C96-A250-P PLANAR E CORES Ferroxcube	2,189	1.05	- + RFQ	Datasheet	Bulk	-	Active	E	E 32 x 6 x 20	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)
E32/6/20-3C96-A250-E PLANAR E CORES Ferroxcube	2,561	1.05	- + RFQ	Datasheet	Bulk	-	Active	E	E 32 x 6 x 20	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)
E32/6/20-3C96-A250-P PLANAR E CORES Ferroxcube	2,241	1.05	- + RFQ	Datasheet	Bulk	-	Active	E	E 32 x 6 x 20	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)
E41/17/12-3F36-G200 E CORES Ferroxcube	3,519	1.05	- + RFQ	Datasheet	Bulk	-	Active	E	E 41 x 17 x 12	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.654 (16.60mm)
