Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
RM7/I-3C90-A160 RM CORES 2PC SET Ferroxcube	2,872	1.05	- + RFQ		Bulk	-	Active	RM	RM 7	3C90	-	-	±25%	Gapped	-	-	0.68	30	44.1	39.6	1325	Uncoated	0.528 (13.40mm)
RM7/I-3C90-A250 RM CORES 2PC SET Ferroxcube	3,805	1.05	- + RFQ		Bulk	-	Active	RM	RM 7	3C90	-	-	±25%	Gapped	-	-	0.68	30	44.1	39.6	1325	Uncoated	0.528 (13.40mm)
E32/6/20/R-3C97 PLANAR E CORES Ferroxcube	2,407	1.05	- + RFQ	Datasheet	Bulk	-	Active	E	E 32 x 6 x 20	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)
E32/6/20/R-3F4-A250-P PLANAR E CORES Ferroxcube	2,620	1.05	- + RFQ	Datasheet	Bulk	-	Active	E	E 32 x 6 x 20	3F4	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)
E32/6/20-3C97 PLANAR E CORES Ferroxcube	3,878	1.05	- + RFQ	Datasheet	Bulk	-	Active	E	E 32 x 6 x 20	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)
E32/6/20-3F36 PLANAR E CORES Ferroxcube	3,533	1.05	- + RFQ	Datasheet	Bulk	-	Active	E	E 32 x 6 x 20	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)
E32/6/20-3F4-A250-E PLANAR E CORES Ferroxcube	2,030	1.05	- + RFQ	Datasheet	Bulk	-	Active	E	E 32 x 6 x 20	3F4	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)
E32/6/20-3F4-A250-P PLANAR E CORES Ferroxcube	3,551	1.05	- + RFQ	Datasheet	Bulk	-	Active	E	E 32 x 6 x 20	3F4	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)
B66233G0250X187 FERRITE CORE EPCOS - TDK Electronics	3,664	1.05	- + RFQ	Datasheet	Box	E32/16/11	Active	E	E 32 x 16 x 11	N87	-	-	-	Gapped	-	2200	0.76	74	97	95	7187	Uncoated	0.646 (16.40mm)
B64290A0618X035 FERRITE CORE TOROID 5.4UH T35 EPCOS - TDK Electronics	3,666	1.05	- + RFQ	Datasheet	Box	T25.3/14.8/15	Active	Toroid	R 25.3 x 14.8 x 10	T35	0.996 (25.30mm)	5.4 µH	±25%	Ungapped	-	5000	1.17	60.07	51.26	-	3079	Uncoated	0.394 (10.00mm)
TX26/15/10-3E6 FERRITE CORES ROUND Ferroxcube	3,338	1.05	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 26 x 15 x 10	-	1.061 (26.95mm)	-	±30%	Ungapped	10000	-	1.08	60.1	55.9	-	3360	Epoxy	0.429 (10.90mm)
TX26/15/10-3E65 FERRITE CORES ROUND Ferroxcube	3,691	1.05	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 26 x 15 x 10	-	1.061 (26.95mm)	-	±25%	Ungapped	5200	-	1.08	60.1	55.9	-	3360	Epoxy	0.429 (10.90mm)

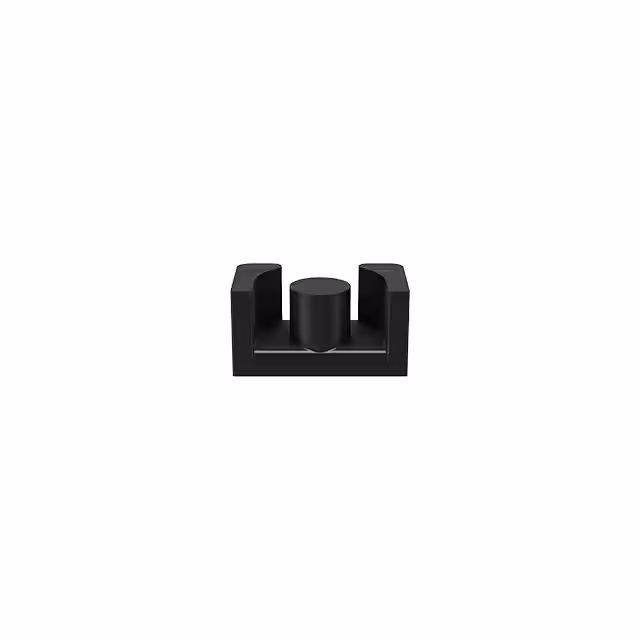

B65843P0000R045 FERRITE CORE EPCOS - TDK Electronics	2,443	1.05	- + RFQ	Datasheet	Box	EP13/LP	Active	EP	-	N45	-	-	-	-	-	3800	1.24	24.2	19.5	14.9	472	Uncoated	0.256 (6.50mm)
9498111002 98 E CORE SET Fair-Rite Products Corp.	3,140	1.05	- + RFQ	Datasheet	Bulk	-	Active	E	-	-	-	-	±25%	Ungapped	-	2400	56	66.5	119	112	7900	Uncoated	0.551 (14.00mm)
E42/21/15-3C90-G250 E CORES Ferroxcube	2,373	1.05	- + RFQ		Bulk	-	Active	E	E 42 x 21 x 15	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.827 (21.00mm)
E42/21/15-3C91-G200 E CORES Ferroxcube	2,446	1.05	- + RFQ	Datasheet	Bulk	-	Active	E	E 42 x 21 x 15	3C91	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.827 (21.00mm)
E42/21/15-3C94-G200 E CORES Ferroxcube	3,112	1.05	- + RFQ	Datasheet	Bulk	-	Active	E	E 42 x 21 x 15	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.827 (21.00mm)
B66339G0500X127 FERRITE CORES EPCOS - TDK Electronics	2,219	1.06	- + RFQ	Datasheet	Box	B66339	Not For New Designs	EC	EC 41 x 20 x 12	N27	-	-	-	-	-	2000	0.74	89.3	121	106	10800	Uncoated	0.469 (11.90mm)
28B0999-300 FCCRND,SLD,BB,CSNO Laird-Signal Integrity Products	3,762	1.06	- + RFQ	Datasheet	Bulk	-	Active	Tube	-	28	1.000 (25.40mm)	-	-	Ungapped	-	650	-	-	-	-	-	Uncoated	1.122 (28.50mm)
B66361G2000X187 FERRITE CORE EPCOS - TDK Electronics	2,152	1.06	- + RFQ	Datasheet	Box	ETD34/17/11	Active	ETD	ETD 34 x 17 x 11	N87	-	-	-	Gapped	-	2200	0.81	78.6	97.1	91.6	7630	Uncoated	0.689 (17.50mm)
