Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
E38/8/25-3C92-A630-P PLANAR E CORES Ferroxcube	2,242	1.42	- + RFQ	Datasheet	Bulk	-	Active	E	E 38 x 8 x 25	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.325 (8.26mm)
P18/11-3C95 P CORES 2PC SET Ferroxcube	3,483	1.42	- + RFQ		Bulk	-	Active	P	P 18 x 11	3C95	0.724 (18.40mm)	4 µH	±25%	Ungapped	1900	-	0.597	25.8	43.3	36	1120	Uncoated	0.417 (10.60mm)

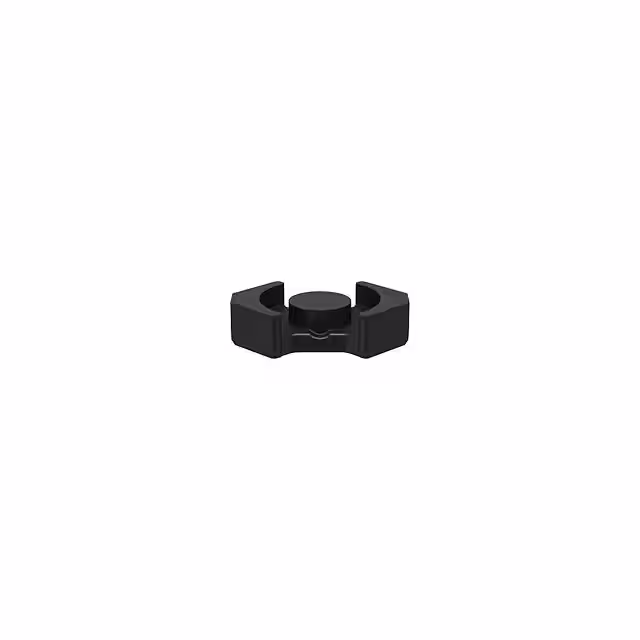

B65805P0000R092 FERRITE CORE RM 1.9UH N92 2PCS EPCOS - TDK Electronics	2,686	1.42	- + RFQ	Datasheet	Box	RM5/LP	Active	RM	RM 5 LP	N92	-	1.9 µH	-20%, +30%	Ungapped	1080	1500	0.71	17.5	24.5	18	430	Uncoated	0.154 (3.90mm)
ER48/21/21-3C94 ER AND ETD CORES Ferroxcube	2,983	1.42	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 48 x 21 x 21	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.835 (21.20mm)
UR42/21/12-3C90 UR CORES Ferroxcube	2,857	1.42	- + RFQ	Datasheet	Bulk	-	Active	UR	UR 42 x 21 x 12	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.811 (20.60mm)
RM10/ILP-3C90 RM CORES 2PC SET Ferroxcube	3,337	1.43	- + RFQ		Bulk	-	Active	RM	RM 10	3C90	-	-	±25%	Ungapped	1510	-	0.34	33.9	99.1	89.1	3360	Uncoated	0.512 (13.00mm)
ER18/3.2/10-3C96-A100-S PLANAR ER CORES 2PC SET Ferroxcube	2,114	1.43	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 18 x 3.2 x 10	3C96	-	100 nH	±3%	Gapped	58	-	0.73	22.1	30.2	30.1	667	Uncoated	0.382 (9.70mm)
PLT43/28/4.1-3C90 PLANAR E CORES Ferroxcube	2,558	1.43	- + RFQ		Bulk	-	Active	PLT	PLT 43 x 28 x 4.1	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.161 (4.10mm)
B65805J0000R092 FERRITE CORE EPCOS - TDK Electronics	2,448	1.43	- + RFQ	Datasheet	Box	RM5	Active	RM	-	-	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	-
B66484W0400C192 FERRITE CORE EPCOS - TDK Electronics	2,564	1.43	- + RFQ		Box	ER25/6/15	Active	-	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	-	-
B66484W0500D192 FERRITE CORE EPCOS - TDK Electronics	3,477	1.43	- + RFQ		Box	ER25/6/15	Active	-	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	-	-
B66363G0600X187 FERRITE CORE EPCOS - TDK Electronics	3,695	1.44	- + RFQ	Datasheet	Box	ETD39/20/13	Active	ETD	ETD 39 x 20 x 13	N87	-	-	-	Gapped	-	2200	0.74	92.2	125	123	11500	Uncoated	0.787 (20.00mm)
B66363G0700X187 FERRITE CORE EPCOS - TDK Electronics	2,045	1.44	- + RFQ	Datasheet	Box	ETD39/20/13	Active	ETD	ETD 39 x 20 x 13	N87	-	-	-	Gapped	-	2200	0.74	92.2	125	123	11500	Uncoated	0.787 (20.00mm)
B66363G0800X187 FERRITE CORE EPCOS - TDK Electronics	3,137	1.44	- + RFQ	Datasheet	Box	ETD39/20/13	Active	ETD	ETD 39 x 20 x 13	N87	-	-	-	Gapped	-	2200	0.74	92.2	125	123	11500	Uncoated	0.787 (20.00mm)
B66363G1500X187 FERRITE CORE EPCOS - TDK Electronics	3,552	1.44	- + RFQ	Datasheet	Box	ETD39/20/13	Active	ETD	ETD 39 x 20 x 13	N87	-	-	-	Gapped	-	2200	0.74	92.2	125	123	11500	Uncoated	0.787 (20.00mm)
B66363G2000X187 FERRITE CORE EPCOS - TDK Electronics	2,350	1.44	- + RFQ	Datasheet	Box	ETD39/20/13	Active	ETD	ETD 39 x 20 x 13	N87	-	-	-	Gapped	-	2200	0.74	92.2	125	123	11500	Uncoated	0.787 (20.00mm)
B66363G2500X187 FERRITE CORE EPCOS - TDK Electronics	3,091	1.44	- + RFQ	Datasheet	Box	ETD39/20/13	Active	ETD	ETD 39 x 20 x 13	N87	-	-	-	Gapped	-	2200	0.74	92.2	125	123	11500	Uncoated	0.787 (20.00mm)
E42/21/20-3F36 E CORES Ferroxcube	2,408	1.44	- + RFQ	Datasheet	Bulk	-	Active	E	E 42 x 21 x 20	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.827 (21.00mm)
B65803P0000R092 FERRITE CORE RM 1UH N92 2PCS EPCOS - TDK Electronics	2,764	1.44	- + RFQ	Datasheet	Box	RM4/LP	Active	RM	RM 4 LP	N92	-	1 µH	-20%, +30%	Ungapped	950	1500	1.2	17.3	14.5	11.3	251	Uncoated	0.154 (3.90mm)
B65805C0020A033 FERRITE CORE EPCOS - TDK Electronics	2,599	1.44	- + RFQ	Datasheet	Box	RM5	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-
