Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
ER54/18/18-3C90-G1200 ER AND ETD CORES Ferroxcube	2,345	1.35	- + RFQ		Bulk	-	Active	ER	ER 54 x 18 x 18	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.720 (18.30mm)
ER54/18/18-3C94-G1000 ER AND ETD CORES Ferroxcube	3,583	1.35	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 54 x 18 x 18	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.720 (18.30mm)
ER54/18/18-3C94-G500 ER AND ETD CORES Ferroxcube	2,878	1.35	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 54 x 18 x 18	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.720 (18.30mm)
E38/8/25-3C92 PLANAR E CORES Ferroxcube	3,642	1.35	- + RFQ	Datasheet	Bulk	-	Active	E	E 38 x 8 x 25	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.325 (8.26mm)
RM8/I-3C96-A160 RM CORES 2PC SET Ferroxcube	3,576	1.35	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 8	3C96	-	160 nH	±3%	Gapped	78	-	0.44	38.4	63	55.4	2440	Uncoated	0.370 (9.40mm)
RM8/I-3C96-A250 RM CORES 2PC SET Ferroxcube	2,953	1.35	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 8	3C96	-	250 nH	±3%	Gapped	120	-	0.44	38.4	63	55.4	2440	Uncoated	0.370 (9.40mm)
RM8/I-3C96-A400 RM CORES 2PC SET Ferroxcube	2,038	1.35	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 8	3C96	-	400 nH	±3%	Gapped	194	-	0.44	38.4	63	55.4	2440	Uncoated	0.370 (9.40mm)
E42/21/20-3C90-G2000 E CORES Ferroxcube	3,333	1.36	- + RFQ	Datasheet	Bulk	-	Active	E	E 42 x 21 x 20	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.827 (21.00mm)
E42/21/20-3C90-G2200 E CORES Ferroxcube	2,548	1.36	- + RFQ	Datasheet	Bulk	-	Active	E	E 42 x 21 x 20	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.827 (21.00mm)
TX29/19/15-3E27 FERRITE CORES ROUND Ferroxcube	2,744	1.37	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 29 x 19 x 15	3E27	1.179 (29.95mm)	-	±25%	Ungapped	5500	-	0.98	73.2	73.9	-	5410	Epoxy	0.632 (16.05mm)
ER18/3.2/10-3C96-S PLANAR ER CORES 2PC SET Ferroxcube	2,075	1.37	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 18 x 3.2 x 10	3C96	-	-	±25%	Ungapped	-	-	0.73	22.1	30.2	30.1	667	Uncoated	0.382 (9.70mm)
B65805P0000Y038 FERRITE CORES EPCOS - TDK Electronics	2,141	1.37	- + RFQ	Datasheet	Tape & Reel (TR)	RM5/LP	Active	RM	RM 5	T38	-	-	-30%, +40%	Ungapped	4380	-	0.71	17.5	24.5	18	430	Uncoated	-
B65517D0000Y038 FERRITE CORE P 5.5UH T38 2PCS EPCOS - TDK Electronics	2,482	1.37	- + RFQ	Datasheet	Box	P9/5	Active	P (Pot Core)	P 9 x 5	T38	0.366 (9.30mm)	5.5 µH	-30%, +40%	Ungapped	4930	10000	1.25	12.5	10	-	125	Uncoated	0.106 (2.70mm)

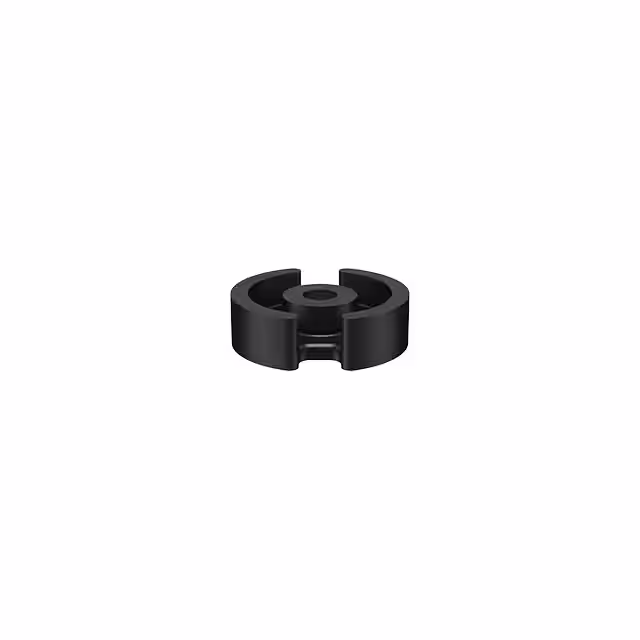

B65517W0000Y038 FERRITE CORE P 5.5UH T38 2PCS EPCOS - TDK Electronics	3,987	1.37	- + RFQ	Datasheet	Box	P9/5	Active	P (Pot Core)	P 9 x 5	T38	0.366 (9.30mm)	5.5 µH	-30%, +40%	Ungapped	4930	10000	1.13	13.4	11.9	9.3	159	Uncoated	0.106 (2.70mm)
RM8/I-3C95-A160 RM CORES 2PC SET Ferroxcube	2,487	1.37	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 8	3C95	-	160 nH	±3%	Gapped	78	-	0.44	38.4	63	55.4	2440	Uncoated	0.370 (9.40mm)
RM8/I-3C95-A250 RM CORES 2PC SET Ferroxcube	2,474	1.37	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 8	3C95	-	250 nH	±3%	Gapped	120	-	0.44	38.4	63	55.4	2440	Uncoated	0.370 (9.40mm)
RM8/I-3C95-A400 RM CORES 2PC SET Ferroxcube	2,911	1.37	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 8	3C95	-	400 nH	±3%	Gapped	194	-	0.44	38.4	63	55.4	2440	Uncoated	0.370 (9.40mm)
ETD49/25/16-3C94-G1000 ER AND ETD CORES Ferroxcube	3,132	1.38	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 49 x 25 x 16	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.972 (24.70mm)
ETD49/25/16-3C94-G500 ER AND ETD CORES Ferroxcube	2,929	1.38	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 49 x 25 x 16	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.972 (24.70mm)
E38/8/25-3C96 PLANAR E CORES Ferroxcube	3,248	1.38	- + RFQ	Datasheet	Bulk	-	Active	E	E 38 x 8 x 25	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.325 (8.26mm)
