Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length

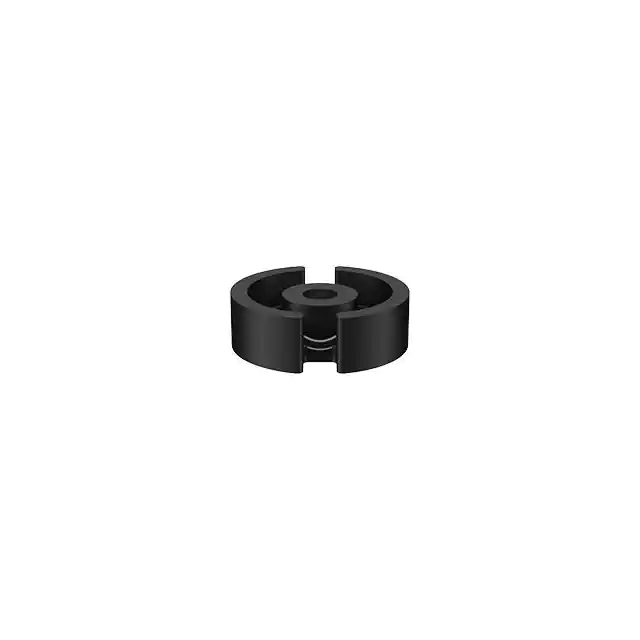

B65541D0250A048 FERRITE CORE P 250NH N48 2PCS EPCOS - TDK Electronics	3,923	1.29	- + RFQ	Datasheet	Box	P14/8	Active	P (Pot Core)	P 14 x 8	N48	0.563 (14.30mm)	250 nH	±3%	Gapped	159	-	0.8	20	25	20	500	Uncoated	0.167 (4.25mm)
B65541D0400A048 FERRITE CORE P 400NH N48 2PCS EPCOS - TDK Electronics	2,032	1.29	- + RFQ	Datasheet	Box	P14/8	Active	P (Pot Core)	P 14 x 8	N48	0.563 (14.30mm)	400 nH	±3%	Gapped	255	-	0.8	20	25	20	500	Uncoated	0.167 (4.25mm)
P14/8-3F36 P CORES 2PC SET Ferroxcube	2,389	1.29	- + RFQ		Bulk	-	Active	P	P 14 x 8	3F36	0.553 (14.05mm)	1.6 µH	±25%	Ungapped	1000	-	0.789	19.8	25.1	19.8	495	Uncoated	0.165 (4.20mm)
P14/8-3F46 P CORES 2PC SET Ferroxcube	3,852	1.29	- + RFQ		Bulk	-	Active	P	P 14 x 8	3F46	0.553 (14.05mm)	1 µH	±25%	Ungapped	630	-	0.789	19.8	25.1	19.8	495	Uncoated	0.165 (4.20mm)
B66455W0315K197 FERRITE CORE EPCOS - TDK Electronics	2,093	1.29	- + RFQ		Box	ELP22/6/16	Active	-	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	-	-
B66455W0400K197 FERRITE CORE EPCOS - TDK Electronics	2,909	1.29	- + RFQ		Box	ELP22/6/16	Active	-	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	-	-
9495204002 95 PLANAR E CORE SET Fair-Rite Products Corp.	2,265	1.29	- + RFQ	Datasheet	Bulk	-	Active	E	-	95	-	-	±25%	Ungapped	-	3000	32	41.7	129	127	5380	Uncoated	0.250 (6.35mm)
PLT38/25/3.8-3C97 PLANAR E CORES Ferroxcube	2,600	1.29	- + RFQ	Datasheet	Bulk	-	Active	PLT	PLT 38 x 25 x 3.8	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.150 (3.81mm)
B65541W0100A087 FERRITE CORE EPCOS - TDK Electronics	2,204	1.30	- + RFQ	Datasheet	Box	P14/8	Active	-	P 14 x 8	N87	0.563 (14.30mm)	-	-	Gapped	-	2200	0.73	21	28.7	23.6	603	Uncoated	0.167 (4.25mm)
B65541W0160A087 FERRITE CORE EPCOS - TDK Electronics	3,219	1.30	- + RFQ	Datasheet	Box	P14/8	Active	-	P 14 x 8	N87	0.563 (14.30mm)	-	-	Gapped	-	2200	0.73	21	28.7	23.6	603	Uncoated	0.167 (4.25mm)
B65541W0250A087 FERRITE CORE EPCOS - TDK Electronics	3,484	1.30	- + RFQ	Datasheet	Box	P14/8	Active	-	P 14 x 8	N87	0.563 (14.30mm)	-	-	Gapped	-	2200	0.73	21	28.7	23.6	603	Uncoated	0.167 (4.25mm)
RM8/I-3C90-A100 RM CORES 2PC SET Ferroxcube	3,764	1.30	- + RFQ		Bulk	-	Active	RM	RM 8	3C90	-	-	±3%	Gapped	49	-	0.604	38.4	63	55.4	2440	Uncoated	0.646 (16.40mm)
E42/21/15-3F36-G500 E CORES Ferroxcube	2,368	1.31	- + RFQ	Datasheet	Bulk	-	Active	E	E 42 x 21 x 15	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.827 (21.00mm)
ER54/18/18-3C94-G200 ER AND ETD CORES Ferroxcube	2,548	1.31	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 54 x 18 x 18	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.720 (18.30mm)
B65803P0400L087 FERRITE CORE EPCOS - TDK Electronics	3,637	1.31	- + RFQ	Datasheet	Box	RM4/LP	Active	RM	RM 4 LP	N87	-	-	-	Gapped	-	2200	1.2	17.3	14.5	11.3	251	Uncoated	0.154 (3.90mm)
EP20-3C91 EP AND EPX CORES 2PC SET Ferroxcube	2,539	1.31	- + RFQ	Datasheet	Bulk	-	Active	EP	EP 20	3C91	-	-	±25%	Ungapped	2040	-	0.52	41.1	78.7	60.8	3230	Uncoated	0.843 (21.40mm)
B65805C0250A087 FERRITE CORE EPCOS - TDK Electronics	3,786	1.31	- + RFQ	Datasheet	Box	RM5	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-
B65805J0100A087 FERRITE CORE EPCOS - TDK Electronics	3,312	1.31	- + RFQ	Datasheet	Box	RM5	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-
B65805J0125A087 FERRITE CORE EPCOS - TDK Electronics	3,204	1.31	- + RFQ	Datasheet	Box	RM5	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-
B65805J0315A087 FERRITE CORE EPCOS - TDK Electronics	2,081	1.31	- + RFQ	Datasheet	Box	RM5	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-
