Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B65805J0063A087 FERRITE CORE EPCOS - TDK Electronics	2,794	1.31	- + RFQ	Datasheet	Box	RM5	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-
5952020701 52 TOROID Fair-Rite Products Corp.	3,726	1.31	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	52	-	-	±25%	Ungapped	-	250	-	72.3	37.4	-	2702	Uncoated	0.250 (6.35mm)
RM8/ILP-3F36-A160 RM CORES 2PC SET Ferroxcube	2,250	1.31	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 8	3F36	-	160 nH	±3%	Gapped	56	-	0.44	28.7	64.9	55.4	1860	Uncoated	0.370 (9.40mm)
RM8/ILP-3F36-A250 RM CORES 2PC SET Ferroxcube	2,070	1.31	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 8	3F36	-	250 nH	±3%	Gapped	88	-	0.44	28.7	64.9	55.4	1860	Uncoated	0.370 (9.40mm)
RM8/ILP-3F36-A400 RM CORES 2PC SET Ferroxcube	3,602	1.31	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 8	3F36	-	400 nH	±3%	Gapped	140	-	0.44	28.7	64.9	55.4	1860	Uncoated	0.370 (9.40mm)

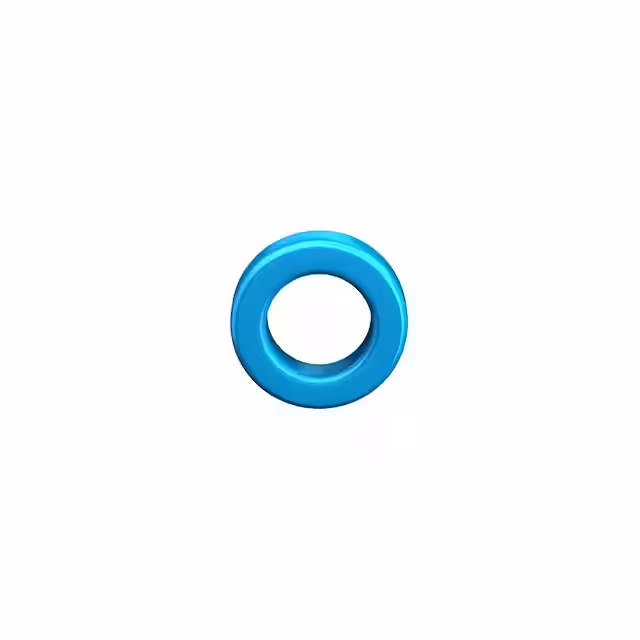

B64290L0710X087 FERRITE CORE EPCOS - TDK Electronics	3,797	1.32	- + RFQ	Datasheet	Box	TX20/10/15	Active	Toroid	-	N87	-	4.5 µH	±25%	Gapped	-	2200	-	-	-	-	-	Epoxy	-
ER32/6/25-3C97 PLANAR ER CORES Ferroxcube	2,181	1.32	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 32 x 6 x 25	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.236 (6.00mm)
ER32/6/25-3F36 PLANAR ER CORES Ferroxcube	3,513	1.32	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 32 x 6 x 25	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.236 (6.00mm)
B65531W0000R045 FERRITE CORE EPCOS - TDK Electronics	3,022	1.32	- + RFQ	Datasheet	Box	P11/7	Active	-	P 11 x 7	N45	0.445 (11.30mm)	-	-	-	-	3800	0.92	16.3	17.7	14.1	289	Uncoated	0.130 (3.30mm)
B65805C0000Y038 FERRITE CORE EPCOS - TDK Electronics	2,572	1.32	- + RFQ	Datasheet	Box	RM5	Active	RM	-	-	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	-
B65807C0000R035 FERRITE CORE EPCOS - TDK Electronics	3,793	1.33	- + RFQ		Box	RM6	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
B66389G0350X187 FERRITE CORE EPCOS - TDK Electronics	3,248	1.33	- + RFQ	Datasheet	Box	E36/18/11	Active	E	-	N87	-	-	-	Gapped	-	2200	0.68	81	120	112	9720	Uncoated	0.709 (18.00mm)
B66389G0600X187 FERRITE CORE EPCOS - TDK Electronics	2,862	1.33	- + RFQ	Datasheet	Box	E36/18/11	Active	E	-	N87	-	-	-	Gapped	-	2200	0.68	81	120	112	9720	Uncoated	0.709 (18.00mm)
B66389G1000X187 FERRITE CORE EPCOS - TDK Electronics	2,568	1.33	- + RFQ	Datasheet	Box	E36/18/11	Active	E	-	N87	-	-	-	Gapped	-	2200	0.68	81	120	112	9720	Uncoated	0.709 (18.00mm)
ER23/3.6/13-3C97-A250-S PLANAR ER CORES Ferroxcube	2,251	1.33	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 23 x 3.6 x 13	3C97	-	250 nH	±5%	Gapped	105	-	0.53	26.6	50.2	50	1340	Uncoated	0.142 (3.60mm)
ER23/3.6/13-3C97-A400-S PLANAR ER CORES Ferroxcube	3,552	1.33	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 23 x 3.6 x 13	3C97	-	400 nH	±7%	Gapped	170	-	0.53	26.6	50.2	50	1340	Uncoated	0.142 (3.60mm)
ER23/3.6/13-3F36-A315-S PLANAR ER CORES Ferroxcube	3,008	1.33	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 23 x 3.6 x 13	3F36	-	2.5 µH	±6%	Gapped	133	-	0.53	26.6	50.2	50	1340	Uncoated	0.142 (3.60mm)
ER23/3.6/13-3F36-A400-S PLANAR ER CORES Ferroxcube	2,382	1.33	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 23 x 3.6 x 13	3F36	-	400 nH	±7%	Gapped	170	-	0.53	26.6	50.2	50	1340	Uncoated	0.142 (3.60mm)
ER23/3.6/13-3F46-A250-S PLANAR ER CORES Ferroxcube	2,888	1.33	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 23 x 3.6 x 13	3F46	-	250 nH	±5%	Gapped	105	-	0.53	26.6	50.2	50	1340	Uncoated	0.142 (3.60mm)
ER23/3.6/13-3F46-A400-S PLANAR ER CORES Ferroxcube	3,293	1.33	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 23 x 3.6 x 13	3F46	-	400 nH	±7%	Gapped	170	-	0.53	26.6	50.2	50	1340	Uncoated	0.142 (3.60mm)
