Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B65807C0000Y038 FERRITE CORE EPCOS - TDK Electronics	2,942	1.81	- + RFQ		Box	RM6	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

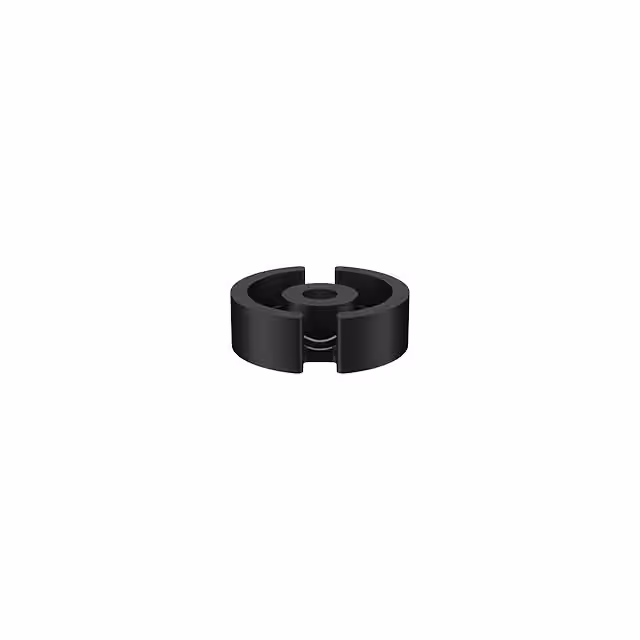

B65531T0160A048 FERRITE CORE P 160NH N48 2PCS EPCOS - TDK Electronics	3,575	1.81	- + RFQ	Datasheet	Box	P11/7	Active	P (Pot Core)	P 11 x 7	N48	0.445 (11.30mm)	160 nH	±3%	Gapped	127	-	1	15.9	15.9	-	253	Uncoated	0.130 (3.30mm)
B65531T0000R048 FERRITE CORE EPCOS - TDK Electronics	3,047	1.81	- + RFQ	Datasheet	Box	P11/7	Active	-	P 11 x 7	N48	0.445 (11.30mm)	-	-	-	-	2300	1	15.9	15.9	-	253	Uncoated	0.130 (3.30mm)
E47/20/16-3F36-G200 E CORES Ferroxcube	2,513	1.82	- + RFQ	Datasheet	Bulk	-	Active	E	E 47 x 20 x 16	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.772 (19.60mm)
4277353405 77 SLEEVE Fair-Rite Products Corp.	3,423	1.82	- + RFQ		Bulk	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

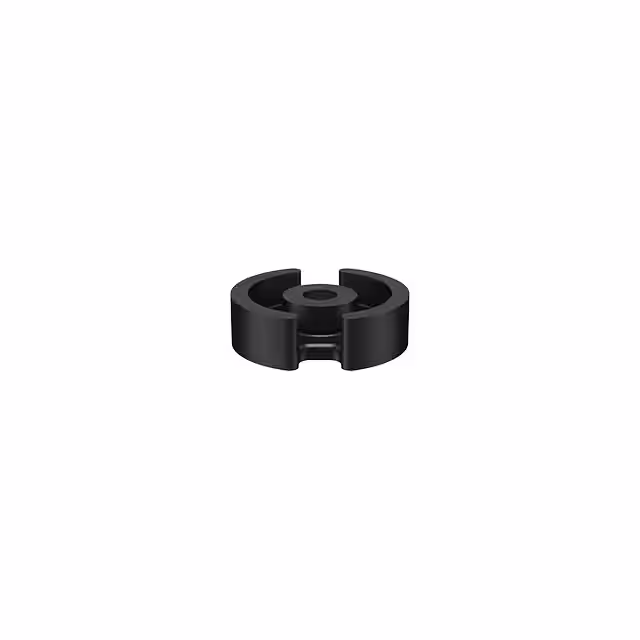

B65517D0025A001 FERRITE CORE P 25NH K1 2PCS EPCOS - TDK Electronics	3,576	1.82	- + RFQ	Datasheet	Box	P9/5	Active	P (Pot Core)	P 9 x 5	K1	0.366 (9.30mm)	25 nH	±3%	Gapped	25	80	1.25	12.5	10	-	125	Uncoated	0.106 (2.70mm)
B65517D0040A001 FERRITE CORE P 40NH K1 2PCS EPCOS - TDK Electronics	3,609	1.82	- + RFQ	Datasheet	Box	P9/5	Active	P (Pot Core)	P 9 x 5	K1	0.366 (9.30mm)	40 nH	±3%	Gapped	40	80	1.25	12.5	10	-	125	Uncoated	0.106 (2.70mm)
B65819P0000R092 FERRITE CORE RM 2.6UH N92 2PCS EPCOS - TDK Electronics	3,319	1.83	- + RFQ	Datasheet	Box	RM7/LP	Active	RM	RM 7 LP	N92	-	2.6 µH	-20%, +30%	Ungapped	1070	1500	0.52	23.5	45.3	39.6	1060	Uncoated	0.193 (4.90mm)
9498205002 98 PLANAR E CORE SET Fair-Rite Products Corp.	3,766	1.83	- + RFQ	Datasheet	Bulk	-	Active	E	-	-	-	-	±25%	Ungapped	-	2400	30	52.9	190	180	10100	Uncoated	0.325 (8.26mm)
9578404602 78 EER CORE SET Fair-Rite Products Corp.	2,873	1.83	- + RFQ	Datasheet	Bulk	-	Active	EER	-	78	-	-	±25%	Ungapped	-	2300	69	100	144	130	14420	Uncoated	-
9277008002 77 U CORE Fair-Rite Products Corp.	3,066	1.84	- + RFQ	Datasheet	Bulk	-	Active	U	-	77	-	-	-	Ungapped	-	2000	105	103	98	-	10100	Uncoated	0.687 (17.45mm)
RM10/ILP-3F4-A250 RM CORES 2PC SET Ferroxcube	2,712	1.84	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 10 x 1	3F4	-	250 nH	±3%	Gapped	68	-	0.462	33.9	99.1	89.1	3360	Uncoated	0.729 (18.60mm)
RM10/ILP-3F4-A400 RM CORES 2PC SET Ferroxcube	2,363	1.84	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 10 x 1	3F4	-	400 nH	±3%	Gapped	110	-	0.462	33.9	99.1	89.1	3360	Uncoated	0.729 (18.60mm)
RM10/ILP-3F4-A630 RM CORES 2PC SET Ferroxcube	3,677	1.84	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 10 x 1	3F4	-	630 nH	±3%	Gapped	170	-	0.462	33.9	99.1	89.1	3360	Uncoated	0.729 (18.60mm)
B65807P0000Y038 FERRITE CORE RM 10.5UH T38 2PCS EPCOS - TDK Electronics	3,297	1.84	- + RFQ	Datasheet	Box	RM6	Active	RM	RM 6 LP	T38	-	10.5 µH	-30%, +40%	Ungapped	4860	2300	0.58	21.8	37.5	31.2	820	Uncoated	0.177 (4.50mm)
E43/10/28-3C92 PLANAR E CORES Ferroxcube	3,453	1.85	- + RFQ	Datasheet	Bulk	-	Active	E	E 43 x 10 x 28	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.374 (9.50mm)
B65811J0250A041 FERRITE CORE EPCOS - TDK Electronics	3,377	1.85	- + RFQ	Datasheet	Box	RM8	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-
B65811J0400J041 FERRITE CORE EPCOS - TDK Electronics	2,523	1.85	- + RFQ	Datasheet	Box	RM8	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-
B65811J0040A041 FERRITE CORE EPCOS - TDK Electronics	2,485	1.85	- + RFQ	Datasheet	Box	RM8	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-
B65811J0630J041 FERRITE CORE RM 630NH N41 2PCS EPCOS - TDK Electronics	2,855	1.85	- + RFQ	Datasheet	Box	RM8	Active	RM	RM 8	N41	-	630 nH	±5%	Gapped	298	2800	0.59	38	64	55	2430	Uncoated	0.324 (8.25mm)
