Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
E42/33/20-3C91 E CORES Ferroxcube	2,819	1.87	- + RFQ	Datasheet	Bulk	-	Active	E	E 42 x 33 x 20	3C91	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.291 (32.80mm)
RM10/I-3F4 RM CORES 2PC SET Ferroxcube	3,530	1.87	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 10 x 1	3F4	-	-	±25%	Ungapped	-	-	0.462	44.6	96.6	89.1	4310	Uncoated	0.729 (18.60mm)
RM10/I-3C90-A315 RM CORES 2PC SET Ferroxcube	3,194	1.88	- + RFQ		Bulk	-	Active	RM	RM 10 x 1	3C90	-	-	±3%	Gapped	116	-	0.462	44.6	96.6	89.1	4310	Uncoated	0.729 (18.60mm)
RM10/I-3C90-A900 RM CORES 2PC SET Ferroxcube	3,381	1.88	- + RFQ		Bulk	-	Active	RM	RM 10 x 1	3C90	-	900 nH	±4%	Gapped	330	-	0.462	44.6	96.6	89.1	4310	Uncoated	0.729 (18.60mm)
RM10/I-3C91-A250 RM CORES 2PC SET Ferroxcube	3,324	1.88	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 10 x 1	3C91	-	250 nH	±3%	Gapped	92	-	0.462	44.6	96.6	89.1	4310	Uncoated	0.729 (18.60mm)
RM10/I-3C91-A400 RM CORES 2PC SET Ferroxcube	2,474	1.88	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 10 x 1	3C91	-	400 nH	±3%	Gapped	147	-	0.462	44.6	96.6	89.1	4310	Uncoated	0.729 (18.60mm)
RM10/I-3C91-A630 RM CORES 2PC SET Ferroxcube	2,398	1.88	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 10 x 1	3C91	-	630 nH	±3%	Gapped	230	-	0.462	44.6	96.6	89.1	4310	Uncoated	0.729 (18.60mm)
RM10/I-3C94-A250 RM CORES 2PC SET Ferroxcube	2,567	1.88	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 10 x 1	3C94	-	-	±3%	Gapped	92	-	0.462	44.6	96.6	89.1	4310	Uncoated	0.729 (18.60mm)
RM10/I-3C94-A400 RM CORES 2PC SET Ferroxcube	3,644	1.88	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 10 x 1	3C94	-	-	±3%	Gapped	147	-	0.462	44.6	96.6	89.1	4310	Uncoated	0.729 (18.60mm)
RM10/I-3C94-A630 RM CORES 2PC SET Ferroxcube	2,519	1.88	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 10 x 1	3C94	-	-	±3%	Gapped	232	-	0.462	44.6	96.6	89.1	4310	Uncoated	0.729 (18.60mm)
E42/21/20-3C92-G200 E CORES Ferroxcube	3,663	1.88	- + RFQ	Datasheet	Bulk	-	Active	E	E 42 x 21 x 20	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.827 (21.00mm)
E42/21/20-3C92-G500 E CORES Ferroxcube	2,757	1.88	- + RFQ	Datasheet	Bulk	-	Active	E	E 42 x 21 x 20	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.827 (21.00mm)
PQ32/25-3C94 PQ CORES 2PC SET Ferroxcube	2,795	1.88	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 32 x 25	3C94	-	-	±25%	Ungapped	-	-	0.383	64.2	168	143	10800	Uncoated	0.984 (25.00mm)

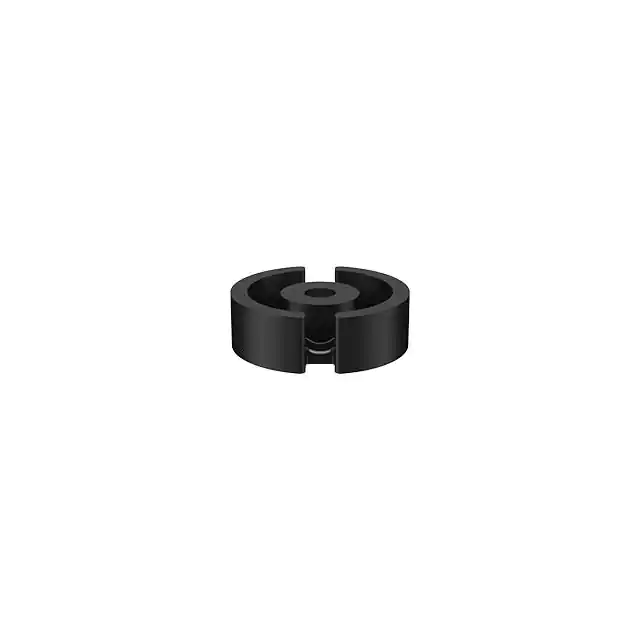

B65611W0000R087 FERRITE CORE EPCOS - TDK Electronics	3,703	6.54	- + RFQ	Datasheet	Box	P36/22	Active	-	P 36 x 22	N87	1.417 (36.00mm)	8 µH	-20%, +30%	Ungapped	1600	2200	0.25	53.5	213	173	11400	Uncoated	0.433 (11.00mm)
RM14/I-3C95-A630 RM CORES 2PC SET Ferroxcube	2,132	6.55	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 14	3C95	-	630 nH	±3%	Gapped	180	-	0.353	70	198	168	13900	Uncoated	1.185 (30.10mm)
B64290L0659X048 FERRITE CORE EPCOS - TDK Electronics	3,552	6.56	- + RFQ	Datasheet	Box	TX40/24/16	Active	Toroid	-	N48	-	-	-	Gapped	-	2300	-	-	-	-	-	Epoxy	-
P36/22-3F36 P CORES 2PC SET Ferroxcube	3,362	6.62	- + RFQ	Datasheet	Bulk	-	Active	P	P 36 x 22	3F36	1.425 (36.20mm)	-	±25%	Ungapped	-	-	0.264	53.2	202	172	10700	Uncoated	0.854 (21.70mm)
E71/33/32-3C95-G1000 E CORES Ferroxcube	2,154	6.73	- + RFQ	Datasheet	Bulk	-	Active	E	E 71 x 33 x 32	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.307 (33.20mm)
PQ32/15-3C97 FERRITE CORE 2PC SET Ferroxcube	2,686	1.88	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 32 x 15	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)
PQ32/15-3F36 FERRITE CORE 2PC SET Ferroxcube	2,966	1.88	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 32 x 15	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)
