Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
TX32/19/13-3E6 FERRITE CORES ROUND Ferroxcube	2,492	1.94	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 32 x 19 x 13	-	1.281 (32.55mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.528 (13.40mm)
9598444502 98 ETD CORE SET Fair-Rite Products Corp.	2,593	1.94	- + RFQ	Datasheet	Bulk	-	Active	ETD	-	-	-	-	±25%	Ungapped	-	2400	60	103.5	173	117.7	17940	Uncoated	0.878 (22.30mm)
B65661D0000R087 FERRITE CORE P 4.4UH N87 2PCS EPCOS - TDK Electronics	3,491	1.95	- + RFQ	Datasheet	Box	P22/13	Active	P (Pot Core)	P 22 x 13	N87	0.866 (22.00mm)	4.4 µH	-20%, +30%	Ungapped	1600	2200	0.5	31.6	63	-	1990	Uncoated	0.268 (6.80mm)
PQ35/20-3C96 PQ CORES 2PC SET Ferroxcube	3,673	1.96	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 35 x 20	3C96	-	-	±25%	Ungapped	1600	-	0.291	57.5	197	163	11300	Uncoated	0.787 (20.00mm)
9578444502 78 ETD CORE SET Fair-Rite Products Corp.	3,894	1.96	- + RFQ	Datasheet	Bulk	-	Active	ETD	-	78	-	-	±25%	Ungapped	-	2300	60	103.5	173	117.7	17940	Uncoated	0.878 (22.30mm)
E42/33/20-3C91-G200 E CORES Ferroxcube	2,450	1.96	- + RFQ	Datasheet	Bulk	-	Active	E	E 42 x 33 x 20	3C91	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.291 (32.80mm)

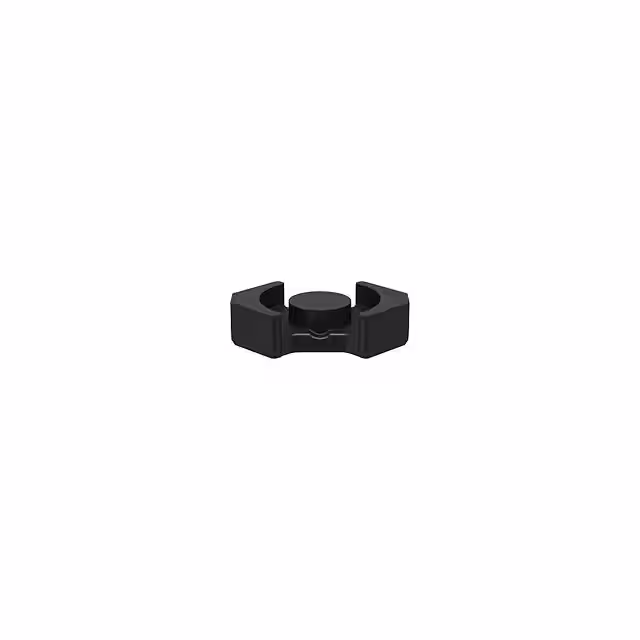

B65819P0000R049 FERRITE CORE RM 2.4UH N49 2PCS EPCOS - TDK Electronics	2,570	1.96	- + RFQ	Datasheet	Box	RM7/LP	Active	RM	RM 7 LP	N49	-	2.4 µH	-20%, +30%	Ungapped	990	1500	0.52	23.5	45.3	39.6	1060	Uncoated	0.193 (4.90mm)
PQ32/20-3F46 PQ CORES 2PC SET Ferroxcube	3,498	1.96	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 32 x 20	3F46	-	-	±25%	Ungapped	684	-	0.331	55.9	169	142	9440	Uncoated	0.811 (20.60mm)
E43/10/28-3C96-A630-E PLANAR E CORES Ferroxcube	3,781	1.97	- + RFQ	Datasheet	Bulk	-	Active	E	E 43 x 10 x 28	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.374 (9.50mm)
E43/10/28-3C96-A630-P PLANAR E CORES Ferroxcube	2,409	1.97	- + RFQ	Datasheet	Bulk	-	Active	E	E 43 x 10 x 28	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.374 (9.50mm)
E43/10/28-3F4-A630-E PLANAR E CORES Ferroxcube	2,705	1.97	- + RFQ	Datasheet	Bulk	-	Active	E	E 43 x 10 x 28	3F4	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.374 (9.50mm)
E43/10/28-3F4-A630-P PLANAR E CORES Ferroxcube	2,298	1.97	- + RFQ	Datasheet	Bulk	-	Active	E	E 43 x 10 x 28	3F4	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.374 (9.50mm)

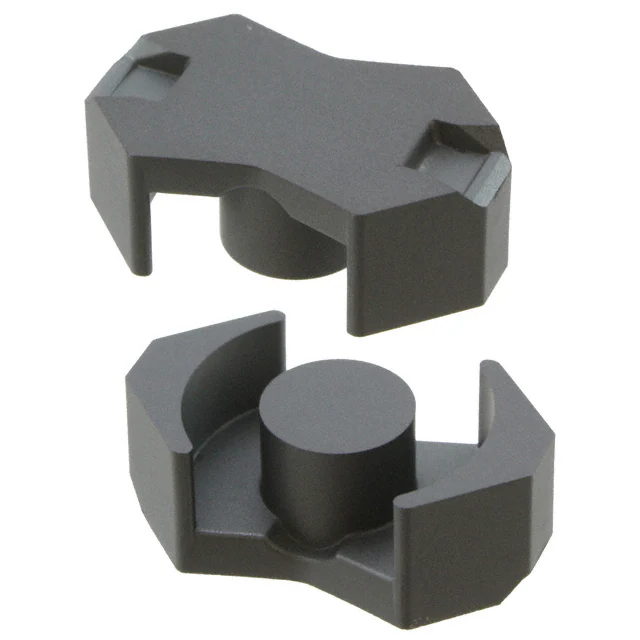

B65819J0000R048 FERRITE CORE EPCOS - TDK Electronics	3,373	1.97	- + RFQ	Datasheet	Box	RM7	Active	RM	RM 7	N48	-	-	-	-	-	2300	0.7	30.4	43	39	1310	Uncoated	0.265 (6.75mm)
B65819J0000R097 FERRITE CORE RM 2.7UH N97 2PCS EPCOS - TDK Electronics	3,971	1.98	- + RFQ	Datasheet	Box	RM7	Active	RM	RM 7	N97	-	2.7 µH	-20%, +30%	Ungapped	1520	2300	0.7	30.4	43	39	1310	Uncoated	0.265 (6.75mm)
RM10/ILP-3F36-A250 RM CORES 2PC SET Ferroxcube	3,734	1.98	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 10 x 1	3F36	-	250 nH	±3%	Gapped	68	-	0.462	33.9	99.1	89.1	3360	Uncoated	0.729 (18.60mm)
RM10/ILP-3F36-A400 RM CORES 2PC SET Ferroxcube	2,761	1.98	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 10 x 1	3F36	-	400 nH	±3%	Gapped	110	-	0.462	33.9	99.1	89.1	3360	Uncoated	0.729 (18.60mm)
RM10/ILP-3F36-A630 RM CORES 2PC SET Ferroxcube	2,601	1.98	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 10 x 1	3F36	-	630 nH	±3%	Gapped	170	-	0.462	33.9	99.1	89.1	3360	Uncoated	0.729 (18.60mm)
B64290L0647X027 FERRITE CORE EPCOS - TDK Electronics	2,721	1.99	- + RFQ	Datasheet	Box	TX29/19/15	Active	Toroid	-	N27	-	-	-	Gapped	-	2000	-	-	-	-	-	Epoxy	-
B65807J0100A033 FERRITE CORE RM 100NH M33 2PCS EPCOS - TDK Electronics	3,802	1.99	- + RFQ	Datasheet	Box	RM6	Active	RM	RM 6	M33	-	100 nH	±3%	Gapped	68.5	750	0.78	28.6	36.6	31	1050	Uncoated	0.246 (6.25mm)
E43/10/28-3C95-A630-E PLANAR E CORES Ferroxcube	2,846	2.00	- + RFQ	Datasheet	Bulk	-	Active	E	E 43 x 10 x 28	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.374 (9.50mm)
