Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
P22/13-3F46 P CORES 2PC SET Ferroxcube	2,159	2.05	- + RFQ		Bulk	-	Active	P	P 22 x 13	3F46	0.866 (22.00mm)	1.7 µH	±25%	Ungapped	670	-	0.497	31.5	63.4	50.9	2000	Uncoated	0.528 (13.40mm)
9498114002 98 E CORE SET Fair-Rite Products Corp.	3,160	2.05	- + RFQ	Datasheet	Bulk	-	Active	E	-	-	-	-	±25%	Ungapped	-	2400	55.3	97.9	177	174	17300	Uncoated	-
E43/10/28-3C96-A315-E PLANAR E CORES Ferroxcube	3,321	2.05	- + RFQ	Datasheet	Bulk	-	Active	E	E 43 x 10 x 28	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.374 (9.50mm)
E43/10/28-3C96-A315-P PLANAR E CORES Ferroxcube	3,125	2.05	- + RFQ	Datasheet	Bulk	-	Active	E	E 43 x 10 x 28	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.374 (9.50mm)
E43/10/28-3C96-A400-E PLANAR E CORES Ferroxcube	3,664	2.05	- + RFQ	Datasheet	Bulk	-	Active	E	E 43 x 10 x 28	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.374 (9.50mm)
E43/10/28-3C96-A400-P PLANAR E CORES Ferroxcube	2,943	2.05	- + RFQ	Datasheet	Bulk	-	Active	E	E 43 x 10 x 28	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.374 (9.50mm)
B64290L0787X087 FERRITE CORE EPCOS - TDK Electronics	3,725	2.05	- + RFQ	Datasheet	Box	TX29.5/19/7.5	Active	Toroid	-	N87	-	-	-	Gapped	-	2200	-	-	-	-	-	Epoxy	-
E43/10/28-3C97 PLANAR E CORES Ferroxcube	3,796	2.05	- + RFQ	Datasheet	Bulk	-	Active	E	E 43 x 10 x 28	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.374 (9.50mm)
E43/10/28-3F4-A315-E PLANAR E CORES Ferroxcube	3,805	2.05	- + RFQ	Datasheet	Bulk	-	Active	E	E 43 x 10 x 28	3F4	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.374 (9.50mm)
E43/10/28-3F4-A315-P PLANAR E CORES Ferroxcube	3,637	2.05	- + RFQ	Datasheet	Bulk	-	Active	E	E 43 x 10 x 28	3F4	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.374 (9.50mm)
E43/10/28-3F4-A400-E PLANAR E CORES Ferroxcube	2,770	2.05	- + RFQ	Datasheet	Bulk	-	Active	E	E 43 x 10 x 28	3F4	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.374 (9.50mm)
E43/10/28-3F4-A400-P PLANAR E CORES Ferroxcube	2,938	2.05	- + RFQ	Datasheet	Bulk	-	Active	E	E 43 x 10 x 28	3F4	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.374 (9.50mm)
E42/33/20-3C90-E160 E CORES Ferroxcube	2,381	2.06	- + RFQ		Bulk	-	Active	E	E 42 x 33 x 20	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.291 (32.80mm)
E42/33/20-3C91-G500 E CORES Ferroxcube	3,089	2.06	- + RFQ	Datasheet	Bulk	-	Active	E	E 42 x 33 x 20	3C91	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.291 (32.80mm)

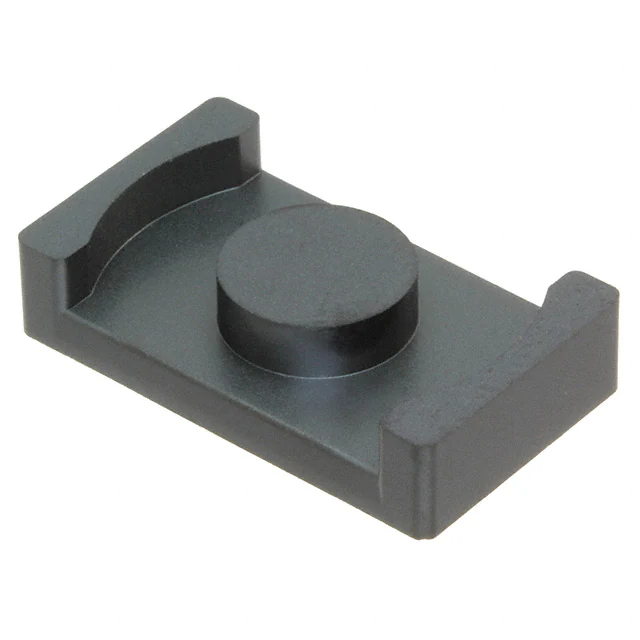

B66347G0000X127 FERRITE CORE ER N27 1PC EPCOS - TDK Electronics	2,301	2.06	- + RFQ	Datasheet	Box	ER42/22/15	Active	ER	ER 42 x 22 x 15	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.858 (21.80mm)
PQ32/25-3C96 PQ CORES 2PC SET Ferroxcube	2,241	2.07	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 32 x 25	3C96	-	-	±25%	Ungapped	-	-	0.383	64.2	168	143	10800	Uncoated	0.984 (25.00mm)
B66363G0000X192 FERRITE CORE EPCOS - TDK Electronics	2,301	2.07	- + RFQ	Datasheet	Box	ETD39/20/13	Active	ETD	ETD 39 x 20 x 13	N92	-	-	-	-	-	1500	0.74	92.2	125	123	11500	Uncoated	0.787 (20.00mm)
PQ32/30-3C94 PQ CORES 2PC SET Ferroxcube	2,781	2.08	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 32 x 30	3C94	-	-	±25%	Ungapped	1990	-	0.447	74.7	167	142	12500	Uncoated	1.193 (30.30mm)
E43/10/28-3C95-A315-E PLANAR E CORES Ferroxcube	3,005	2.09	- + RFQ	Datasheet	Bulk	-	Active	E	E 43 x 10 x 28	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.374 (9.50mm)
E43/10/28-3C95-A315-P PLANAR E CORES Ferroxcube	2,679	2.09	- + RFQ	Datasheet	Bulk	-	Active	E	E 43 x 10 x 28	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.374 (9.50mm)
