Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
RM14/I-3C97 RM CORES 2PC SET Ferroxcube	3,466	6.14	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 14	3C97	-	8.13 µH	±25%	Ungapped	2300	-	0.353	70	198	168	13900	Uncoated	1.185 (30.10mm)
RM14/I-3F36 RM CORES 2PC SET Ferroxcube	3,023	6.14	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 14	3F36	-	-	±25%	Ungapped	-	-	0.353	70	198	168	13900	Uncoated	1.185 (30.10mm)
P36/22-3C95 P CORES 2PC SET Ferroxcube	2,716	6.17	- + RFQ	Datasheet	Bulk	-	Active	P	P 36 x 22	3C95	1.425 (36.20mm)	-	±25%	Ungapped	-	-	0.264	53.2	202	172	10700	Uncoated	0.854 (21.70mm)
E64/10/50-3C92-A1000-E PLANAR E CORES Ferroxcube	2,511	6.17	- + RFQ	Datasheet	Bulk	-	Active	E	E 64 x 10 x 50	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.402 (10.20mm)
E64/10/50-3C92-A1000-P PLANAR E CORES Ferroxcube	2,406	6.17	- + RFQ	Datasheet	Bulk	-	Active	E	E 64 x 10 x 50	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.402 (10.20mm)
E64/10/50-3C92-A630-E PLANAR E CORES Ferroxcube	2,496	6.17	- + RFQ	Datasheet	Bulk	-	Active	E	E 64 x 10 x 50	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.402 (10.20mm)
E64/10/50-3C92-A630-P PLANAR E CORES Ferroxcube	3,265	6.17	- + RFQ	Datasheet	Bulk	-	Active	E	E 64 x 10 x 50	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.402 (10.20mm)
E71/33/32-3C95 E CORES Ferroxcube	2,834	6.20	- + RFQ	Datasheet	Bulk	-	Active	E	E 71 x 33 x 32	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.307 (33.20mm)
RM14/I-3C90-A160 RM CORES 2PC SET Ferroxcube	2,377	6.20	- + RFQ		Bulk	-	Active	RM	RM 14	3C90	-	160 nH	±3%	Gapped	45	-	0.353	70	198	168	13900	Uncoated	1.185 (30.10mm)
RM14/I-3C90-A250 RM CORES 2PC SET Ferroxcube	3,383	6.20	- + RFQ		Bulk	-	Active	RM	RM 14	3C90	-	-	±25%	Gapped	-	-	0.353	70	198	168	13900	Uncoated	1.185 (30.10mm)
RM14/I-3C90-A315 RM CORES 2PC SET Ferroxcube	3,785	6.20	- + RFQ		Bulk	-	Active	RM	RM 14	3C90	-	-	±25%	Gapped	-	-	0.353	70	198	168	13900	Uncoated	1.185 (30.10mm)
RM14/I-3C90-A400 RM CORES 2PC SET Ferroxcube	2,777	6.20	- + RFQ		Bulk	-	Active	RM	RM 14	3C90	-	-	±25%	Gapped	-	-	0.353	70	198	168	13900	Uncoated	1.185 (30.10mm)

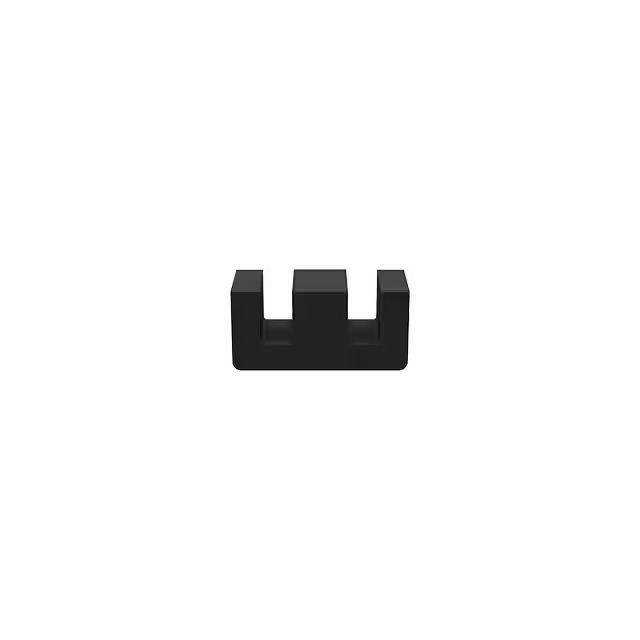

B66387G0500X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	2,529	6.20	- + RFQ	Datasheet	Box	E65/32/27	Active	E	E 65 x 32 x 27	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	1.291 (32.80mm)
B66387G2500X187 FERRITE CORE EPCOS - TDK Electronics	2,315	6.20	- + RFQ	Datasheet	Box	E65/32/27	Active	E	E 65 x 32 x 27	N87	-	-	-	Gapped	-	2200	0.27	147	535	529	78600	Uncoated	1.291 (32.80mm)
9598606002 78 ETD CORE SET Fair-Rite Products Corp.	3,988	6.20	- + RFQ	Datasheet	Bulk	-	Active	ETD	-	-	-	-	±25%	Ungapped	-	2400	39	138.7	357	323	49520	Uncoated	1.181 (30.00mm)
5978017301 78 TOROID Fair-Rite Products Corp.	2,995	6.21	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	78	1.902 (48.30mm)	-	±25%	Ungapped	-	2300	-	122	155	-	18900	Uncoated	0.750 (19.05mm)
RM14/ILP-3F36-A630 RM CORES 2PC SET Ferroxcube	3,012	6.26	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 14	3F36	-	630 nH	±3%	Gapped	127	-	0.353	50.9	201	168	10230	Uncoated	1.185 (30.10mm)
E64/10/50-3C96-A1000-E PLANAR E CORES Ferroxcube	2,074	6.28	- + RFQ	Datasheet	Bulk	-	Active	E	E 64 x 10 x 50	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.402 (10.20mm)
E64/10/50-3C96-A1000-P PLANAR E CORES Ferroxcube	3,336	6.28	- + RFQ	Datasheet	Bulk	-	Active	E	E 64 x 10 x 50	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.402 (10.20mm)
E64/10/50-3C96-A630-E PLANAR E CORES Ferroxcube	2,456	6.28	- + RFQ	Datasheet	Bulk	-	Active	E	E 64 x 10 x 50	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.402 (10.20mm)
