Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
E71/33/32-3C95-G2000 E CORES Ferroxcube	2,465	7.00	- + RFQ	Datasheet	Bulk	-	Active	E	E 71 x 33 x 32	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.307 (33.20mm)
RM14/ILP-3F36-E250 RM CORES 2PC SET Ferroxcube	3,744	7.00	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 14	3F36	-	250 nH	±3%	Gapped	50	-	0.353	50.9	201	168	10230	Uncoated	1.185 (30.10mm)
RM14/I-3C90-E120 RM CORES 2PC SET Ferroxcube	3,325	7.03	- + RFQ		Bulk	-	Active	RM	RM 14	3C90	-	120 nH	±3%	Gapped	34	-	0.353	70	198	168	13900	Uncoated	1.185 (30.10mm)
PQ50/50-3C94 PQ CORES 2PC SET Ferroxcube	3,393	7.21	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 50 x 50	3C94	-	-	±25%	Ungapped	2030	-	0.345	113	328	314	37100	Uncoated	1.969 (50.00mm)

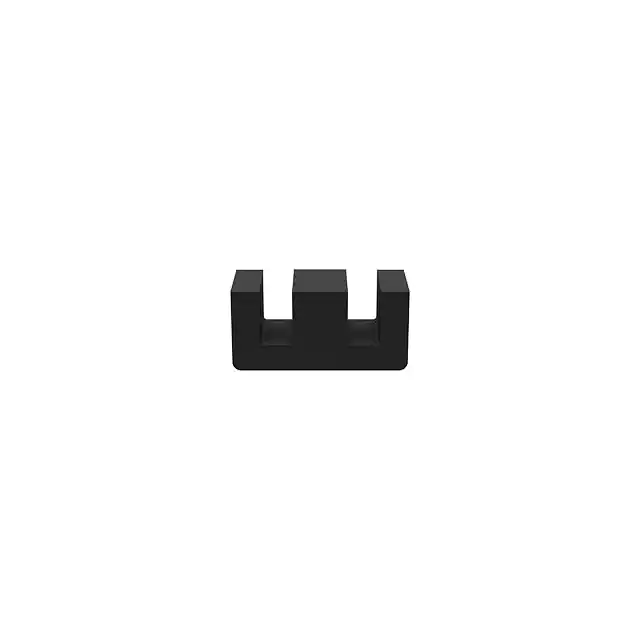

B66375G0000X197 E80/38/20 N97 4700 +30% -20% EPCOS - TDK Electronics	2,989	7.23	- + RFQ	Datasheet	Box	E80/38/20	Active	E	E 80 x 38 x 20	N97	-	4.7 µH	-20%, +30%	Ungapped	1770	-	0.47	184	388	388	71800	Uncoated	1.516 (38.50mm)
B65887E1600J041 FERRITE CORE EPCOS - TDK Electronics	2,767	7.24	- + RFQ	Datasheet	Box	RM14	Active	RM	RM 14	N41	-	-	-	Gapped	-	2800	0.35	70	200	170	14000	Uncoated	0.594 (15.10mm)
TX50/30/19-3E27 FERRITE CORES ROUND Ferroxcube	2,867	7.27	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 50 x 30 x 19	3E27	2.018 (51.25mm)	-	±25%	Ungapped	5500	-	0.65	120.4	186	-	22378	Epoxy	0.791 (20.10mm)
B66387G1200X187 FERRITE CORE EPCOS - TDK Electronics	2,035	7.30	- + RFQ	Datasheet	Box	E65/32/27	Active	E	E 65 x 32 x 27	N87	-	-	-	Gapped	-	2200	0.27	147	535	529	78600	Uncoated	1.291 (32.80mm)
RM14/I-3C96-E250 RM CORES 2PC SET Ferroxcube	3,573	7.30	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 14	3C96	-	250 nH	±3%	Gapped	70	-	0.353	70	198	168	13900	Uncoated	1.185 (30.10mm)
RM14/I-3C96-E400 RM CORES 2PC SET Ferroxcube	3,759	7.30	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 14	3C96	-	400 nH	±3%	Gapped	112	-	0.353	70	198	168	13900	Uncoated	1.185 (30.10mm)
RM14/I-3F4-E250 RM CORES 2PC SET Ferroxcube	2,075	7.30	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 14	3F4	-	250 nH	±3%	Gapped	70	-	0.353	70	198	168	13900	Uncoated	1.185 (30.10mm)
RM14/I-3F4-E400 RM CORES 2PC SET Ferroxcube	3,101	7.30	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 14	3F4	-	400 nH	±3%	Gapped	112	-	0.353	70	198	168	13900	Uncoated	1.185 (30.10mm)
B66344G1000X197 FERRITE CORE EPCOS - TDK Electronics	3,279	7.33	- + RFQ	Datasheet	Box	E55/28/25	Active	E	E 55 x 28 x 25	N97	-	-	-	Gapped	-	2300	0.3	124	420	420	52100	Uncoated	1.094 (27.80mm)
RM14/I-3C95-E250 RM CORES 2PC SET Ferroxcube	3,093	7.39	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 14	3C95	-	250 nH	±3%	Gapped	70	-	0.353	70	198	168	13900	Uncoated	1.185 (30.10mm)
RM14/I-3C95-E400 RM CORES 2PC SET Ferroxcube	3,626	7.39	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 14	3C95	-	400 nH	±3%	Gapped	112	-	0.353	70	198	168	13900	Uncoated	1.185 (30.10mm)
ROD10/245-3C90 FERRITE ROD Ferroxcube	2,854	7.39	- + RFQ	Datasheet	Bulk	-	Active	ROD	ROD 10 x 245	3C90	0.394 (10.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	-
9578606002 78 ETD CORE SET Fair-Rite Products Corp.	3,389	7.45	- + RFQ	Datasheet	Bulk	-	Active	ETD	-	78	-	-	±25%	Ungapped	-	2300	39	138.7	357	323	49520	Uncoated	1.181 (30.00mm)

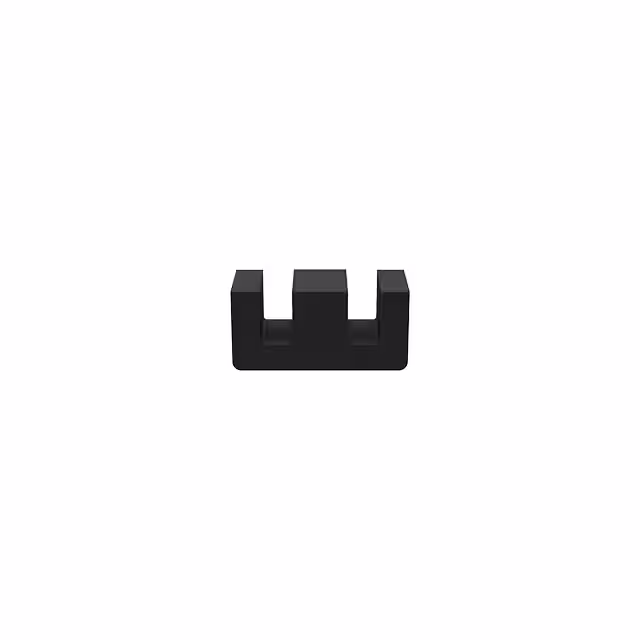

B66387G1000X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	2,383	7.47	- + RFQ	Datasheet	Box	E65/32/27	Active	E	E 65 x 32 x 27	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	1.291 (32.80mm)
9595606002 95 ETD CORE SET Fair-Rite Products Corp.	3,750	7.55	- + RFQ	Datasheet	Bulk	-	Active	ETD	-	95	-	-	±25%	Ungapped	-	3000	39	138.7	357	323	49520	Uncoated	1.181 (30.00mm)
E71/33/32-3C92-G1000 E CORES Ferroxcube	3,599	7.58	- + RFQ	Datasheet	Bulk	-	Active	E	E 71 x 33 x 32	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.307 (33.20mm)
