Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length

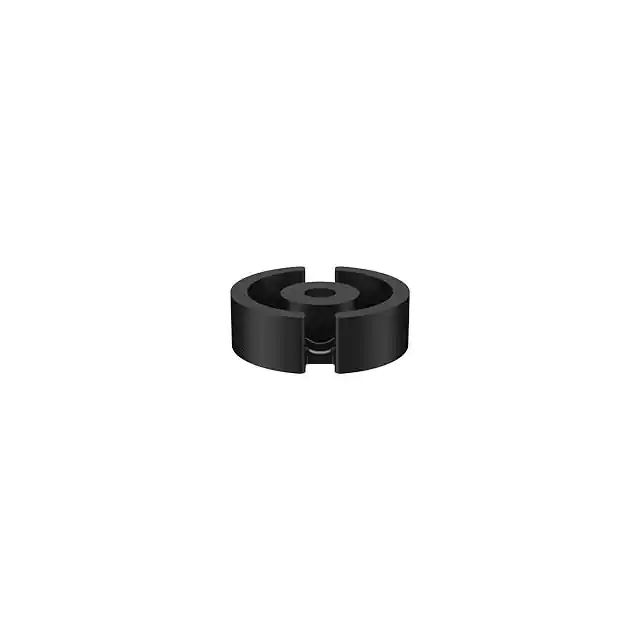

B65611D0400A048 FERRITE CORE P 400NH N48 2PCS EPCOS - TDK Electronics	2,645	7.82	- + RFQ	Datasheet	Box	P36/22	Active	P (Pot Core)	P 36 x 22	N48	1.417 (36.00mm)	400 nH	±3%	Gapped	82	-	0.26	52	202	-	10500	Uncoated	0.433 (11.00mm)
B65611D0630A048 FERRITE CORE P 630NH N48 2PCS EPCOS - TDK Electronics	2,618	7.82	- + RFQ	Datasheet	Box	P36/22	Active	P (Pot Core)	P 36 x 22	N48	1.417 (36.00mm)	630 nH	±3%	Gapped	129	-	0.26	52	202	-	10500	Uncoated	0.433 (11.00mm)
B66387G3000X127 FERRITE CORE EPCOS - TDK Electronics	3,154	7.83	- + RFQ	Datasheet	Box	E65/32/27	Active	E	E 65 x 32 x 27	N27	-	-	-	Gapped	-	2000	0.27	147	535	529	78600	Uncoated	1.291 (32.80mm)
B65735J0000R087 FERRITE CORES EPCOS - TDK Electronics	3,915	7.93	- + RFQ		Box	PTS30/19	Active	-	-	N87	-	-	-	Ungapped	-	2200	0.39	46.4	119	99.4	5534	Uncoated	0.374 (9.50mm)
B66297KX197 FERRITE CORES EPCOS - TDK Electronics	2,115	7.98	- + RFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
B65671D0000R001 FERRITE CORE EPCOS - TDK Electronics	2,827	8.06	- + RFQ	Datasheet	Box	P26/16	Active	-	P 26 x 16	K1	1.024 (26.00mm)	270 nH	-20%, +30%	Ungapped	90	80	0.4	37.2	93	76.5	3460	Uncoated	0.321 (8.15mm)
B64290L0082X095 R50/30/20 N95 TOROID EPCOS - TDK Electronics	3,793	8.12	- + RFQ		Box	TX50/30/20	Active	Toroid	R 50 x 30 x 20	N95	2.039 (51.80mm)	5.7 µH	±25%	Ungapped	-	2800	0.62	120.4	195.7	-	23560	Epoxy	0.839 (21.30mm)
B65671T0063A001 FERRITE CORE EPCOS - TDK Electronics	2,484	8.22	- + RFQ	Datasheet	Box	P26/16	Active	-	P 26 x 16	K1	1.024 (26.00mm)	-	-	Gapped	-	80	0.4	37.2	93	76.5	3460	Uncoated	0.321 (8.15mm)
B66397G0400X197 FERRITE CORE EPCOS - TDK Electronics	3,042	8.27	- + RFQ	Datasheet	Box	ETD59/31/22	Active	ETD	ETD 59 x 31 x 22	N97	-	-	-	Gapped	-	2300	0.38	139	368	368	51200	Uncoated	1.228 (31.20mm)
B65887E0000R030 FERRITE CORE EPCOS - TDK Electronics	3,757	8.34	- + RFQ	Datasheet	Box	RM14	Active	RM	RM 14	N30	-	-	-	-	-	4300	0.35	70	200	170	14000	Uncoated	0.594 (15.10mm)

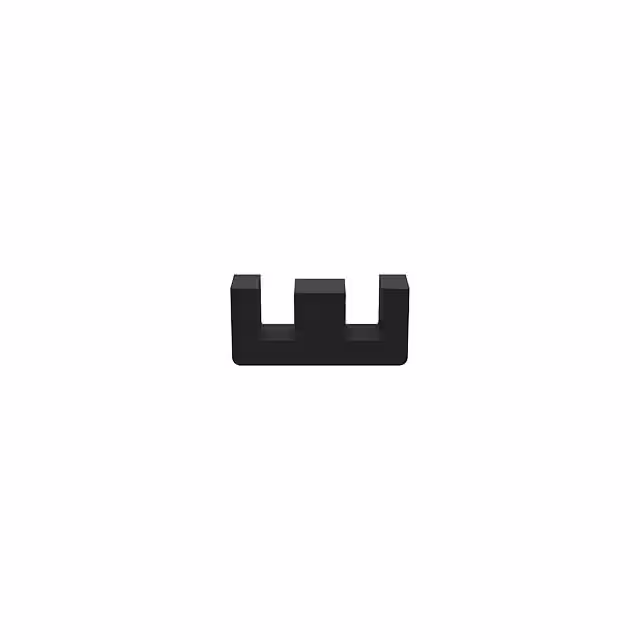

B66335G0000X197 FERRITE CORE E N97 1PC EPCOS - TDK Electronics	3,661	8.42	- + RFQ	Datasheet	Box	E55/28/21	Active	E	E 55 x 28 x 21	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	1.094 (27.80mm)
B64290A0659X010 FERRITE CORE EPCOS - TDK Electronics	3,033	8.46	- + RFQ	Datasheet	Box	T40/24/16	Active	Toroid	-	-	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	-
PQ50/30-3C95 FERRITE CORE 2PC SET Ferroxcube	2,180	8.64	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 50 x 30	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.181 (30.00mm)

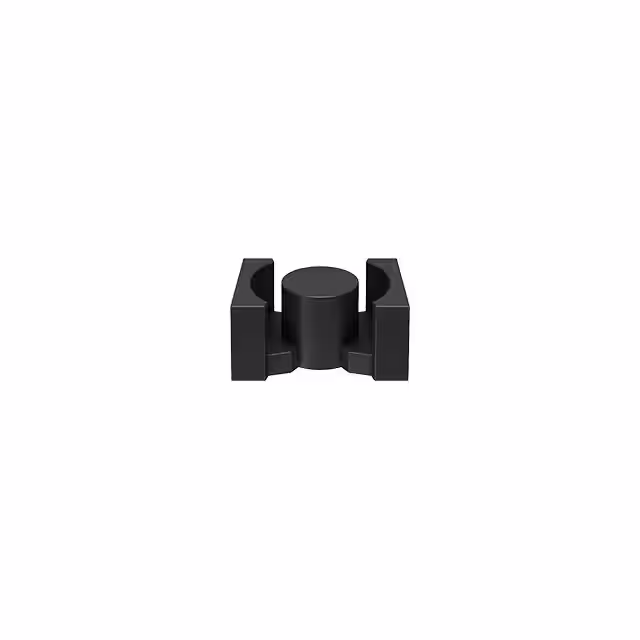

B65981B0000R087 PQ50/40 N87 UNGAPPED EPCOS - TDK Electronics	3,801	8.64	- + RFQ	Datasheet	Box	PQ50/40	Active	PQ	PQ 50 x 40	N87	-	7.6 µH	-20%, +30%	Ungapped	1710	-	0.28	93	334	314	31250	Uncoated	0.787 (20.00mm)

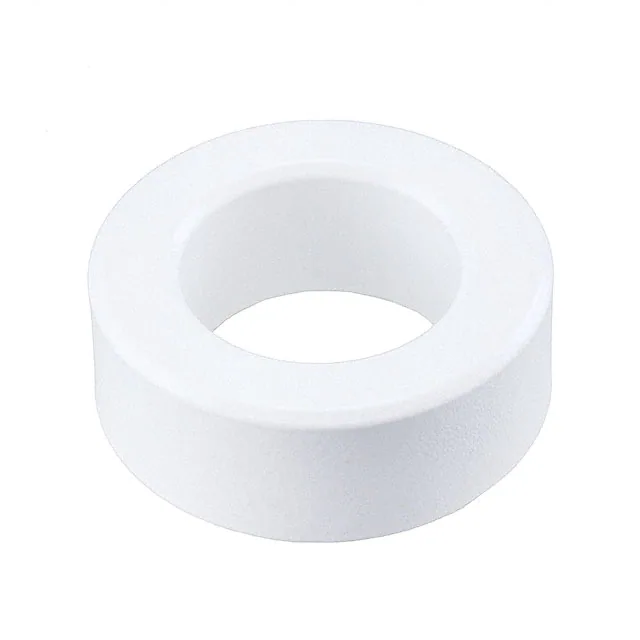

TX55/32/18-3E65 FERRITE CORES ROUND Ferroxcube	2,467	8.72	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 55 x 32 x 18	-	2.264 (57.50mm)	-	±25%	Ungapped	5200	-	0.651	132	202	-	26580	Epoxy	0.756 (19.20mm)
B65887P0000R095 FERRITE CORE EPCOS - TDK Electronics	2,931	8.78	- + RFQ		Box	RM14/LP	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

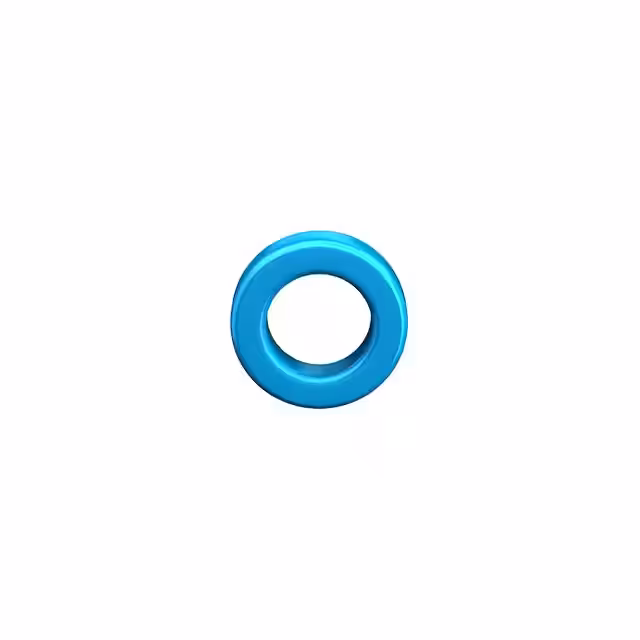

B64290L0042X065 FERRITE CORE TOROID 7.2UH T65 EPCOS - TDK Electronics	3,255	8.78	- + RFQ	Datasheet	Box	TX58.3/40.8/20.2	Active	Toroid	-	T65	2.366 (60.10mm)	7.2 µH	±30%	Ungapped	-	5000	0.87	152.4	174.9	-	26660	Epoxy	0.846 (21.50mm)
PQ50/35-3C97 FERRITE CORE 2PC SET Ferroxcube	3,479	9.22	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 50 x 35	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.378 (35.00mm)
B64290L0082X027 FERRITE CORE EPCOS - TDK Electronics	3,634	9.33	- + RFQ	Datasheet	Box	TX50/30/20	Active	Toroid	-	N27	-	-	-	Gapped	-	2000	-	-	-	-	-	Epoxy	-

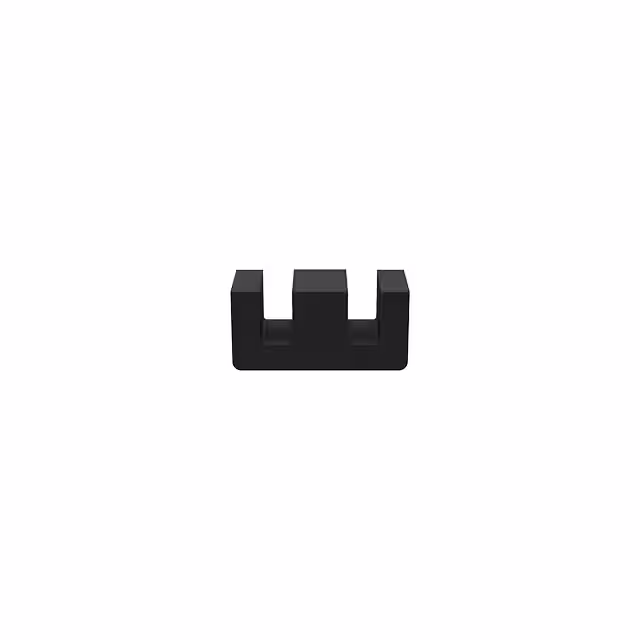

B66375G0250X187 FERRITE CORE EPCOS - TDK Electronics	3,730	9.54	- + RFQ	Datasheet	Box	E80/38/20	Active	E	E 80 x 38 x 20	N87	-	-	-	Gapped	-	2200	0.47	184	390	388	71800	Uncoated	1.516 (38.50mm)
