Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
E71/33/32-3C92-G2000 E CORES Ferroxcube	2,744	7.58	- + RFQ	Datasheet	Bulk	-	Active	E	E 71 x 33 x 32	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.307 (33.20mm)
E71/33/32-3C92-G500 E CORES Ferroxcube	2,926	7.58	- + RFQ	Datasheet	Bulk	-	Active	E	E 71 x 33 x 32	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.307 (33.20mm)

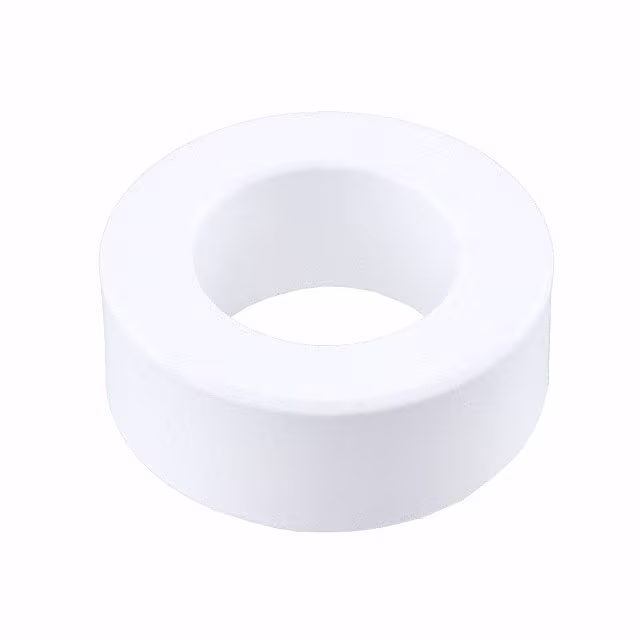

TX51/32/19-3E65 FERRITE CORES ROUND Ferroxcube	2,395	7.60	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 51 x 32 x 19	-	2.069 (52.55mm)	-	±25%	Ungapped	5200	-	0.73	125	172	-	21500	Epoxy	0.783 (19.90mm)
TX50/30/19-3E65 FERRITE CORES ROUND Ferroxcube	3,198	7.60	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 50 x 30 x 19	-	2.018 (51.25mm)	-	±25%	Ungapped	5200	-	0.65	120.4	186	-	22378	Epoxy	0.791 (20.10mm)
B65887E1000J049 FERRITE CORE EPCOS - TDK Electronics	2,804	7.66	- + RFQ	Datasheet	Box	RM14	Active	RM	RM 14	N49	-	-	-	Gapped	-	2200	0.35	70	200	170	14000	Uncoated	0.594 (15.10mm)
B65887E0400J049 FERRITE CORE EPCOS - TDK Electronics	2,428	7.66	- + RFQ	Datasheet	Box	RM14	Active	RM	RM 14	N49	-	-	-	Gapped	-	2200	0.35	70	200	170	14000	Uncoated	0.594 (15.10mm)
PQ50/50-3F4 PQ CORES 2PC SET Ferroxcube	3,729	7.66	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 50 x 50	3F4	-	-	±25%	Ungapped	822	-	0.345	113	328	314	37100	Uncoated	1.969 (50.00mm)
5978018701 78 TOROID Fair-Rite Products Corp.	3,359	7.69	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	Toroid	-	78	-	-	±25%	Ungapped	-	2300	-	133	207	-	27600	Uncoated	-

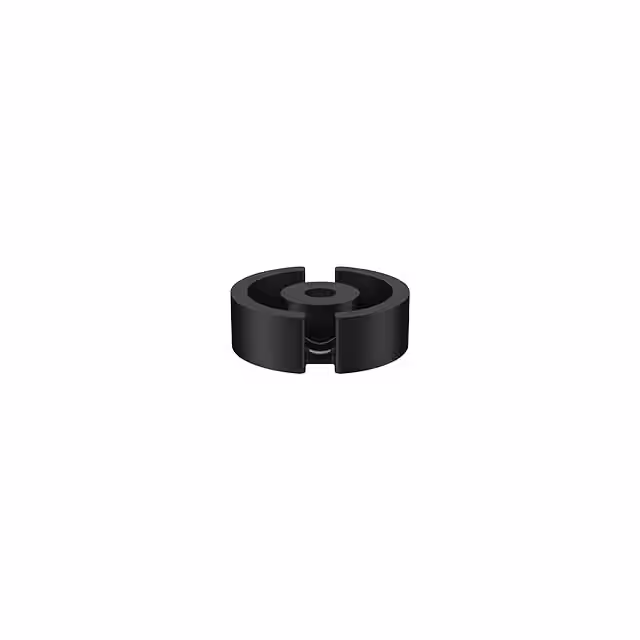

B65611T0400G048 FERRITE CORE P 400NH N48 2PCS EPCOS - TDK Electronics	3,609	7.70	- + RFQ	Datasheet	Box	P36/22	Active	P (Pot Core)	P 36 x 22	N48	1.417 (36.00mm)	400 nH	±2%	Gapped	82	-	0.26	52	202	-	10500	Uncoated	0.433 (11.00mm)
B65611T0630A048 FERRITE CORE P 630NH N48 2PCS EPCOS - TDK Electronics	3,968	7.70	- + RFQ	Datasheet	Box	P36/22	Active	P (Pot Core)	P 36 x 22	N48	1.417 (36.00mm)	630 nH	±3%	Gapped	129	-	0.26	52	202	-	10500	Uncoated	0.433 (11.00mm)
B65611T1000A048 FERRITE CORE P 1UH N48 2PCS EPCOS - TDK Electronics	3,013	7.70	- + RFQ	Datasheet	Box	P36/22	Active	P (Pot Core)	P 36 x 22	N48	1.417 (36.00mm)	1 µH	±3%	Gapped	205	-	0.26	52	202	-	10500	Uncoated	0.433 (11.00mm)
B66387G2000X127 FERRITE CORE EPCOS - TDK Electronics	3,161	7.72	- + RFQ	Datasheet	Box	E65/32/27	Active	E	E 65 x 32 x 27	N27	-	-	-	Gapped	-	2000	0.27	147	535	529	78600	Uncoated	1.291 (32.80mm)

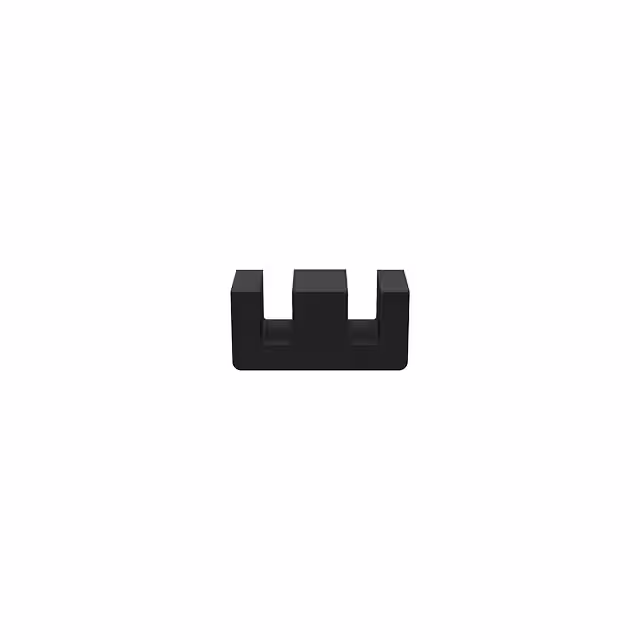

B66387G1000X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	2,767	7.72	- + RFQ	Datasheet	Box	E65/32/27	Active	E	E 65 x 32 x 27	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	1.291 (32.80mm)
B65661T0063A001 FERRITE CORE EPCOS - TDK Electronics	2,351	7.72	- + RFQ		Box	P22/13	Active	-	P 22 x 13	K1	0.866 (22.00mm)	-	-	Gapped	-	80	0.5	31.6	63	-	1990	Uncoated	0.268 (6.80mm)
TX58/41/18-3E65 FERRITE CORES ROUND Ferroxcube	3,456	7.80	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 58 x 41 x 18	-	2.354 (59.80mm)	-	±25%	Ungapped	5200	-	1	152	152	-	23200	Epoxy	0.729 (18.60mm)
RM14/I-3C97-E250 RM CORES 2PC SET Ferroxcube	2,224	7.80	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 14	3C97	-	250 nH	±3%	Gapped	70	-	0.353	70	198	168	13900	Uncoated	1.185 (30.10mm)
RM14/I-3C97-E400 RM CORES 2PC SET Ferroxcube	2,754	7.80	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 14	3C97	-	400 nH	±3%	Gapped	112	-	0.353	70	198	168	13900	Uncoated	1.185 (30.10mm)
RM14/I-3F36-E250 RM CORES 2PC SET Ferroxcube	3,099	7.80	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 14	3F36	-	250 nH	±3%	Gapped	70	-	0.353	70	198	168	13900	Uncoated	1.185 (30.10mm)
RM14/I-3F36-E400 RM CORES 2PC SET Ferroxcube	3,233	7.80	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 14	3F36	-	400 nH	±3%	Gapped	112	-	0.353	70	198	168	13900	Uncoated	1.185 (30.10mm)
B65611D2500K048 FERRITE CORE EPCOS - TDK Electronics	2,869	7.82	- + RFQ	Datasheet	Box	P36/22	Active	-	P 36 x 22	N48	1.417 (36.00mm)	-	-	Gapped	-	2300	0.26	52	202	-	10500	Uncoated	0.433 (11.00mm)
