Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
PQ50/35-3C94 PQ CORES 2PC SET Ferroxcube	3,908	5.39	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 50 x 35	3C94	-	-	±25%	Ungapped	1760	-	0.257	84.4	329	314	27800	Uncoated	1.378 (35.00mm)
ROD10/140-4B1 FERRITE ROD Ferroxcube	2,314	5.41	- + RFQ	Datasheet	Bulk	-	Active	ROD	ROD 10 x 140	-	0.394 (10.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	-
B65671D0000R033 FERRITE CORE EPCOS - TDK Electronics	3,845	5.41	- + RFQ	Datasheet	Box	P26/16	Active	-	P 26 x 16	M33	1.024 (26.00mm)	2 µH	-20%, +30%	Ungapped	640	750	0.4	37.2	93	76.5	3460	Uncoated	0.321 (8.15mm)

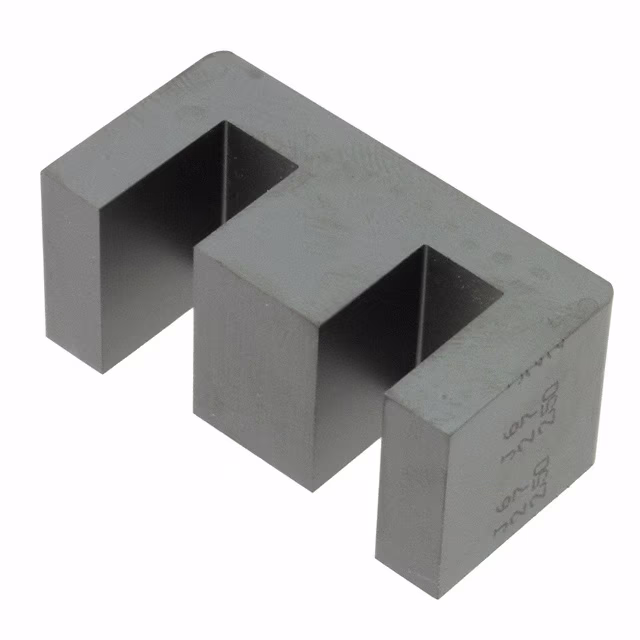

B66344G2500X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	2,283	5.42	- + RFQ	Datasheet	Box	E55/28/25	Active	E	E 55 x 28 x 25	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	1.094 (27.80mm)
B65716L0000R065 FERRITE CORE TT 11.8UH T65 2PCS EPCOS - TDK Electronics	3,880	5.44	- + RFQ	Datasheet	Box	PT23/11	Active	TT	TT 23 x 11	T65	0.917 (23.30mm)	11.8 µH	-20%, +30%	Ungapped	3880	5200	0.45	31.2	68.8	62.8	2144	Uncoated	0.220 (5.60mm)
B65716L0000R087 FERRITE CORE TT 4.8UH N87 2PCS EPCOS - TDK Electronics	2,552	5.44	- + RFQ	Datasheet	Box	PT23/11	Active	TT	TT 23 x 11	N87	0.917 (23.30mm)	4.8 µH	-20%, +30%	Ungapped	1730	2200	0.45	31.2	68.8	62.8	2144	Uncoated	0.220 (5.60mm)
E65/32/27-3C90-G3000 E CORES Ferroxcube	3,122	5.48	- + RFQ		Bulk	-	Active	E	E 65 x 32 x 27	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.291 (32.80mm)
E65/32/27-3C90-G3550 E CORES Ferroxcube	3,952	5.48	- + RFQ		Bulk	-	Active	E	E 65 x 32 x 27	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.291 (32.80mm)
E65/32/27-3C90-G3600 E CORES Ferroxcube	2,392	5.48	- + RFQ		Bulk	-	Active	E	E 65 x 32 x 27	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.291 (32.80mm)
E64/10/50-3C90-A1600-P PLANAR E CORES Ferroxcube	2,107	5.50	- + RFQ		Bulk	-	Active	E	E 64 x 10 x 50	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.402 (10.20mm)
E80/38/20-3C95-G1000 E CORES Ferroxcube	3,357	5.50	- + RFQ	Datasheet	Bulk	-	Active	E	E 80 x 38 x 20	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.500 (38.10mm)
E80/38/20-3C95-G500 E CORES Ferroxcube	2,463	5.50	- + RFQ	Datasheet	Bulk	-	Active	E	E 80 x 38 x 20	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.500 (38.10mm)
RM14/ILP-3F36 RM CORES 2PC SET Ferroxcube	2,244	5.51	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 14	3F36	-	-	±25%	Ungapped	-	-	0.25	50.9	201	168	10230	Uncoated	0.807 (20.50mm)
P36/22-3C90 P CORES 2PC SET Ferroxcube	3,833	5.53	- + RFQ		Bulk	-	Active	P	P 36 x 22	3C90	1.425 (36.20mm)	8.2 µH	±25%	Ungapped	1700	-	0.264	53.2	202	172	10700	Uncoated	0.854 (21.70mm)
T58/41/18-3E10-M FERRITE CORES ROUND Ferroxcube	2,433	5.54	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	-	2.295 (58.30mm)	-	±30%	-	9500	-	-	-	-	-	-	Uncoated	0.693 (17.60mm)
E65/32/27-3C95-G1000 E CORES Ferroxcube	2,666	5.56	- + RFQ	Datasheet	Bulk	-	Active	E	E 65 x 32 x 27	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.291 (32.80mm)
E65/32/27-3C95-G500 E CORES Ferroxcube	2,032	5.56	- + RFQ	Datasheet	Bulk	-	Active	E	E 65 x 32 x 27	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.291 (32.80mm)
E65/32/27-3C92-G2000 E CORES Ferroxcube	2,160	5.59	- + RFQ	Datasheet	Bulk	-	Active	E	E 65 x 32 x 27	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.291 (32.80mm)
HF40BB5X6X2.5 FERRITE BB FOR EMC SUPPRESSOR TDK Corporation	2,703	0.00	- + RFQ	Datasheet	Bulk	BB	Last Time Buy	Tube	-	HF40	0.197 (5.00mm)	-	-	Ungapped	-	120	-	-	-	-	-	-	-
HF70RH7X14X4 FERRITE BB FOR EMC SUPPRESSOR TDK Corporation	3,036	0.00	- + RFQ	Datasheet	Bulk	RH	Last Time Buy	Tube	-	HF70	0.276 (7.00mm)	-	-	Ungapped	-	1500	-	-	-	-	-	-	-
