Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
RM12/I-3F36-E250 RM CORES 2PC SET Ferroxcube	2,712	4.64	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 12	3F36	-	250 nH	±3%	Gapped	77	-	0.388	56.6	146	125	8340	Uncoated	0.965 (24.50mm)
9498116002 98 E CORE SET Fair-Rite Products Corp.	3,122	4.69	- + RFQ	Datasheet	Bulk	-	Active	E	-	-	-	-	±25%	Ungapped	-	2400	35	124	349	342	43100	Uncoated	-
B65815P0000R087 FERRITE CORE RM 6.3UH N87 2PCS EPCOS - TDK Electronics	3,475	4.79	- + RFQ	Datasheet	Box	RM12/LP	Active	RM	RM 12 LP	N87	-	6.3 µH	-20%, +30%	Ungapped	1430	2200	0.29	42	147.5	124.7	6195	Uncoated	0.331 (8.40mm)
B65701D2000K048 FERRITE CORE P 2UH N48 2PCS EPCOS - TDK Electronics	2,007	4.84	- + RFQ	Datasheet	Box	P30/19	Active	P (Pot Core)	P 30 x 19	N48	1.200 (30.50mm)	2 µH	±10%	Gapped	527	-	0.33	45	136	-	6120	Uncoated	0.374 (9.50mm)
P30/19-3F36 P CORES 2PC SET Ferroxcube	3,611	4.87	- + RFQ	Datasheet	Bulk	-	Active	P	P 30 x 19	3F36	1.181 (30.00mm)	-	±25%	Ungapped	-	-	0.33	45.2	137	116	6190	Uncoated	0.740 (18.80mm)
PQ50/30-3C94 PQ CORES 2PC SET Ferroxcube	2,036	4.87	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 50 x 30	3C94	-	-	±25%	Ungapped	1710	-	0.226	74.4	329	314	24500	Uncoated	1.181 (30.00mm)
PLT64/50/5-3C97 PLANAR E CORES Ferroxcube	3,344	4.88	- + RFQ	Datasheet	Bulk	-	Active	PLT	PLT 64 x 50 x 5	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.200 (5.08mm)
E80/38/20-3C94-G1000 E CORES Ferroxcube	2,613	4.95	- + RFQ	Datasheet	Bulk	-	Active	E	E 80 x 38 x 20	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.500 (38.10mm)
E80/38/20-3C94-G500 E CORES Ferroxcube	3,032	4.95	- + RFQ	Datasheet	Bulk	-	Active	E	E 80 x 38 x 20	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.500 (38.10mm)

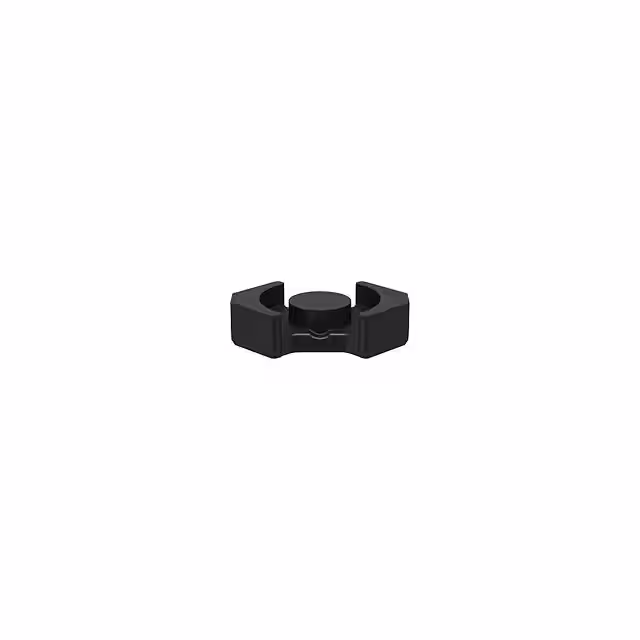

B65815P0000R092 FERRITE CORE RM 4.8UH N92 2PCS EPCOS - TDK Electronics	3,323	4.97	- + RFQ	Datasheet	Box	RM12/LP	Active	RM	RM 12 LP	N92	-	4.8 µH	-20%, +30%	Ungapped	1090	1500	0.29	42	147.5	124.7	6195	Uncoated	0.331 (8.40mm)
B65701W0400A092 FERRITE CORE EPCOS - TDK Electronics	3,520	4.98	- + RFQ	Datasheet	Box	P30/19	Active	-	P 30 x 19	N92	1.200 (30.50mm)	-	-	Gapped	-	1500	0.32	46	145	117	6670	Uncoated	0.374 (9.50mm)
E65/32/27-3C90-E400 E CORES Ferroxcube	3,629	5.00	- + RFQ		Bulk	-	Active	E	E 65 x 32 x 27	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.291 (32.80mm)
E65/32/27-3C90-E630 E CORES Ferroxcube	3,585	5.00	- + RFQ		Bulk	-	Active	E	E 65 x 32 x 27	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.291 (32.80mm)
E65/32/27-3C90-G1500 E CORES Ferroxcube	3,038	5.00	- + RFQ		Bulk	-	Active	E	E 65 x 32 x 27	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.291 (32.80mm)
E65/32/27-3C94-G1000 E CORES Ferroxcube	2,437	5.01	- + RFQ	Datasheet	Bulk	-	Active	E	E 65 x 32 x 27	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.291 (32.80mm)
E65/32/27-3C94-G500 E CORES Ferroxcube	3,071	5.01	- + RFQ	Datasheet	Bulk	-	Active	E	E 65 x 32 x 27	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.291 (32.80mm)
E80/38/20-3C95 E CORES Ferroxcube	2,043	5.03	- + RFQ	Datasheet	Bulk	-	Active	E	E 80 x 38 x 20	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.500 (38.10mm)
B65671T0160G048 FERRITE CORE P 160NH N48 2PCS EPCOS - TDK Electronics	3,004	5.03	- + RFQ	Datasheet	Box	P26/16	Active	P (Pot Core)	P 26 x 16	N48	1.024 (26.00mm)	160 nH	±3%	Gapped	51	-	0.4	37.2	93	76.5	3460	Uncoated	0.321 (8.15mm)
B65671T0250G048 FERRITE CORE P 250NH N48 2PCS EPCOS - TDK Electronics	2,890	5.03	- + RFQ	Datasheet	Box	P26/16	Active	P (Pot Core)	P 26 x 16	N48	1.024 (26.00mm)	250 nH	±3%	Gapped	80	-	0.4	37.2	93	76.5	3460	Uncoated	0.321 (8.15mm)
B65671T0315G048 FERRITE CORE P 315NH N48 2PCS EPCOS - TDK Electronics	3,438	5.03	- + RFQ	Datasheet	Box	P26/16	Active	P (Pot Core)	P 26 x 16	N48	1.024 (26.00mm)	315 nH	±3%	Gapped	100	-	0.4	37.2	93	76.5	3460	Uncoated	0.321 (8.15mm)
