Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
ER51/10/38-3C97 PLANAR ER CORES Ferroxcube	3,198	4.14	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 51 x 10 x 38	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.400 (10.16mm)
ER51/10/38-3F36 PLANAR ER CORES Ferroxcube	2,581	4.14	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 51 x 10 x 38	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.400 (10.16mm)
ETD59/31/22-3F36 ER AND ETD CORES Ferroxcube	3,311	4.17	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 59 x 31 x 22	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.220 (31.00mm)
RM12/ILP-3F36-E250 RM CORES 2PC SET Ferroxcube	2,813	4.20	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 12	3F36	-	250 nH	±3%	Gapped	56	-	0.388	42	148	125	6200	Uncoated	0.965 (24.50mm)
RM12/I-3C97-A400 RM CORES 2PC SET Ferroxcube	2,131	4.21	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 12	3C97	-	400 nH	±3%	Gapped	123	-	0.388	56.6	146	125	8340	Uncoated	0.965 (24.50mm)
RM12/I-3C97-A630 RM CORES 2PC SET Ferroxcube	2,215	4.21	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 12	3C97	-	630 nH	±3%	Gapped	194	-	0.388	56.6	146	125	8340	Uncoated	0.965 (24.50mm)
ETD59/31/22-3C95-G1000 ER AND ETD CORES Ferroxcube	2,681	4.23	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 59 x 31 x 22	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.220 (31.00mm)
ETD59/31/22-3C95-G500 ER AND ETD CORES Ferroxcube	2,763	4.23	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 59 x 31 x 22	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.220 (31.00mm)
B65661D0000R001 FERRITE CORE P 220NH K1 2PCS EPCOS - TDK Electronics	3,771	4.29	- + RFQ	Datasheet	Box	P22/13	Active	P (Pot Core)	P 22 x 13	K1	0.866 (22.00mm)	220 nH	-20%, +30%	Ungapped	88	80	0.5	31.6	63	-	1990	Uncoated	0.268 (6.80mm)

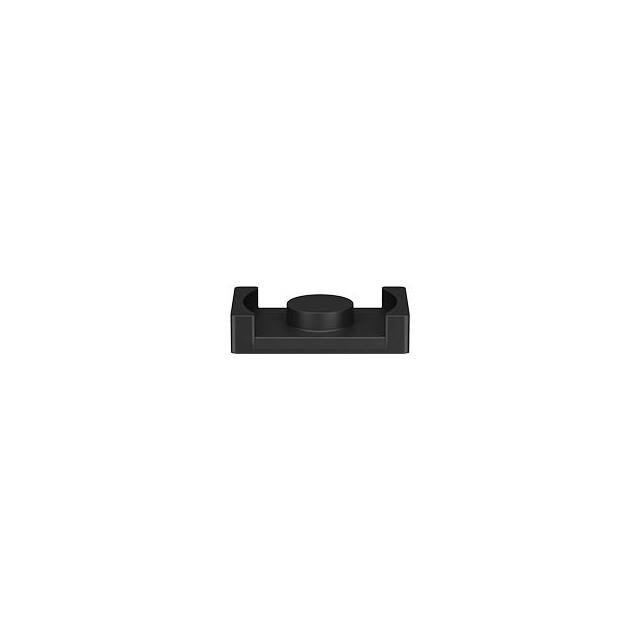

B66506K0000X197 I30/2.7/20 N97 UNGAPPED EPCOS - TDK Electronics	2,566	4.30	- + RFQ	Datasheet	Box	I30/2.7/20	Active	I	I 30 x 2.7 x 20	N97	-	5.75 µH	±25%	Ungapped	1330	-	0.29	31.5	108	95	3400	Uncoated	0.106 (2.70mm)
RM12/I-3C96-E250 RM CORES 2PC SET Ferroxcube	3,519	4.34	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 12	3C96	-	250 nH	±3%	Gapped	77	-	0.388	56.6	146	125	8340	Uncoated	0.965 (24.50mm)
RM12/I-3F4-E250 RM CORES 2PC SET Ferroxcube	3,895	4.34	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 12	3F4	-	250 nH	±3%	Gapped	77	-	0.388	56.6	146	125	8340	Uncoated	0.965 (24.50mm)
ETD59/31/22-3C97-G200 ER AND ETD CORES Ferroxcube	2,919	4.34	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 59 x 31 x 22	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.220 (31.00mm)
ETD59/31/22-3F36-G200 ER AND ETD CORES Ferroxcube	2,910	4.34	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 59 x 31 x 22	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.220 (31.00mm)
B65661T0250G048 FERRITE CORE EPCOS - TDK Electronics	3,794	4.36	- + RFQ		Box	P22/13	Active	-	P 22 x 13	N48	0.866 (22.00mm)	-	-	Gapped	-	2300	0.5	31.6	63	-	1990	Uncoated	0.268 (6.80mm)
B65661T0315A048 FERRITE CORE P 315NH N48 2PCS EPCOS - TDK Electronics	2,239	4.36	- + RFQ		Box	P22/13	Active	P (Pot Core)	P 22 x 13	N48	0.866 (22.00mm)	315 nH	±3%	Gapped	126	-	0.5	31.6	63	-	1990	Uncoated	0.268 (6.80mm)
B65661T0630A048 FERRITE CORE P 630NH N48 2PCS EPCOS - TDK Electronics	3,814	4.36	- + RFQ		Box	P22/13	Active	P (Pot Core)	P 22 x 13	N48	0.866 (22.00mm)	630 nH	±3%	Gapped	251	-	0.5	31.6	63	-	1990	Uncoated	0.268 (6.80mm)

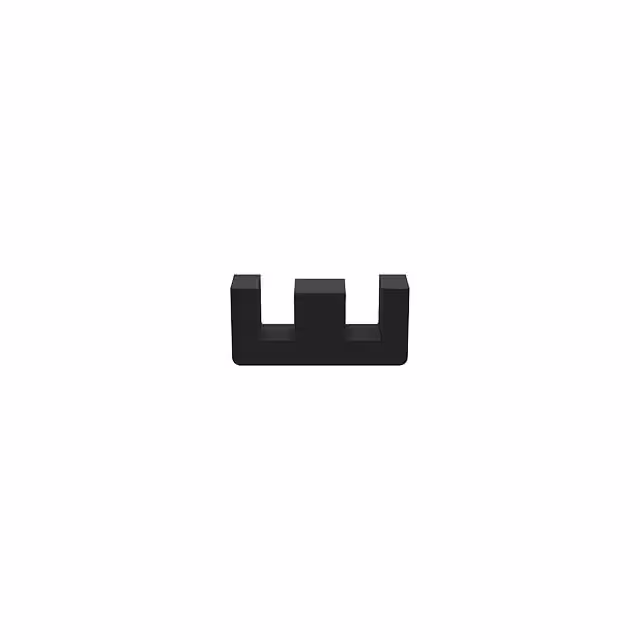

B66385G0000X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	2,350	4.40	- + RFQ	Datasheet	Box	E56/24/19	Active	E	E 56 x 24 x 19	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.929 (23.60mm)
RM12/I-3C95-E250 RM CORES 2PC SET Ferroxcube	2,312	4.42	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 12	3C95	-	250 nH	±3%	Gapped	77	-	0.388	56.6	146	125	8340	Uncoated	0.965 (24.50mm)
B65661N0100A048 FERRITE CORE EPCOS - TDK Electronics	2,507	4.42	- + RFQ	Datasheet	Box	P22/13	Active	-	P 22 x 13	N48	0.866 (22.00mm)	-	-	Gapped	-	2300	0.5	31.6	63	-	1990	Uncoated	0.268 (6.80mm)
