Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B65661N0250A048 FERRITE CORE P 250NH N48 2PCS EPCOS - TDK Electronics	3,599	4.42	- + RFQ	Datasheet	Box	P22/13	Active	P (Pot Core)	P 22 x 13	N48	0.866 (22.00mm)	250 nH	±3%	Gapped	100	-	0.5	31.6	63	-	1990	Uncoated	0.268 (6.80mm)
B65661N0315A048 FERRITE CORE P 315NH N48 2PCS EPCOS - TDK Electronics	2,473	4.42	- + RFQ	Datasheet	Box	P22/13	Active	P (Pot Core)	P 22 x 13	N48	0.866 (22.00mm)	315 nH	±3%	Gapped	126	-	0.5	31.6	63	-	1990	Uncoated	0.268 (6.80mm)
B65661N0400A048 FERRITE CORE EPCOS - TDK Electronics	3,567	4.42	- + RFQ	Datasheet	Box	P22/13	Active	-	P 22 x 13	N48	0.866 (22.00mm)	-	-	Gapped	-	2300	0.5	31.6	63	-	1990	Uncoated	0.268 (6.80mm)
B65661N0630A048 FERRITE CORE P 630NH N48 2PCS EPCOS - TDK Electronics	2,420	4.42	- + RFQ	Datasheet	Box	P22/13	Active	P (Pot Core)	P 22 x 13	N48	0.866 (22.00mm)	630 nH	±3%	Gapped	251	-	0.5	31.6	63	-	1990	Uncoated	0.268 (6.80mm)
B64290L0668X065 FERRITE CORE TOROID 8.8UH T65 EPCOS - TDK Electronics	3,395	4.43	- + RFQ	Datasheet	Box	TX38/19/13	Active	Toroid	-	T65	1.551 (39.40mm)	8.8 µH	±30%	Ungapped	-	5000	0.71	82.97	116.2	-	9644	Epoxy	0.543 (13.80mm)

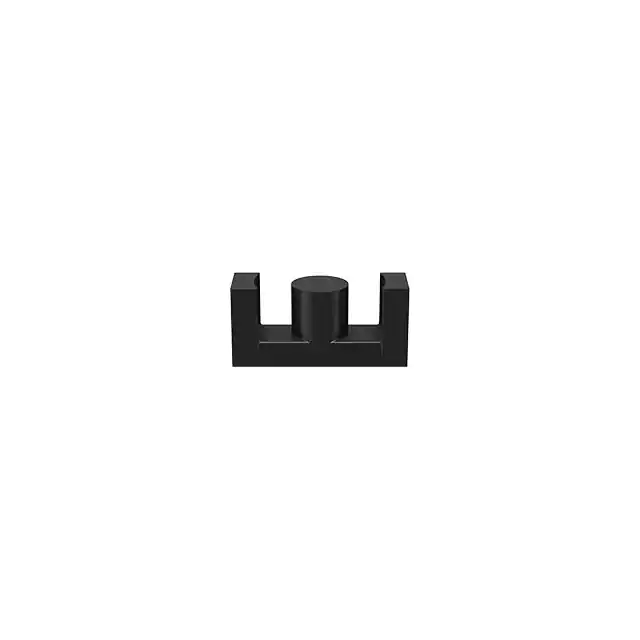

B66395G0200X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	3,718	4.45	- + RFQ	Datasheet	Box	ETD54/28/19	Active	ETD	ETD 54 x 28 x 19	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	1.094 (27.80mm)
B66395G0300X187 FERRITE CORE EPCOS - TDK Electronics	2,404	4.45	- + RFQ	Datasheet	Box	ETD54/28/19	Active	ETD	ETD 54 x 28 x 19	N87	-	-	-	Gapped	-	2200	0.45	127	280	280	35600	Uncoated	1.094 (27.80mm)
B66395U0160A187 FERRITE CORE EPCOS - TDK Electronics	2,867	4.45	- + RFQ		Box	ETD54/28/19	Active	-	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	-	-
B66395U0200J187 FERRITE CORE EPCOS - TDK Electronics	3,123	4.45	- + RFQ		Box	ETD54/28/19	Active	-	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	-	-
B66395G1500X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	3,013	4.45	- + RFQ	Datasheet	Box	ETD54/28/19	Active	ETD	ETD 54 x 28 x 19	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	1.094 (27.80mm)
B65511A0025A001 FERRITE CORE P 25NH K1 2PCS EPCOS - TDK Electronics	3,698	4.46	- + RFQ	Datasheet	Box	P7/4	Active	P (Pot Core)	P 7 x 4	K1	0.289 (7.35mm)	25 nH	±3%	Gapped	28	80	1.43	10	7	-	70	Uncoated	0.083 (2.10mm)
PLT64/50/5-3C96 PLANAR E CORES Ferroxcube	3,451	4.47	- + RFQ	Datasheet	Bulk	-	Active	PLT	PLT 64 x 50 x 5	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.200 (5.08mm)
ETD59/31/22-3C90-G5400 ER AND ETD CORES Ferroxcube	2,160	4.50	- + RFQ		Bulk	-	Active	ETD	ETD 59 x 31 x 22	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.220 (31.00mm)
ETD59/31/22-3F36-G1000 ER AND ETD CORES Ferroxcube	2,446	4.50	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 59 x 31 x 22	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.220 (31.00mm)
ETD59/31/22-3F36-G500 ER AND ETD CORES Ferroxcube	3,751	4.50	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 59 x 31 x 22	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.220 (31.00mm)
ETD59/31/22-3C97-G1000 ER AND ETD CORES Ferroxcube	3,418	4.52	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 59 x 31 x 22	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.220 (31.00mm)
ETD59/31/22-3C97-G500 ER AND ETD CORES Ferroxcube	3,836	4.52	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 59 x 31 x 22	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.220 (31.00mm)
P30/19-3C95 P CORES 2PC SET Ferroxcube	2,925	4.53	- + RFQ	Datasheet	Bulk	-	Active	P	P 30 x 19	3C95	1.181 (30.00mm)	-	±25%	Ungapped	-	-	0.33	45.2	137	116	6190	Uncoated	0.740 (18.80mm)
B64290L0674X035 FERRITE CORE EPCOS - TDK Electronics	3,118	4.64	- + RFQ	Datasheet	Box	TX36/23/15	Active	Toroid	-	T35	-	-	-	Gapped	-	6000	-	-	-	-	-	Epoxy	-
RM12/I-3C97-E250 RM CORES 2PC SET Ferroxcube	2,813	4.64	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 12	3C97	-	250 nH	±3%	Gapped	77	-	0.388	56.6	146	125	8340	Uncoated	0.965 (24.50mm)
