Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	NumberofPositions	Pitch	OuterDimension	InnerDimension	ThermalCenterPad

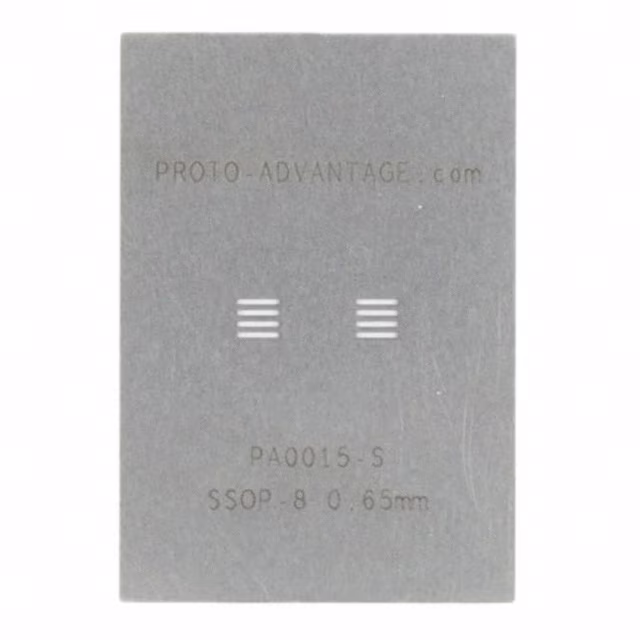

PA0015-S SSOP-8 STENCIL Chip Quik Inc.	2,144	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	SSOP	8	0.026 (0.65mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	-

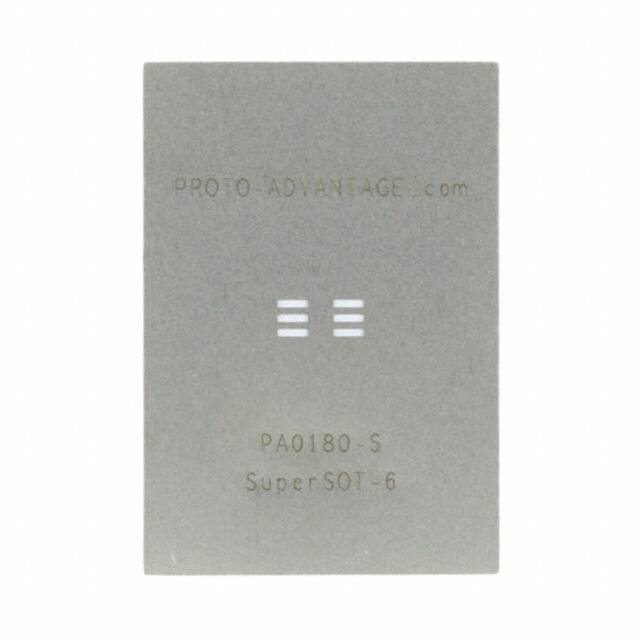

PA0180-S SUPERSOT-6/TSOT-6 STENCIL Chip Quik Inc.	3,870	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	SOT/SC	6	0.037 (0.95mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.118 L x 0.059 W (3.00mm x 1.50mm)	-

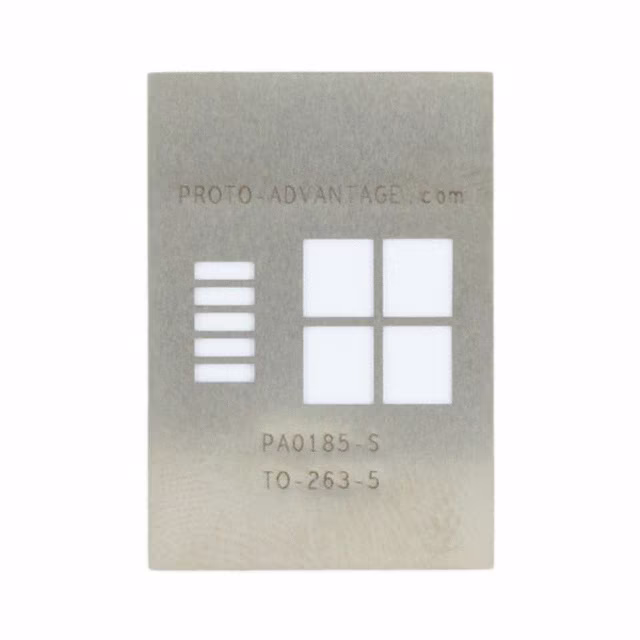

PA0185-S TO-263-5 STENCIL Chip Quik Inc.	2,917	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	TO/DDPAK	5	0.067 (1.70mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.400 L x 0.390 W (10.16mm x 9.91mm)	0.433 L x 0.394 W (11.00mm x 10.00mm)

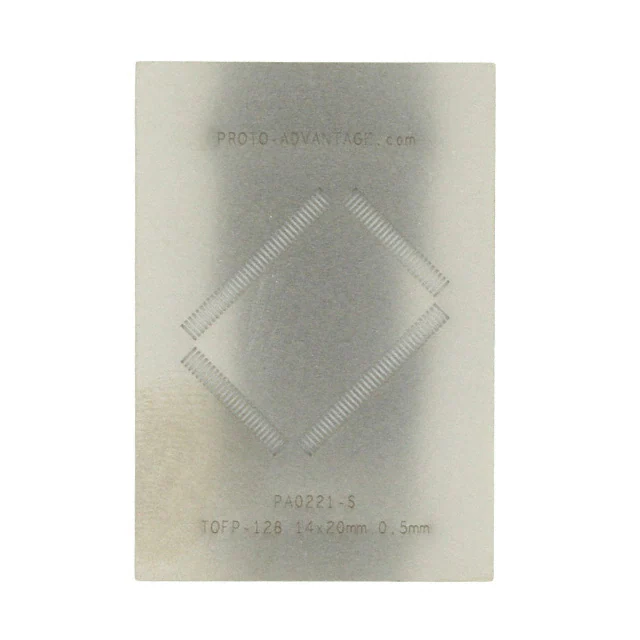

PA0221-S TQFP-128 STENCIL Chip Quik Inc.	2,976	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	TQFP	128	0.020 (0.50mm)	1.950 L x 1.350 W (49.53mm x 34.29mm)	0.787 L x 0.551 W (20.00mm x 14.00mm)	-

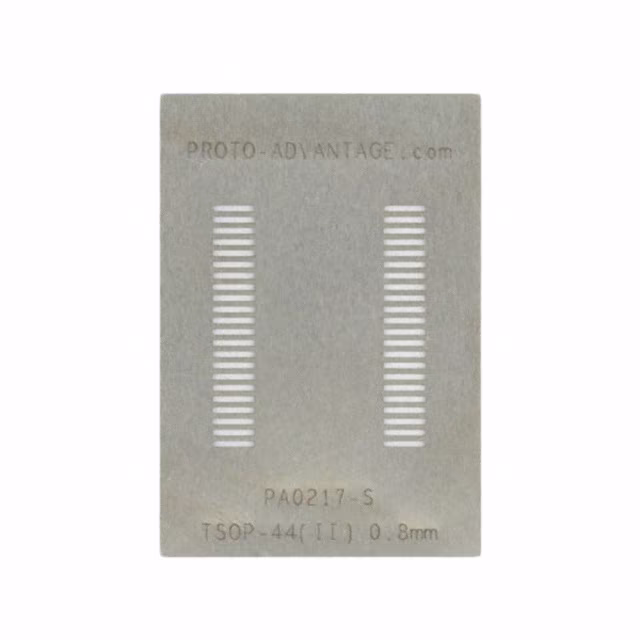

PA0217-S TSOP-44 II STENCIL Chip Quik Inc.	2,130	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	TSOP	44	0.031 (0.80mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	-

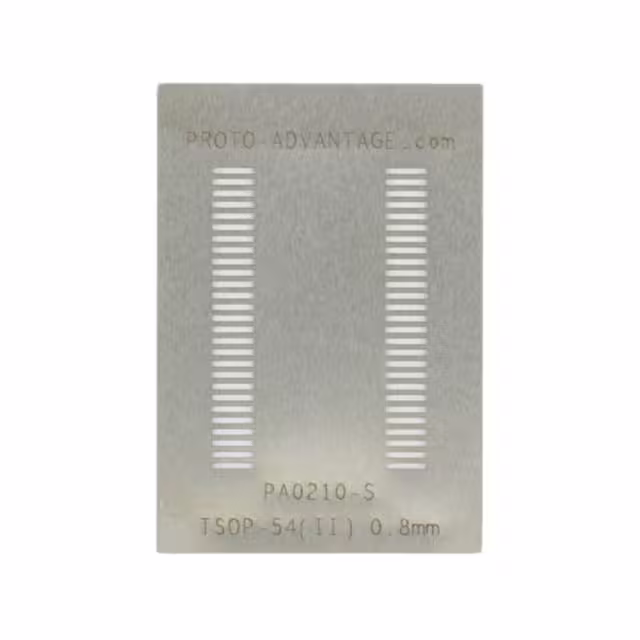

PA0210-S TSOP-54 II STENCIL Chip Quik Inc.	3,723	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	TSOP	54	0.031 (0.80mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	-

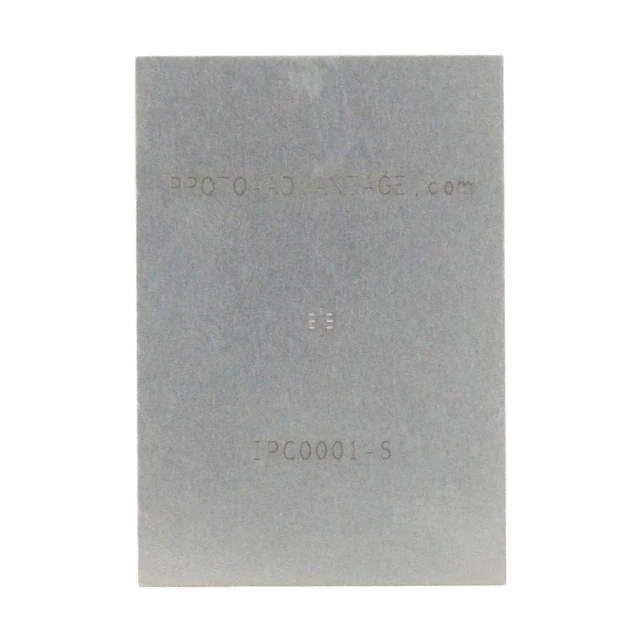

IPC0001-S QFN-8 STENCIL Chip Quik Inc.	2,224	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	8	0.016 (0.40mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.055 L x 0.047 W (1.40mm x 1.20mm)	-

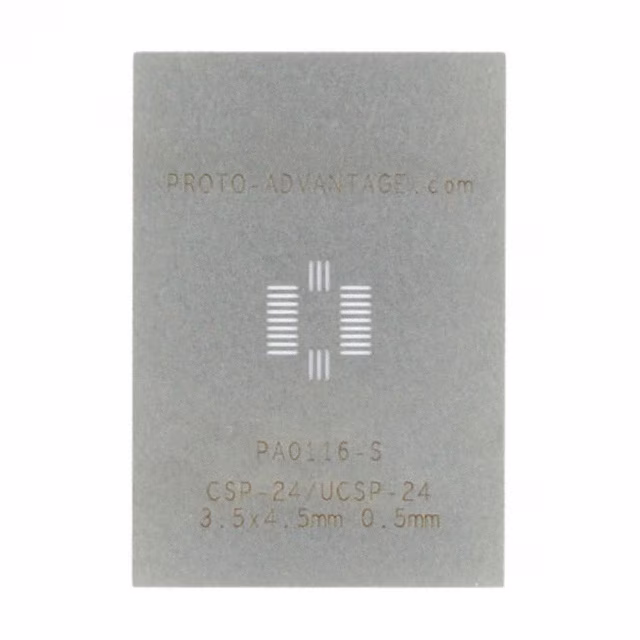

PA0116-S CSP-24/UCSP-24 STENCIL Chip Quik Inc.	3,950	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	CSP	24	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.177 L x 0.138 W (4.50mm x 3.50mm)	-

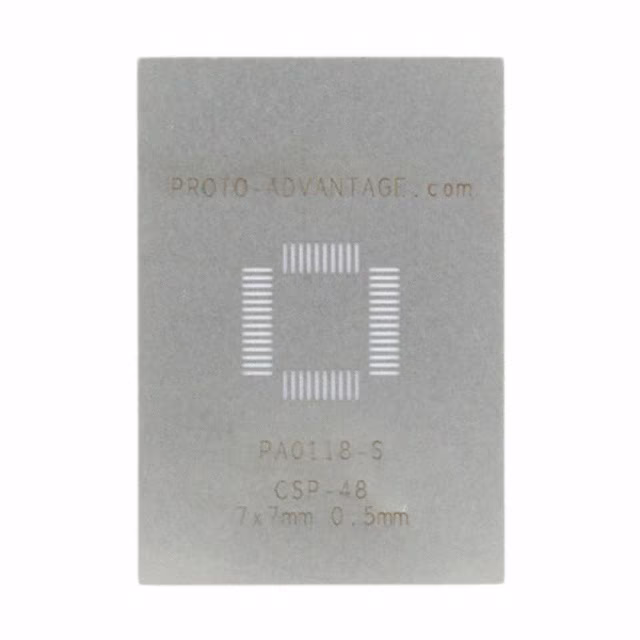

PA0118-S CSP-48 STENCIL Chip Quik Inc.	3,078	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	CSP	48	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.276 L x 0.276 W (7.00mm x 7.00mm)	-

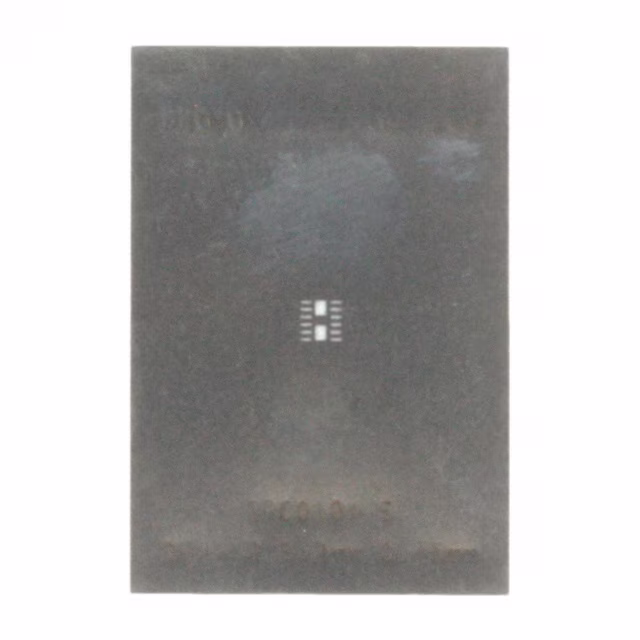

IPC0104-S DFN-12 STENCIL Chip Quik Inc.	3,542	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	DFN	12	0.018 (0.45mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.118 L x 0.079 W (3.00mm x 2.00mm)	0.094 L x 0.025 W (2.39mm x 0.64mm)
IPC0124-S DFN-12 STENCIL Chip Quik Inc.	2,473	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	DFN	12	0.018 (0.45mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.118 L x 0.118 W (3.00mm x 3.00mm)	0.094 L x 0.065 W (2.38mm x 1.65mm)

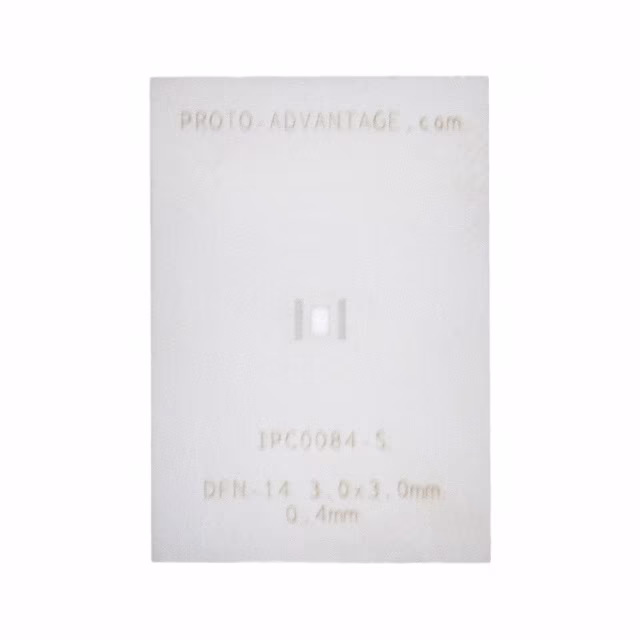

IPC0084-S DFN-14 STENCIL Chip Quik Inc.	3,739	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	DFN	14	0.016 (0.40mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.118 L x 0.118 W (3.00mm x 3.00mm)	0.091 L x 0.059 W (2.30mm x 1.50mm)

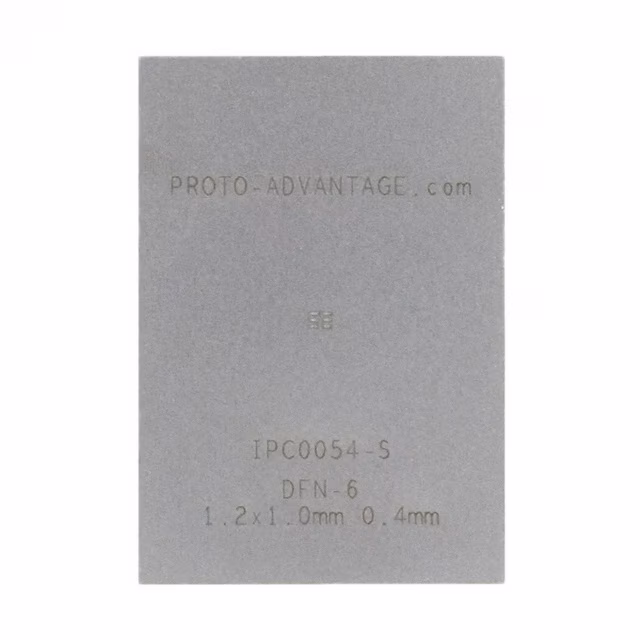

IPC0054-S DFN-6 STENCIL Chip Quik Inc.	3,278	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	DFN	6	0.016 (0.40mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.047 L x 0.039 W (1.20mm x 1.00mm)	-

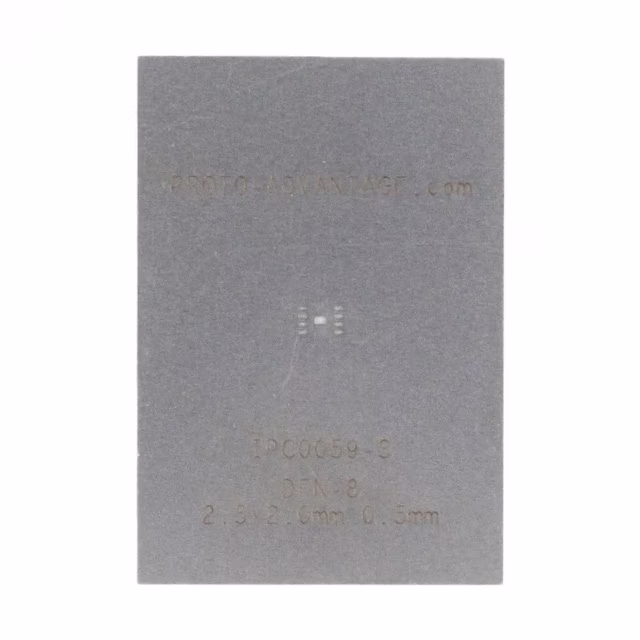

IPC0059-S DFN-8 STENCIL Chip Quik Inc.	3,172	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	DFN	8	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.098 L x 0.079 W (2.50mm x 2.00mm)	0.051 L x 0.039 W (1.30mm x 1.00mm)

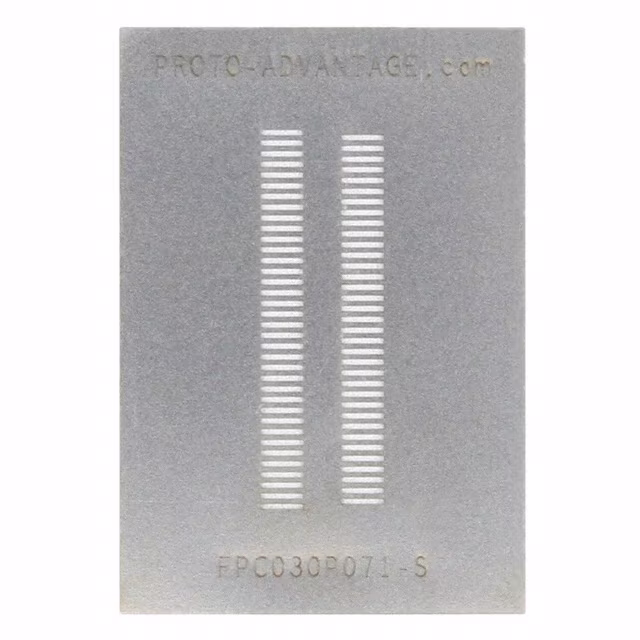

FPC030P071-S FPC/FFC SMT CONN STENCIL Chip Quik Inc.	2,028	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage FPC	Active	FPC/FFC	71	0.012 (0.30mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	-

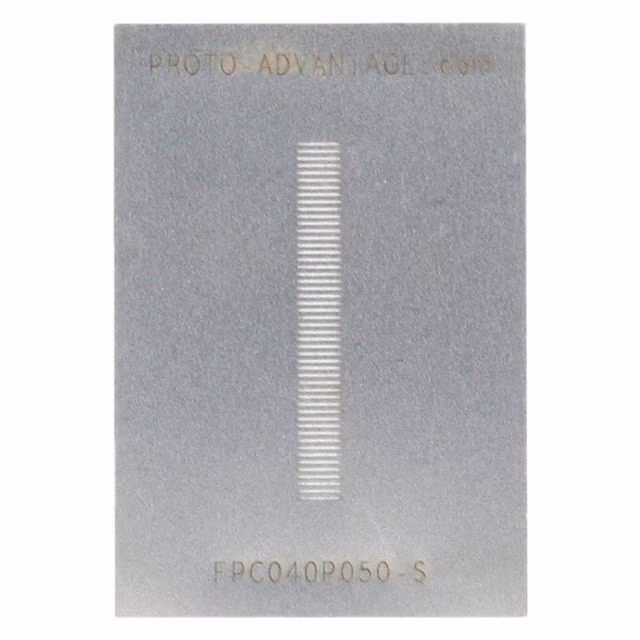

FPC040P050-S FPC/FFC SMT CONN STENCIL Chip Quik Inc.	2,622	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage FPC	Active	FPC/FFC	50	0.016 (0.40mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	1.016 L x 0.157 W (25.80mm x 4.00mm)

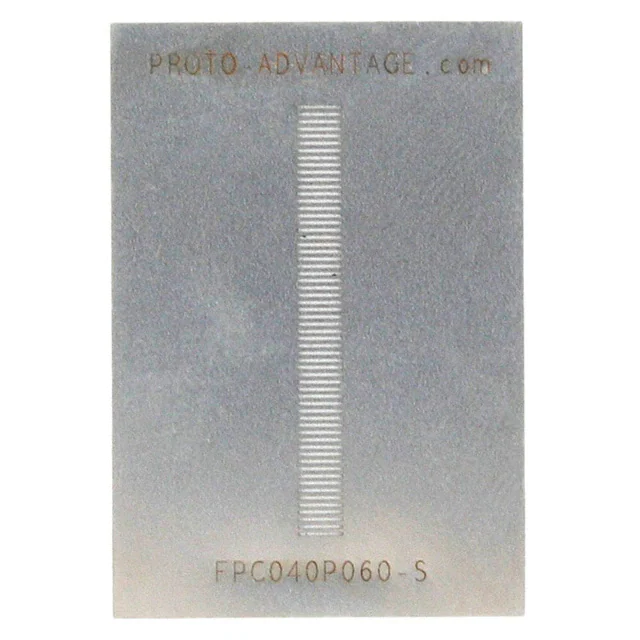

FPC040P060-S FPC/FFC SMT CONN STENCIL Chip Quik Inc.	3,027	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage FPC	Active	FPC/FFC	60	0.016 (0.40mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	1.173 L x 0.157 W (29.80mm x 4.00mm)

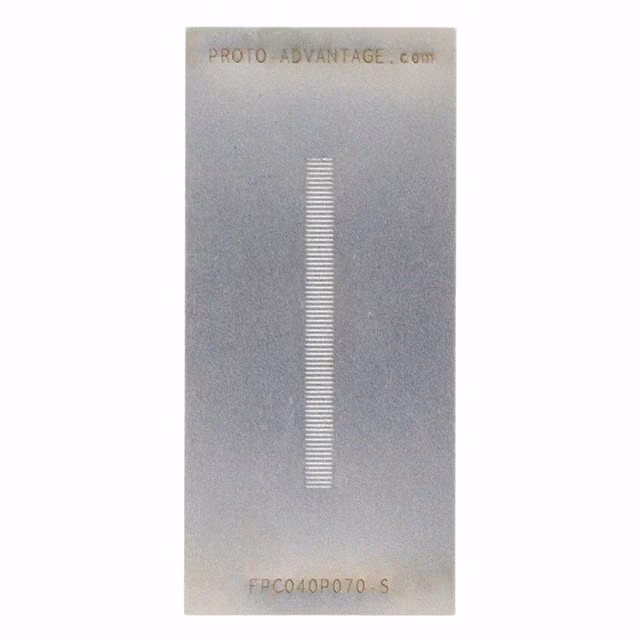

FPC040P070-S FPC/FFC SMT CONN STENCIL Chip Quik Inc.	3,268	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage FPC	Active	FPC/FFC	70	0.016 (0.40mm)	1.950 L x 0.900 W (49.53mm x 22.86mm)	-	1.331 L x 0.157 W (33.80mm x 4.00mm)

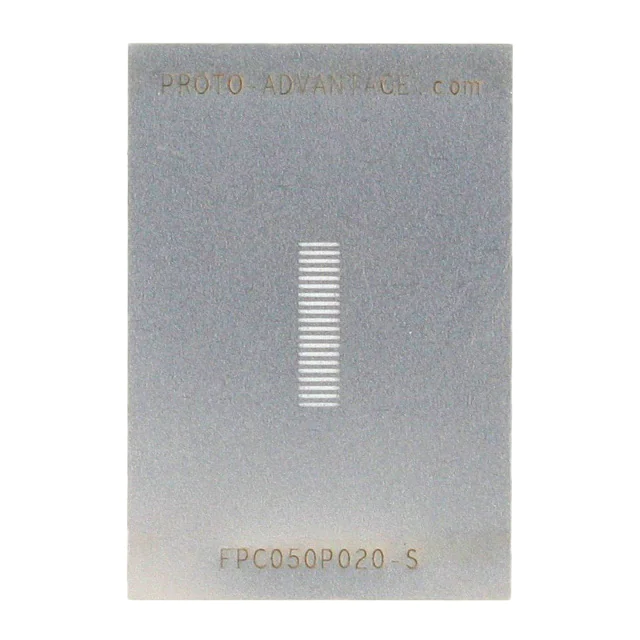

FPC050P020-S FPC/FFC SMT CONN STENCIL Chip Quik Inc.	3,261	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage FPC	Active	FPC/FFC	20	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	0.701 L x 0.157 W (17.80mm x 4.00mm)

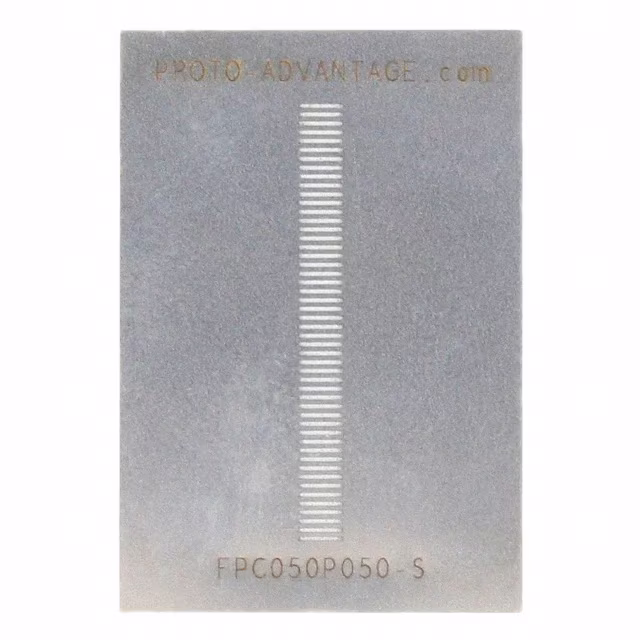

FPC050P050-S FPC/FFC SMT CONN STENCIL Chip Quik Inc.	2,502	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage FPC	Active	FPC/FFC	50	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	1.291 L x 0.157 W (32.80mm x 4.00mm)
