Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	NumberofPositions	Pitch	OuterDimension	InnerDimension	ThermalCenterPad

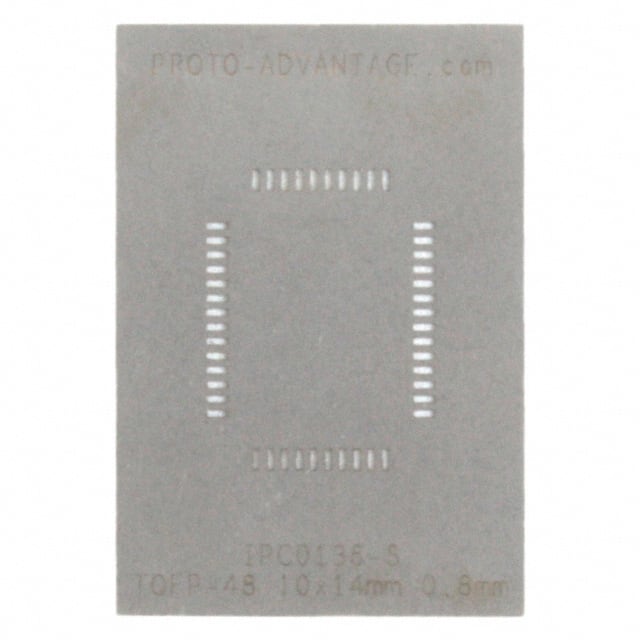

IPC0136-S TQFP-48 STENCIL Chip Quik Inc.	3,370	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	TQFP	48	0.031 (0.80mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.551 L x 0.394 W (14.00mm x 10.00mm)	-
PA0241-S TQFP-52 STENCIL Chip Quik Inc.	2,170	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	TQFP	52	0.039 (1.00mm)	1.950 L x 1.350 W (49.53mm x 34.29mm)	0.551 L x 0.551 W (14.00mm x 14.00mm)	-

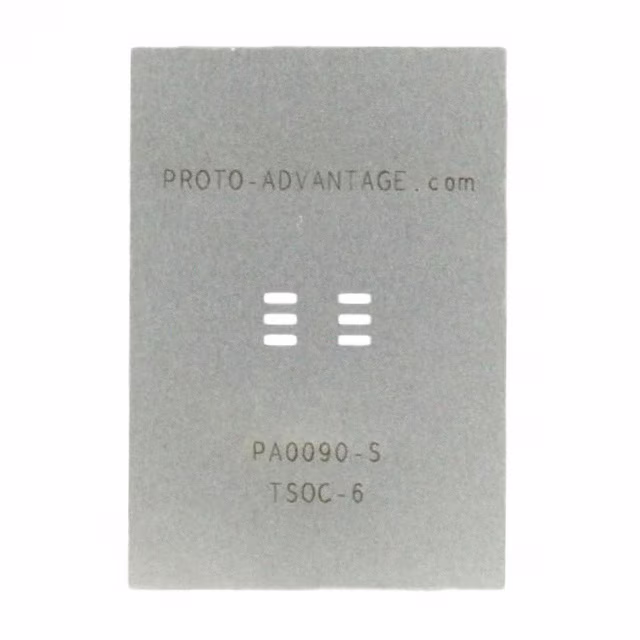

PA0090-S TSOC-6 STENCIL Chip Quik Inc.	2,736	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	TSOC	6	0.050 (1.27mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	-

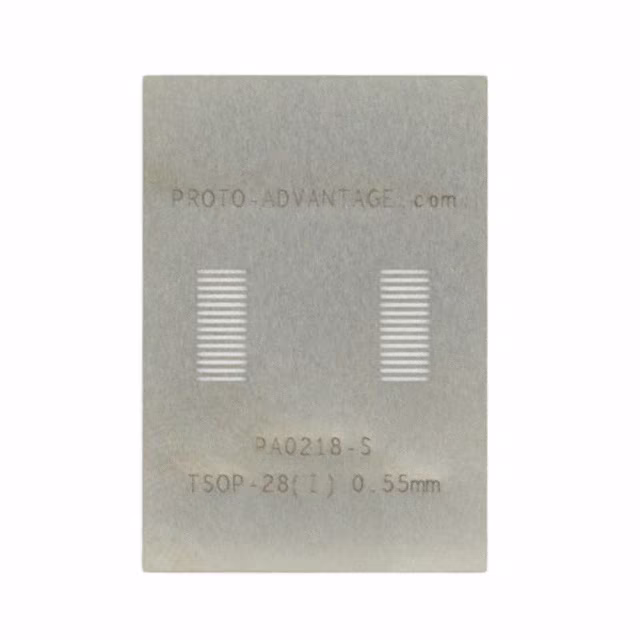

PA0218-S TSOP-28 STENCIL Chip Quik Inc.	3,173	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	TSOP	28	0.022 (0.55mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	-

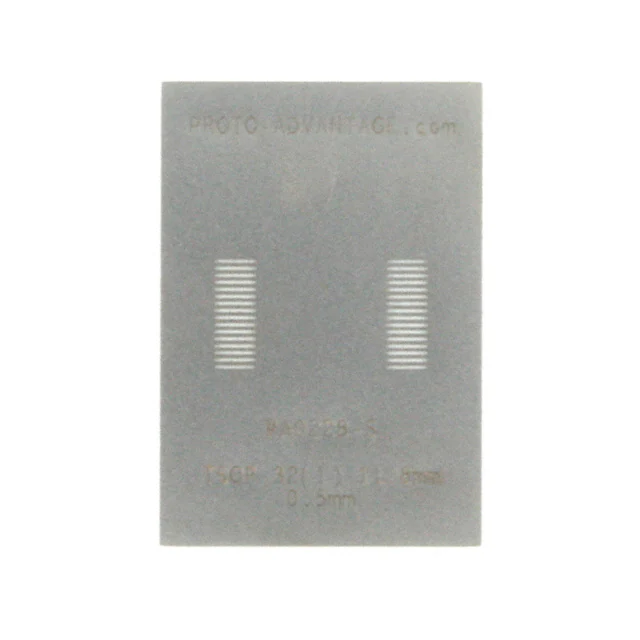

PA0228-S TSOP-32I STENCIL Chip Quik Inc.	3,658	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	TSOP	32	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	-

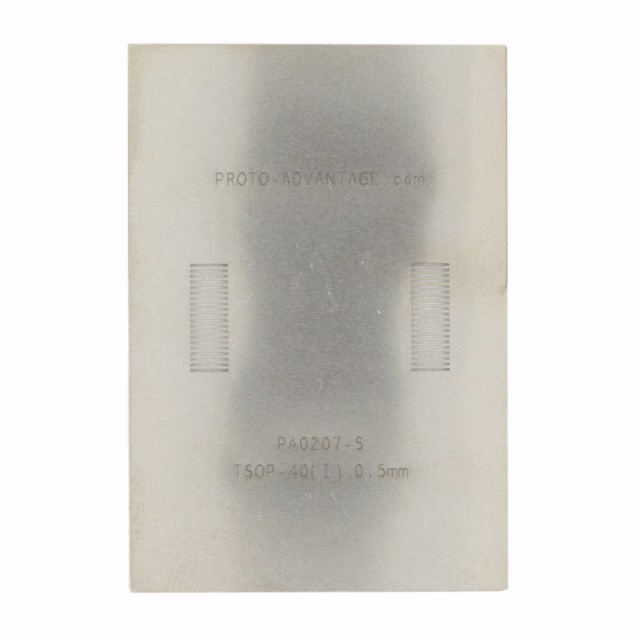

PA0207-S TSOP-40 I STENCIL Chip Quik Inc.	2,768	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	TSOP	40	0.020 (0.50mm)	1.950 L x 1.350 W (49.53mm x 34.29mm)	-	-

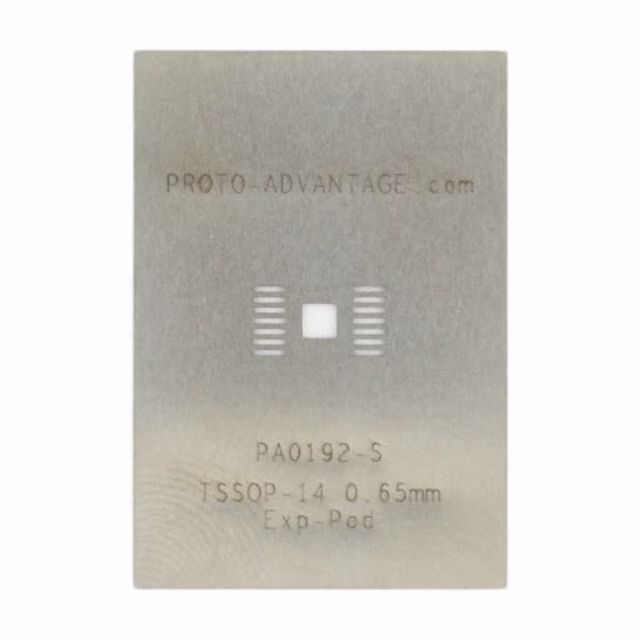

PA0192-S TSSOP-14-EXP-PAD STENCIL Chip Quik Inc.	2,869	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	TSSOP	14	0.026 (0.65mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.197 L x 0.173 W (5.00mm x 4.40mm)	0.433 L x 0.118 W (11.00mm x 3.00mm)

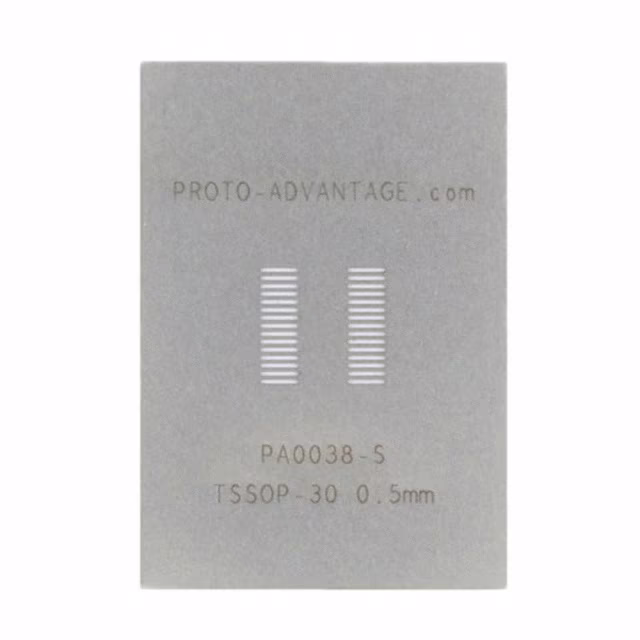

PA0038-S TSSOP-30 STENCIL Chip Quik Inc.	2,038	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	TSSOP	30	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	-

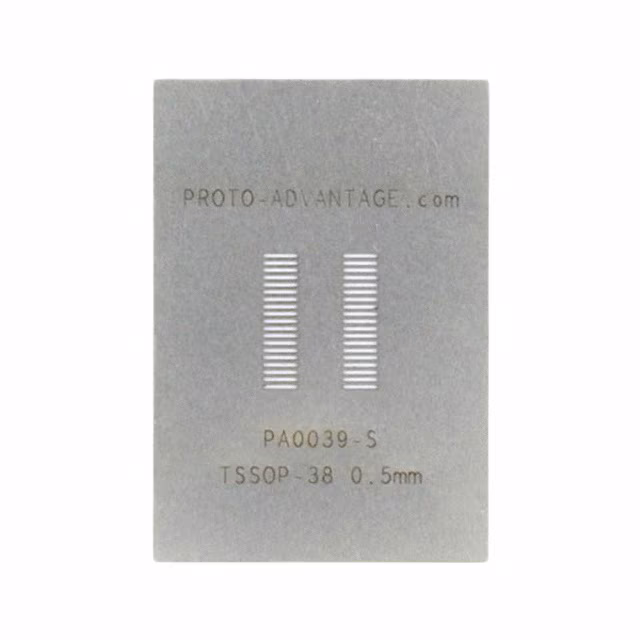

PA0039-S TSSOP-38 STENCIL Chip Quik Inc.	3,582	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	TSSOP	38	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	-

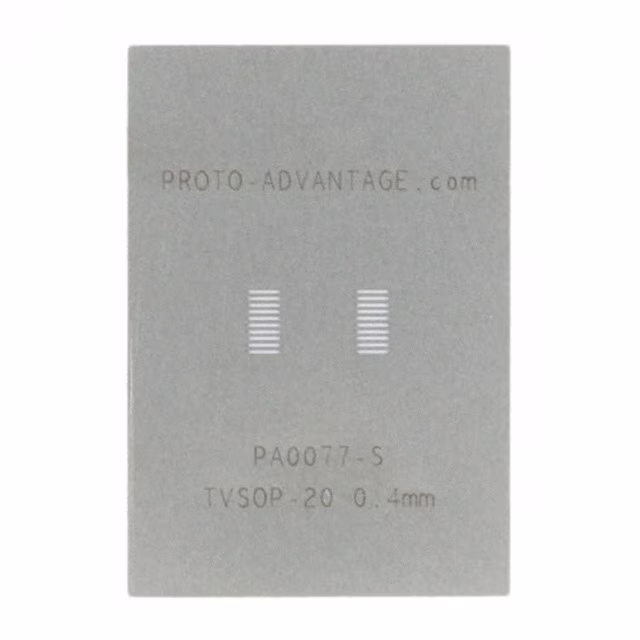

PA0077-S TVSOP-20 STENCIL Chip Quik Inc.	3,799	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	TVSOP	20	0.016 (0.40mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	-

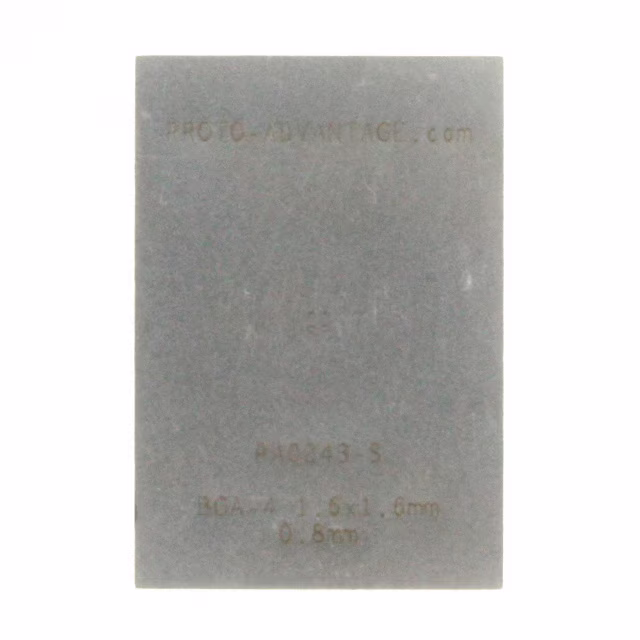

PA0243-S BGA-4 STENCIL Chip Quik Inc.	2,249	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	BGA	4	0.031 (0.80mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.063 L x 0.063 W (1.60mm x 1.60mm)	-

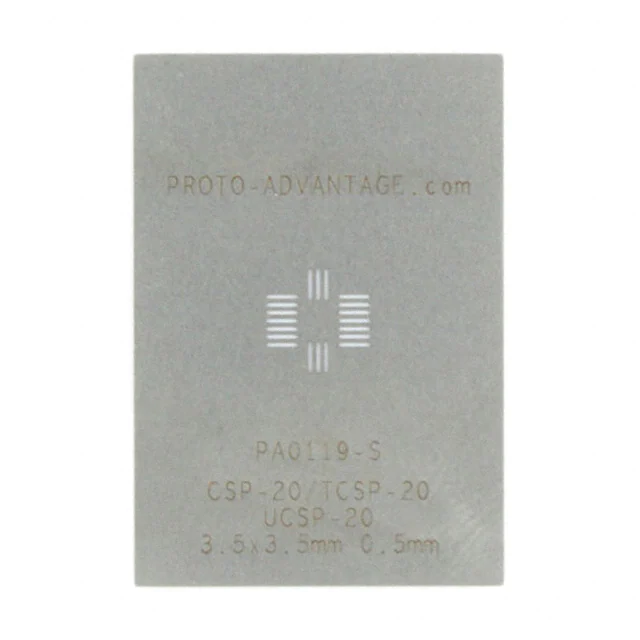

PA0119-S CSP-20/TCSP-20/UCSP-20 STENCIL Chip Quik Inc.	3,848	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	CSP	20	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.138 L x 0.138 W (3.50mm x 3.50mm)	-

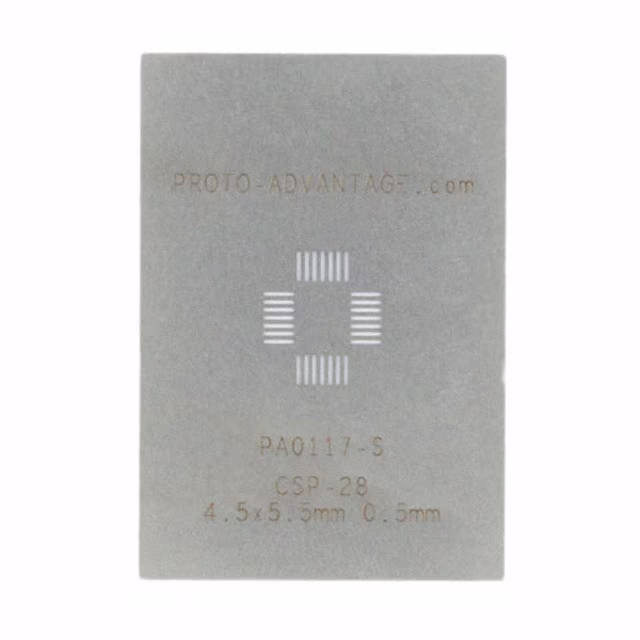

PA0117-S CSP-28 STENCIL Chip Quik Inc.	2,492	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	CSP	28	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.217 L x 0.177 W (5.50mm x 4.50mm)	-

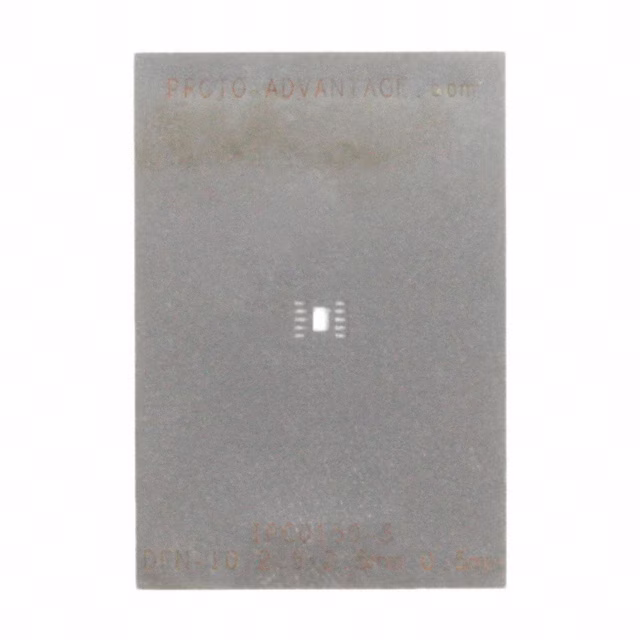

IPC0150-S DFN-10 STENCIL Chip Quik Inc.	2,916	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	DFN	10	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.098 L x 0.098 W (2.50mm x 2.50mm)	0.079 L x 0.047 W (2.00mm x 1.20mm)

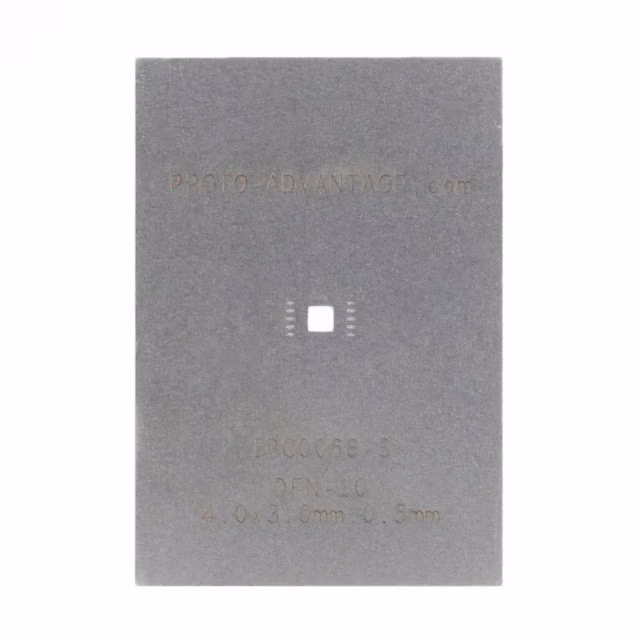

IPC0068-S DFN-10 STENCIL Chip Quik Inc.	3,105	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	DFN	10	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.157 L x 0.118 W (4.00mm x 3.00mm)	0.083 L x 0.083 W (2.10mm x 2.10mm)

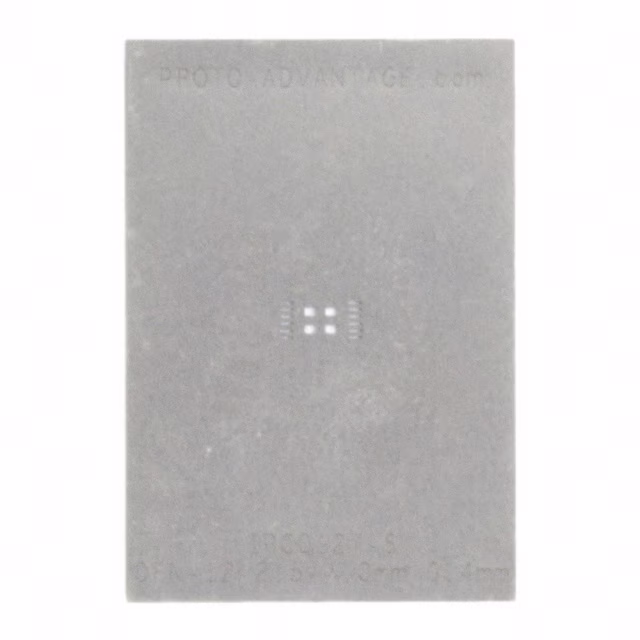

IPC0127-S DFN-12 STENCIL Chip Quik Inc.	2,778	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	DFN	12	0.016 (0.40mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.157 L x 0.098 W (4.00mm x 2.50mm)	0.096 L x 0.077 W (2.45mm x 1.95mm)

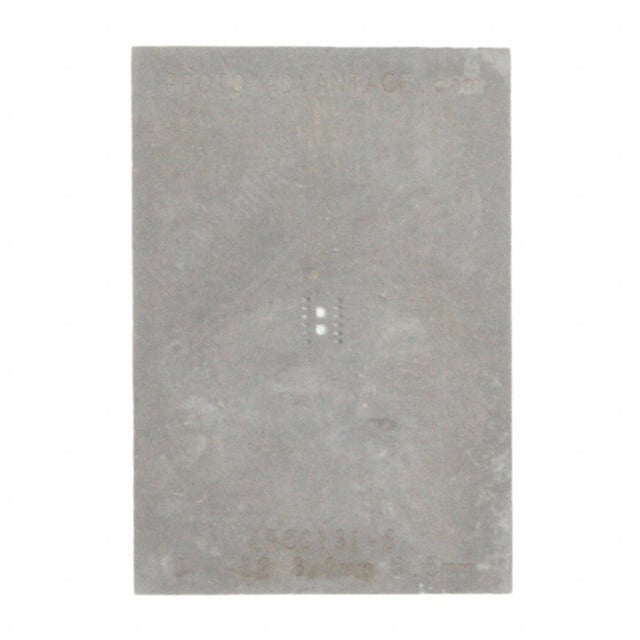

IPC0131-S DFN-12 STENCIL Chip Quik Inc.	2,576	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	DFN	12	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.118 L x 0.079 W (3.00mm x 2.00mm)	0.079 L x 0.035 W (2.00mm x 0.90mm)

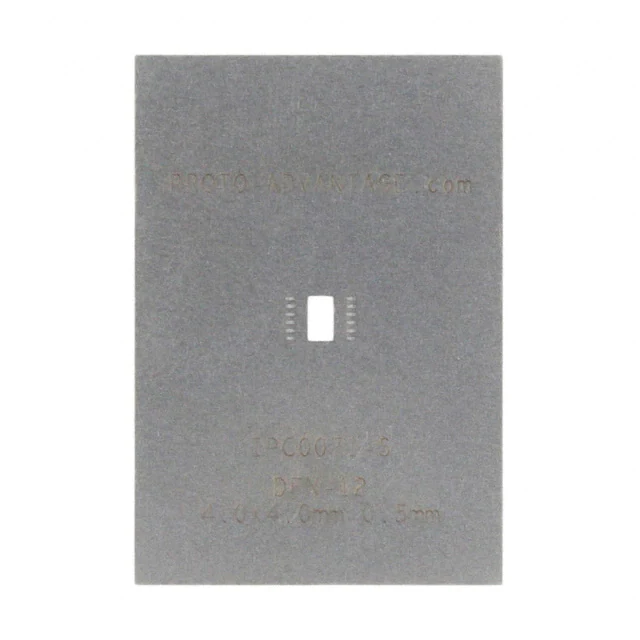

IPC0071-S DFN-12 STENCIL Chip Quik Inc.	2,545	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	DFN	12	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.157 L x 0.157 W (4.00mm x 4.00mm)	0.110 L x 0.063 W (2.80mm x 1.60mm)

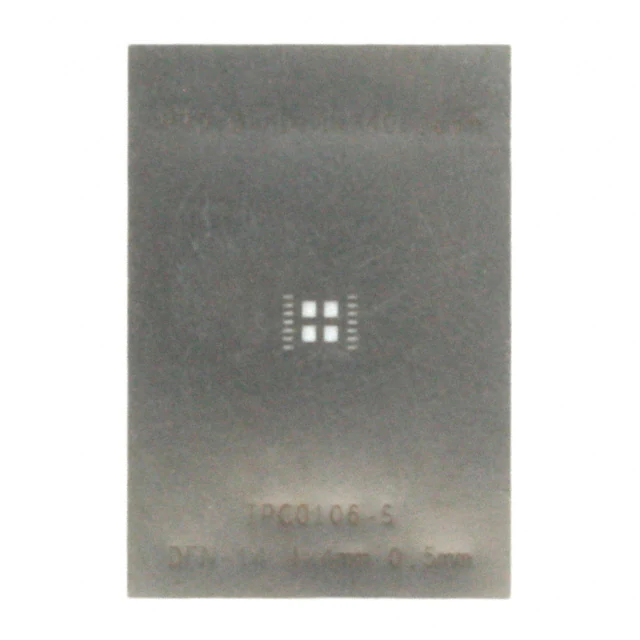

IPC0106-S DFN-14 STENCIL Chip Quik Inc.	2,995	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	DFN	14	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.157 L x 0.157 W (4.00mm x 4.00mm)	0.118 L x 0.102 W (3.00mm x 2.60mm)

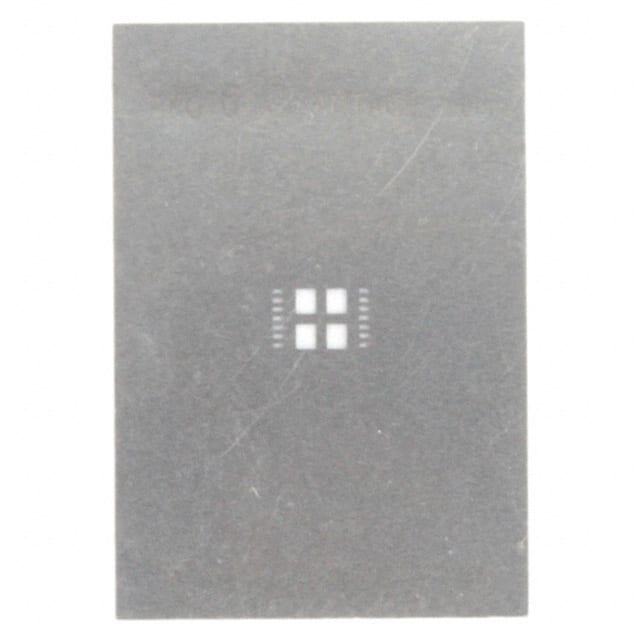

IPC0115-S DFN-14 STENCIL Chip Quik Inc.	3,339	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	DFN	14	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.197 L x 0.197 W (5.00mm x 5.00mm)	0.169 L x 0.142 W (4.30mm x 3.60mm)
