Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	NumberofPositions	Pitch	OuterDimension	InnerDimension	ThermalCenterPad

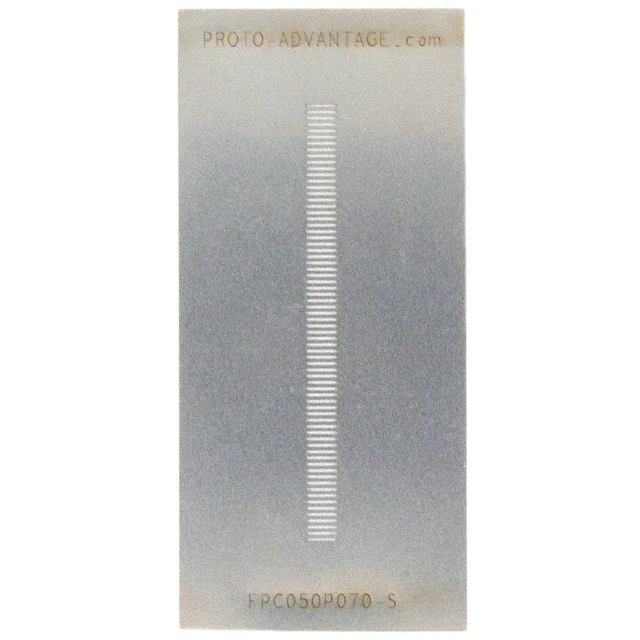

FPC050P070-S FPC/FFC SMT CONN STENCIL Chip Quik Inc.	2,723	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage FPC	Active	FPC/FFC	70	0.020 (0.50mm)	1.950 L x 0.900 W (49.53mm x 22.86mm)	-	1.685 L x 0.157 W (42.80mm x 4.00mm)

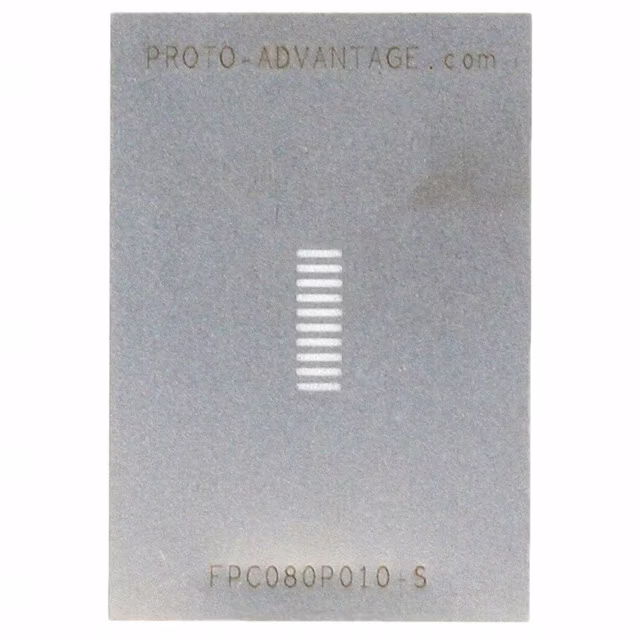

FPC080P010-S FPC/FFC SMT CONN STENCIL Chip Quik Inc.	2,113	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage FPC	Active	FPC/FFC	10	0.031 (0.80mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	0.618 L x 0.157 W (15.70mm x 4.00mm)

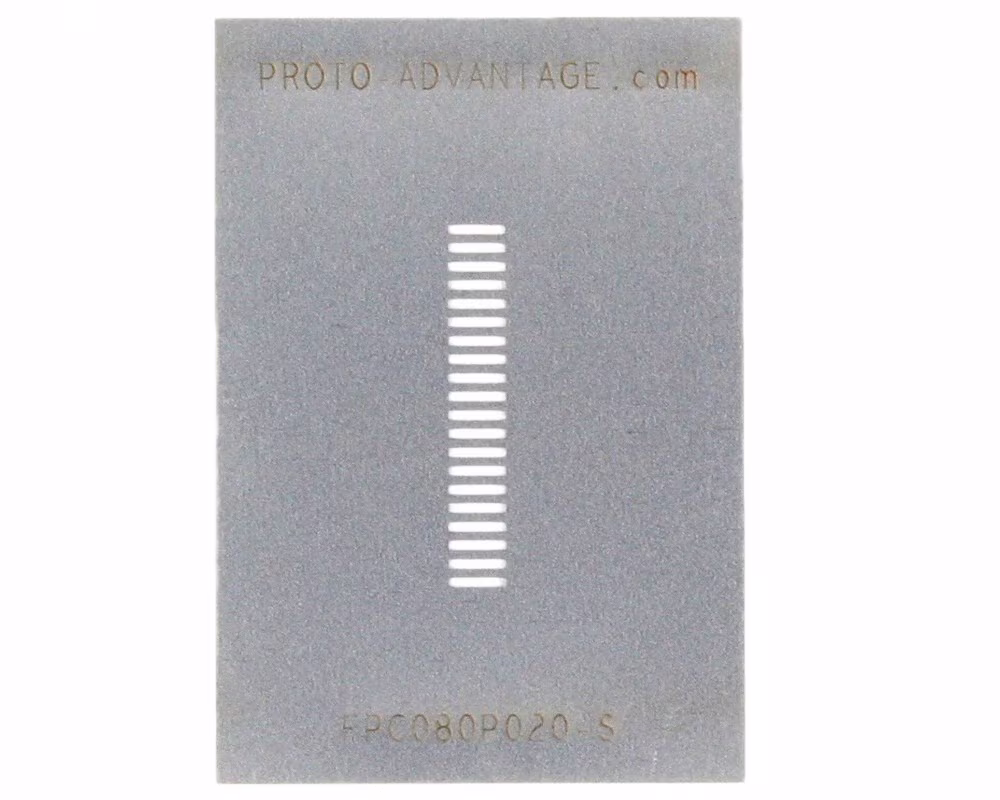

FPC080P020-S FPC/FFC SMT CONN STENCIL Chip Quik Inc.	2,394	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage FPC	Active	FPC/FFC	20	0.031 (0.80mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	0.933 L x 0.157 W (23.70mm x 4.00mm)

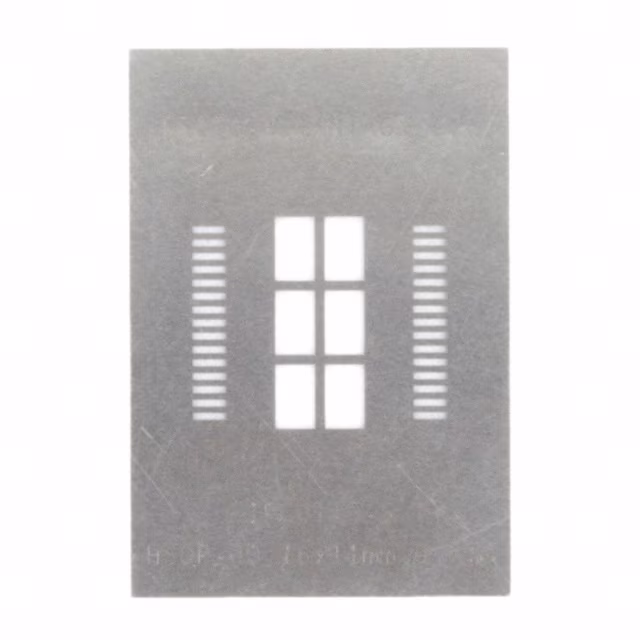

IPC0116-S HSOP-30 STENCIL Chip Quik Inc.	3,632	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	HSOP	30	0.031 (0.80mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.630 L x 0.433 W (16.00mm x 11.00mm)	0.630 L x 0.270 W (16.00mm x 6.85mm)

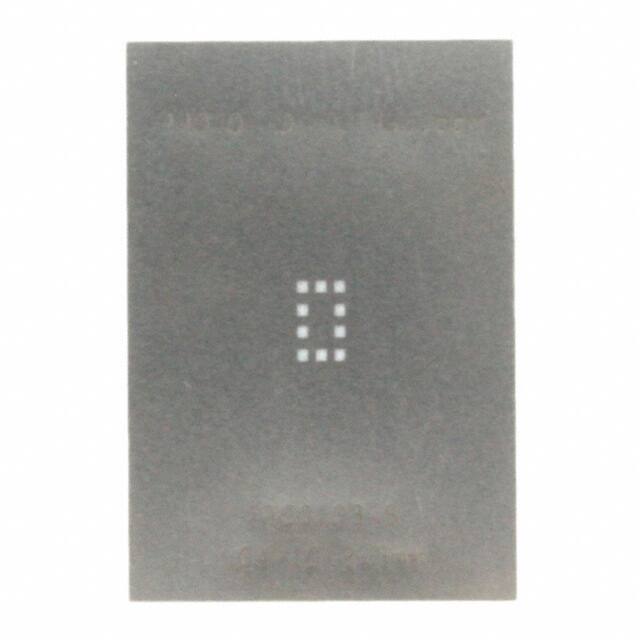

IPC0103-S LGA-10 STENCIL Chip Quik Inc.	2,977	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	LGA	10	0.050 (1.27mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.197 L x 0.118 W (5.00mm x 3.00mm)	-

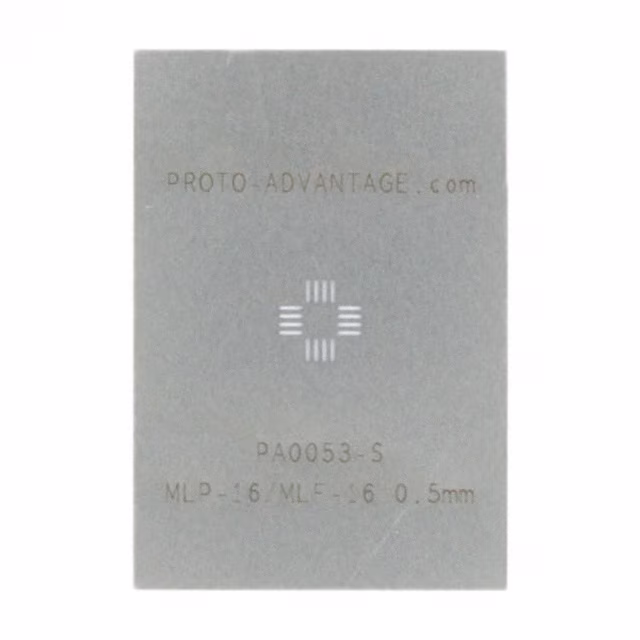

PA0053-S MLP/MLF-16 STENCIL Chip Quik Inc.	3,990	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	MLP/MLF	16	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.118 L x 0.118 W (3.00mm x 3.00mm)	-

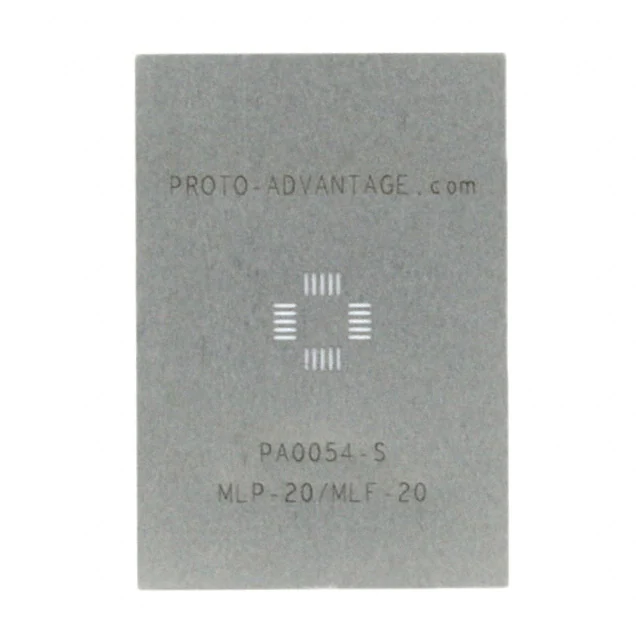

PA0054-S MLP/MLF-20 STENCIL Chip Quik Inc.	3,019	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	MLP/MLF	20	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.157 L x 0.157 W (4.00mm x 4.00mm)	-

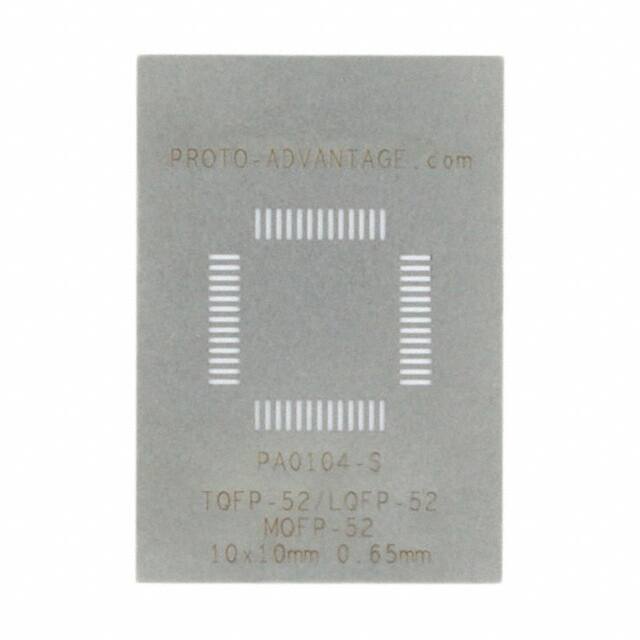

PA0104-S MQFP-52/TQFP-52/LQFP-52 STENCIL Chip Quik Inc.	3,123	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	MQFP	52	0.026 (0.65mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.394 L x 0.394 W (10.00mm x 10.00mm)	-

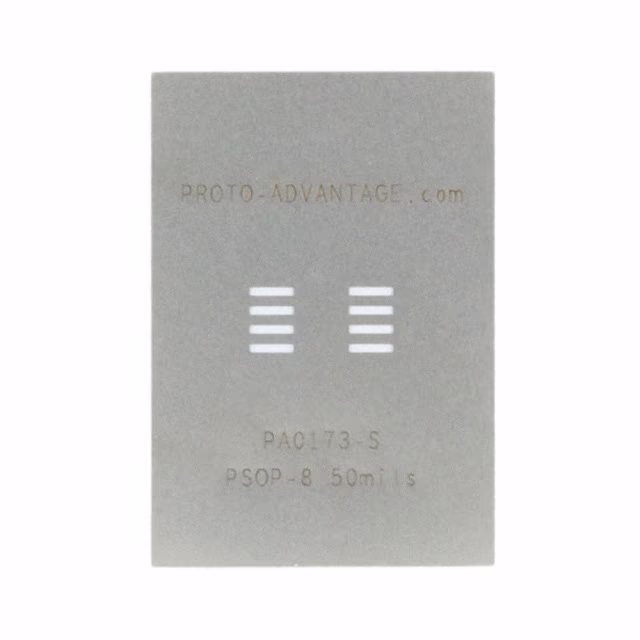

PA0173-S PSOP-8 STENCIL Chip Quik Inc.	2,558	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	PSOP	8	0.050 (1.27mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.194 L x 0.155 W (4.93mm x 3.94mm)	-

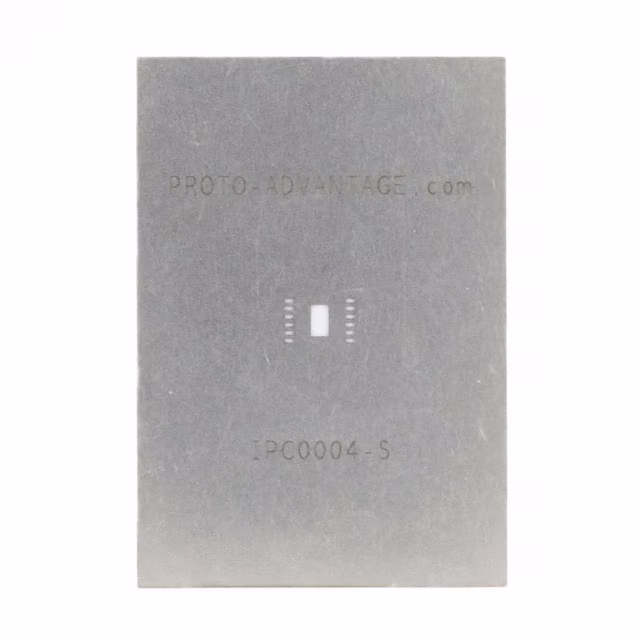

IPC0004-S QFN-12 STENCIL Chip Quik Inc.	3,421	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	12	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.157 L x 0.157 W (4.00mm x 4.00mm)	0.110 L x 0.062 W (2.80mm x 1.58mm)

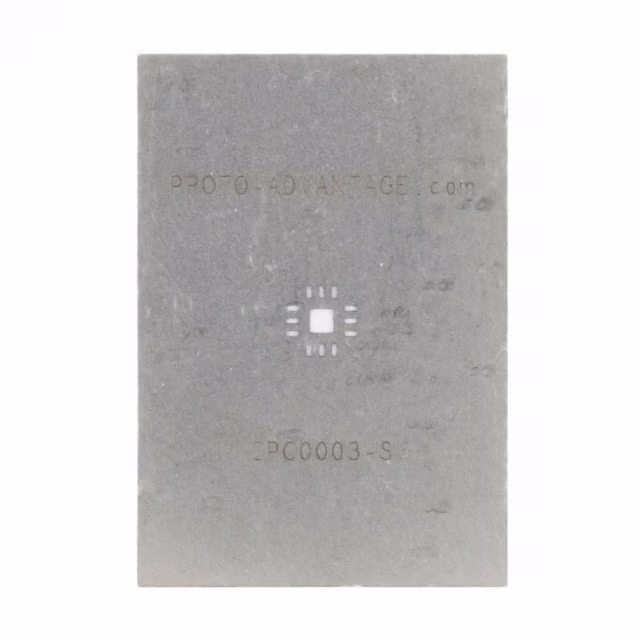

IPC0003-S QFN-12 STENCIL Chip Quik Inc.	3,433	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	12	0.031 (0.80mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.157 L x 0.157 W (4.00mm x 4.00mm)	0.083 L x 0.083 W (2.10mm x 2.10mm)

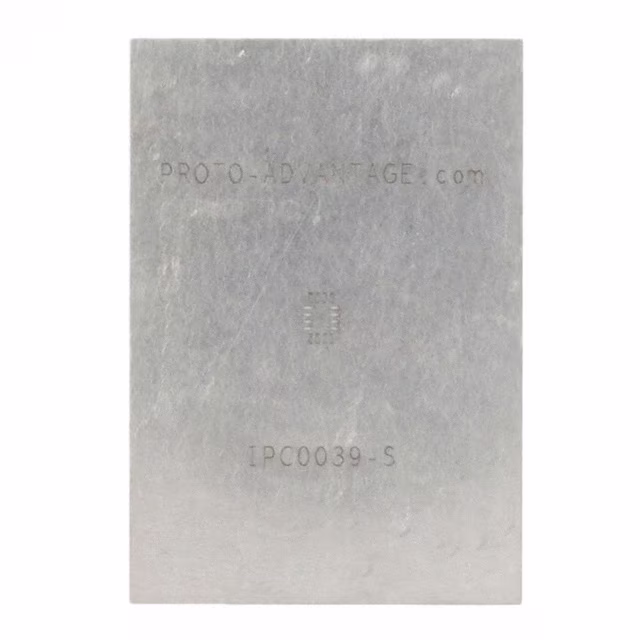

IPC0039-S QFN-16 STENCIL Chip Quik Inc.	2,900	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	16	0.016 (0.40mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.102 L x 0.071 W (2.60mm x 1.80mm)	-

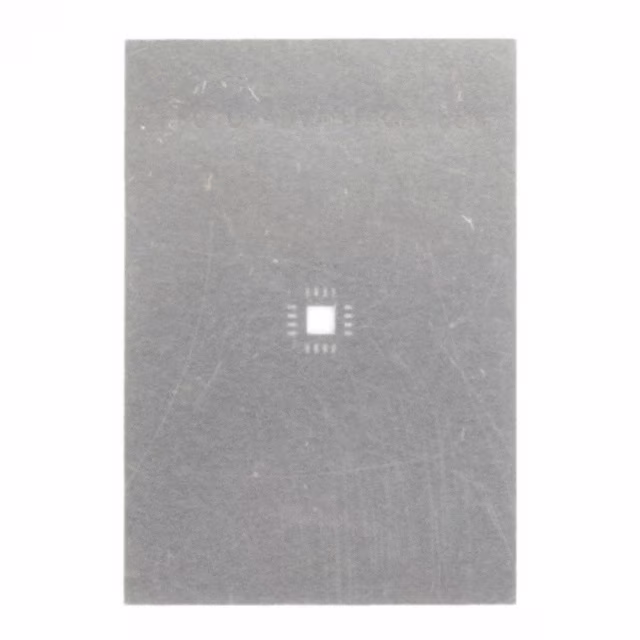

IPC0110-S QFN-16 STENCIL Chip Quik Inc.	2,203	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	16	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.138 L x 0.138 W (3.50mm x 3.50mm)	0.084 L x 0.084 W (2.14mm x 2.14mm)

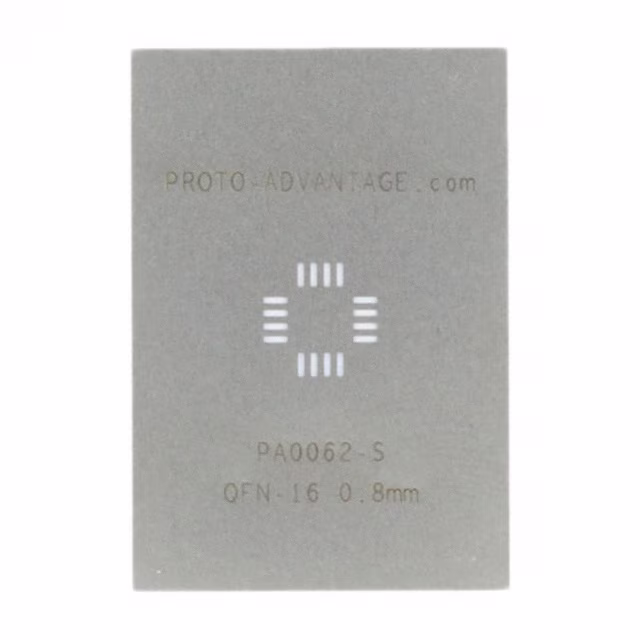

PA0062-S QFN-16 STENCIL Chip Quik Inc.	2,313	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	QFN/LFCSP	16	0.031 (0.80mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.197 L x 0.197 W (5.00mm x 5.00mm)	-

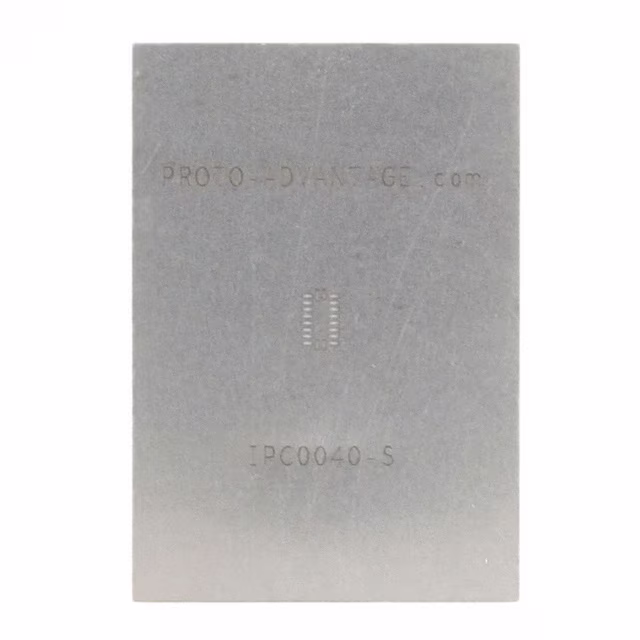

IPC0040-S QFN-20 STENCIL Chip Quik Inc.	2,957	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	20	0.016 (0.40mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.126 L x 0.071 W (3.20mm x 1.80mm)	-

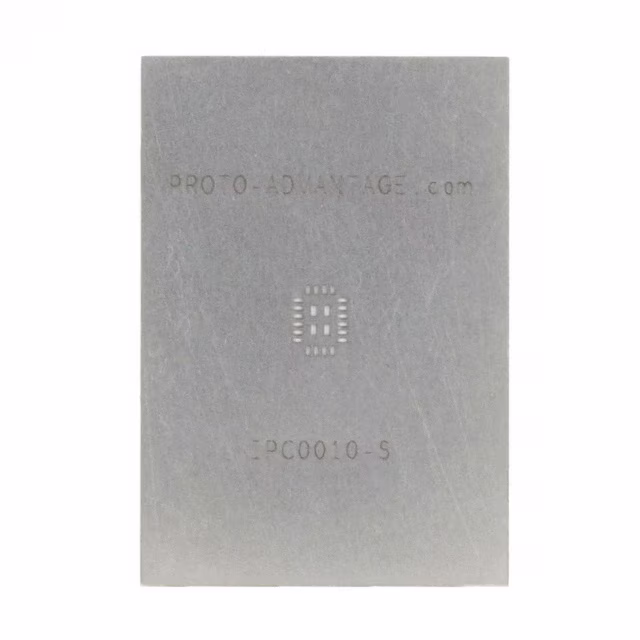

IPC0010-S QFN-20 STENCIL Chip Quik Inc.	3,847	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	20	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.157 L x 0.118 W (4.00mm x 3.00mm)	0.104 L x 0.065 W (2.65mm x 1.65mm)

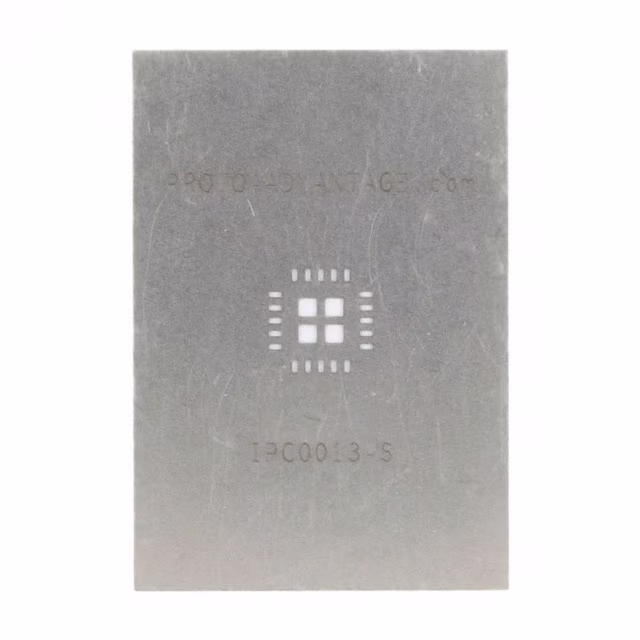

IPC0013-S QFN-20 STENCIL Chip Quik Inc.	2,364	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	20	0.031 (0.80mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.236 L x 0.236 W (6.00mm x 6.00mm)	0.135 L x 0.135 W (3.43mm x 3.43mm)

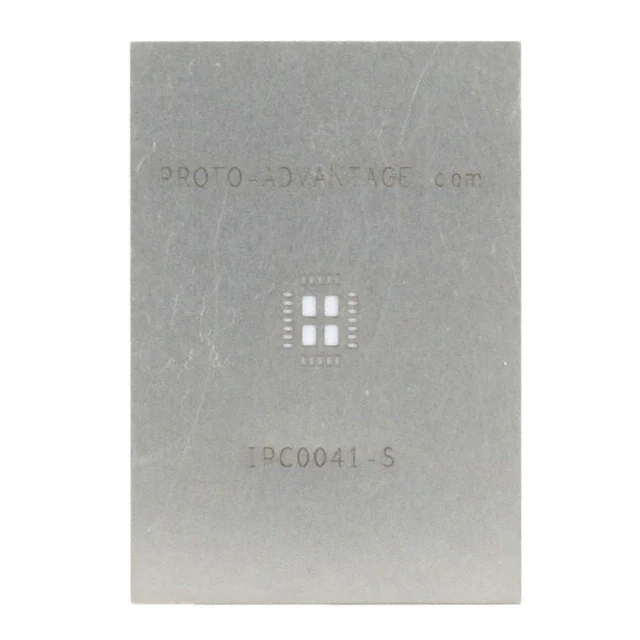

IPC0041-S QFN-24 STENCIL Chip Quik Inc.	2,276	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	24	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.197 L x 0.157 W (5.00mm x 4.00mm)	0.144 L x 0.104 W (3.65mm x 2.65mm)

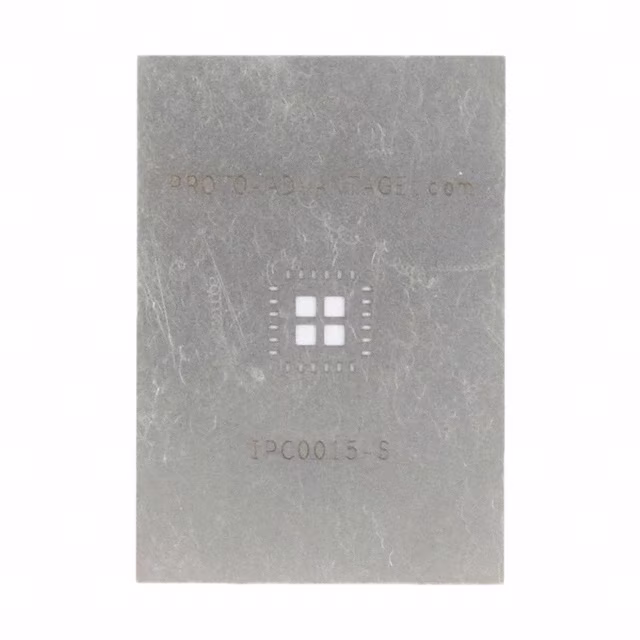

IPC0015-S QFN-24 STENCIL Chip Quik Inc.	2,291	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	24	0.031 (0.80mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.236 L x 0.236 W (6.00mm x 6.00mm)	0.150 L x 0.150 W (3.80mm x 3.80mm)

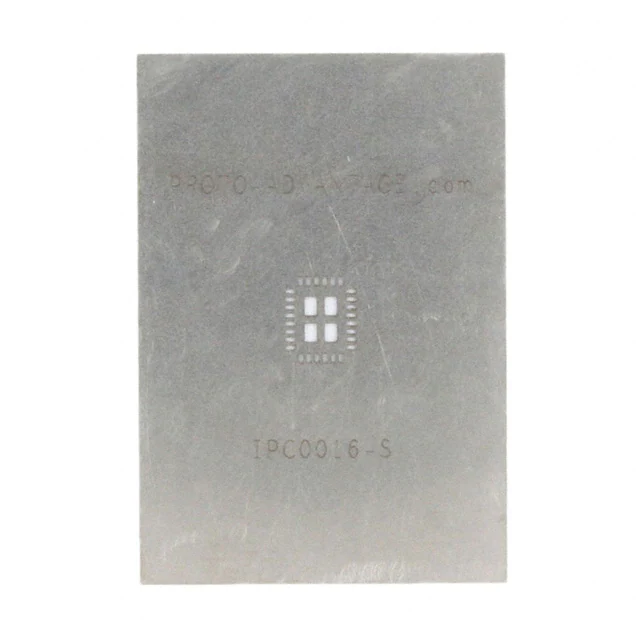

IPC0016-S QFN-28 STENCIL Chip Quik Inc.	2,628	11.59	- + RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	28	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.197 L x 0.157 W (5.00mm x 4.00mm)	0.138 L x 0.098 W (3.50mm x 2.50mm)
