Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
E55/28/25-3C95-G1000 E CORES Ferroxcube	3,316	3.28	- + RFQ	Datasheet	Bulk	-	Active	E	E 55 x 28 x 25	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
E55/28/25-3C95-G500 E CORES Ferroxcube	2,133	3.28	- + RFQ	Datasheet	Bulk	-	Active	E	E 55 x 28 x 25	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
E58/11/38-3C92 PLANAR E CORES Ferroxcube	2,718	3.28	- + RFQ	Datasheet	Bulk	-	Active	E	E 58 x 11 x 38	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.413 (10.50mm)
RM12/ILP-3F36 RM CORES 2PC SET Ferroxcube	3,191	3.28	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 12	3F36	-	-	±25%	Ungapped	-	-	0.28	42	148	125	6200	Uncoated	0.661 (16.80mm)
B65813J0063A097 FERRITE CORE EPCOS - TDK Electronics	3,800	3.30	- + RFQ	Datasheet	Box	RM10	Active	RM	RM 10	N97	-	-	-	Gapped	-	2300	0.45	44	98	90	4310	Uncoated	0.368 (9.35mm)
PQ35/30-3F36 FERRITE CORE 2PC SET Ferroxcube	3,427	3.30	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 35 x 30	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.181 (30.00mm)

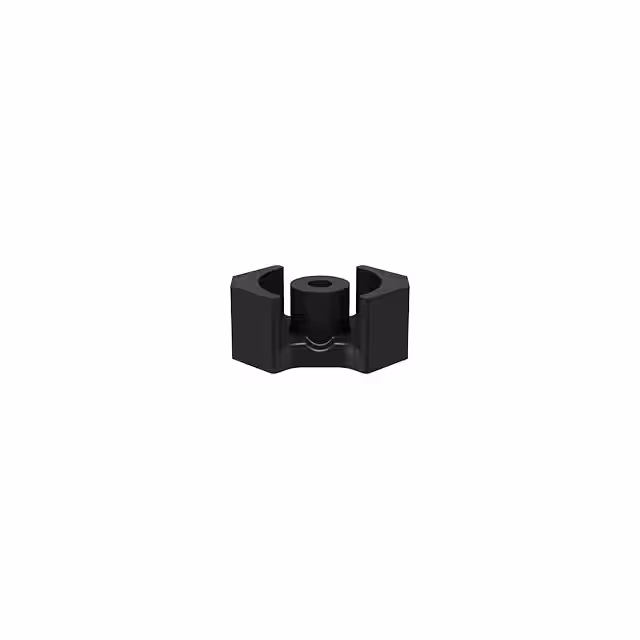

B65813D0400A048 FERRITE CORE RM 400NH N48 2PCS EPCOS - TDK Electronics	3,737	3.30	- + RFQ	Datasheet	Box	RM10	Active	RM	RM 10	N48	-	400 nH	±3%	Gapped	161	-	0.5	42	83	-	3490	Uncoated	0.368 (9.35mm)
B65661D1250K048 FERRITE CORE EPCOS - TDK Electronics	2,401	3.30	- + RFQ	Datasheet	Box	P23/13	Active	-	P 22 x 13	N48	0.866 (22.00mm)	1.25 µH	±10%	Gapped	499	2300	0.5	31.6	63	-	1990	Uncoated	0.268 (6.80mm)
B65661D0160A048 FERRITE CORE P 160NH N48 2PCS EPCOS - TDK Electronics	2,797	3.30	- + RFQ	Datasheet	Box	P23/13	Active	P (Pot Core)	P 22 x 13	N48	0.866 (22.00mm)	160 nH	±3%	Gapped	64	-	0.5	31.6	63	-	1990	Uncoated	0.268 (6.80mm)
B65661D0250A048 FERRITE CORE P 250NH N48 2PCS EPCOS - TDK Electronics	2,781	3.30	- + RFQ	Datasheet	Box	P22/13	Active	P (Pot Core)	P 22 x 13	N48	0.866 (22.00mm)	250 nH	±3%	Gapped	100	-	0.5	31.6	63	-	1990	Uncoated	0.268 (6.80mm)
E55/28/25-3C92-G2000 E CORES Ferroxcube	3,515	3.30	- + RFQ	Datasheet	Bulk	-	Active	E	E 55 x 28 x 25	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
E58/11/38-3C96 PLANAR E CORES Ferroxcube	3,232	3.33	- + RFQ	Datasheet	Bulk	-	Active	E	E 58 x 11 x 38	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.413 (10.50mm)
RM12/I-3C96 RM CORES 2PC SET Ferroxcube	3,617	3.34	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 12	3C96	-	-	±25%	Ungapped	1570	-	0.388	56.6	146	125	8340	Uncoated	0.965 (24.50mm)
RM12/I-3F4 RM CORES 2PC SET Ferroxcube	2,385	3.34	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 12	3F4	-	-	±25%	Ungapped	802	-	0.388	56.6	146	125	8340	Uncoated	0.965 (24.50mm)
ROD8/150-3C90 FERRITE ROD Ferroxcube	3,077	3.35	- + RFQ	Datasheet	Bulk	-	Active	ROD	ROD 8 x 150	3C90	0.315 (8.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	-
9595495402 95 EER CORE SET Fair-Rite Products Corp.	2,228	3.37	- + RFQ	Datasheet	Bulk	-	Active	EER	-	95	-	-	±25%	Ungapped	-	3000	48	118	245	232	29020	Uncoated	1.063 (27.00mm)
B65651D0000R033 FERRITE CORE EPCOS - TDK Electronics	3,912	3.38	- + RFQ	Datasheet	Box	P18/11	Active	-	P 18 x 11	M33	0.724 (18.40mm)	-	-	-	-	750	0.6	25.9	43	-	1114	Uncoated	0.209 (5.30mm)
B65815E1000J087 FERRITE CORE EPCOS - TDK Electronics	2,873	3.39	- + RFQ	Datasheet	Box	RM12	Active	RM	RM 12	N87	-	-	-	Gapped	-	2200	0.39	57	146	125	8320	Uncoated	0.484 (12.30mm)
B65815E0630J087 FERRITE CORE EPCOS - TDK Electronics	2,630	3.39	- + RFQ	Datasheet	Box	RM12	Active	RM	RM 12	N87	-	-	-	Gapped	-	2200	0.39	57	146	125	8320	Uncoated	0.484 (12.30mm)
B65815E0063A087 FERRITE CORE EPCOS - TDK Electronics	2,531	3.39	- + RFQ	Datasheet	Box	RM12	Active	RM	RM 12	N87	-	-	-	Gapped	-	2200	0.39	57	146	125	8320	Uncoated	0.484 (12.30mm)
