Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
E55/28/25-3C91-G1000 E CORES Ferroxcube	2,215	2.94	- + RFQ	Datasheet	Bulk	-	Active	E	E 55 x 28 x 25	3C91	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
E55/28/25-3C91-G500 E CORES Ferroxcube	2,949	2.94	- + RFQ	Datasheet	Bulk	-	Active	E	E 55 x 28 x 25	3C91	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
E55/28/25-3C94-G1000 E CORES Ferroxcube	2,102	2.94	- + RFQ	Datasheet	Bulk	-	Active	E	E 55 x 28 x 25	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
E55/28/25-3C94-G500 E CORES Ferroxcube	3,662	2.94	- + RFQ	Datasheet	Bulk	-	Active	E	E 55 x 28 x 25	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
9598495402 98 EER CORE SET Fair-Rite Products Corp.	2,006	2.95	- + RFQ	Datasheet	Bulk	-	Active	EER	-	-	-	-	±25%	Ungapped	-	2400	48	118	245	232	29020	Uncoated	1.063 (27.00mm)

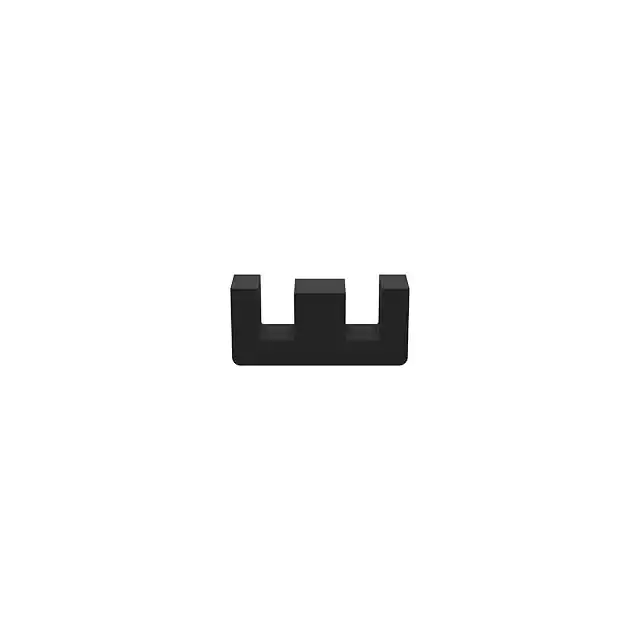

B66325G0000X195 FERRITE CORE E N95 1PC EPCOS - TDK Electronics	3,042	2.95	- + RFQ	Datasheet	Box	E42/21/15	Active	E	E 42 x 21 x 15	N95	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.835 (21.20mm)
B65811F0100A033 FERRITE CORE EPCOS - TDK Electronics	3,191	2.96	- + RFQ	Datasheet	Box	RM8	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-
B65661D0000R041 FERRITE CORE EPCOS - TDK Electronics	2,829	2.96	- + RFQ	Datasheet	Box	P22/13	Active	-	P 22 x 13	N41	0.866 (22.00mm)	-	-	-	-	2800	0.5	31.6	63	-	1990	Uncoated	0.268 (6.80mm)
B65803A0016A001 FERRITE CORE RM 16NH K1 2PCS EPCOS - TDK Electronics	2,573	2.96	- + RFQ	Datasheet	Box	RM4	Active	RM	RM 4	K1	-	16 nH	±3%	Gapped	24.2	80	1.9	21	11	-	231	Uncoated	0.207 (5.25mm)
B66329G0000X130 FERRITE CORE EPCOS - TDK Electronics	2,380	2.97	- + RFQ	Datasheet	Box	E42/21/20	Active	E	E 42 x 21 x 20	N30	-	-	-	-	-	4300	0.41	97	234	229	22700	Uncoated	0.835 (21.20mm)
PQ35/30-3F46 PQ CORES 2PC SET Ferroxcube	2,179	2.97	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 35 x 30	3F46	-	-	±25%	Ungapped	702	-	0.401	77	192	163	14800	Uncoated	1.181 (30.00mm)
B65813J0000R092 FERRITE CORE EPCOS - TDK Electronics	3,753	2.98	- + RFQ	Datasheet	Box	RM10	Active	RM	RM 10	N92	-	-	-	-	-	1500	0.45	44	98	90	4310	Uncoated	0.368 (9.35mm)
B65651T0160G048 FERRITE CORE P 160NH N48 2PCS EPCOS - TDK Electronics	2,231	2.98	- + RFQ	Datasheet	Box	P18/11	Active	P (Pot Core)	P 18 x 11	N48	0.724 (18.40mm)	160 nH	±3%	Gapped	77	-	0.6	25.9	43	-	1114	Uncoated	0.209 (5.30mm)

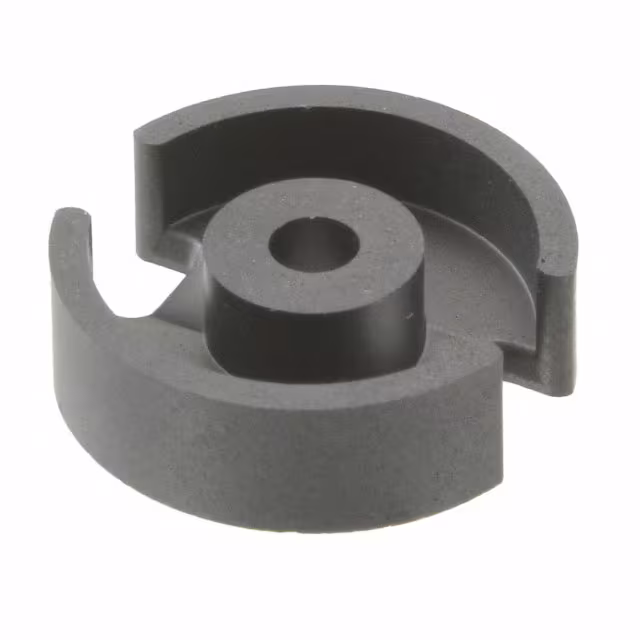

B65651T0315A048 FERRITE CORE P 315NH N48 2PCS EPCOS - TDK Electronics	3,895	2.98	- + RFQ	Datasheet	Box	P18/11	Active	P (Pot Core)	P 18 x 11	N48	0.724 (18.40mm)	315 nH	±3%	Gapped	151	-	0.6	25.9	43	-	1114	Uncoated	0.209 (5.30mm)
B65651T0500A048 FERRITE CORE P 500NH N48 2PCS EPCOS - TDK Electronics	2,782	2.98	- + RFQ	Datasheet	Box	P18/11	Active	P (Pot Core)	P 18 x 11	N48	0.724 (18.40mm)	500 nH	±3%	Gapped	240	-	0.6	25.9	43	-	1114	Uncoated	0.209 (5.30mm)
B65651T0160A048 FERRITE CORE P 160NH N48 2PCS EPCOS - TDK Electronics	2,225	2.98	- + RFQ	Datasheet	Box	P18/11	Active	P (Pot Core)	P 18 x 11	N48	0.724 (18.40mm)	160 nH	±3%	Gapped	77	-	0.6	25.9	43	-	1114	Uncoated	0.209 (5.30mm)
E55/28/25-3C95 E CORES Ferroxcube	2,780	2.99	- + RFQ	Datasheet	Bulk	-	Active	E	E 55 x 28 x 25	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
E56/24/19-3C95-G1000 E CORES Ferroxcube	3,224	2.99	- + RFQ	Datasheet	Bulk	-	Active	E	E 56 x 24 x 19	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.929 (23.60mm)
E56/24/19-3C95-G500 E CORES Ferroxcube	3,780	2.99	- + RFQ	Datasheet	Bulk	-	Active	E	E 56 x 24 x 19	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.929 (23.60mm)
TX42/26/13-3E6 FERRITE CORES ROUND Ferroxcube	3,227	2.99	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 42 x 26 x 13	-	1.697 (43.15mm)	-	±30%	Ungapped	10000	-	1.076	103	95.8	-	9860	Epoxy	0.531 (13.50mm)
