Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
E55/28/21-3C91-G500 E CORES Ferroxcube	3,007	2.48	- + RFQ	Datasheet	Bulk	-	Active	E	E 55 x 28 x 21	3C91	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
E55/28/21-3C94-G1000 E CORES Ferroxcube	3,580	2.48	- + RFQ	Datasheet	Bulk	-	Active	E	E 55 x 28 x 21	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
E55/28/21-3C94-G500 E CORES Ferroxcube	2,878	2.48	- + RFQ	Datasheet	Bulk	-	Active	E	E 55 x 28 x 21	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
TX39/20/13-3E65 FERRITE CORES ROUND Ferroxcube	3,651	2.48	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 39 x 20 x 13	-	1.567 (39.80mm)	-	±25%	Ungapped	5200	-	0.76	84.9	112	-	9513	Epoxy	0.535 (13.60mm)
6298420121 98 RM CORE SET Fair-Rite Products Corp.	3,623	2.48	- + RFQ	Datasheet	Bulk	-	Active	RM	-	-	-	-	±25%	Ungapped	-	2400	38	73.8	195	170.9	14370	Uncoated	-
PQ35/30-3C94 PQ CORES 2PC SET Ferroxcube	3,161	2.49	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 35 x 30	3C94	-	-	±25%	Ungapped	1850	-	0.401	77	192	163	14800	Uncoated	1.181 (30.00mm)
B65811P0160A049 FERRITE CORE EPCOS - TDK Electronics	2,936	2.49	- + RFQ	Datasheet	Box	RM8/LP	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-

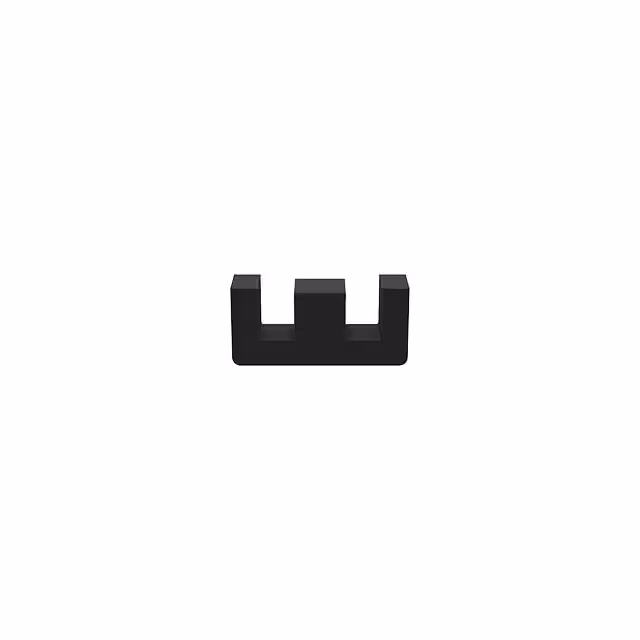

B66383G0000X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	3,197	2.52	- + RFQ	Datasheet	Box	E47/20/16	Active	E	E 47 x 20 x 16	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.772 (19.60mm)
B64290L0674X027 FERRITE CORE EPCOS - TDK Electronics	3,177	2.52	- + RFQ	Datasheet	Box	TX36/23/15	Active	Toroid	-	N27	-	-	-	Gapped	-	2000	-	-	-	-	-	Epoxy	-
E55/28/21-3C95 E CORES Ferroxcube	2,295	2.53	- + RFQ	Datasheet	Bulk	-	Active	E	E 55 x 28 x 21	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
PLT58/38/4-3C90 PLANAR E CORES Ferroxcube	3,943	2.53	- + RFQ		Bulk	-	Active	PLT	PLT 58 x 38 x 4	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.161 (4.10mm)
ETD54/28/19-3F36-G200 ER AND ETD CORES Ferroxcube	2,830	2.54	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 54 x 28 x 19	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.087 (27.60mm)
B66377G0000X127 FERRITE CORE ER N27 1PC EPCOS - TDK Electronics	2,323	2.56	- + RFQ	Datasheet	Box	ER46/17/18	Active	ER	ER 46 x 17 x 18	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.689 (17.50mm)
B65501D0000Y001 FERRITE CORE P 2PCS EPCOS - TDK Electronics	3,122	2.57	- + RFQ	Datasheet	Box	P5.8/3.3	Active	P (Pot Core)	P 5.8 x 3.3	-	0.228 (5.80mm)	-	-	Ungapped	-	-	1.68	7.9	4.7	-	37	Uncoated	0.067 (1.70mm)
B65754J0000R030 FERRITE CORES EPCOS - TDK Electronics	2,641	2.57	- + RFQ	Datasheet	Box	PT14/8	Active	TT	-	N30	-	-	-	-	-	4300	0.84	25.3	25.3	22.1	539	Uncoated	0.167 (4.25mm)
9498115002 98 E CORE SET Fair-Rite Products Corp.	3,841	2.59	- + RFQ	Datasheet	Bulk	-	Active	E	-	-	-	-	±25%	Ungapped	-	2400	41.7	97.9	235	231	23100	Uncoated	-
E55/28/21-3C90-G2500 E CORES Ferroxcube	3,281	2.61	- + RFQ		Bulk	-	Active	E	E 55 x 28 x 21	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
E55/28/21-3C91-G2000 E CORES Ferroxcube	2,880	2.61	- + RFQ	Datasheet	Bulk	-	Active	E	E 55 x 28 x 21	3C91	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
ETD54/28/19-3F36-G1000 ER AND ETD CORES Ferroxcube	2,559	2.63	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 54 x 28 x 19	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.087 (27.60mm)
ETD54/28/19-3F36-G500 ER AND ETD CORES Ferroxcube	2,155	2.63	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 54 x 28 x 19	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.087 (27.60mm)
