Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
P26/16-3C90 P CORES 2PC SET Ferroxcube	3,864	2.47	- + RFQ		Bulk	-	Active	P (Pot Core)	P 26 x 16	3C90	1.004 (25.50mm)	5.3 µH	±25%	Ungapped	1700	-	0.4	37.6	93.9	77.4	3530	Uncoated	0.634 (16.10mm)
E42/33/20-3C92-G200 E CORES Ferroxcube	3,283	2.47	- + RFQ	Datasheet	Bulk	-	Active	E	E 42 x 33 x 20	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.291 (32.80mm)
E42/33/20-3C92-G500 E CORES Ferroxcube	2,823	2.47	- + RFQ	Datasheet	Bulk	-	Active	E	E 42 x 33 x 20	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.291 (32.80mm)
B65738L0000R087 FERRITE CORES EPCOS - TDK Electronics	2,265	2.47	- + RFQ	Datasheet	Box	PTS23/11	Active	-	-	N87	-	-	-	-	-	2200	0.62	45.1	73.1	67.4	3293	Uncoated	0.362 (9.20mm)
E55/28/21-3C90-E250 E CORES Ferroxcube	2,856	2.47	- + RFQ		Bulk	-	Active	E	E 55 x 28 x 21	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
E55/28/21-3C90-G1500 E CORES Ferroxcube	3,484	2.47	- + RFQ		Bulk	-	Active	E	E 55 x 28 x 21	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
E55/28/21-3C90-G650 E CORES Ferroxcube	2,852	2.47	- + RFQ		Bulk	-	Active	E	E 55 x 28 x 21	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
E55/28/21-3C90-G850 E CORES Ferroxcube	3,807	2.47	- + RFQ		Bulk	-	Active	E	E 55 x 28 x 21	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
B65811D1000K048 FERRITE CORE EPCOS - TDK Electronics	2,480	2.48	- + RFQ	Datasheet	Box	RM8	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-
B65811D0160A048 FERRITE CORE EPCOS - TDK Electronics	2,981	2.48	- + RFQ	Datasheet	Box	RM8	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-

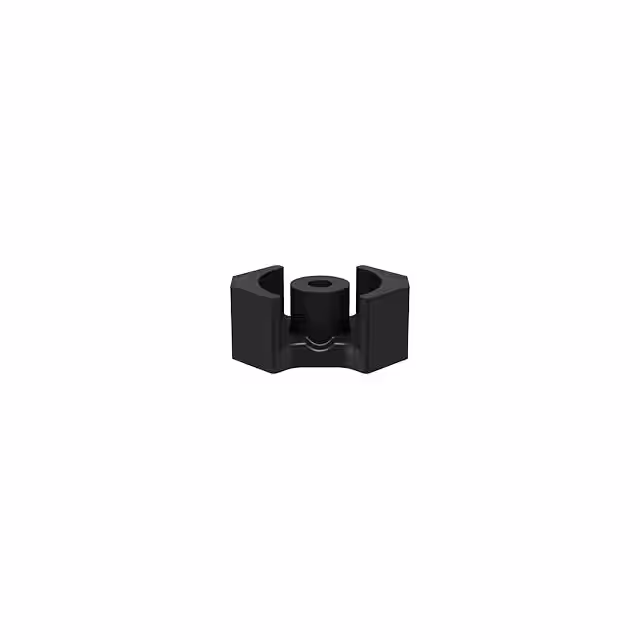

B65811D0250A048 FERRITE CORE RM 250NH N48 2PCS EPCOS - TDK Electronics	3,464	2.48	- + RFQ	Datasheet	Box	RM8	Active	RM	RM 8	N48	-	250 nH	±3%	Gapped	134	-	0.68	35.1	52	-	1825	Uncoated	0.324 (8.25mm)
B65811D0315A048 FERRITE CORE RM 315NH N48 2PCS EPCOS - TDK Electronics	2,377	2.48	- + RFQ	Datasheet	Box	RM8	Active	RM	RM 8	N48	-	315 nH	±3%	Gapped	169	-	0.68	35.1	52	-	1825	Uncoated	0.324 (8.25mm)
B65811J0160A048 FERRITE CORE EPCOS - TDK Electronics	3,492	2.48	- + RFQ	Datasheet	Box	RM8	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-
B65811J0315A048 FERRITE CORE RM 315NH N48 2PCS EPCOS - TDK Electronics	2,330	2.48	- + RFQ	Datasheet	Box	RM8	Active	RM	RM 8	N48	-	315 nH	±3%	Gapped	169	-	0.59	38	64	55	2430	Uncoated	0.324 (8.25mm)
B65811J0400A048 FERRITE CORE RM 400NH N48 2PCS EPCOS - TDK Electronics	3,176	2.48	- + RFQ	Datasheet	Box	RM8	Active	RM	RM 8	N48	-	400 nH	±3%	Gapped	215	-	0.59	38	64	55	2430	Uncoated	0.324 (8.25mm)
B65811J0630J048 FERRITE CORE RM 630NH N48 2PCS EPCOS - TDK Electronics	2,887	2.48	- + RFQ	Datasheet	Box	RM8	Active	RM	RM 8	N48	-	630 nH	±5%	Gapped	338	-	0.59	38	64	55	2430	Uncoated	0.324 (8.25mm)
ETD54/28/19-3C95-G1000 ER AND ETD CORES Ferroxcube	2,909	2.48	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 54 x 28 x 19	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.087 (27.60mm)
ETD54/28/19-3C95-G500 ER AND ETD CORES Ferroxcube	3,884	2.48	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 54 x 28 x 19	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.087 (27.60mm)
B65813J0000R035 FERRITE CORE EPCOS - TDK Electronics	2,694	2.48	- + RFQ	Datasheet	Box	RM10	Active	RM	RM 10	T35	-	-	-	-	-	6000	0.45	44	98	90	4310	Uncoated	0.368 (9.35mm)
E55/28/21-3C91-G1000 E CORES Ferroxcube	3,818	2.48	- + RFQ	Datasheet	Bulk	-	Active	E	E 55 x 28 x 21	3C91	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
