Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B65738J0000R087 FERRITE CORES EPCOS - TDK Electronics	3,954	2.29	- + RFQ	Datasheet	Box	PTS23/18	Active	-	-	N87	-	-	-	-	-	2200	0.62	45.1	73.1	67.4	3293	Uncoated	0.362 (9.20mm)
B65803N0040A033 FERRITE CORE RM 40NH M33 2PCS EPCOS - TDK Electronics	3,944	2.30	- + RFQ	Datasheet	Box	RM4	Active	RM	RM 4	M33	-	40 nH	±3%	Gapped	60.4	750	1.9	21	11	-	231	Uncoated	0.207 (5.25mm)
9578424402 78 EER CORE SET Fair-Rite Products Corp.	3,860	2.30	- + RFQ	Datasheet	Bulk	-	Active	EER	-	78	-	-	±25%	Ungapped	-	2300	52	97.9	187	181	18260	Uncoated	0.866 (22.00mm)
B66341G0000X187 FERRITE CORES EPCOS - TDK Electronics	3,468	2.31	- + RFQ	Datasheet	Box	EC52/24/14	Active	EC	EC 52 x 24 x 14	N87	-	-	-	-	-	2200	0.58	105	180	141	18900	Uncoated	0.959 (24.35mm)
B65811J0250A057 FERRITE CORE EPCOS - TDK Electronics	3,760	2.31	- + RFQ	Datasheet	Box	RM8	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-
B64290L0657X038 FERRITE CORE TOROID 10.6UH T38 EPCOS - TDK Electronics	2,396	2.32	- + RFQ	Datasheet	Box	TX30/20/12	Active	Toroid	-	T38	1.264 (32.10mm)	10.6 µH	±30%	Ungapped	-	10000	1.19	77.02	64.66	-	4980	Epoxy	0.531 (13.50mm)
E42/33/20-3F36-G500 E CORES Ferroxcube	2,700	2.34	- + RFQ	Datasheet	Bulk	-	Active	E	E 42 x 33 x 20	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.291 (32.80mm)
9598424402 98 EER CORE SET Fair-Rite Products Corp.	2,310	2.34	- + RFQ	Datasheet	Bulk	-	Active	EER	-	-	-	-	±25%	Ungapped	-	2400	52	97.9	187	181	18260	Uncoated	0.866 (22.00mm)

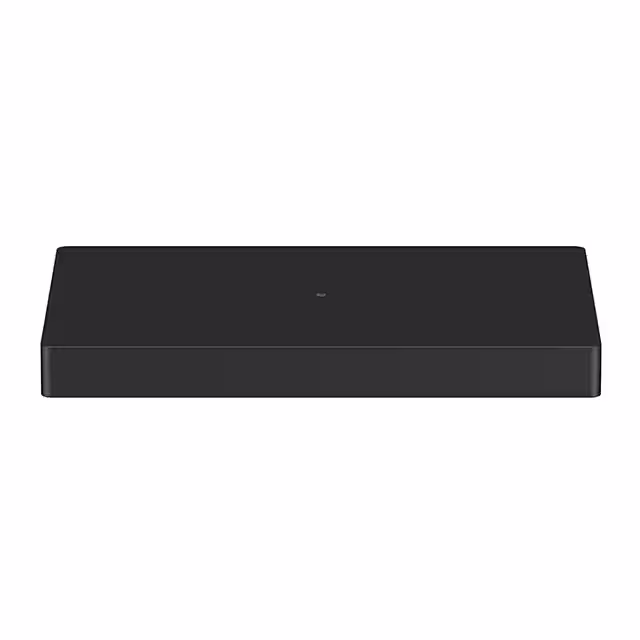

B66483K0000X197 I 20/2.3/14 N97 UNGAPPED EPCOS - TDK Electronics	3,453	2.35	- + RFQ	Datasheet	Box	I20/2.3/14	Active	-	I 20 x 2.3 x 14	N97	-	3.77 µH	±25%	Ungapped	1260	-	0.42	25.1	59.8	55	1500	Uncoated	0.091 (2.30mm)
B66365G0500X127 FERRITE CORE ETD N27 1PC EPCOS - TDK Electronics	2,333	2.36	- + RFQ	Datasheet	Box	ETD44/22/15	Active	ETD	ETD 44 x 22 x 15	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.886 (22.50mm)

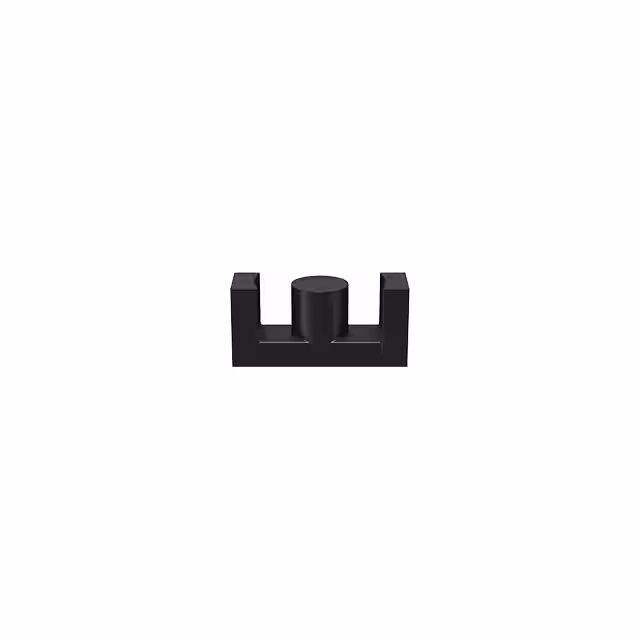

B66365G1000X127 FERRITE CORE ETD N27 1PC EPCOS - TDK Electronics	3,306	2.36	- + RFQ	Datasheet	Box	ETD44/22/15	Active	ETD	ETD 44 x 22 x 15	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.886 (22.50mm)
B66365G1500X127 FERRITE CORE ETD N27 1PC EPCOS - TDK Electronics	3,533	2.36	- + RFQ	Datasheet	Box	ETD44/22/15	Active	ETD	ETD 44 x 22 x 15	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.886 (22.50mm)
B65519D0000R001 FERRITE CORE EPCOS - TDK Electronics	3,746	2.37	- + RFQ		Box	P9/7	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
B65811J0000R048 FERRITE CORE EPCOS - TDK Electronics	2,130	2.37	- + RFQ	Datasheet	Box	RM8	Active	RM	-	-	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	-

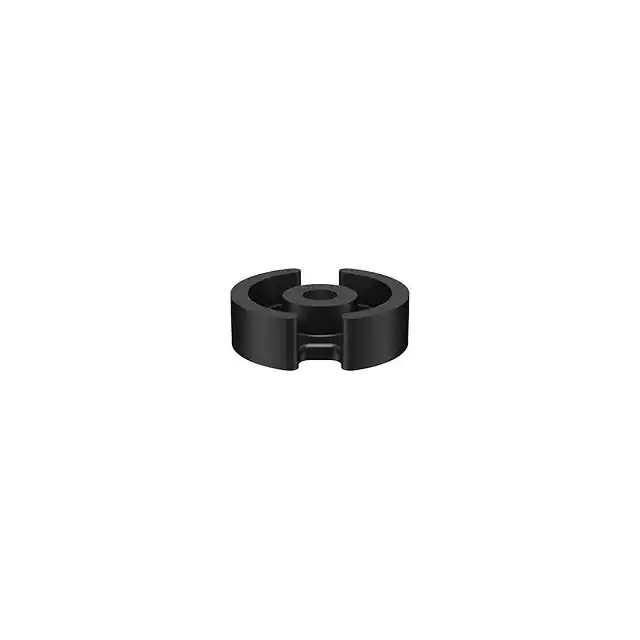

B65517T0025A001 FERRITE CORE P 25NH K1 2PCS EPCOS - TDK Electronics	3,413	2.37	- + RFQ	Datasheet	Box	P9/5	Active	P (Pot Core)	P 9 x 5	K1	0.366 (9.30mm)	25 nH	±3%	Gapped	25	80	1.25	12.5	10	-	125	Uncoated	0.106 (2.70mm)
ETD54/28/19-3C95-G200 ER AND ETD CORES Ferroxcube	2,676	2.38	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 54 x 28 x 19	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.087 (27.60mm)
B65813J0160A041 FERRITE CORE EPCOS - TDK Electronics	3,139	2.39	- + RFQ	Datasheet	Box	RM10	Active	RM	RM 10	N41	-	-	-	Gapped	-	2800	0.45	44	98	90	4310	Uncoated	0.368 (9.35mm)
B65813J0400A041 FERRITE CORE EPCOS - TDK Electronics	3,668	2.39	- + RFQ	Datasheet	Box	RM10	Active	RM	RM 10	N41	-	-	-	Gapped	-	2800	0.45	44	98	90	4310	Uncoated	0.368 (9.35mm)
B65845J0000R030 FERRITE CORE EP 4.3UH N30 2PCS EPCOS - TDK Electronics	2,923	2.39	- + RFQ	Datasheet	Box	EP17	Active	EP	EP 17	N30	-	4.3 µH	-20%, +30%	Ungapped	2870	4300	0.84	28.5	33.9	25.5	966	Uncoated	0.335 (8.50mm)
B66365A0330J087 FERRITE CORE EPCOS - TDK Electronics	3,612	2.39	- + RFQ		Box	ETD44/22/15	Active	-	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	-	-
