Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
E43/10/28-3F36-A315-P PLANAR E CORES Ferroxcube	2,665	2.22	- + RFQ	Datasheet	Bulk	-	Active	E	E 43 x 10 x 28	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.374 (9.50mm)
E43/10/28-3F36-A400-E PLANAR E CORES Ferroxcube	3,400	2.22	- + RFQ	Datasheet	Bulk	-	Active	E	E 43 x 10 x 28	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.374 (9.50mm)
E43/10/28-3F36-A400-P PLANAR E CORES Ferroxcube	3,006	2.22	- + RFQ	Datasheet	Bulk	-	Active	E	E 43 x 10 x 28	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.374 (9.50mm)
B65845J0630D087 FERRITE CORE EPCOS - TDK Electronics	2,831	2.22	- + RFQ	Datasheet	Box	EP17	Active	EP	EP 17	N87	-	-	-	Gapped	-	2200	0.84	28.5	33.9	25.5	966	Uncoated	0.335 (8.50mm)
B65845J0063A087 FERRITE CORE EPCOS - TDK Electronics	3,136	2.22	- + RFQ	Datasheet	Box	EP17	Active	EP	EP 17	N87	-	-	-	Gapped	-	2200	0.84	28.5	33.9	25.5	966	Uncoated	0.335 (8.50mm)
B66325G0000X197 FERRITE CORE E N97 1PC EPCOS - TDK Electronics	3,189	2.23	- + RFQ	Datasheet	Box	E42/21/15	Active	E	E 42 x 21 x 15	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.835 (21.20mm)
UR64/29/14-3C90 UR CORES Ferroxcube	2,535	2.24	- + RFQ	Datasheet	Bulk	-	Active	UR	UR 64 x 29 x 14	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.161 (29.50mm)
ETD54/28/19-3C94-G1000 ER AND ETD CORES Ferroxcube	3,111	2.24	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 54 x 28 x 19	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.087 (27.60mm)
ETD54/28/19-3C94-G500 ER AND ETD CORES Ferroxcube	3,946	2.24	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 54 x 28 x 19	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.087 (27.60mm)

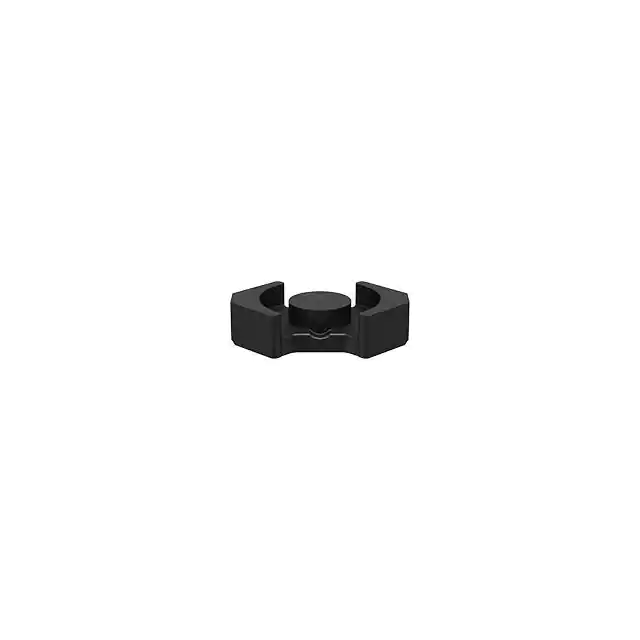

B65811P0000R092 FERRITE CORE RM 3.1UH N92 2PCS EPCOS - TDK Electronics	2,400	2.24	- + RFQ	Datasheet	Box	RM8/LP	Active	RM	RM 8 LP	N92	-	3.1 µH	-20%, +30%	Ungapped	1090	1500	0.44	28.7	64.9	55.4	1860	Uncoated	0.228 (5.80mm)

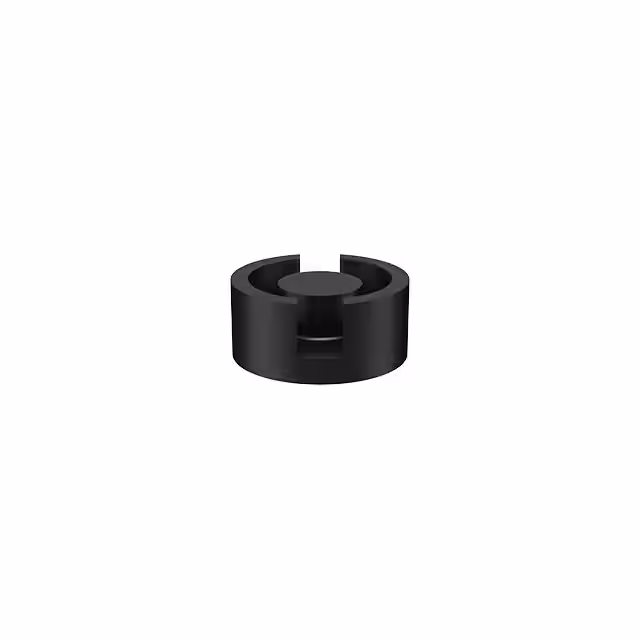

B65495B0000Y033 FERRITE CORE P 200NH M33 2PCS EPCOS - TDK Electronics	2,159	2.25	- + RFQ	Datasheet	Box	P4.6/4.1	Active	P (Pot Core)	P 4.6 x 4.1	M33	0.183 (4.65mm)	200 nH	-30%, +40%	Ungapped	430	750	2.7	7.6	2.8	-	21.3	Uncoated	0.079 (2.00mm)
6678353621 78 PQ CORE SET Fair-Rite Products Corp.	3,598	2.25	- + RFQ	Datasheet	Bulk	-	Active	PQ	-	78	-	-	±25%	Ungapped	-	2300	48.2	88.2	183	161.7	16130	Uncoated	0.685 (17.40mm)
E42/33/20-3F36-G200 E CORES Ferroxcube	3,514	2.25	- + RFQ	Datasheet	Bulk	-	Active	E	E 42 x 33 x 20	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.291 (32.80mm)
RM10/I-3C90-E100 RM CORES 2PC SET Ferroxcube	2,773	2.25	- + RFQ		Bulk	-	Active	RM	RM 10 x 1	3C90	-	100 nH	±3%	Gapped	37	-	0.462	44.6	96.6	89.1	4310	Uncoated	0.729 (18.60mm)
E55/28/21-3C91 E CORES Ferroxcube	3,324	2.26	- + RFQ	Datasheet	Bulk	-	Active	E	E 55 x 28 x 21	3C91	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
B65939D0000X022 FERRITE CORE EPCOS - TDK Electronics	2,301	2.26	- + RFQ		Box	PS24.6/8	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
B66506G0000X188 FERRITE CORE EQ 30/8/20 N88 UNGA EPCOS - TDK Electronics	3,535	2.26	- + RFQ		Box	EQ30/8/20	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
B65541D0000R001 FERRITE CORE P 140NH K1 2PCS EPCOS - TDK Electronics	2,771	2.27	- + RFQ	Datasheet	Box	P14/8	Active	P (Pot Core)	P 14 x 8	K1	0.563 (14.30mm)	140 nH	-20%, +30%	Ungapped	89	80	0.8	20	25	20	500	Uncoated	0.167 (4.25mm)
ETD54/28/19-3C95 ER AND ETD CORES Ferroxcube	3,251	2.28	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 54 x 28 x 19	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.087 (27.60mm)

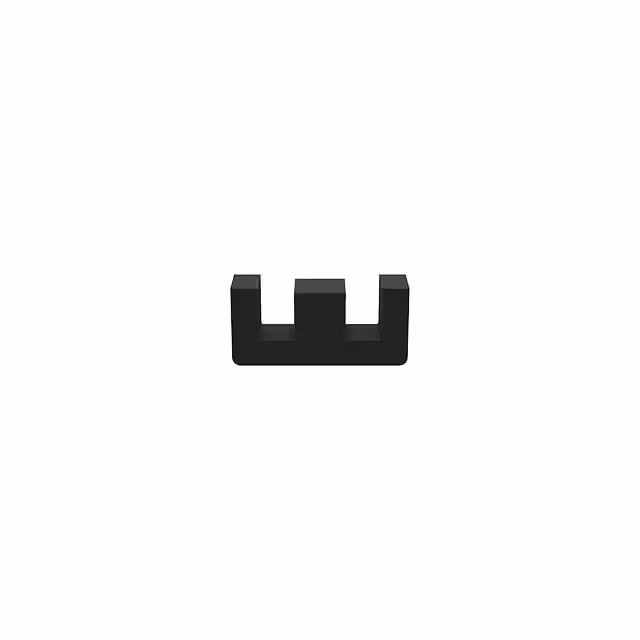

B66383G0000X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	3,941	2.29	- + RFQ	Datasheet	Box	E47/20/16	Active	E	E 47 x 20 x 16	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.772 (19.60mm)
