Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B66365G0100X187 FERRITE CORE EPCOS - TDK Electronics	3,289	2.39	- + RFQ	Datasheet	Box	ETD44/22/15	Active	ETD	ETD 44 x 22 x 15	N87	-	-	-	Gapped	-	2200	0.6	103	173	172	17800	Uncoated	0.886 (22.50mm)
B66365G0300X187 FERRITE CORE EPCOS - TDK Electronics	3,611	2.39	- + RFQ	Datasheet	Box	ETD44/22/15	Active	ETD	ETD 44 x 22 x 15	N87	-	-	-	Gapped	-	2200	0.6	103	173	172	17800	Uncoated	0.886 (22.50mm)
B66365G0800X187 FERRITE CORE EPCOS - TDK Electronics	2,188	2.39	- + RFQ	Datasheet	Box	ETD44/22/15	Active	ETD	ETD 44 x 22 x 15	N87	-	-	-	Gapped	-	2200	0.6	103	173	172	17800	Uncoated	0.886 (22.50mm)
B66365U0200J187 FERRITE CORE EPCOS - TDK Electronics	2,106	2.39	- + RFQ		Box	ETD44/22/15	Active	-	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	-	-
B66365G1200X187 FERRITE CORE EPCOS - TDK Electronics	3,965	2.39	- + RFQ	Datasheet	Box	ETD44/22/15	Active	ETD	ETD 44 x 22 x 15	N87	-	-	-	Gapped	-	2200	0.6	103	173	172	17800	Uncoated	0.886 (22.50mm)
B65651D0315A087 FERRITE CORE EPCOS - TDK Electronics	3,510	2.40	- + RFQ	Datasheet	Box	P18/11	Active	-	P 18 x 11	N87	0.724 (18.40mm)	-	-	Gapped	-	2200	0.6	25.9	43	-	1114	Uncoated	0.209 (5.30mm)
B65651W0160A087 FERRITE CORE EPCOS - TDK Electronics	3,651	2.40	- + RFQ	Datasheet	Box	P18/11	Active	-	P 18 x 11	N87	0.724 (18.40mm)	-	-	Gapped	-	2200	0.57	26.6	46.7	33.9	1242	Uncoated	0.209 (5.30mm)
B65651W0250A087 FERRITE CORE EPCOS - TDK Electronics	3,729	2.40	- + RFQ	Datasheet	Box	P18/11	Active	-	P 18 x 11	N87	0.724 (18.40mm)	-	-	Gapped	-	2200	0.57	26.6	46.7	33.9	1242	Uncoated	0.209 (5.30mm)
B65651W0315A087 FERRITE CORE EPCOS - TDK Electronics	3,689	2.40	- + RFQ	Datasheet	Box	P18/11	Active	-	P 18 x 11	N87	0.724 (18.40mm)	-	-	Gapped	-	2200	0.57	26.6	46.7	33.9	1242	Uncoated	0.209 (5.30mm)
PQ32/35-3C96 PQ CORES 2PC SET Ferroxcube	3,258	2.40	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 32 x 35	3C96	-	-	±25%	Ungapped	1710	-	0.503	83.5	166	143	13800	Uncoated	1.378 (35.00mm)
B66365G0200X127 FERRITE CORE ETD N27 1PC EPCOS - TDK Electronics	3,224	2.42	- + RFQ	Datasheet	Box	ETD44/22/15	Active	ETD	ETD 44 x 22 x 15	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.886 (22.50mm)
B66365G0050X127 FERRITE CORE EPCOS - TDK Electronics	2,345	2.42	- + RFQ	Datasheet	Box	ETD44/22/15	Active	ETD	ETD 44 x 22 x 15	N27	-	-	-	Gapped	-	2000	0.6	103	173	172	17800	Uncoated	0.886 (22.50mm)

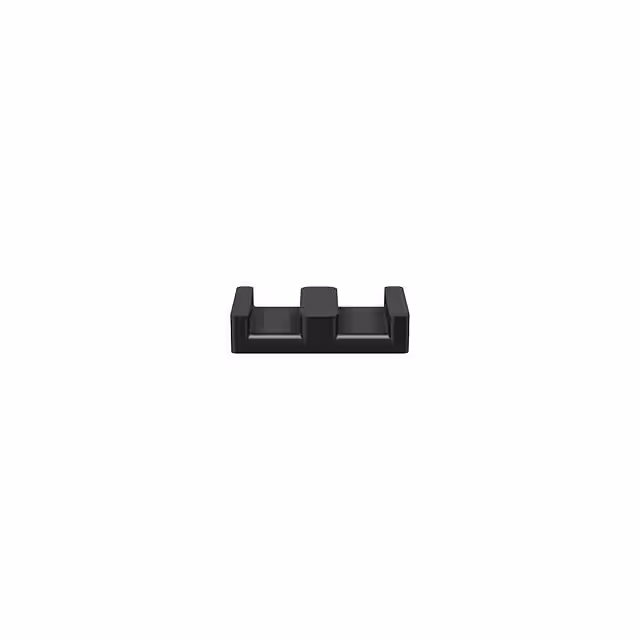

B66291G0100X187 ELP43/10/28 N87 GAP 0.1 MM EPCOS - TDK Electronics	2,054	2.42	- + RFQ	Datasheet	Bulk	ELP43/10/28	Not For New Designs	ELP	ELP 43 x 10 x 28	N87	-	7.3 µH	±25%	Gapped	1560	-	0.27	61.1	225	225	14000	Uncoated	0.374 (9.50mm)
B65651D0500A048 FERRITE CORE P 500NH N48 2PCS EPCOS - TDK Electronics	3,237	2.42	- + RFQ	Datasheet	Box	P18/11	Active	P (Pot Core)	P 18 x 11	N48	0.724 (18.40mm)	500 nH	±3%	Gapped	240	-	0.6	25.9	43	-	1114	Uncoated	0.209 (5.30mm)
B65651D0630K048 FERRITE CORE EPCOS - TDK Electronics	2,020	2.42	- + RFQ	Datasheet	Box	P18/11	Active	-	P 18 x 11	N48	0.724 (18.40mm)	-	-	Gapped	-	2300	0.6	25.9	43	-	1114	Uncoated	0.209 (5.30mm)
B65651D0000Y038 FERRITE CORE EPCOS - TDK Electronics	2,389	2.42	- + RFQ	Datasheet	Box	P18/11	Active	-	P 18 x 11	T38	0.724 (18.40mm)	-	-	-	-	10000	0.6	25.9	43	-	1114	Uncoated	0.209 (5.30mm)
ETD54/28/19-3F36 ER AND ETD CORES Ferroxcube	3,884	2.44	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 54 x 28 x 19	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.087 (27.60mm)
6678404121 78 PQ CORE SET Fair-Rite Products Corp.	2,255	2.45	- + RFQ	Datasheet	Bulk	-	Active	PQ	-	78	-	-	±25%	Ungapped	-	2300	52.3	103.6	198	170	20500	Uncoated	-
6695353621 95 PQ CORE SET Fair-Rite Products Corp.	3,622	2.46	- + RFQ	Datasheet	Bulk	-	Active	PQ	-	95	-	-	±25%	Ungapped	-	3000	48.2	88.2	183	161.7	16130	Uncoated	0.685 (17.40mm)
E56/24/19-3C91 E CORES Ferroxcube	3,346	2.46	- + RFQ	Datasheet	Bulk	-	Active	E	E 56 x 24 x 19	3C91	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.929 (23.60mm)
