Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
ETD54/28/19-3C97-G1000 ER AND ETD CORES Ferroxcube	3,098	2.65	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 54 x 28 x 19	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.087 (27.60mm)
ETD54/28/19-3C97-G200 ER AND ETD CORES Ferroxcube	3,025	2.65	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 54 x 28 x 19	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.087 (27.60mm)
ETD54/28/19-3C97-G500 ER AND ETD CORES Ferroxcube	3,832	2.65	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 54 x 28 x 19	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.087 (27.60mm)
9578495402 78 EER CORE SET Fair-Rite Products Corp.	2,084	2.65	- + RFQ	Datasheet	Bulk	-	Active	EER	-	78	-	-	±25%	Ungapped	-	2300	48	118	245	232	29020	Uncoated	1.063 (27.00mm)
E55/28/21-3C95-G500 E CORES Ferroxcube	2,922	2.66	- + RFQ	Datasheet	Bulk	-	Active	E	E 55 x 28 x 21	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
B65811J0250A038 FERRITE CORE EPCOS - TDK Electronics	2,361	2.66	- + RFQ	Datasheet	Box	RM8	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-
E55/28/21-3C92-G1000 E CORES Ferroxcube	3,037	2.66	- + RFQ	Datasheet	Bulk	-	Active	E	E 55 x 28 x 21	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
E55/28/21-3C92-G500 E CORES Ferroxcube	2,102	2.66	- + RFQ	Datasheet	Bulk	-	Active	E	E 55 x 28 x 21	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
MS21X14X4.5W AMORPHOUS CORE - MAGAMP Toshiba Semiconductor and Storage	3,401	2.67	- + RFQ		Bag	MS	Active	Toroid	-	-	-	-	-	Ungapped	-	-	-	-	11.8	-	-	Coated	0.260 (6.60mm)
PQ35/35-3C94 PQ CORES 2PC SET Ferroxcube	2,696	2.68	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 35 x 35	3C94	-	-	±25%	Ungapped	-	-	0.454	86.1	190	162	16300	Uncoated	1.366 (34.70mm)
B65651D0000R041 FERRITE CORE EPCOS - TDK Electronics	3,280	2.68	- + RFQ	Datasheet	Box	P18/11	Active	-	P 18 x 11	N41	0.724 (18.40mm)	-	-	-	-	2800	0.6	25.9	43	-	1114	Uncoated	0.209 (5.30mm)
E55/28/25-3C91 E CORES Ferroxcube	2,311	2.68	- + RFQ	Datasheet	Bulk	-	Active	E	E 55 x 28 x 25	3C91	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)

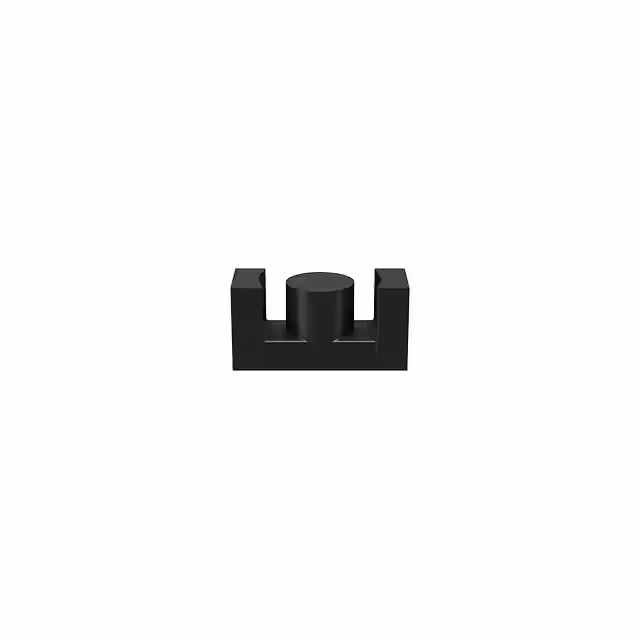

B66377G1000X127 FERRITE CORE ER N27 1PC EPCOS - TDK Electronics	3,713	2.69	- + RFQ	Datasheet	Box	ER46/17/18	Active	ER	ER 46 x 17 x 18	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.689 (17.50mm)
B66377G1500X127 FERRITE CORE EPCOS - TDK Electronics	3,635	2.69	- + RFQ	Datasheet	Box	ER46/17/18	Active	ER	ER 46 x 17 x 18	N27	-	-	-	Gapped	-	2000	0.34	79	233	226	18400	Uncoated	0.689 (17.50mm)
B65661D0000Y038 FERRITE CORE P 16UH T38 2PCS EPCOS - TDK Electronics	3,035	2.69	- + RFQ	Datasheet	Box	P22/13	Active	P (Pot Core)	P 22 x 13	T38	0.866 (22.00mm)	16 µH	-30%, +40%	Ungapped	5820	10000	0.5	31.6	63	-	1990	Uncoated	0.268 (6.80mm)
P26/16-3C95 P CORES 2PC SET Ferroxcube	2,269	2.69	- + RFQ	Datasheet	Bulk	-	Active	P (Pot Core)	P 26 x 16	3C95	1.004 (25.50mm)	6.7 µH	±25%	Ungapped	2100	-	0.4	37.6	93.9	77.4	3530	Uncoated	0.634 (16.10mm)
E55/28/21-3F36 E CORES Ferroxcube	2,241	2.71	- + RFQ	Datasheet	Bulk	-	Active	E	E 55 x 28 x 21	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
E56/24/19-3C91-G1000 E CORES Ferroxcube	2,396	2.71	- + RFQ	Datasheet	Bulk	-	Active	E	E 56 x 24 x 19	3C91	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.929 (23.60mm)
E56/24/19-3C91-G500 E CORES Ferroxcube	3,258	2.71	- + RFQ	Datasheet	Bulk	-	Active	E	E 56 x 24 x 19	3C91	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.929 (23.60mm)
B66383G0000X165 FERRITE CORE EPCOS - TDK Electronics	3,103	2.71	- + RFQ	Datasheet	Box	E47/20/16	Active	E	E 47 x 20 x 16	T65	-	-	-	-	-	5200	0.38	89	233	226	20700	Uncoated	0.772 (19.60mm)
