Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
RM12/ILP-3C90 RM CORES 2PC SET Ferroxcube	3,741	2.73	- + RFQ		Bulk	-	Active	RM	RM 12	3C90	-	-	-	Ungapped	-	-	0.28	42	148	125	6200	Uncoated	0.661 (16.80mm)
PLT58/38/4-3C92 PLANAR E CORES Ferroxcube	3,395	2.74	- + RFQ	Datasheet	Bulk	-	Active	PLT	PLT 58 x 38 x 4	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.161 (4.10mm)
PQ35/30-3C96 PQ CORES 2PC SET Ferroxcube	3,753	2.74	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 35 x 30	3C96	-	-	±25%	Ungapped	1660	-	0.401	77	192	163	14800	Uncoated	1.181 (30.00mm)
UR57/28/16-3C90 UR CORES Ferroxcube	2,581	2.75	- + RFQ	Datasheet	Bulk	-	Active	UR	UR 57 x 28 x 16	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.118 (28.40mm)

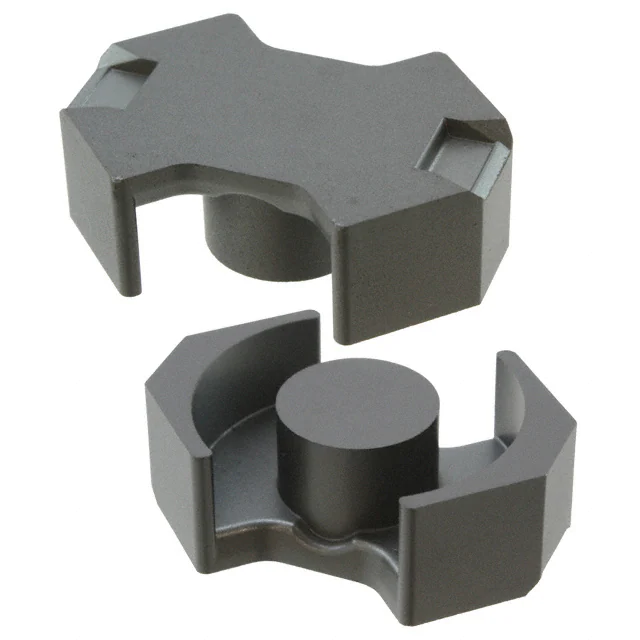

B65813J0000R030 FERRITE CORE RM 7.6UH N30 2PCS EPCOS - TDK Electronics	3,644	2.75	- + RFQ	Datasheet	Box	RM10	Active	RM	RM 10	N30	-	7.6 µH	-20%, +30%	Ungapped	2720	4300	0.45	44	98	90	4310	Uncoated	0.368 (9.35mm)

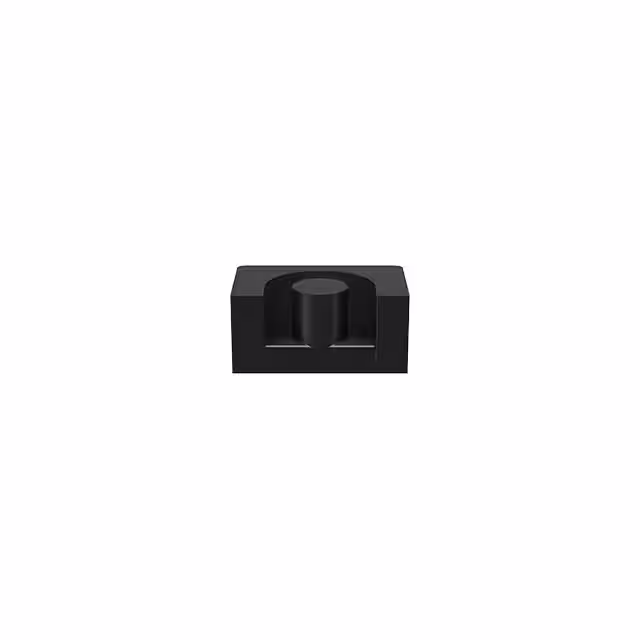

B65845J0000Y038 FERRITE CORE EP 10.8UH T38 2PCS EPCOS - TDK Electronics	2,476	2.75	- + RFQ	Datasheet	Box	EP17	Active	EP	EP 17	T38	-	10.8 µH	-30%, +40%	Ungapped	7220	10000	0.84	28.5	33.9	25.5	966	Uncoated	0.335 (8.50mm)
B64290L0657X035 FERRITE CORE EPCOS - TDK Electronics	3,448	2.75	- + RFQ	Datasheet	Box	TX30/20/12	Active	Toroid	-	T35	-	-	-	Gapped	-	6000	-	-	-	-	-	Epoxy	-
B66459W0630J187 FERRITE CORE EPCOS - TDK Electronics	3,814	2.76	- + RFQ		Box	ELP38/8/25	Active	-	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	-	-
E55/28/21-3C95-G1000 E CORES Ferroxcube	2,727	2.76	- + RFQ	Datasheet	Bulk	-	Active	E	E 55 x 28 x 21	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
E56/24/19-3C95 E CORES Ferroxcube	2,190	2.76	- + RFQ	Datasheet	Bulk	-	Active	E	E 56 x 24 x 19	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.929 (23.60mm)
6295420121 95 RM CORE SET Fair-Rite Products Corp.	2,769	2.76	- + RFQ	Datasheet	Bulk	-	Active	RM	-	95	-	-	±25%	Ungapped	-	3000	38	73.8	195	170.9	14370	Uncoated	-
9595424402 95 EER CORE SET Fair-Rite Products Corp.	3,275	2.77	- + RFQ	Datasheet	Bulk	-	Active	EER	-	95	-	-	±25%	Ungapped	-	3000	52	97.9	187	181	18260	Uncoated	0.866 (22.00mm)
PQ32/30-3F46 PQ CORES 2PC SET Ferroxcube	2,069	2.77	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 32 x 30	3F46	-	-	±25%	Ungapped	-	-	0.447	74.7	167	142	12500	Uncoated	1.193 (30.30mm)
B65651D0160A041 FERRITE CORE EPCOS - TDK Electronics	2,520	2.77	- + RFQ	Datasheet	Box	P18/11	Active	-	P 18 x 11	N41	0.724 (18.40mm)	-	-	Gapped	-	2800	0.6	25.9	43	-	1114	Uncoated	0.209 (5.30mm)
B65845J0000R035 FERRITE CORE EPCOS - TDK Electronics	2,394	2.79	- + RFQ	Datasheet	Box	EP17	Active	EP	EP 17	T35	-	-	-	-	-	6000	0.84	28.5	33.9	25.5	966	Uncoated	0.335 (8.50mm)
PLT58/38/4-3C96 PLANAR E CORES Ferroxcube	2,410	2.79	- + RFQ	Datasheet	Bulk	-	Active	PLT	PLT 58 x 38 x 4	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.161 (4.10mm)
E55/28/21-3C92-G2000 E CORES Ferroxcube	2,868	2.79	- + RFQ	Datasheet	Bulk	-	Active	E	E 55 x 28 x 21	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
9598494902 98 ETD CORE SET Fair-Rite Products Corp.	3,111	2.80	- + RFQ	Datasheet	Bulk	-	Active	ETD	-	-	-	-	±25%	Ungapped	-	2400	53	114.4	213.5	209	24420	Uncoated	-
E55/28/21-3C90-E100 E CORES Ferroxcube	2,948	2.81	- + RFQ		Bulk	-	Active	E	E 55 x 28 x 21	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)

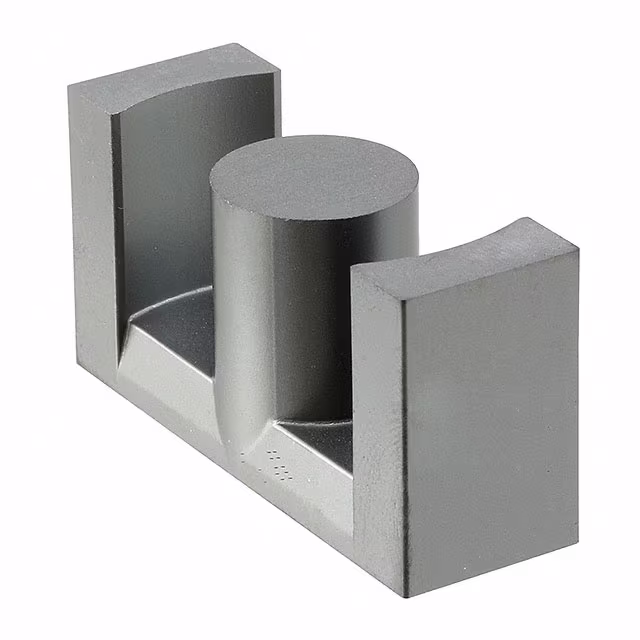

B66367G1000X127 FERRITE CORE ETD N27 1PC EPCOS - TDK Electronics	3,410	2.82	- + RFQ	Datasheet	Box	ETD49/25/16	Active	ETD	ETD 49 x 25 x 16	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.980 (24.90mm)
