| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | CoreType | Material | Diameter | InductanceFactor(Al) | Tolerance | Gap | EffectivePermeability(µe) | InitialPermeability(µi) | CoreFactor(ΣI/A)mm-1 | EffectiveLength(le)mm | EffectiveArea(Ae)mm² | MinimumCoreCrossSection(Amin)mm² | EffectiveMagneticVolume(Ve)mm³ | Finish | Height | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TX42/26/13-3E65FERRITE CORES ROUND |
2,794 | 2.99 |
RFQ |
Datasheet |
Bulk | - | Active | Toroid | TX 42 x 26 x 13 | - | 1.697 (43.15mm) | - | ±25% | Ungapped | 5200 | - | 1.076 | 103 | 95.8 | - | 9860 | Epoxy | 0.531 (13.50mm) |
|
|
E56/24/19-3C94-G1000E CORES |
2,292 | 3.00 |
RFQ |
Datasheet |
Bulk | - | Active | E | E 56 x 24 x 19 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.929 (23.60mm) |
|
|
E56/24/19-3C94-G2000E CORES |
3,076 | 3.00 |
RFQ |
Datasheet |
Bulk | - | Active | E | E 56 x 24 x 19 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.929 (23.60mm) |
|
|
RM12/ILP-3F4RM CORES 2PC SET |
2,504 | 3.00 |
RFQ |
Datasheet |
Bulk | - | Active | RM | RM 12 | 3F4 | - | - | ±25% | Ungapped | - | - | 0.28 | 42 | 148 | 125 | 6200 | Uncoated | 0.661 (16.80mm) |
|
|
B66367G0100X187FERRITE CORE |
3,294 | 3.01 |
RFQ |
Datasheet |
Box | ETD49/25/16 | Active | ETD | ETD 49 x 25 x 16 | N87 | - | - | - | Gapped | - | 2200 | 0.54 | 114 | 211 | 209 | 24100 | Uncoated | 0.980 (24.90mm) |
|
|
B66367G1250X187FERRITE CORE |
2,959 | 3.01 |
RFQ |
Datasheet |
Box | ETD49/25/16 | Active | ETD | ETD 49 x 25 x 16 | N87 | - | - | - | Gapped | - | 2200 | 0.54 | 114 | 211 | 209 | 24100 | Uncoated | 0.980 (24.90mm) |
|
|
B66367G1400X187FERRITE CORE |
2,909 | 3.01 |
RFQ |
Datasheet |
Box | ETD49/25/16 | Active | ETD | ETD 49 x 25 x 16 | N87 | - | - | - | Gapped | - | 2200 | 0.54 | 114 | 211 | 209 | 24100 | Uncoated | 0.980 (24.90mm) |
|

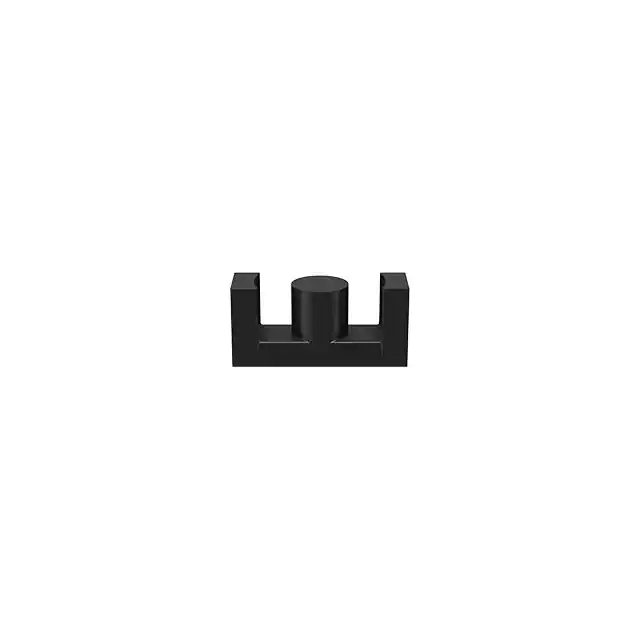

B66367G1500X187FERRITE CORE |
3,672 | 3.01 |
RFQ |
Datasheet |
Box | ETD49/25/16 | Active | ETD | ETD 49 x 25 x 16 | N87 | - | - | - | Gapped | - | 2200 | 0.54 | 114 | 211 | 209 | 24100 | Uncoated | 0.980 (24.90mm) |
|
|
E56/24/19-3C92-G2000E CORES |
3,630 | 3.02 |
RFQ |
Datasheet |
Bulk | - | Active | E | E 56 x 24 x 19 | 3C92 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.929 (23.60mm) |
|
|
RM12/I-3C94RM CORES 2PC SET |
3,136 | 3.03 |
RFQ |
Datasheet |
Bulk | - | Active | RM | RM 12 | 3C94 | - | - | ±25% | Ungapped | 1730 | - | 0.388 | 56.6 | 146 | 125 | 8340 | Uncoated | 0.965 (24.50mm) |
|
|
B66367G3000X127FERRITE CORE |
2,787 | 3.04 |
RFQ |
Datasheet |
Box | ETD49/25/16 | Active | ETD | ETD 49 x 25 x 16 | N27 | - | - | - | Gapped | - | 2000 | 0.54 | 114 | 211 | 209 | 24100 | Uncoated | 0.980 (24.90mm) |
|
|
E58/11/38-3C90PLANAR E CORES |
2,529 | 3.04 |
RFQ |
Bulk | - | Active | E | E 58 x 11 x 38 | 3C90 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.413 (10.50mm) | |
|
|
E55/28/21-3F36-G2000E CORES |
2,285 | 3.05 |
RFQ |
Datasheet |
Bulk | - | Active | E | E 55 x 28 x 21 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.083 (27.50mm) |
|
|
PLT58/38/4-3C97PLANAR E CORES |
3,837 | 3.05 |
RFQ |
Datasheet |
Bulk | - | Active | PLT | PLT 58 x 38 x 4 | 3C97 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.161 (4.10mm) |
|

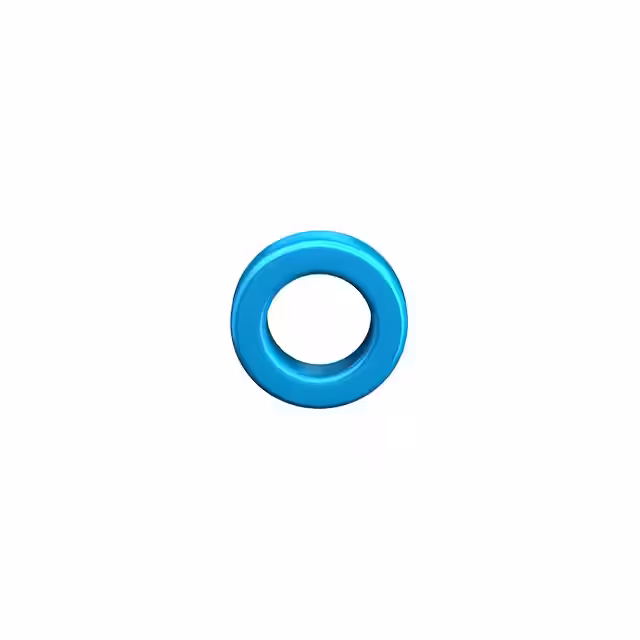

B64290L0048X037FERRITE CORE TOROID 7.6UH T37 |
2,329 | 3.06 |
RFQ |
Datasheet |
Box | TX34/20.5/12.5 | Active | Toroid | - | T37 | 1.397 (35.50mm) | 7.6 µH | ±25% | Ungapped | - | 6000 | 0.99 | 82.06 | 82.6 | - | 6778 | Epoxy | 0.535 (13.60mm) |
|
|
B64290L0048X038FERRITE CORES |
2,134 | 3.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | TX34/20.5/12.5 | Active | Toroid | R 34.0 × 20.5 × 12.5 | T38 | - | - | ±30% | Ungapped | - | 10000 | 0.99 | 82.06 | 82.6 | - | 6778 | Epoxy | - |
|
|
B65661D0160A041FERRITE CORE |
3,682 | 3.08 |
RFQ |
Datasheet |
Box | P23/13 | Active | - | P 22 x 13 | N41 | 0.866 (22.00mm) | - | - | Gapped | - | 2800 | 0.5 | 31.6 | 63 | - | 1990 | Uncoated | 0.268 (6.80mm) |
|
|
B65847A1000K087FERRITE CORE |
2,008 | 3.09 |
RFQ |
Datasheet |
Box | EP20 | Active | EP | EP 20 | N87 | - | - | - | Gapped | - | 2200 | 0.51 | 40 | 78 | 60 | 3120 | Uncoated | 0.425 (10.80mm) |
|
PQ32/35-3C95FERRITE CORE 2PC SET |
2,996 | 3.09 |
RFQ |
Datasheet |
Bulk | - | Active | PQ | PQ 32 x 35 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.378 (35.00mm) |
|
|
PQ32/35-3C97FERRITE CORE 2PC SET |
2,954 | 3.09 |
RFQ |
Datasheet |
Bulk | - | Active | PQ | PQ 32 x 35 | 3C97 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.378 (35.00mm) |
