Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
ROD10/140-3C90 FERRITE ROD Ferroxcube	3,783	3.09	- + RFQ	Datasheet	Bulk	-	Active	ROD	ROD 10 x 140	3C90	0.394 (10.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	-
E55/28/25-3C90-G2500 E CORES Ferroxcube	2,053	3.10	- + RFQ		Bulk	-	Active	E	E 55 x 28 x 25	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
E55/28/25-3C91-G2000 E CORES Ferroxcube	2,917	3.10	- + RFQ	Datasheet	Bulk	-	Active	E	E 55 x 28 x 25	3C91	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
E55/28/25-3C94-G2000 E CORES Ferroxcube	2,424	3.10	- + RFQ	Datasheet	Bulk	-	Active	E	E 55 x 28 x 25	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
ROD10/100-4B1 FERRITE ROD Ferroxcube	3,370	3.10	- + RFQ	Datasheet	Bulk	-	Active	ROD	ROD 1.5 x 100	-	0.059 (1.50mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	-
9578545402 78 ETD CORE SET Fair-Rite Products Corp.	3,579	3.11	- + RFQ	Datasheet	Bulk	-	Active	ETD	-	78	-	-	±25%	Ungapped	-	2300	47	125.6	265	240	33300	Uncoated	-
E56/24/19-3C95-G2000 E CORES Ferroxcube	3,786	3.12	- + RFQ	Datasheet	Bulk	-	Active	E	E 56 x 24 x 19	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.929 (23.60mm)
B66483P0000X197 FERRITE CORE I N97 1PC EPCOS - TDK Electronics	2,192	3.14	- + RFQ	Datasheet	Box	I20/2.3/14	Obsolete	I	I 20 x 2	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.091 (2.30mm)
B65819N0063A033 FERRITE CORE EPCOS - TDK Electronics	3,602	3.15	- + RFQ	Datasheet	Box	RM7	Active	RM	RM 7	M33	-	-	-	Gapped	-	750	0.75	29.8	40	-	1190	Uncoated	0.265 (6.75mm)
E55/28/25-3C92-G1000 E CORES Ferroxcube	3,435	3.18	- + RFQ	Datasheet	Bulk	-	Active	E	E 55 x 28 x 25	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
E55/28/25-3C92-G500 E CORES Ferroxcube	2,368	3.18	- + RFQ	Datasheet	Bulk	-	Active	E	E 55 x 28 x 25	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
PQ40/30-3C96 PQ CORES 2PC SET Ferroxcube	3,534	3.20	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 40 x 30	3C96	-	-	±25%	Ungapped	1690	-	0.383	81	212	174	17100	Uncoated	1.181 (30.00mm)
PQ40/30-3F4 PQ CORES 2PC SET Ferroxcube	2,568	3.20	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 40 x 30	3F4	-	-	±25%	Ungapped	830	-	0.383	81	212	174	17100	Uncoated	1.181 (30.00mm)
B66367G3000X187 FERRITE CORE EPCOS - TDK Electronics	2,237	3.21	- + RFQ	Datasheet	Box	ETD49/25/16	Active	ETD	ETD 49 x 25 x 16	N87	-	-	-	Gapped	-	2200	0.54	114	211	209	24100	Uncoated	0.980 (24.90mm)
B65811F0250A041 FERRITE CORE EPCOS - TDK Electronics	3,480	3.22	- + RFQ	Datasheet	Box	RM8	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-

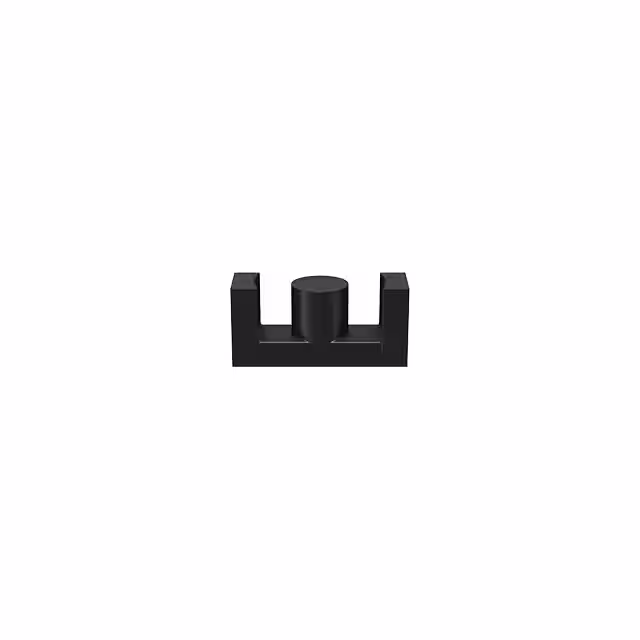

B66365G0000X195 FERRITE CORE ETD N95 1PC EPCOS - TDK Electronics	2,689	3.22	- + RFQ	Datasheet	Box	ETD44/22/15	Active	ETD	ETD 44 x 22 x 15	N95	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.886 (22.50mm)
E55/28/25-3F36 E CORES Ferroxcube	3,007	3.23	- + RFQ	Datasheet	Bulk	-	Active	E	E 55 x 28 x 25	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
9598545402 98 ETD CORE SET Fair-Rite Products Corp.	2,966	3.27	- + RFQ	Datasheet	Bulk	-	Active	ETD	-	-	-	-	±25%	Ungapped	-	2400	47	125.6	265	240	33300	Uncoated	-
B65671D0000R030 FERRITE CORE P 9.7UH N30 2PCS EPCOS - TDK Electronics	3,809	3.27	- + RFQ	Datasheet	Box	P26/16	Active	P (Pot Core)	P 26 x 16	N30	1.024 (26.00mm)	9.7 µH	-20%, +30%	Ungapped	2860	4300	0.4	37.2	93	76.5	3460	Uncoated	0.321 (8.15mm)
4277453509 77 SLEEVE Fair-Rite Products Corp.	2,149	3.28	- + RFQ		Bulk	-	Active	ROD	-	77	-	-	-	Ungapped	-	2000	-	-	-	-	-	Uncoated	-
